Solenoid
Solenoid
Artikelnr: F032130500

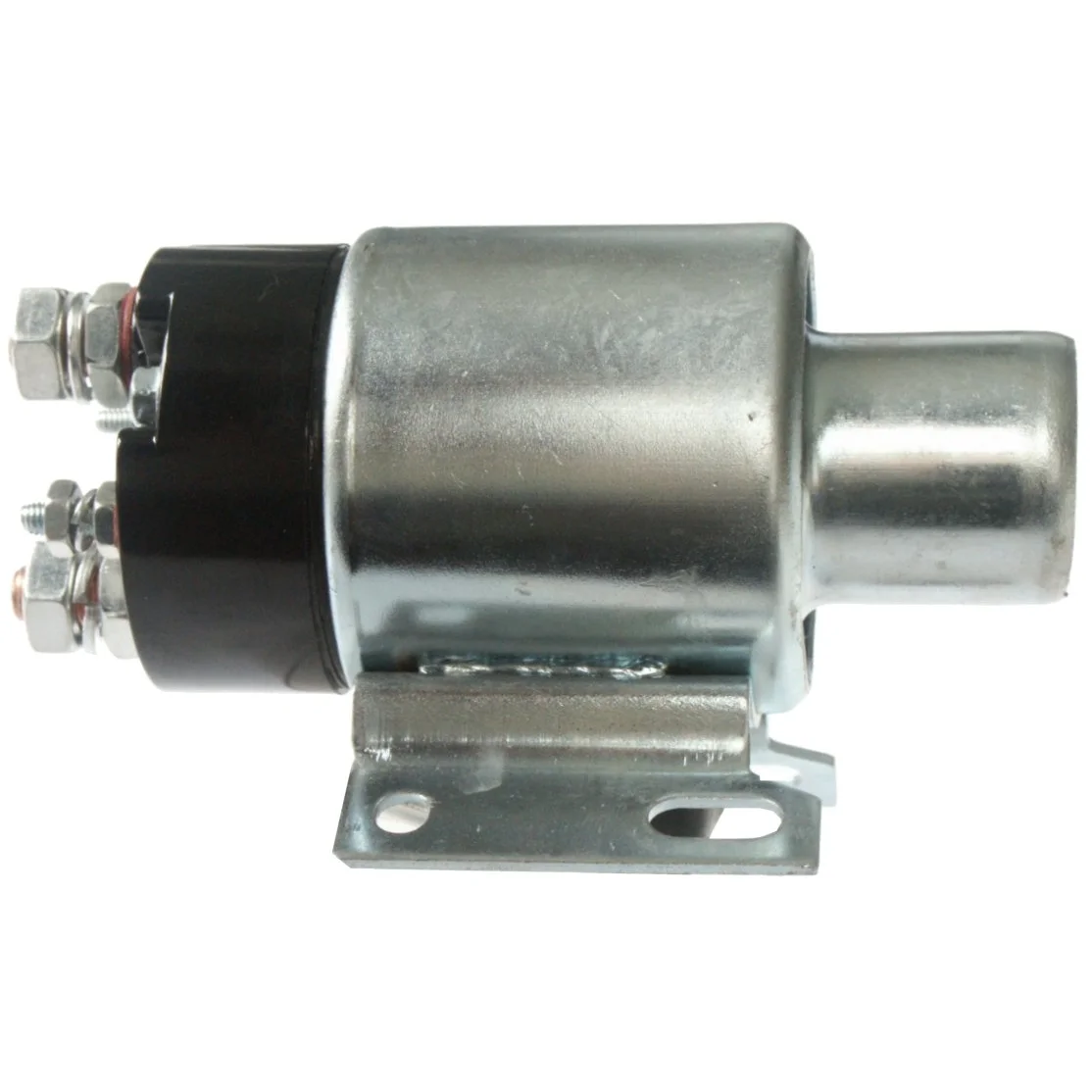

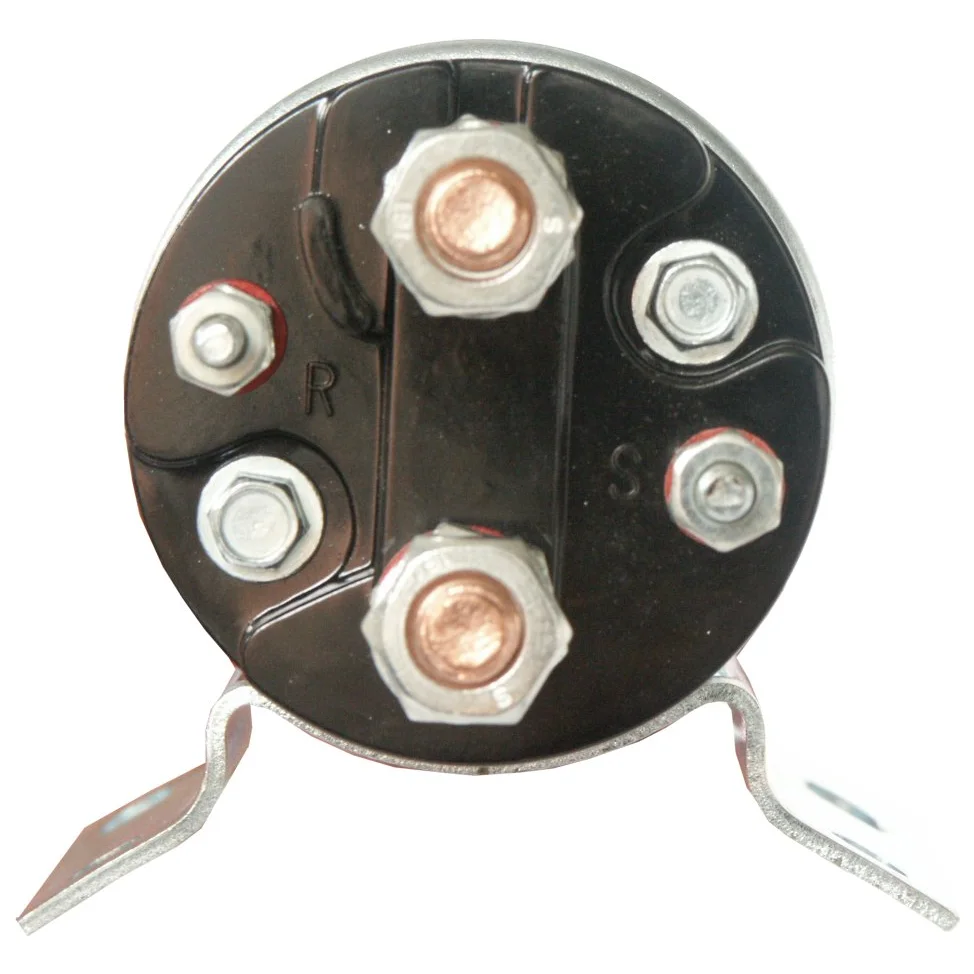

Solenoid

Teknisk info:

Voltage: 12, OD mm: 67.20, Total length mm: 153.00, No./mount. holes: 4

Beskrivning

Voltage: 12
OD mm: 67.20
Total length mm: 153.00
No./mount. holes: 4
B+: 3/8" UNC
Height/B+: 18.50
Terminal 15A/mm: 8-32 UNC
Terminal 15A/Width: 15.50
Terminal 50/mm: 10-32 UNF
Coil bolt: 3/8" UNC
Coil bolt l.: 19.50
No./terminals: 4
Servicing: 30MT

Filer

Specifikation

B+ 3/8" UNC
No./terminals 4
No./mount. holes 4
Coil bolt 3/8" UNC
Coil bolt l. 19.50
Servicing 30MT
Height/B+ 18.50
Terminal 15A/Width 15.50
Terminal 50 10-32 UNF
Voltage 12
Total length 153.00 mm
OD 67.20 mm

  • OEM
    d954, d959, d970, d971, d980, F032130500, 321507, 1114365, 1115501, 1115508, 1115510, 1115529, 1115531, 1115540, 1119778, 1119833, 1119877, 1119882, 1119885, 1119890, 1119933, 1119935

  • Konkurrentreferens
    F042010115, F042S10115, SND1163, SNLS-148, 7-951, 7-951B, 66-102

  • Normaliserat artikelnummer
    d954, d959, d970, d971, d980, f032130500, f042010115, f042s10115, snd1163, snls148, 7951, 7951b, 66102, 321507, 1114365, 1115501, 1115508, 1115510, 1115529, 1115531, 1115540, 1119778, 1119833, 1119877, 1119882, 1119885, 1119890, 1119933, 1119935
  • Beskrivning
    Voltage: 12
    OD mm: 67.20
    Total length mm: 153.00
    No./mount. holes: 4
    B+: 3/8" UNC
    Height/B+: 18.50
    Terminal 15A/mm: 8-32 UNC
    Terminal 15A/Width: 15.50
    Terminal 50/mm: 10-32 UNF
    Coil bolt: 3/8" UNC
    Coil bolt l.: 19.50
    No./terminals: 4
    Servicing: 30MT

    Filer

  • Specifikation
    B+ 3/8" UNC
    No./terminals 4
    No./mount. holes 4
    Coil bolt 3/8" UNC
    Coil bolt l. 19.50
    Servicing 30MT
    Height/B+ 18.50
    Terminal 15A/Width 15.50
    Terminal 50 10-32 UNF
    Voltage 12
    Total length 153.00 mm
    OD 67.20 mm
  • Fordonsmatchning

    • OEM
      d954, d959, d970, d971, d980, F032130500, 321507, 1114365, 1115501, 1115508, 1115510, 1115529, 1115531, 1115540, 1119778, 1119833, 1119877, 1119882, 1119885, 1119890, 1119933, 1119935

    • Konkurrentreferens
      F042010115, F042S10115, SND1163, SNLS-148, 7-951, 7-951B, 66-102

    • Normaliserat artikelnummer
      d954, d959, d970, d971, d980, f032130500, f042010115, f042s10115, snd1163, snls148, 7951, 7951b, 66102, 321507, 1114365, 1115501, 1115508, 1115510, 1115529, 1115531, 1115540, 1119778, 1119833, 1119877, 1119882, 1119885, 1119890, 1119933, 1119935
