Solenoid
Solenoid
Artikelnr: F032131369

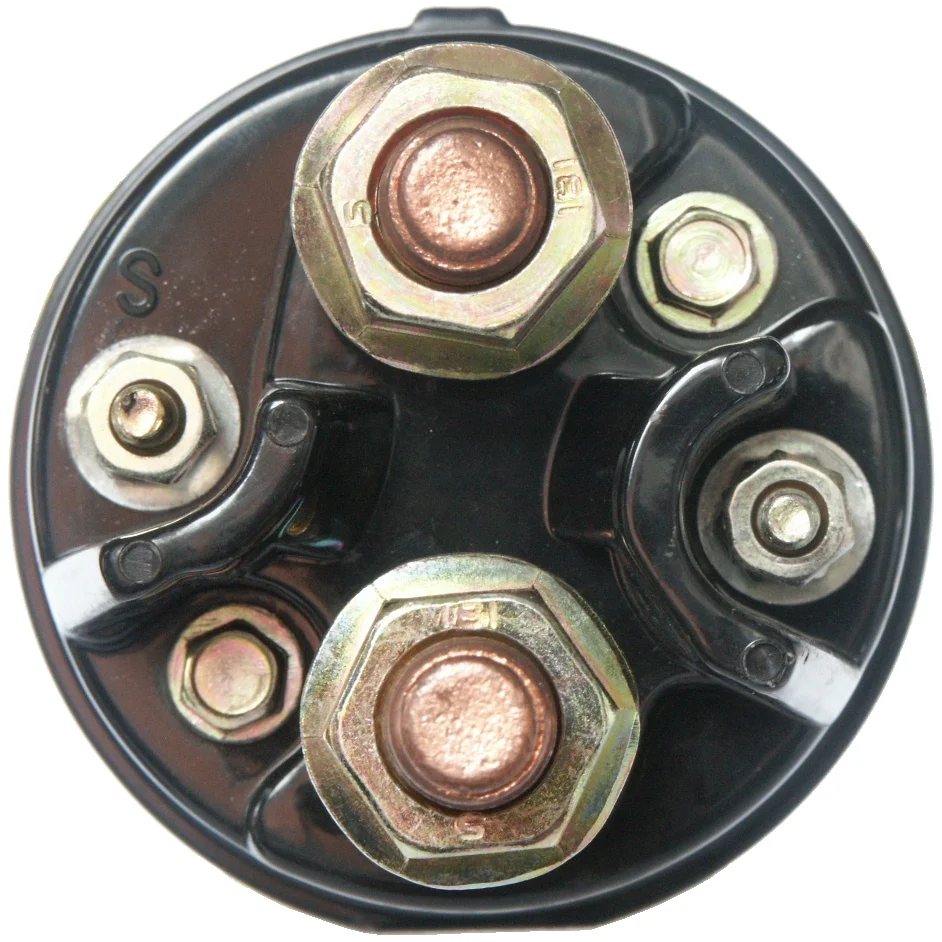

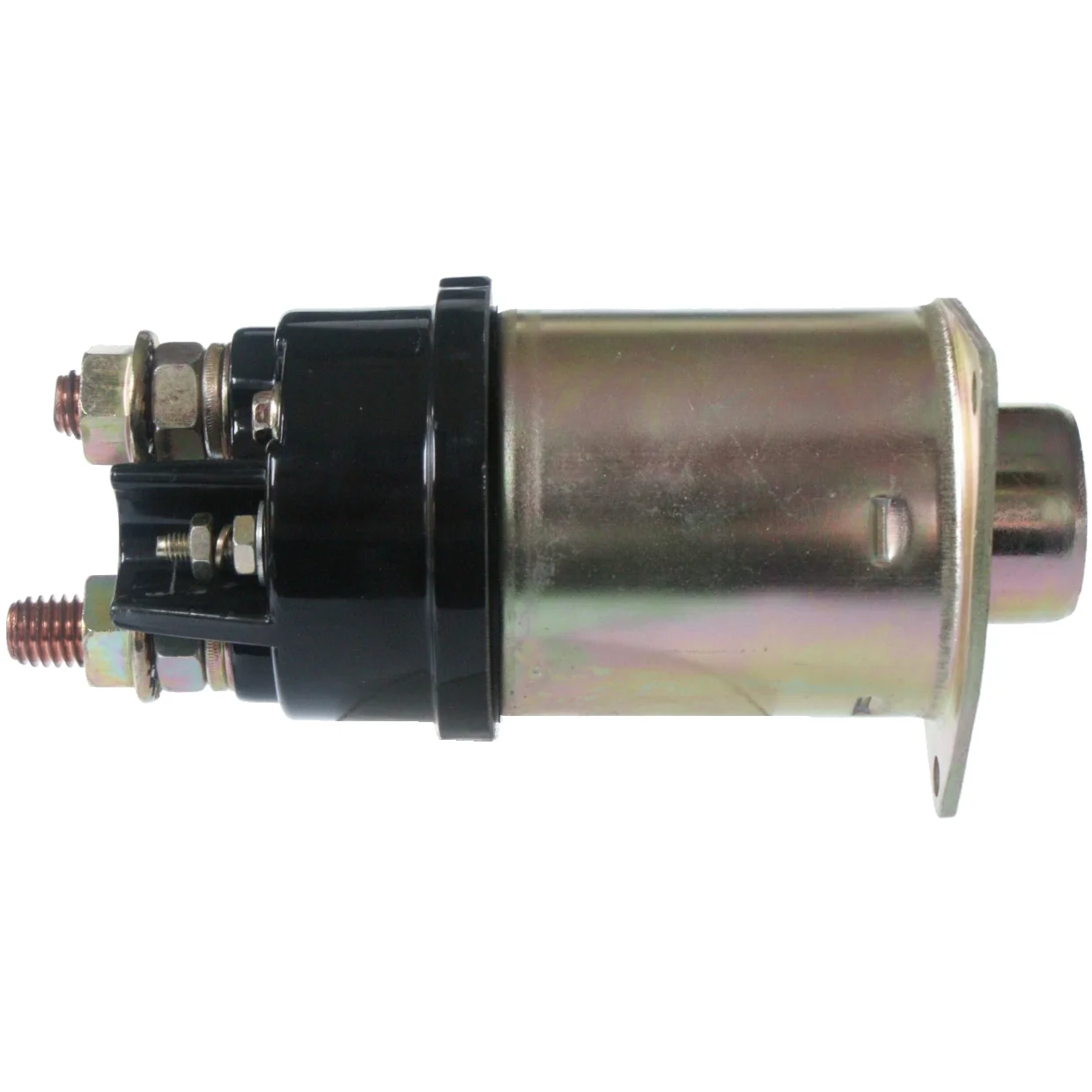

Solenoid

Teknisk info:

Voltage: 12, OD mm: 68.80, Total length mm: 160.00, No./mount. holes: 3

Beskrivning

Voltage: 12
OD mm: 68.80
Total length mm: 160.00
No./mount. holes: 3
Length mm: N/A
B+: 1/2" UNC
Height/B+: 26.00
Terminal 15A/mm: 10-32 UNF
Terminal 15A/Width: 12.50
Terminal 50/mm: 10-32 UNF
Coil bolt: 1/2" UNC
Coil bolt l.: 17.50
No./terminals: 4
Servicing: 42MT
Remarks: Insulated return. Cap: HC-CARGO 135324. Solenoid w/ plunger: HC-CARGO 234476.

Filer

Specifikation

B+ 1/2" UNC
No./terminals 4
No./mount. holes 3
Coil bolt 1/2" UNC
Coil bolt l. 17.50
Remarks Insulated return. Cap: HC-CARGO 135324. Solenoid w/ plunger: HC-CARGO 234476.
Servicing 42MT
Height/B+ 26.00
Terminal 15A/Width 12.50
Terminal 50 10-32 UNF
Voltage 12
Total length 160.00 mm
OD 68.80 mm
Length N/A mm

  • OEM
    E6HZ11390B, E6HZ11390C, F032131369, ZM 456, ZM 7-456, 7-456, 456, 1115593, 1115645

  • Konkurrentreferens
    F042010584, F042010590, F042S10584, F042S10590, SND1263, SNLS-D42, ss-192, SS1005, 7-942, 8-942, 66-113, 66-113-2, 20220

  • Normaliserat artikelnummer
    e6hz11390b, e6hz11390c, f032131369, f042010584, f042010590, f042s10584, f042s10590, snd1263, snlsd42, ss1005, ss192, zm456, zm7456, 456, 7456, 7942, 8942, 20220, 66113, 661132, 1115593, 1115645
  • Beskrivning
    Voltage: 12
    OD mm: 68.80
    Total length mm: 160.00
    No./mount. holes: 3
    Length mm: N/A
    B+: 1/2" UNC
    Height/B+: 26.00
    Terminal 15A/mm: 10-32 UNF
    Terminal 15A/Width: 12.50
    Terminal 50/mm: 10-32 UNF
    Coil bolt: 1/2" UNC
    Coil bolt l.: 17.50
    No./terminals: 4
    Servicing: 42MT
    Remarks: Insulated return. Cap: HC-CARGO 135324. Solenoid w/ plunger: HC-CARGO 234476.

    Filer

  • Specifikation
    B+ 1/2" UNC
    No./terminals 4
    No./mount. holes 3
    Coil bolt 1/2" UNC
    Coil bolt l. 17.50
    Remarks Insulated return. Cap: HC-CARGO 135324. Solenoid w/ plunger: HC-CARGO 234476.
    Servicing 42MT
    Height/B+ 26.00
    Terminal 15A/Width 12.50
    Terminal 50 10-32 UNF
    Voltage 12
    Total length 160.00 mm
    OD 68.80 mm
    Length N/A mm
  • Fordonsmatchning

    • OEM
      E6HZ11390B, E6HZ11390C, F032131369, ZM 456, ZM 7-456, 7-456, 456, 1115593, 1115645

    • Konkurrentreferens
      F042010584, F042010590, F042S10584, F042S10590, SND1263, SNLS-D42, ss-192, SS1005, 7-942, 8-942, 66-113, 66-113-2, 20220

    • Normaliserat artikelnummer
      e6hz11390b, e6hz11390c, f032131369, f042010584, f042010590, f042s10584, f042s10590, snd1263, snlsd42, ss1005, ss192, zm456, zm7456, 456, 7456, 7942, 8942, 20220, 66113, 661132, 1115593, 1115645
