Artikelnr: F032335014

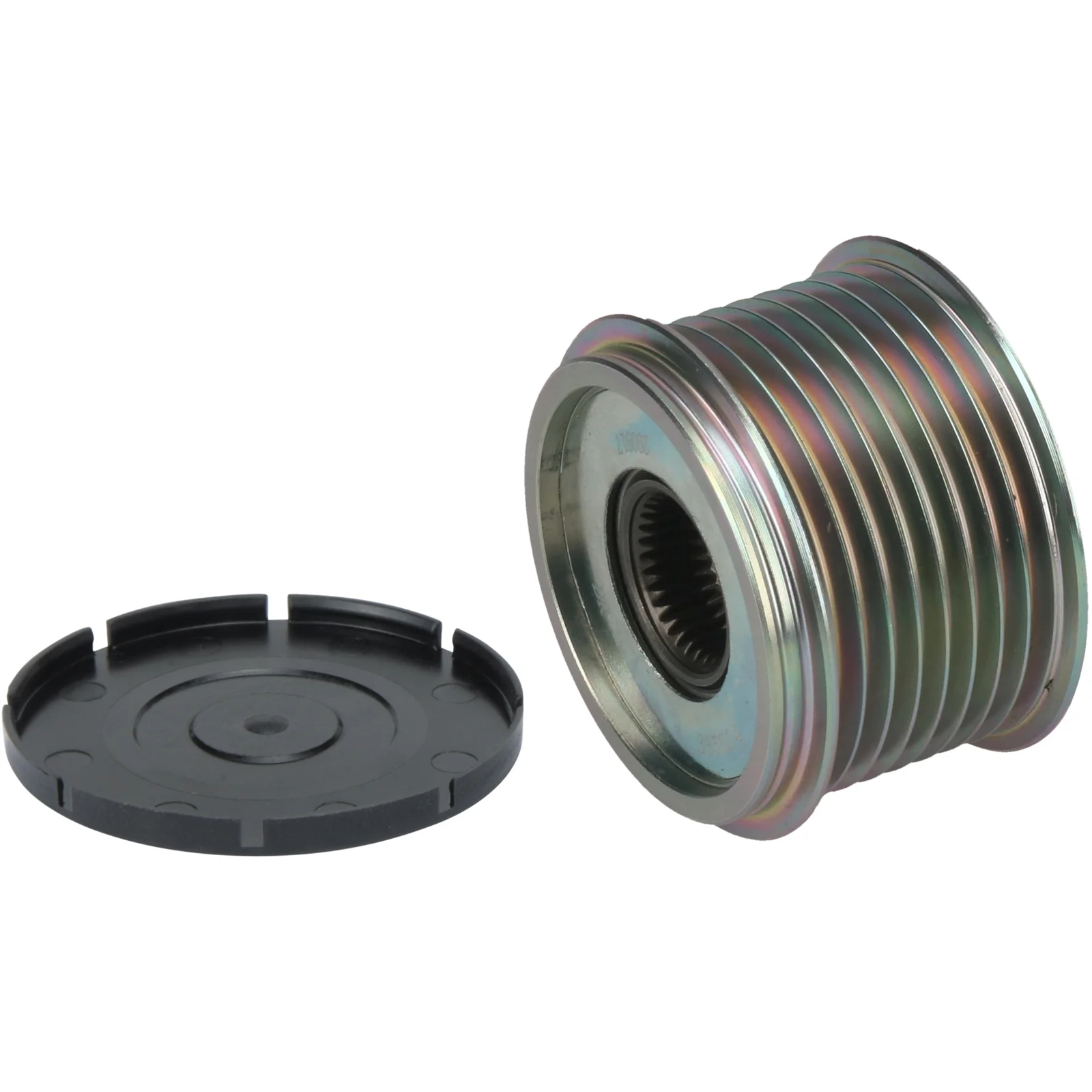

Remskiva

Teknisk info:

Rotation: CW, OD mm: 56.00, Width 1 mm: 38.90, Bore dia.: 17.00

Beskrivning

Rotation: CW
OD mm: 56.00
Width 1 mm: 38.90
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 9.00
Dist./back: 0.20
Pulley type: SP/FW
Grooves: 8
Belt type: Multi Belt
Free run: w/
Measurement 1. groove: 4.30
Source: N/A

Filer

Specifikation

Measurement 1. groove 4.30
Belt type Multi Belt
Bore dia. 17.00
Pulley type SP/FW
Rotation CW
Dist./back 0.20
Free run w/
Grooves 8
Source N/A
Thread size M16-1.50
Width 1 38.90 mm
Depth 9.00 mm
OD 56.00 mm

  • OEM
    AL158161, AL161112, AL166835, AL166836, F-233379.01, F-233379.02, F-233379.04, F032335014, 5534, 535013110, 1126601596, 5350131000

  • Konkurrentreferens
    AFP0100S, AFP9015(INA), AFP9015(V)

  • Normaliserat artikelnummer
    afp0100s, afp9015ina, afp9015v, al158161, al161112, al166835, al166836, f032335014, f23337901, f23337902, f23337904, 5534, 535013110, 1126601596, 5350131000
  • Beskrivning
    Rotation: CW
    OD mm: 56.00
    Width 1 mm: 38.90
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 9.00
    Dist./back: 0.20
    Pulley type: SP/FW
    Grooves: 8
    Belt type: Multi Belt
    Free run: w/
    Measurement 1. groove: 4.30
    Source: N/A

    Filer

  • Specifikation
    Measurement 1. groove 4.30
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley type SP/FW
    Rotation CW
    Dist./back 0.20
    Free run w/
    Grooves 8
    Source N/A
    Thread size M16-1.50
    Width 1 38.90 mm
    Depth 9.00 mm
    OD 56.00 mm
  • Fordonsmatchning

    • OEM
      AL158161, AL161112, AL166835, AL166836, F-233379.01, F-233379.02, F-233379.04, F032335014, 5534, 535013110, 1126601596, 5350131000

    • Konkurrentreferens
      AFP0100S, AFP9015(INA), AFP9015(V)

    • Normaliserat artikelnummer
      afp0100s, afp9015ina, afp9015v, al158161, al161112, al166835, al166836, f032335014, f23337901, f23337902, f23337904, 5534, 535013110, 1126601596, 5350131000
