Artikelnr: F032333433

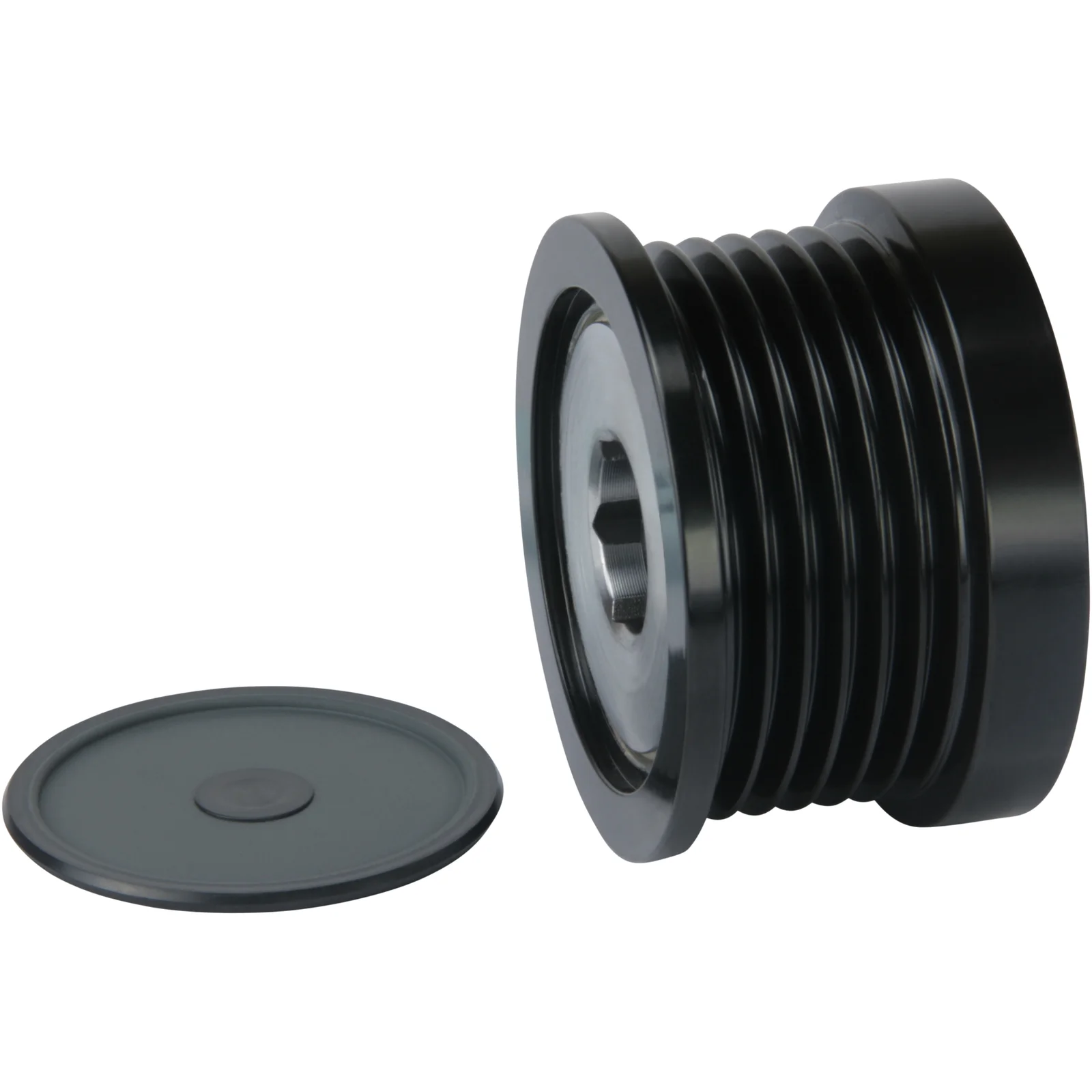

Remskiva

Teknisk info:

Rotation: CW, OD mm: 60.30, Width 1 mm: 41.00, Bore dia.: 17.00

Beskrivning

Rotation: CW
OD mm: 60.30
Width 1 mm: 41.00
Bore dia.: 17.00
Thread size: M14-1.50
Depth mm: 12.00
Pulley type: OAD
Grooves: 6
Belt type: Multi Belt
Free run: w/
Measurement 1. groove: 16.90
Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

Filer

Specifikation

Measurement 1. groove 16.90
Belt type Multi Belt
Bore dia. 17.00
Pulley type OAD
Remarks Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
Rotation CW
Free run w/
Grooves 6
Thread size M14-1.50
Width 1 41.00 mm
Depth 12.00 mm
OD 60.30 mm
  • Beskrivning
    Rotation: CW
    OD mm: 60.30
    Width 1 mm: 41.00
    Bore dia.: 17.00
    Thread size: M14-1.50
    Depth mm: 12.00
    Pulley type: OAD
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    Measurement 1. groove: 16.90
    Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

    Filer

  • Specifikation
    Measurement 1. groove 16.90
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley type OAD
    Remarks Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
    Rotation CW
    Free run w/
    Grooves 6
    Thread size M14-1.50
    Width 1 41.00 mm
    Depth 12.00 mm
    OD 60.30 mm
