Artikelnr: F032333426

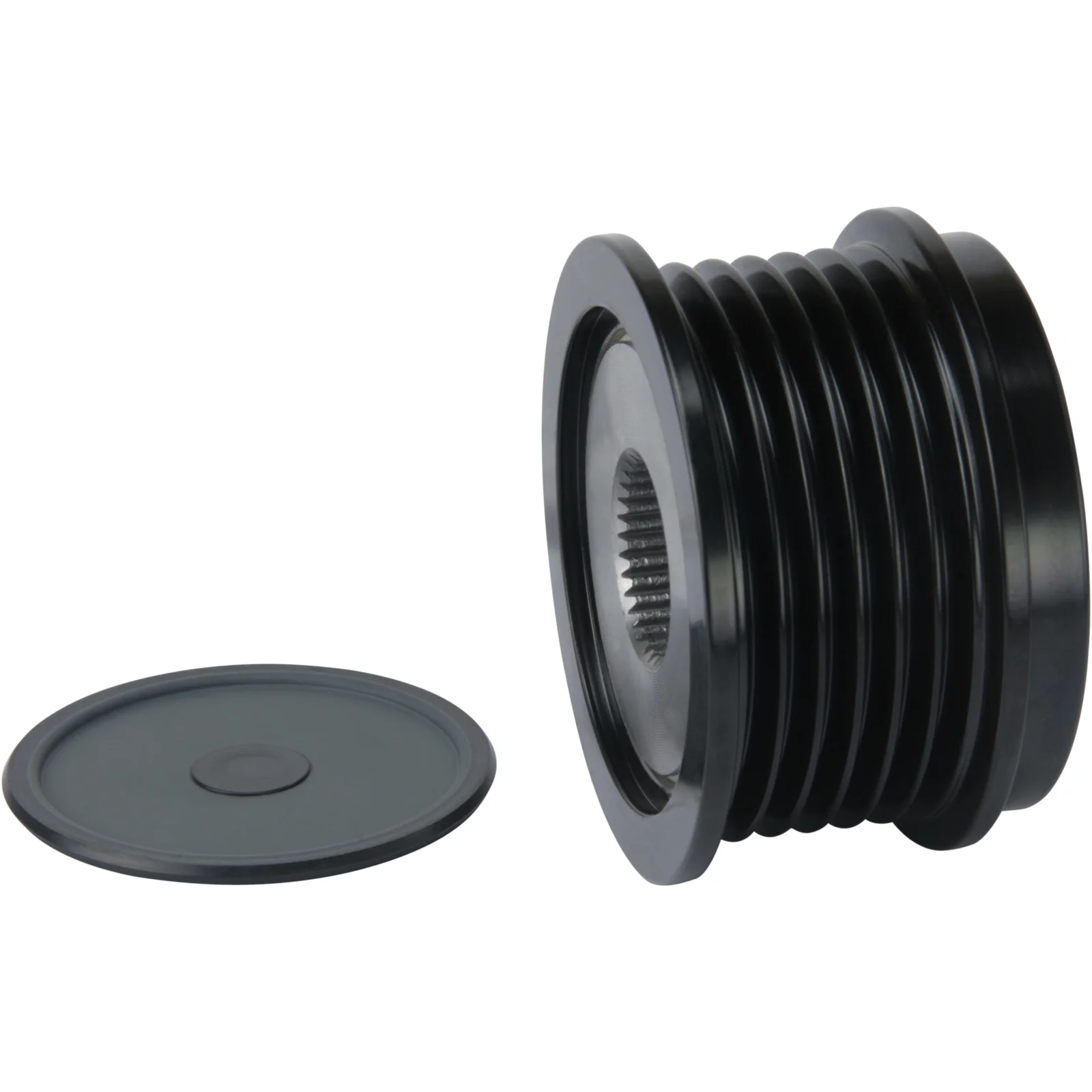

Remskiva

Teknisk info:

Rotation: CW, OD mm: 53.50, Width 1 mm: 40.10, Bore dia.: 17.00

Beskrivning

Rotation: CW
OD mm: 53.50
Width 1 mm: 40.10
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 15.30
Dist./back: 4.10
Pulley type: OAD
Grooves: 6
Belt type: Multi Belt
Free run: w/
Measurement 1. groove: 16.30
Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

Filer

Specifikation

Measurement 1. groove 16.30
Belt type Multi Belt
Bore dia. 17.00
Pulley type OAD
Remarks Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
Rotation CW
Dist./back 4.10
Free run w/
Grooves 6
Thread size M16-1.50
Width 1 40.10 mm
Depth 15.30 mm
OD 53.50 mm
  • Beskrivning
    Rotation: CW
    OD mm: 53.50
    Width 1 mm: 40.10
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 15.30
    Dist./back: 4.10
    Pulley type: OAD
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    Measurement 1. groove: 16.30
    Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

    Filer

  • Specifikation
    Measurement 1. groove 16.30
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley type OAD
    Remarks Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
    Rotation CW
    Dist./back 4.10
    Free run w/
    Grooves 6
    Thread size M16-1.50
    Width 1 40.10 mm
    Depth 15.30 mm
    OD 53.50 mm
