Artikelnr: F032333080

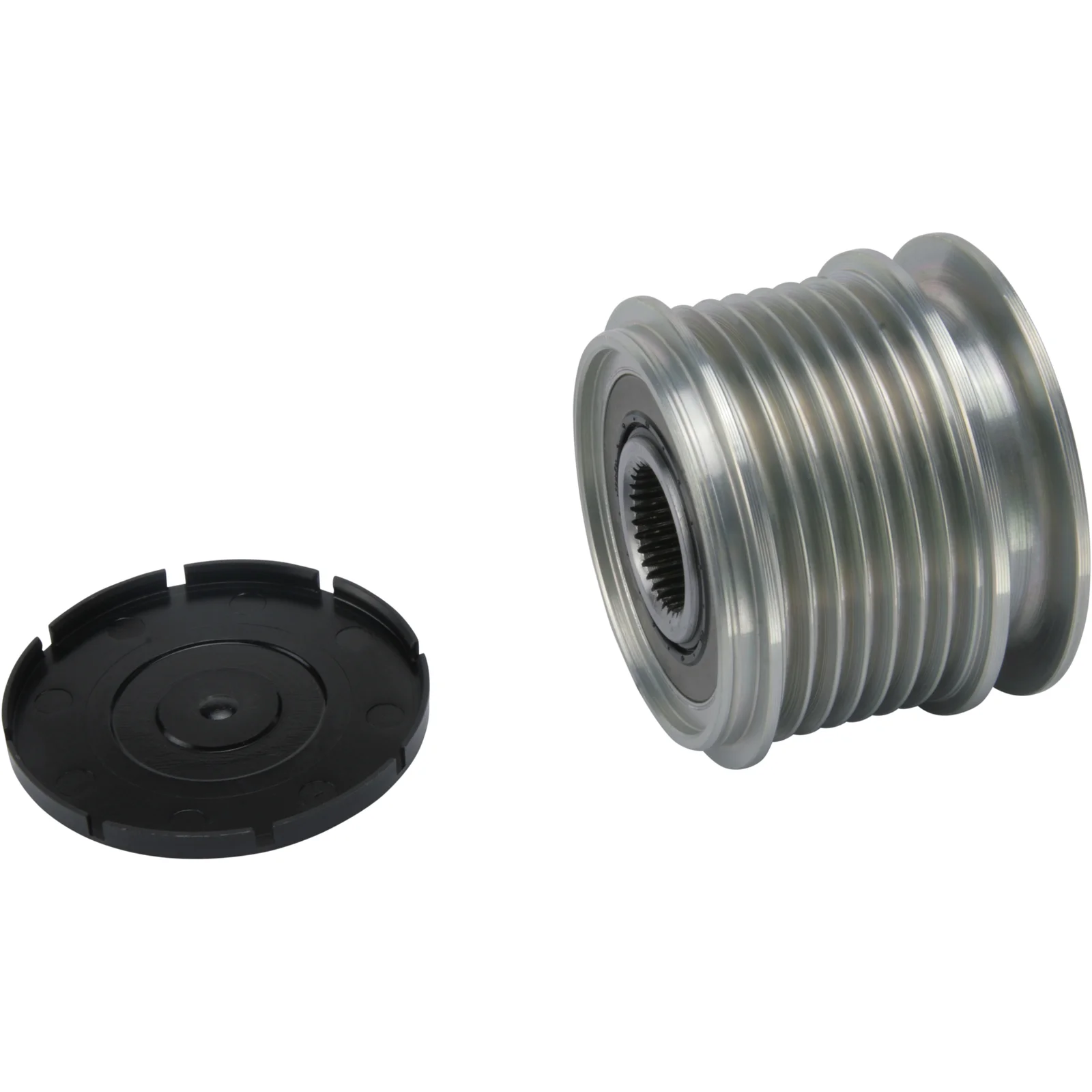

Remskiva

Teknisk info:

Rotation: CW, OD mm: 55.70, Width 1 mm: 49.80, Bore dia.: 17.00

Beskrivning

Rotation: CW
OD mm: 55.70
Width 1 mm: 49.80
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 14.40
Dist./back: 3.90
Pulley type: SP/FW
Grooves: 7
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 19.40
Pulley: N/A
Source: N/A

Filer

Specifikation

Measurement 1. groove 19.40
Belt type Multi Belt
Bore dia. 17.00
Pulley N/A
Pulley type SP/FW
Rotation CW
Dist./back 3.90
Free run w/
Grooves 7
Source N/A
Thread size M16-1.50
Width 1 49.80 mm
Depth 14.40 mm
OD 55.70 mm
ID/bearing N/A mm

  • OEM
    F-557311, F-557311.01, F032333080, 86-46-58, 353921, 595258, 535016510

  • Konkurrentreferens
    AFP3022, AFP3022(INA), AFP3022(V), EC4248

  • Normaliserat artikelnummer
    afp3022, afp3022ina, afp3022v, ec4248, f032333080, f557311, f55731101, 353921, 595258, 864658, 535016510
  • Beskrivning
    Rotation: CW
    OD mm: 55.70
    Width 1 mm: 49.80
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 14.40
    Dist./back: 3.90
    Pulley type: SP/FW
    Grooves: 7
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 19.40
    Pulley: N/A
    Source: N/A

    Filer

  • Specifikation
    Measurement 1. groove 19.40
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley N/A
    Pulley type SP/FW
    Rotation CW
    Dist./back 3.90
    Free run w/
    Grooves 7
    Source N/A
    Thread size M16-1.50
    Width 1 49.80 mm
    Depth 14.40 mm
    OD 55.70 mm
    ID/bearing N/A mm
  • Fordonsmatchning

    • OEM
      F-557311, F-557311.01, F032333080, 86-46-58, 353921, 595258, 535016510

    • Konkurrentreferens
      AFP3022, AFP3022(INA), AFP3022(V), EC4248

    • Normaliserat artikelnummer
      afp3022, afp3022ina, afp3022v, ec4248, f032333080, f557311, f55731101, 353921, 595258, 864658, 535016510
