Artikelnr: F032333026

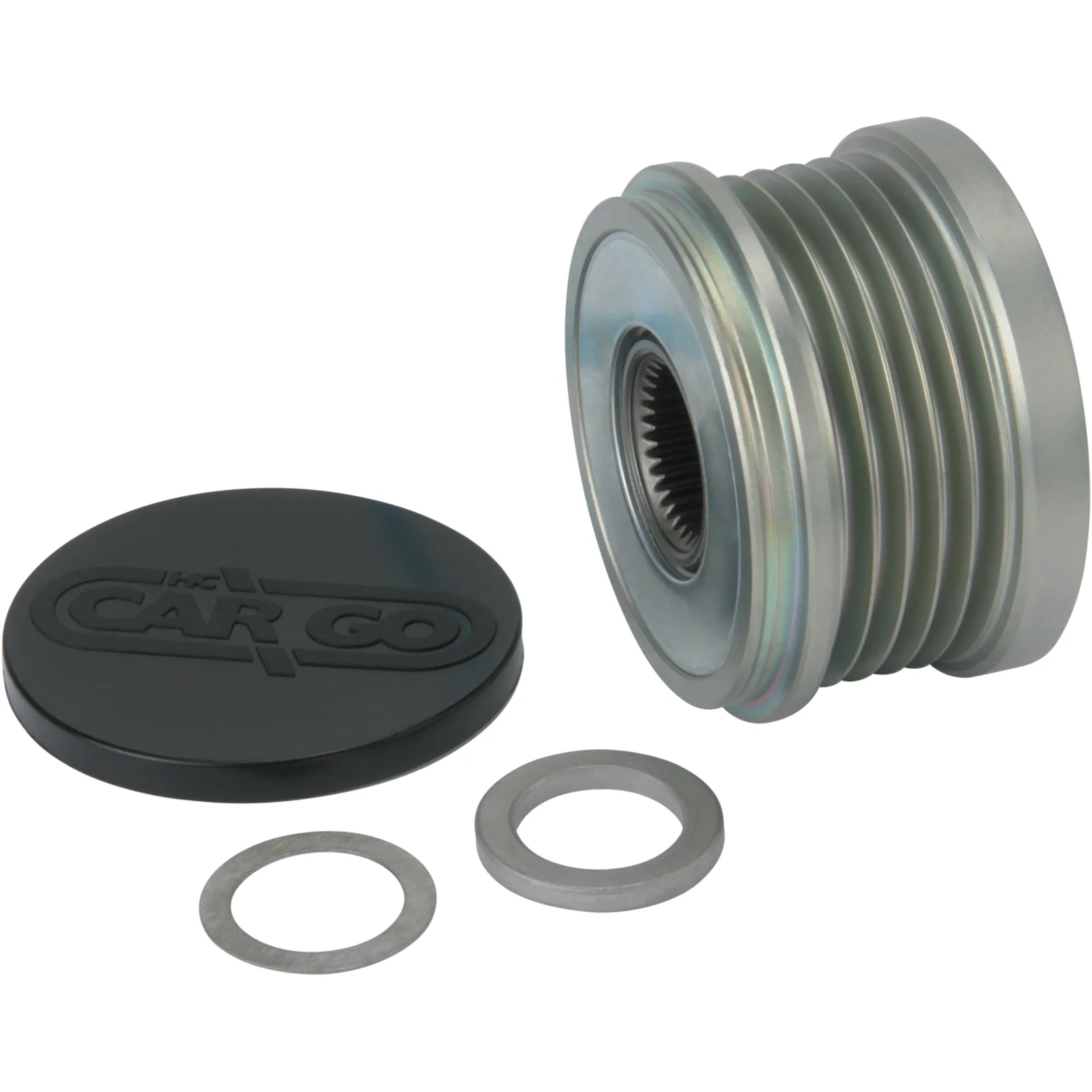

Remskiva

Teknisk info:

Rotation: CW, OD mm: 54.50, Width 1 mm: 43.00, Bore dia.: 17.00

Beskrivning

Rotation: CW
OD mm: 54.50
Width 1 mm: 43.00
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 11.20
Dist./back: 7.80
Pulley type: SP/FW
Grooves: 5
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 17.80
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.

Filer

Specifikation

Measurement 1. groove 17.80
Belt type Multi Belt
Bore dia. 17.00
Pulley N/A
Pulley type SP/FW
Remarks Pulley tool: HC-CARGO 210843.
Rotation CW
Dist./back 7.80
Free run w/
Grooves 5
Thread size M16-1.50
Width 1 43.00 mm
Depth 11.20 mm
OD 54.50 mm
ID/bearing N/A mm

  • OEM
    a660c300ex, F-230147.04, f-550213.01, F-550213.03, F-550213.04, f-550213.07, f-550213.10, F00M147721, F00M147806, F00M147976, f00m991039, f00m991217, F00M991326, F00M991375, F032333026, 5525, 335481, 588026, 535008910, 5350018000, 5350089000

  • Konkurrentreferens
    AFP0014, AFP0056, AFP0115S, AP3004

  • Normaliserat artikelnummer
    a660c300ex, afp0014, afp0056, afp0115s, ap3004, f00m147721, f00m147806, f00m147976, f00m991039, f00m991217, f00m991326, f00m991375, f032333026, f23014704, f55021301, f55021303, f55021304, f55021307, f55021310, 5525, 335481, 588026, 535008910, 5350018000, 5350089000
  • Beskrivning
    Rotation: CW
    OD mm: 54.50
    Width 1 mm: 43.00
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 11.20
    Dist./back: 7.80
    Pulley type: SP/FW
    Grooves: 5
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 17.80
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.

    Filer

  • Specifikation
    Measurement 1. groove 17.80
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley N/A
    Pulley type SP/FW
    Remarks Pulley tool: HC-CARGO 210843.
    Rotation CW
    Dist./back 7.80
    Free run w/
    Grooves 5
    Thread size M16-1.50
    Width 1 43.00 mm
    Depth 11.20 mm
    OD 54.50 mm
    ID/bearing N/A mm
  • Fordonsmatchning

    • OEM
      a660c300ex, F-230147.04, f-550213.01, F-550213.03, F-550213.04, f-550213.07, f-550213.10, F00M147721, F00M147806, F00M147976, f00m991039, f00m991217, F00M991326, F00M991375, F032333026, 5525, 335481, 588026, 535008910, 5350018000, 5350089000

    • Konkurrentreferens
      AFP0014, AFP0056, AFP0115S, AP3004

    • Normaliserat artikelnummer
      a660c300ex, afp0014, afp0056, afp0115s, ap3004, f00m147721, f00m147806, f00m147976, f00m991039, f00m991217, f00m991326, f00m991375, f032333026, f23014704, f55021301, f55021303, f55021304, f55021307, f55021310, 5525, 335481, 588026, 535008910, 5350018000, 5350089000
