Artikelnr: F032332305

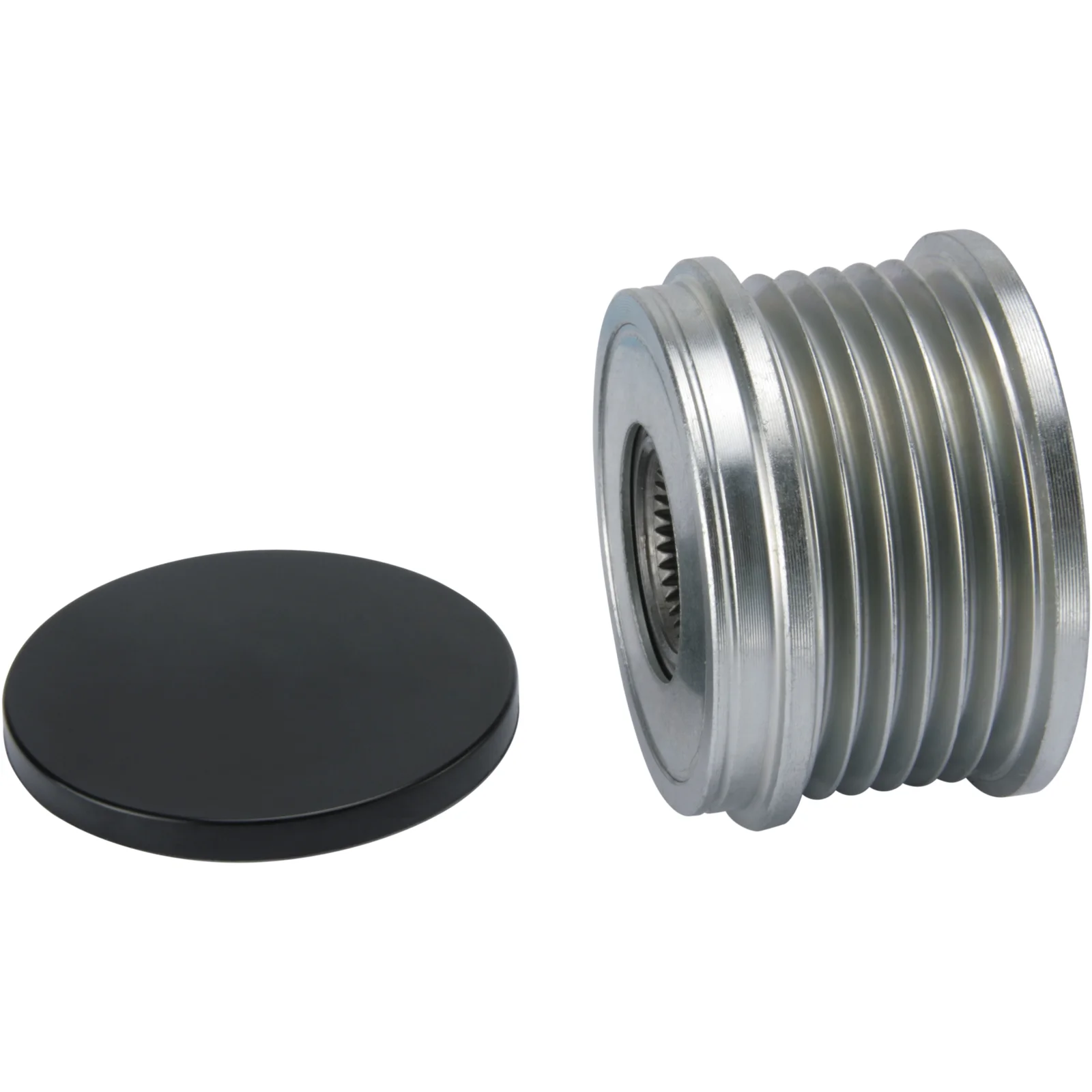

Remskiva

Teknisk info:

Rotation: CW, OD mm: 54.30, Width 1 mm: 38.20, Bore dia.: 17.00

Beskrivning

Rotation: CW
OD mm: 54.30
Width 1 mm: 38.20
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 11.60
Dist./back: 1.50
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 8.00
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.

Filer

Specifikation

Measurement 1. groove 8.00
Belt type Multi Belt
Bore dia. 17.00
Pulley N/A
Pulley type SP/FW
Remarks Pulley tool: HC-CARGO 210843.
Rotation CW
Dist./back 1.50
Free run w/
Grooves 6
Thread size M16-1.50
Width 1 38.20 mm
Depth 11.60 mm
OD 54.30 mm
ID/bearing N/A mm

  • OEM
    F-232369.04, F-232369.05, f-232369.07, F-232369.08, F-232369.4, F00M147764, F00M147766, F00M147907, F00M349814, F00M991171, F00M991271, F032332305, 5450, 335731, 588003, 77362558, 535005910, 5350059000

  • Konkurrentreferens
    EC4252

  • Normaliserat artikelnummer
    ec4252, f00m147764, f00m147766, f00m147907, f00m349814, f00m991171, f00m991271, f032332305, f23236904, f23236905, f23236907, f23236908, f2323694, 5450, 335731, 588003, 77362558, 535005910, 5350059000
  • Beskrivning
    Rotation: CW
    OD mm: 54.30
    Width 1 mm: 38.20
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 11.60
    Dist./back: 1.50
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 8.00
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.

    Filer

  • Specifikation
    Measurement 1. groove 8.00
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley N/A
    Pulley type SP/FW
    Remarks Pulley tool: HC-CARGO 210843.
    Rotation CW
    Dist./back 1.50
    Free run w/
    Grooves 6
    Thread size M16-1.50
    Width 1 38.20 mm
    Depth 11.60 mm
    OD 54.30 mm
    ID/bearing N/A mm
  • Fordonsmatchning

    • OEM
      F-232369.04, F-232369.05, f-232369.07, F-232369.08, F-232369.4, F00M147764, F00M147766, F00M147907, F00M349814, F00M991171, F00M991271, F032332305, 5450, 335731, 588003, 77362558, 535005910, 5350059000

    • Konkurrentreferens
      EC4252

    • Normaliserat artikelnummer
      ec4252, f00m147764, f00m147766, f00m147907, f00m349814, f00m991171, f00m991271, f032332305, f23236904, f23236905, f23236907, f23236908, f2323694, 5450, 335731, 588003, 77362558, 535005910, 5350059000
