Artikelnr: F032332033

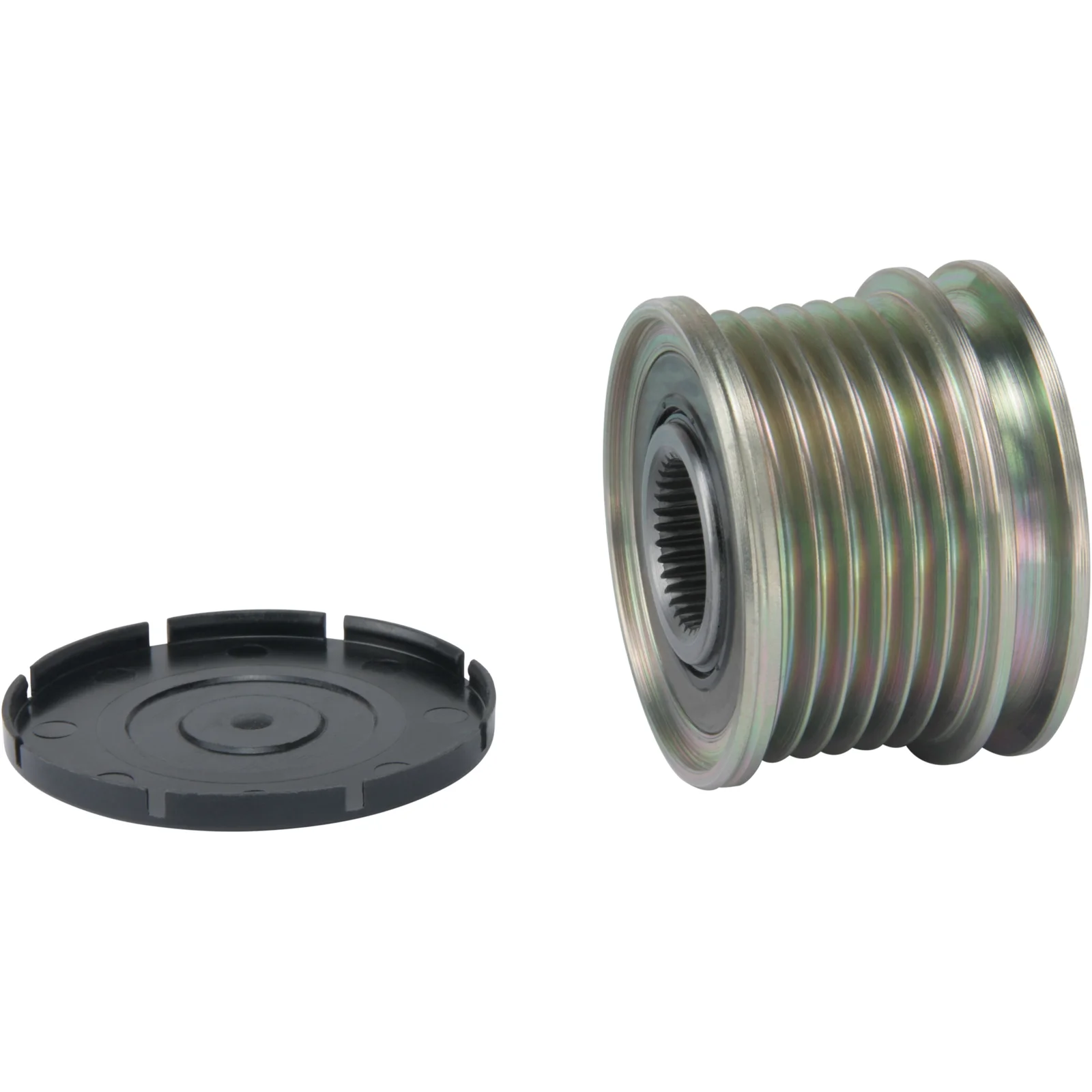

Remskiva

Teknisk info:

Rotation: CW, OD mm: 49.30, Width 1 mm: 40.00, Bore dia.: 17.00

Beskrivning

Rotation: CW
OD mm: 49.30
Width 1 mm: 40.00
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 11.10
Dist./back: 1.00
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 13.50
Pulley: N/A
Source: N/A

Filer

Specifikation

Measurement 1. groove 13.50
Belt type Multi Belt
Bore dia. 17.00
Pulley N/A
Pulley type SP/FW
Rotation CW
Dist./back 1.00
Free run w/
Grooves 6
Source N/A
Thread size M16-1.50
Width 1 40.00 mm
Depth 11.10 mm
OD 49.30 mm
ID/bearing N/A mm

  • OEM
    F-560565, F00M349859, F00M349870, F00M391140, F032332033, 86-42-28, 353871, 535016610

  • Konkurrentreferens
    AFP0069, AFP0069(INA), EC47609

  • Normaliserat artikelnummer
    afp0069, afp0069ina, ec47609, f00m349859, f00m349870, f00m391140, f032332033, f560565, 353871, 864228, 535016610
  • Beskrivning
    Rotation: CW
    OD mm: 49.30
    Width 1 mm: 40.00
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 11.10
    Dist./back: 1.00
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 13.50
    Pulley: N/A
    Source: N/A

    Filer

  • Specifikation
    Measurement 1. groove 13.50
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley N/A
    Pulley type SP/FW
    Rotation CW
    Dist./back 1.00
    Free run w/
    Grooves 6
    Source N/A
    Thread size M16-1.50
    Width 1 40.00 mm
    Depth 11.10 mm
    OD 49.30 mm
    ID/bearing N/A mm
  • Fordonsmatchning

    • OEM
      F-560565, F00M349859, F00M349870, F00M391140, F032332033, 86-42-28, 353871, 535016610

    • Konkurrentreferens
      AFP0069, AFP0069(INA), EC47609

    • Normaliserat artikelnummer
      afp0069, afp0069ina, ec47609, f00m349859, f00m349870, f00m391140, f032332033, f560565, 353871, 864228, 535016610
