Artikelnr: F032330200

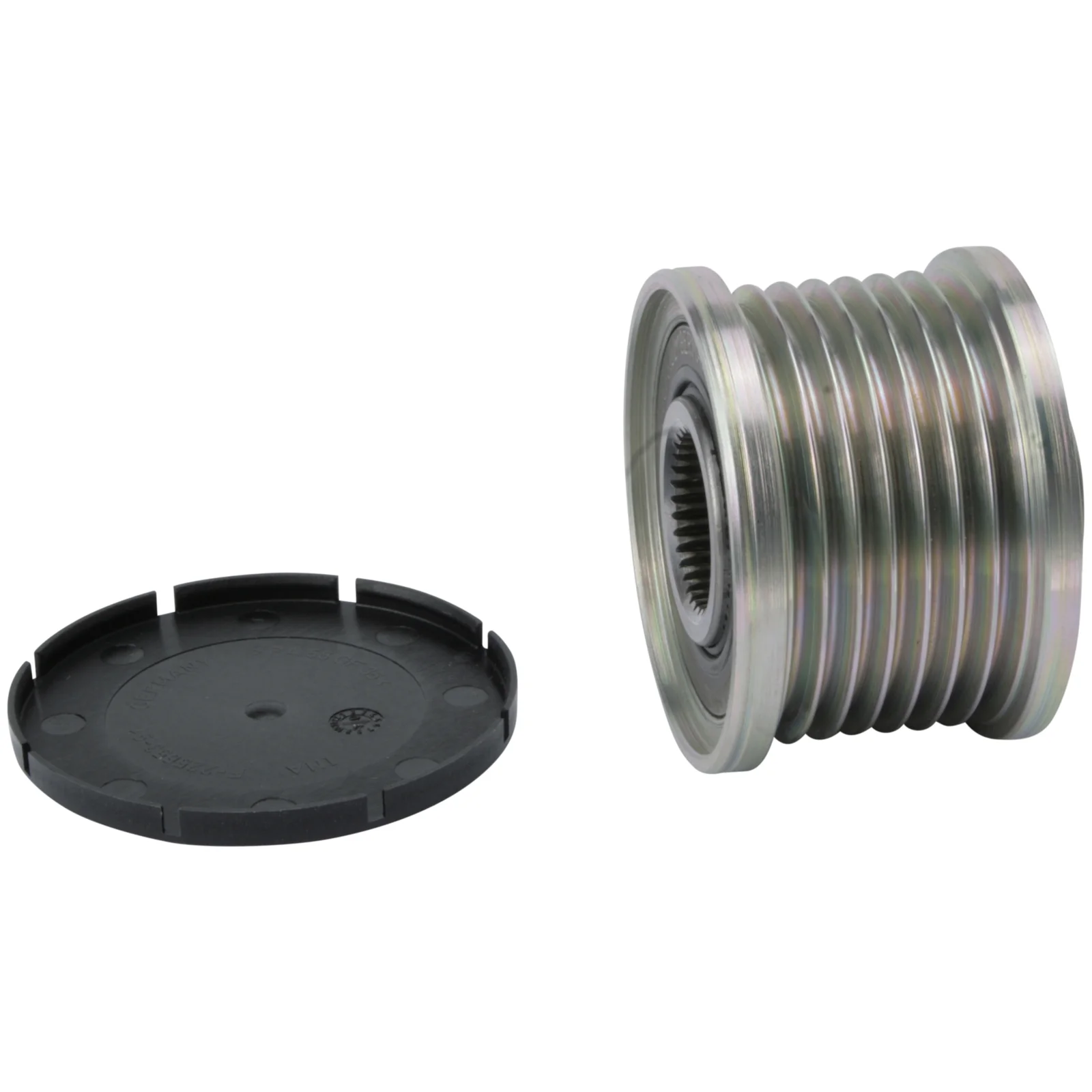

Remskiva

Teknisk info:

Rotation: CW, OD mm: 48.60, Width 1 mm: 40.80, Bore dia.: 17.00

Beskrivning

Rotation: CW
OD mm: 48.60
Width 1 mm: 40.80
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 16.00
Dist./back: 6.00
Pulley type: SP/FW
Grooves: 7
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 11.70
Pulley: N/A
Source: N/A

Filer

Specifikation

Measurement 1. groove 11.70
Belt type Multi Belt
Bore dia. 17.00
Pulley N/A
Pulley type SP/FW
Rotation CW
Dist./back 6.00
Free run w/
Grooves 7
Source N/A
Thread size M16-1.50
Width 1 40.80 mm
Depth 16.00 mm
OD 48.60 mm
ID/bearing N/A mm

  • OEM
    F-236675.02, f-236675.03, F-236675.04, f-561464, F032330200, 330200, 353331, 588027, 593514, 595226, 535008010, 5350080010, 5350080100

  • Konkurrentreferens
    AFP3016, AFP3016(INA), AFP3016(V)

  • Normaliserat artikelnummer
    afp3016, afp3016ina, afp3016v, f032330200, f23667502, f23667503, f23667504, f561464, 330200, 353331, 588027, 593514, 595226, 535008010, 5350080010, 5350080100
  • Beskrivning
    Rotation: CW
    OD mm: 48.60
    Width 1 mm: 40.80
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 16.00
    Dist./back: 6.00
    Pulley type: SP/FW
    Grooves: 7
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 11.70
    Pulley: N/A
    Source: N/A

    Filer

  • Specifikation
    Measurement 1. groove 11.70
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley N/A
    Pulley type SP/FW
    Rotation CW
    Dist./back 6.00
    Free run w/
    Grooves 7
    Source N/A
    Thread size M16-1.50
    Width 1 40.80 mm
    Depth 16.00 mm
    OD 48.60 mm
    ID/bearing N/A mm
  • Fordonsmatchning

    • OEM
      F-236675.02, f-236675.03, F-236675.04, f-561464, F032330200, 330200, 353331, 588027, 593514, 595226, 535008010, 5350080010, 5350080100

    • Konkurrentreferens
      AFP3016, AFP3016(INA), AFP3016(V)

    • Normaliserat artikelnummer
      afp3016, afp3016ina, afp3016v, f032330200, f23667502, f23667503, f23667504, f561464, 330200, 353331, 588027, 593514, 595226, 535008010, 5350080010, 5350080100
