Artikelnr: F032238690

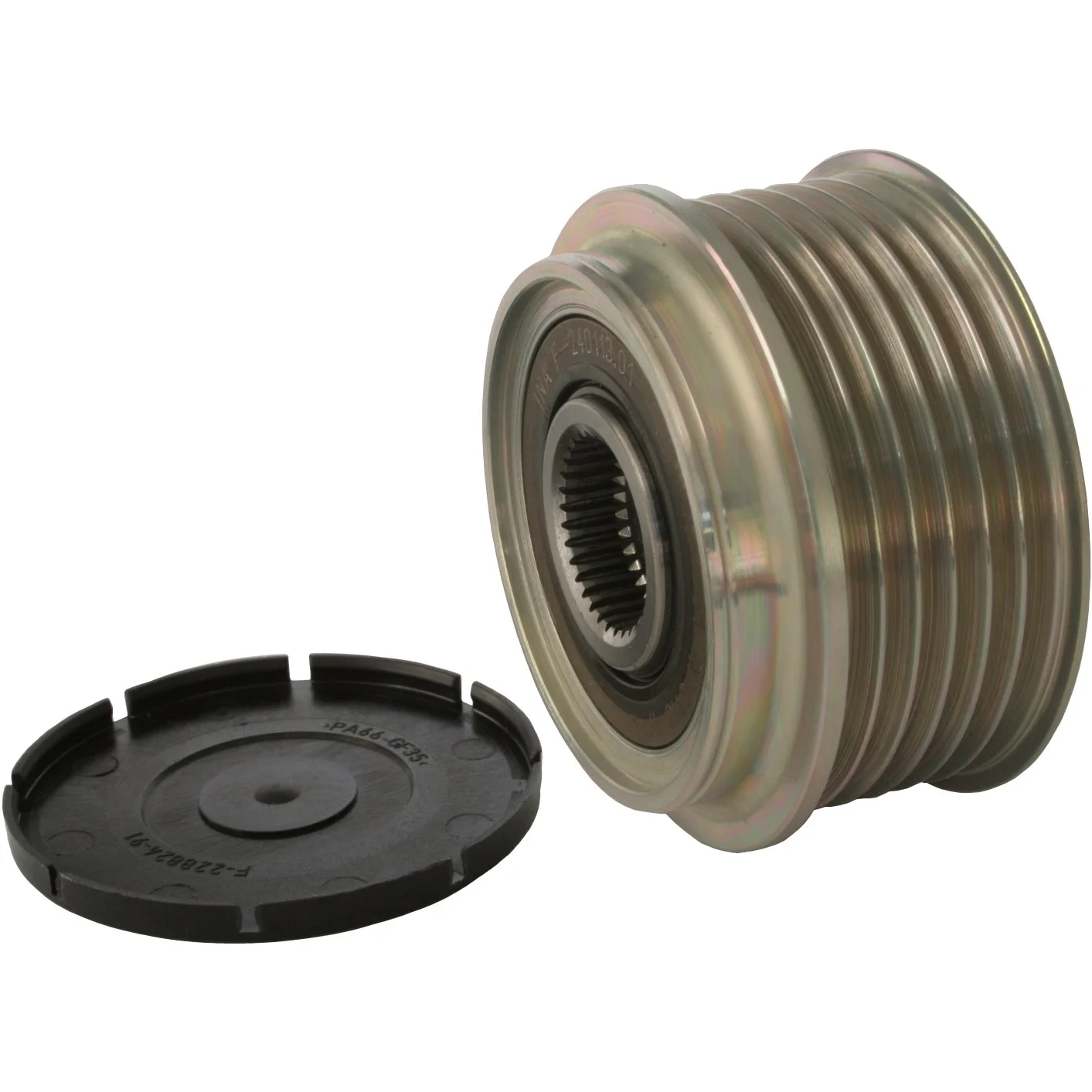

Remskiva

Teknisk info:

Rotation: CW, OD mm: 59.70, Width 1 mm: 39.60, Bore dia.: 17.00

Beskrivning

Rotation: CW
OD mm: 59.70
Width 1 mm: 39.60
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 19.00
Dist./back: 5.50
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 9.10
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.
Source: N/A

Filer

Specifikation

Measurement 1. groove 9.10
Belt type Multi Belt
Bore dia. 17.00
Pulley N/A
Pulley type SP/FW
Remarks Pulley tool: HC-CARGO 210843.
Rotation CW
Dist./back 5.50
Free run w/
Grooves 6
Source N/A
Thread size M16-1.50
Width 1 39.60 mm
Depth 19.00 mm
OD 59.70 mm
ID/bearing N/A mm

  • OEM
    F-232353.03, f-240113, f-240113.01, f-240113.03, F032238690, gd218089, GD218089-1, 85-74-39, 5454, 353281, 1204366, 10511026, 535006510, 5350065000

  • Konkurrentreferens
    AFP2002, AFP2002(INA), AFP2002(V), EC4272

  • Normaliserat artikelnummer
    afp2002, afp2002ina, afp2002v, ec4272, f032238690, f23235303, f240113, f24011301, f24011303, gd218089, gd2180891, 5454, 353281, 857439, 1204366, 10511026, 535006510, 5350065000
  • Beskrivning
    Rotation: CW
    OD mm: 59.70
    Width 1 mm: 39.60
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 19.00
    Dist./back: 5.50
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 9.10
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.
    Source: N/A

    Filer

  • Specifikation
    Measurement 1. groove 9.10
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley N/A
    Pulley type SP/FW
    Remarks Pulley tool: HC-CARGO 210843.
    Rotation CW
    Dist./back 5.50
    Free run w/
    Grooves 6
    Source N/A
    Thread size M16-1.50
    Width 1 39.60 mm
    Depth 19.00 mm
    OD 59.70 mm
    ID/bearing N/A mm
  • Fordonsmatchning

    • OEM
      F-232353.03, f-240113, f-240113.01, f-240113.03, F032238690, gd218089, GD218089-1, 85-74-39, 5454, 353281, 1204366, 10511026, 535006510, 5350065000

    • Konkurrentreferens
      AFP2002, AFP2002(INA), AFP2002(V), EC4272

    • Normaliserat artikelnummer
      afp2002, afp2002ina, afp2002v, ec4272, f032238690, f23235303, f240113, f24011301, f24011303, gd218089, gd2180891, 5454, 353281, 857439, 1204366, 10511026, 535006510, 5350065000
