Artikelnr: F032237610

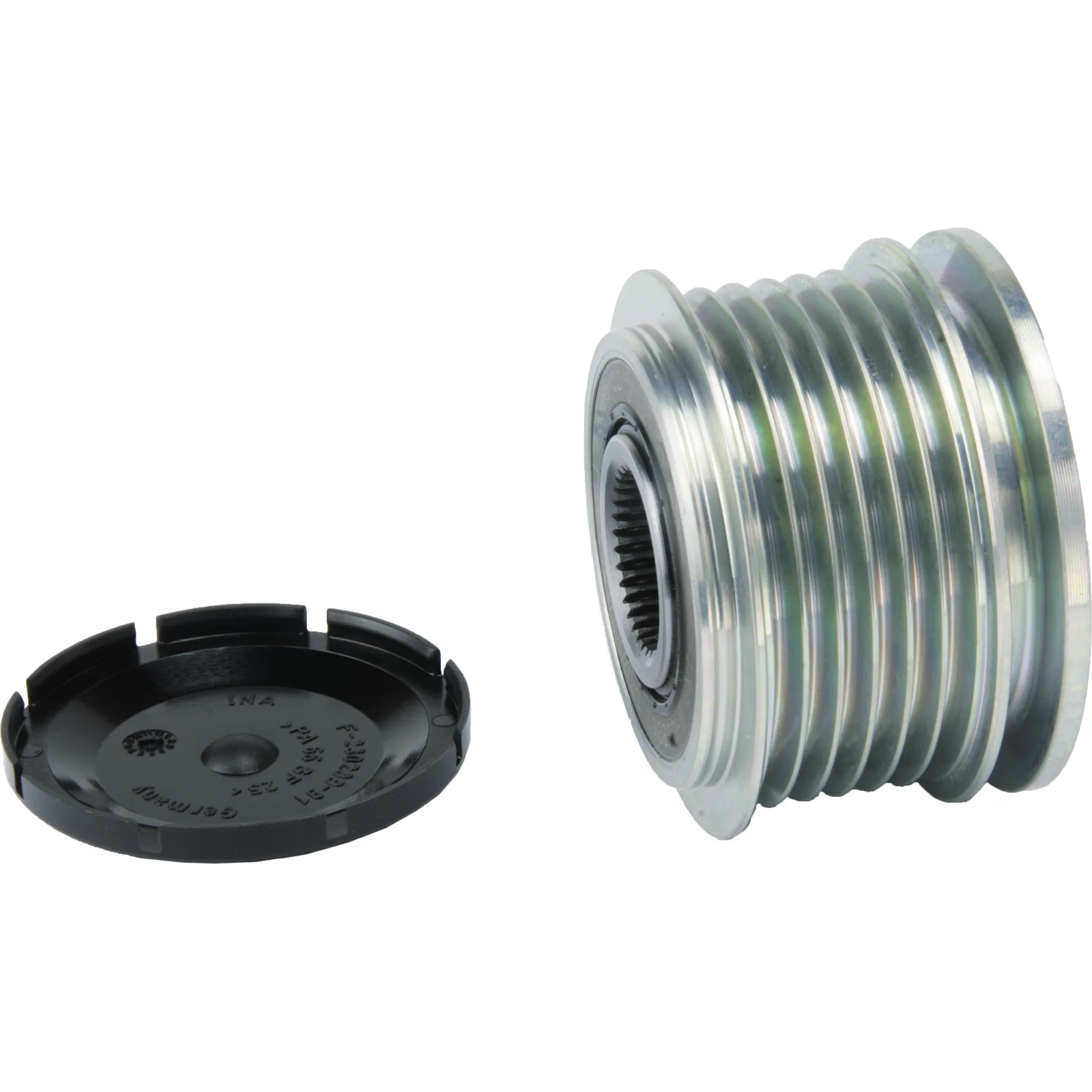

Remskiva

Teknisk info:

Rotation: CW, Rotation/fan: CW, OD mm: 54.20, Width 1 mm: 42.10

Beskrivning

Rotation: CW
OD mm: 54.20
Width 1 mm: 42.10
Bore dia.: 17.00
Thread size: M14-1.50
Depth mm: 12.00
Dist./back: 5.20
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 16.40
Pulley: N/A
Rotation/fan: CW
Source: N/A

Filer

Specifikation

Measurement 1. groove 16.40
Belt type Multi Belt
Bore dia. 17.00
Pulley N/A
Pulley type SP/FW
Rotation CW
Rotation/fan CW
Dist./back 5.20
Free run w/
Grooves 6
Source N/A
Thread size M14-1.50
Width 1 42.10 mm
Depth 12.00 mm
OD 54.20 mm
ID/bearing N/A mm
  • Beskrivning
    Rotation: CW
    OD mm: 54.20
    Width 1 mm: 42.10
    Bore dia.: 17.00
    Thread size: M14-1.50
    Depth mm: 12.00
    Dist./back: 5.20
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 16.40
    Pulley: N/A
    Rotation/fan: CW
    Source: N/A

    Filer

  • Specifikation
    Measurement 1. groove 16.40
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley N/A
    Pulley type SP/FW
    Rotation CW
    Rotation/fan CW
    Dist./back 5.20
    Free run w/
    Grooves 6
    Source N/A
    Thread size M14-1.50
    Width 1 42.10 mm
    Depth 12.00 mm
    OD 54.20 mm
    ID/bearing N/A mm
