Artikelnr: F032235800

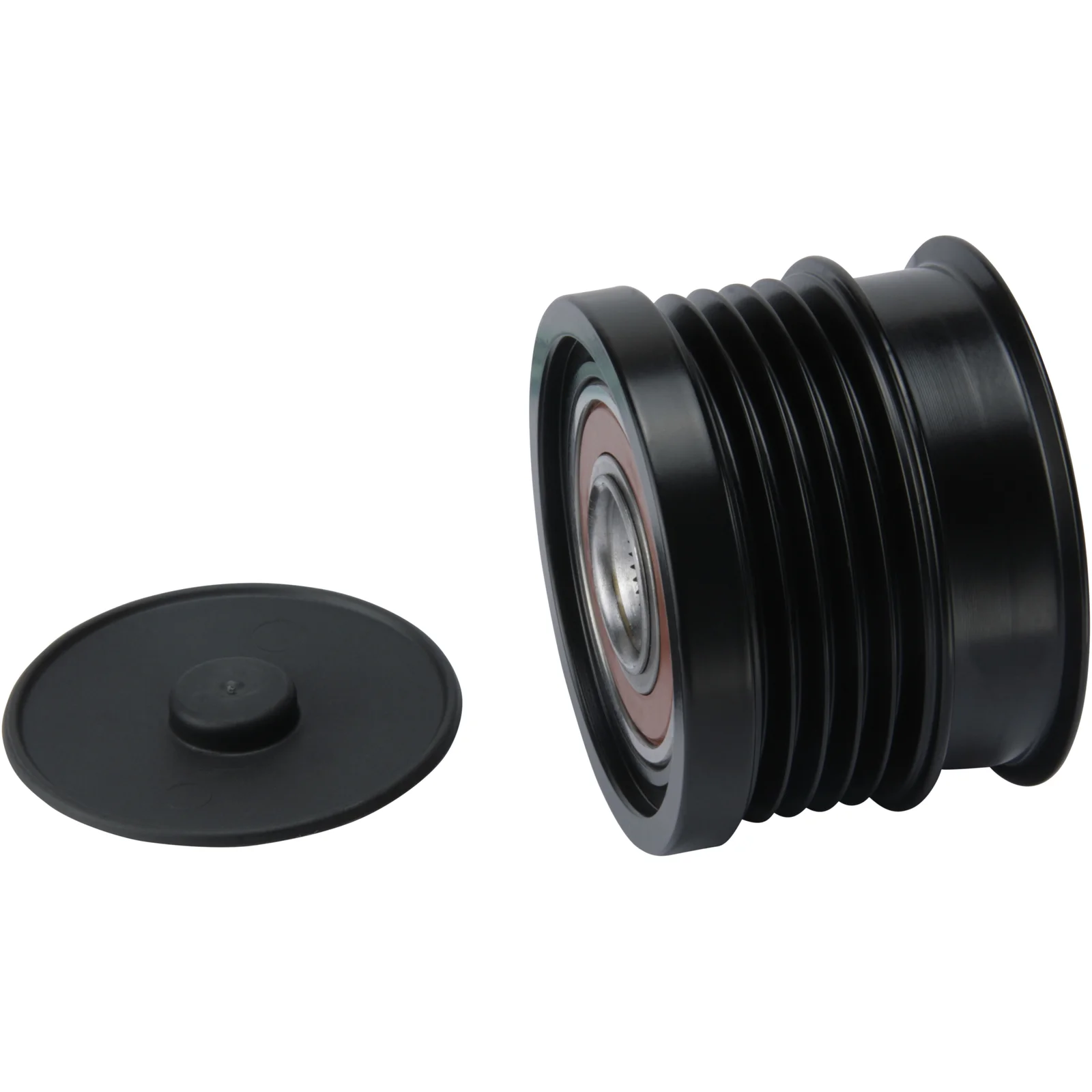

Remskiva

Teknisk info:

Rotation: CW, OD mm: 57.00, Width 1 mm: 42.80, Bore dia.: 17.00

Beskrivning

Rotation: CW
OD mm: 57.00
Width 1 mm: 42.80
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 5.90
Dist./back: 0.00
Pulley type: OAD
Grooves: 5
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 18.30
Pulley: N/A
Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
Source: N/A

Filer

Specifikation

Measurement 1. groove 18.30
Belt type Multi Belt
Bore dia. 17.00
Pulley N/A
Pulley type OAD
Remarks Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
Rotation CW
Dist./back 0.00
Free run w/
Grooves 5
Source N/A
Thread size M16-1.50
Width 1 42.80 mm
Depth 5.90 mm
OD 57.00 mm
ID/bearing N/A mm
