Artikelnr: F032234795

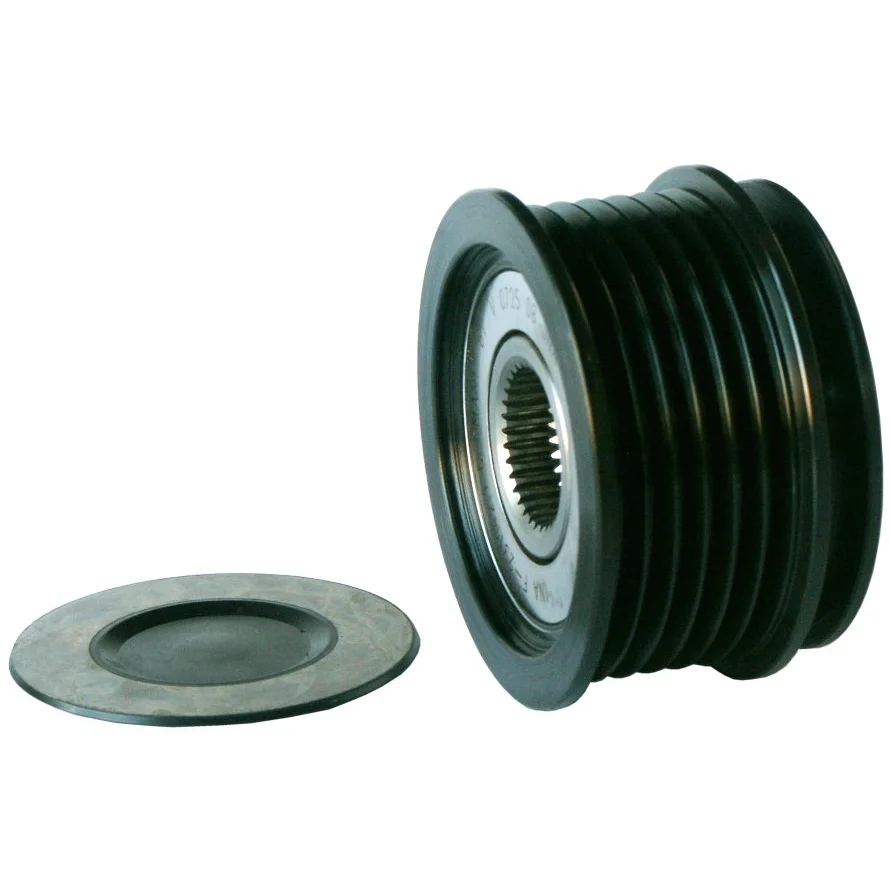

Remskiva

Teknisk info:

Rotation: CW, Rotation/fan: CW, OD mm: 55.90, Width 1 mm: 35.60

Beskrivning

Rotation: CW
OD mm: 55.90
Width 1 mm: 35.60
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 11.10
Dist./back: 0.40
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 12.80
Pulley: N/A
Rotation/fan: CW
Remarks: Pulley tool: HC-CARGO 210843.

Filer

Specifikation

Measurement 1. groove 12.80
Belt type Multi Belt
Bore dia. 17.00
Pulley N/A
Pulley type SP/FW
Remarks Pulley tool: HC-CARGO 210843.
Rotation CW
Rotation/fan CW
Dist./back 0.40
Free run w/
Grooves 6
Thread size M16-1.50
Width 1 35.60 mm
Depth 11.10 mm
OD 55.90 mm
ID/bearing N/A mm

  • OEM
    f-231142, F-231142.01, f-231142.05, F-231142.08, f-231142.1, F-581445, f00m147732, f00m391604, f00m991108, f00m991266, F032234795, 06b903119b, 5448, 335771, 593778, 2549858, 535004110

  • Konkurrentreferens
    AFP0023, AFP0023(INA), AFP0023(V), EC4255

  • Normaliserat artikelnummer
    afp0023, afp0023ina, afp0023v, ec4255, f00m147732, f00m391604, f00m991108, f00m991266, f032234795, f231142, f23114201, f23114205, f23114208, f2311421, f581445, 06b903119b, 5448, 335771, 593778, 2549858, 535004110
  • Beskrivning
    Rotation: CW
    OD mm: 55.90
    Width 1 mm: 35.60
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 11.10
    Dist./back: 0.40
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 12.80
    Pulley: N/A
    Rotation/fan: CW
    Remarks: Pulley tool: HC-CARGO 210843.

    Filer

  • Specifikation
    Measurement 1. groove 12.80
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley N/A
    Pulley type SP/FW
    Remarks Pulley tool: HC-CARGO 210843.
    Rotation CW
    Rotation/fan CW
    Dist./back 0.40
    Free run w/
    Grooves 6
    Thread size M16-1.50
    Width 1 35.60 mm
    Depth 11.10 mm
    OD 55.90 mm
    ID/bearing N/A mm
  • Fordonsmatchning

    • OEM
      f-231142, F-231142.01, f-231142.05, F-231142.08, f-231142.1, F-581445, f00m147732, f00m391604, f00m991108, f00m991266, F032234795, 06b903119b, 5448, 335771, 593778, 2549858, 535004110

    • Konkurrentreferens
      AFP0023, AFP0023(INA), AFP0023(V), EC4255

    • Normaliserat artikelnummer
      afp0023, afp0023ina, afp0023v, ec4255, f00m147732, f00m391604, f00m991108, f00m991266, f032234795, f231142, f23114201, f23114205, f23114208, f2311421, f581445, 06b903119b, 5448, 335771, 593778, 2549858, 535004110
