Artikelnr: F032230313

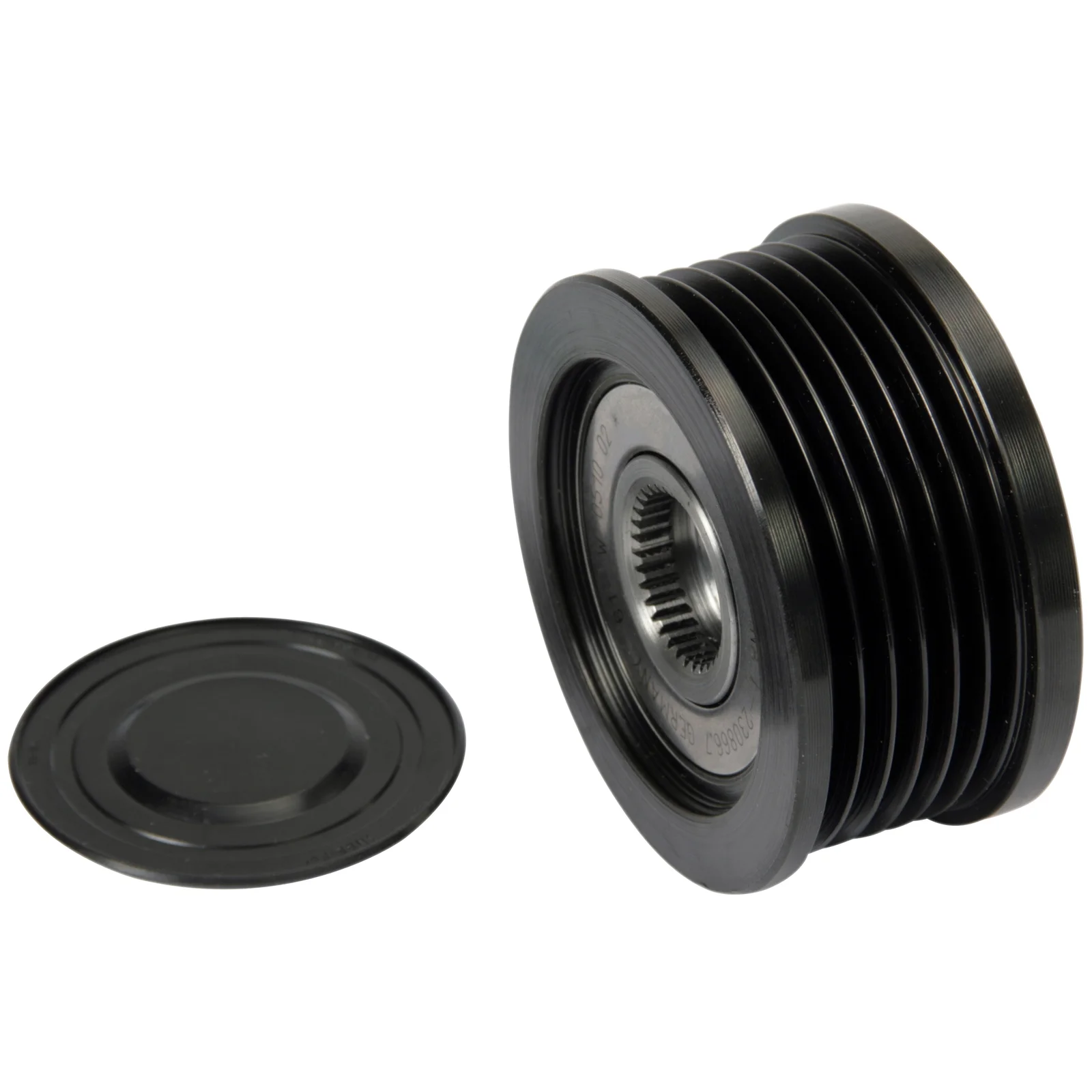

Remskiva

Teknisk info:

Rotation: CW, OD mm: 61.50, Width 1 mm: 37.40, Bore dia.: 17.00

Beskrivning

Rotation: CW
OD mm: 61.50
Width 1 mm: 37.40
Bore dia.: 17.00
Thread size: M17-1.50
Depth mm: 11.10
Dist./back: 5.40
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 13.40
Pulley: N/A
Servicing: A127IR
Remarks: Pulley tool: HC-CARGO 210843.
Source: N/A

Filer

Specifikation

Measurement 1. groove 13.40
Belt type Multi Belt
Bore dia. 17.00
Pulley N/A
Pulley type SP/FW
Remarks Pulley tool: HC-CARGO 210843.
Rotation CW
Dist./back 5.40
Servicing A127IR
Free run w/
Grooves 6
Source N/A
Thread size M17-1.50
Width 1 37.40 mm
Depth 11.10 mm
OD 61.50 mm
ID/bearing N/A mm

  • OEM
    F-230866, F-230866.01, F-230866.03, F-230866.04, F-230866.05, F-230866.07, F-230866.08, f-230866.10, f-230866.11, F-230866.13, F-230866.3, F-230866.4, F-230866.5, F-230866.7, F-230866.8, F032230313, 85-41-00, 5379, 335401, 354031, 9948225, 9951162, 85562751, 85562931, 535002300, 535002310, 5350023000, 083625160000, 085562751010, 085562931010

  • Konkurrentreferens
    AFP4001, AFP4001(INA), AFP4001(V), EC4083

  • Normaliserat artikelnummer
    afp4001, afp4001ina, afp4001v, ec4083, f032230313, f230866, f23086601, f23086603, f23086604, f23086605, f23086607, f23086608, f23086610, f23086611, f23086613, f2308663, f2308664, f2308665, f2308667, f2308668, 5379, 335401, 354031, 854100, 9948225, 9951162, 85562751, 85562931, 535002300, 535002310, 5350023000, 083625160000, 085562751010, 085562931010
  • Beskrivning
    Rotation: CW
    OD mm: 61.50
    Width 1 mm: 37.40
    Bore dia.: 17.00
    Thread size: M17-1.50
    Depth mm: 11.10
    Dist./back: 5.40
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 13.40
    Pulley: N/A
    Servicing: A127IR
    Remarks: Pulley tool: HC-CARGO 210843.
    Source: N/A

    Filer

  • Specifikation
    Measurement 1. groove 13.40
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley N/A
    Pulley type SP/FW
    Remarks Pulley tool: HC-CARGO 210843.
    Rotation CW
    Dist./back 5.40
    Servicing A127IR
    Free run w/
    Grooves 6
    Source N/A
    Thread size M17-1.50
    Width 1 37.40 mm
    Depth 11.10 mm
    OD 61.50 mm
    ID/bearing N/A mm
  • Fordonsmatchning

    • OEM
      F-230866, F-230866.01, F-230866.03, F-230866.04, F-230866.05, F-230866.07, F-230866.08, f-230866.10, f-230866.11, F-230866.13, F-230866.3, F-230866.4, F-230866.5, F-230866.7, F-230866.8, F032230313, 85-41-00, 5379, 335401, 354031, 9948225, 9951162, 85562751, 85562931, 535002300, 535002310, 5350023000, 083625160000, 085562751010, 085562931010

    • Konkurrentreferens
      AFP4001, AFP4001(INA), AFP4001(V), EC4083

    • Normaliserat artikelnummer
      afp4001, afp4001ina, afp4001v, ec4083, f032230313, f230866, f23086601, f23086603, f23086604, f23086605, f23086607, f23086608, f23086610, f23086611, f23086613, f2308663, f2308664, f2308665, f2308667, f2308668, 5379, 335401, 354031, 854100, 9948225, 9951162, 85562751, 85562931, 535002300, 535002310, 5350023000, 083625160000, 085562751010, 085562931010
