Artikelnr: F032230302

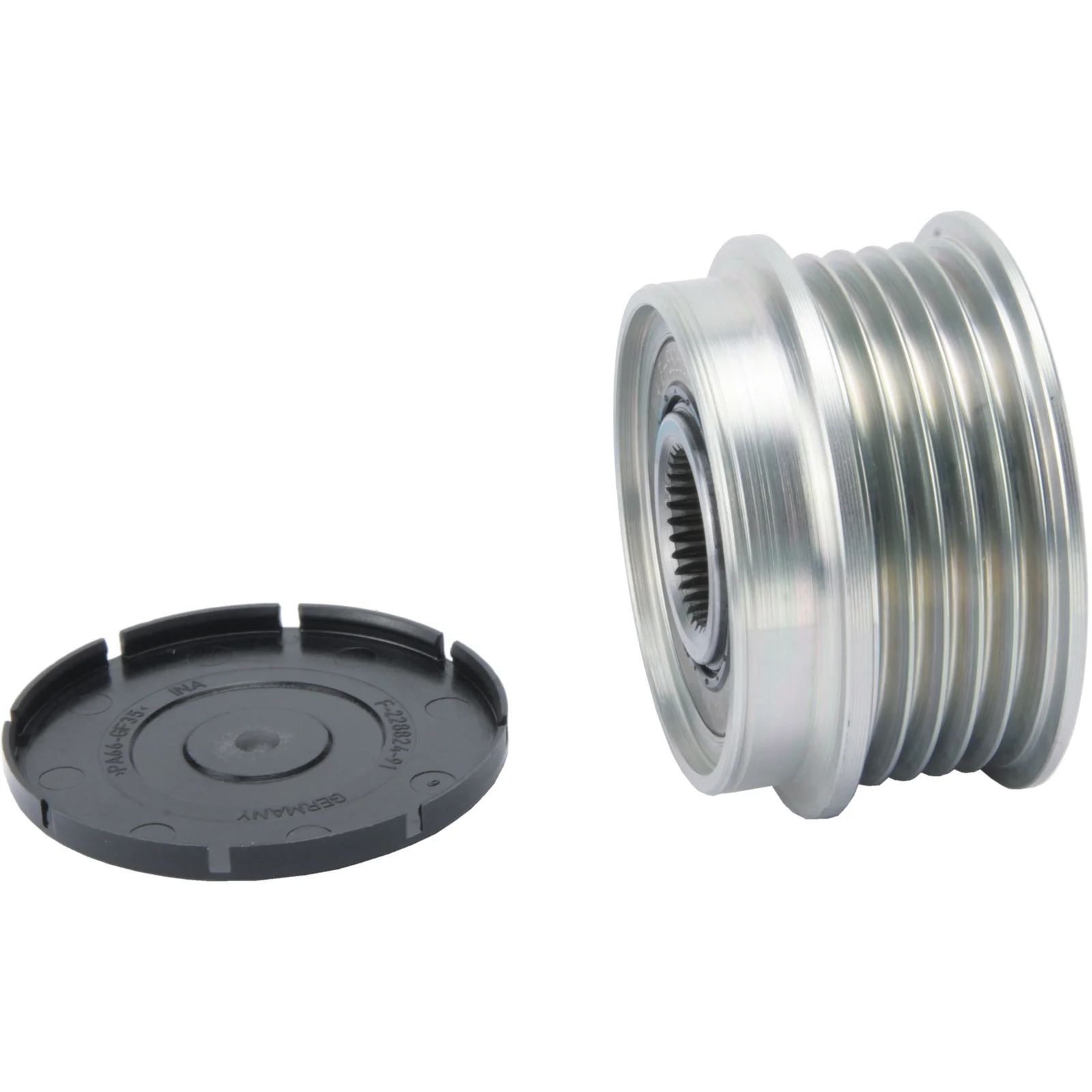

Remskiva

Teknisk info:

Rotation: CW, OD mm: 55.90, Width 1 mm: 35.00, Bore dia.: 17.00

Beskrivning

Rotation: CW
OD mm: 55.90
Width 1 mm: 35.00
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 11.10
Dist./back: 0.60
Pulley type: SP/FW
Grooves: 5
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 5.00
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843. Cap: HC-CARGO 138236.
Source: N/A

Filer

Specifikation

Measurement 1. groove 5.00
Belt type Multi Belt
Bore dia. 17.00
Pulley N/A
Pulley type SP/FW
Remarks Pulley tool: HC-CARGO 210843. Cap: HC-CARGO 138236.
Rotation CW
Dist./back 0.60
Free run w/
Grooves 5
Source N/A
Thread size M16-1.50
Width 1 35.00 mm
Depth 11.10 mm
OD 55.90 mm
ID/bearing N/A mm

  • OEM
    f-225653-11, F-225653.06, F-225653.07, F-225653.10, f-225653.11, f-225653.6, f-225653.7, f-532699, f-552699.02, F-552699.03, F00M147724, f00m991043, f00m991045, f00m991378, F032230302, 85-42-11, 5380, 335411, 593490, 2547439, 022903119b, 028903119ac, 038903119m, 535000510, 5350005000

  • Konkurrentreferens
    AFP0009, AFP0009(INA), AFP0009(V), EC4082, 24-91256

  • Normaliserat artikelnummer
    afp0009, afp0009ina, afp0009v, ec4082, f00m147724, f00m991043, f00m991045, f00m991378, f032230302, f22565306, f22565307, f22565310, f22565311, f2256536, f2256537, f532699, f55269902, f55269903, 5380, 335411, 593490, 854211, 2491256, 2547439, 022903119b, 028903119ac, 038903119m, 535000510, 5350005000
  • Beskrivning
    Rotation: CW
    OD mm: 55.90
    Width 1 mm: 35.00
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 11.10
    Dist./back: 0.60
    Pulley type: SP/FW
    Grooves: 5
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 5.00
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843. Cap: HC-CARGO 138236.
    Source: N/A

    Filer

  • Specifikation
    Measurement 1. groove 5.00
    Belt type Multi Belt
    Bore dia. 17.00
    Pulley N/A
    Pulley type SP/FW
    Remarks Pulley tool: HC-CARGO 210843. Cap: HC-CARGO 138236.
    Rotation CW
    Dist./back 0.60
    Free run w/
    Grooves 5
    Source N/A
    Thread size M16-1.50
    Width 1 35.00 mm
    Depth 11.10 mm
    OD 55.90 mm
    ID/bearing N/A mm
  • Fordonsmatchning

    • OEM
      f-225653-11, F-225653.06, F-225653.07, F-225653.10, f-225653.11, f-225653.6, f-225653.7, f-532699, f-552699.02, F-552699.03, F00M147724, f00m991043, f00m991045, f00m991378, F032230302, 85-42-11, 5380, 335411, 593490, 2547439, 022903119b, 028903119ac, 038903119m, 535000510, 5350005000

    • Konkurrentreferens
      AFP0009, AFP0009(INA), AFP0009(V), EC4082, 24-91256

    • Normaliserat artikelnummer
      afp0009, afp0009ina, afp0009v, ec4082, f00m147724, f00m991043, f00m991045, f00m991378, f032230302, f22565306, f22565307, f22565310, f22565311, f2256536, f2256537, f532699, f55269902, f55269903, 5380, 335411, 593490, 854211, 2491256, 2547439, 022903119b, 028903119ac, 038903119m, 535000510, 5350005000
