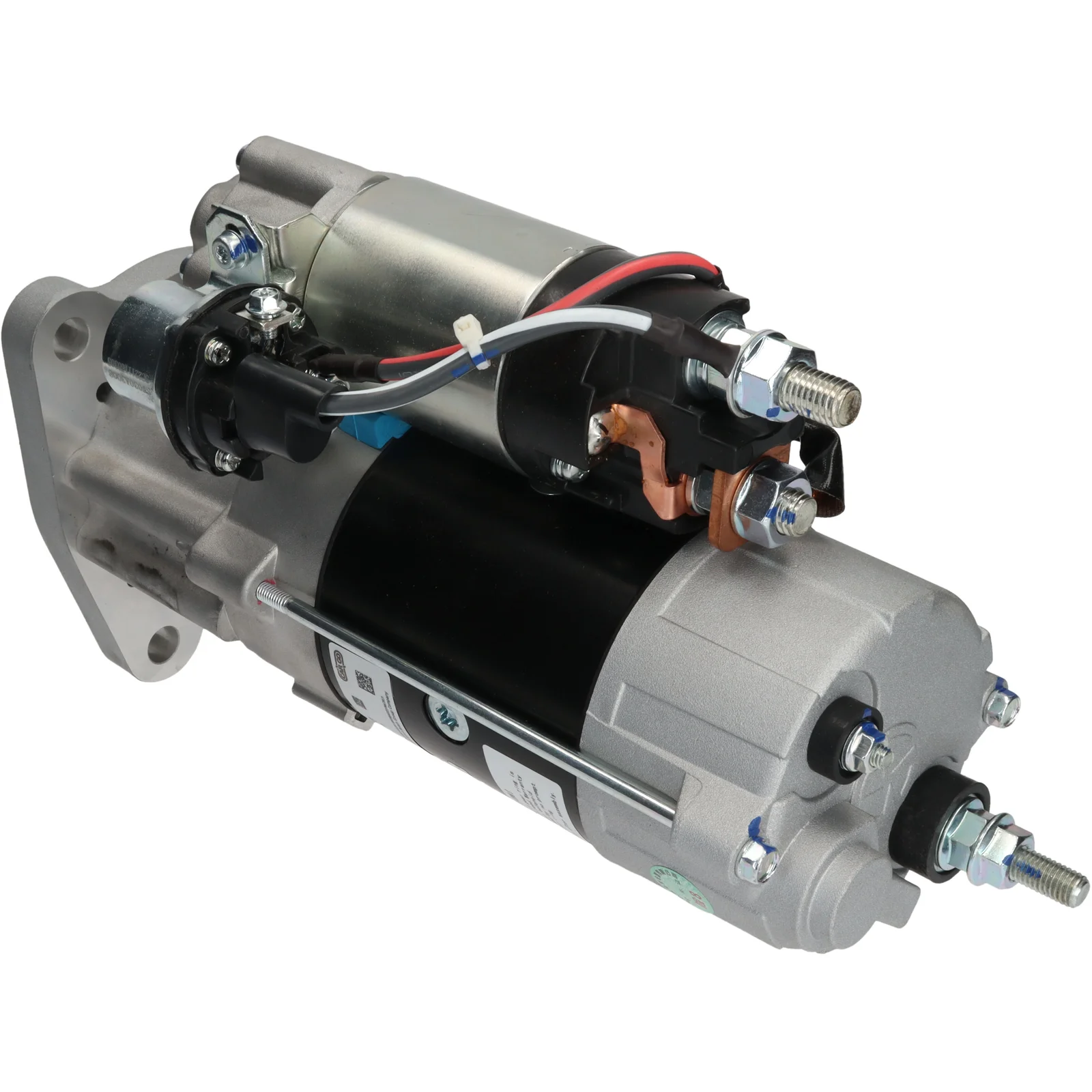

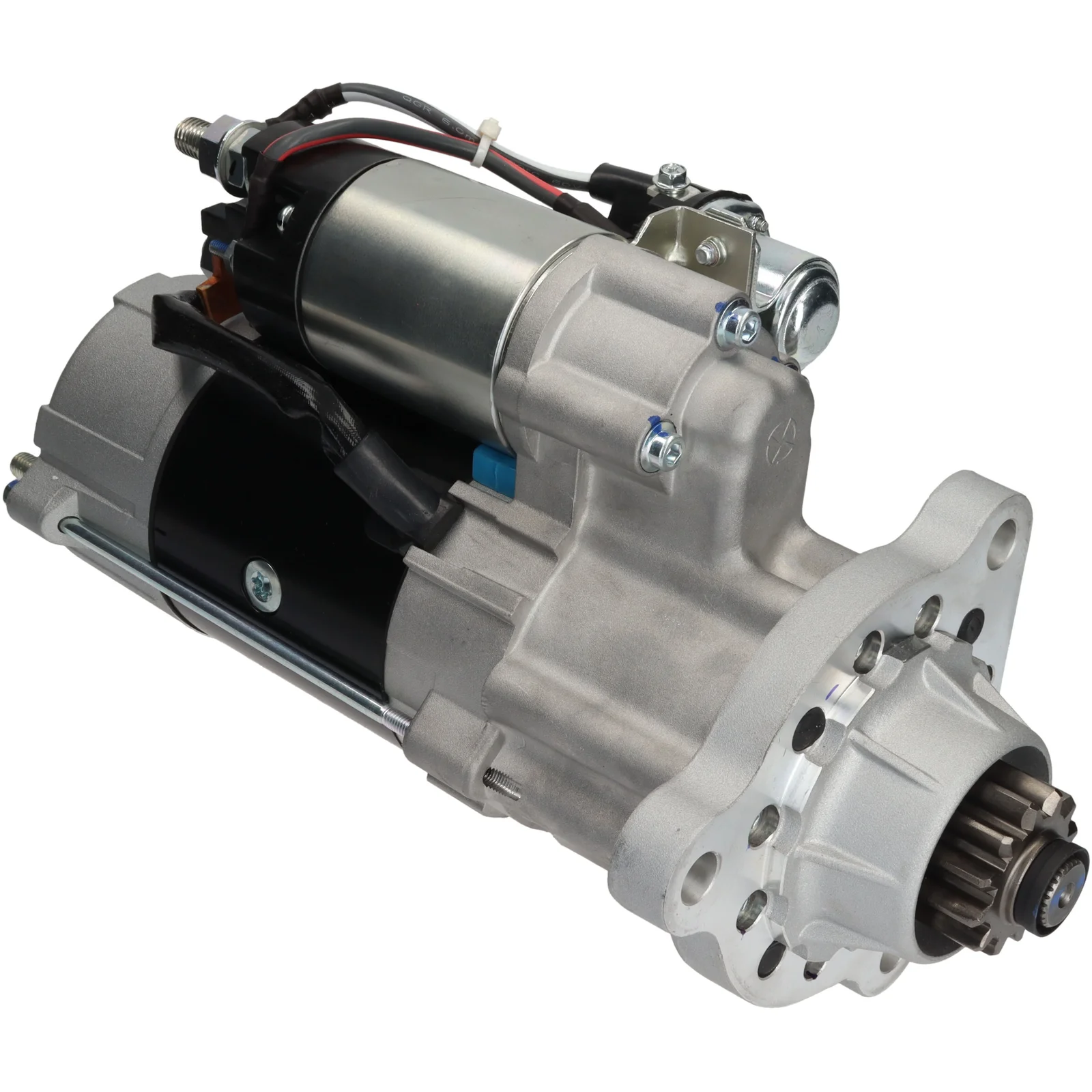

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116783

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 9.0, No./teeth: 12, Rotation: CW

Beskrivning

Voltage: 24
kW: 9.0
Mount. flange: 92.00
Drive dist.: 47.50
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 340.00
Dist./front: 54.00
No./teeth: 12
B+: M12
Position/B+: 60
Terminal 50: M5
Gear type: GR
Dist. 2: 126.50
Dist. 3: 126.50
Dist. mm: 126.50
Rotation: CW
Total length mm: 394.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M12
No./teeth 12
Mount. flange 92.00
No./mount. holes 3 (0)
Position/B+ 60
Dist. 2 126.50
Dist. 3 126.50
Rotation CW
Dist./back 340.00
Dist./front 54.00
Drive dist. 47.50
Gear type GR
kW 9.0
Terminal 50 M5
Voltage 24
Total length 394.00 mm
Dist. 126.50 mm
Mount. hole 3 13.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032116783, 20R4879, 349-9077, 396-4770, 428000-9120, 428000-9121, 428000-9122, 438000-0550, 3499075, 3545671, 8200762

  • Konkurrentreferens
    CST60626, DSN2146, S1223S, 641.547.103, 255702

  • Normaliserat artikelnummer
    cst60626, dsn2146, f032116783, s1223s, 20r4879, 255702, 3499075, 3499077, 3545671, 3964770, 8200762, 641547103, 4280009120, 4280009121, 4280009122, 4380000550

  • Passar modeller
    Caterpillar Model: Various Industrial applications Model series: Various Industrial applications Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 9.0
    Mount. flange: 92.00
    Drive dist.: 47.50
    Mount. hole 3 mm: 13.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 340.00
    Dist./front: 54.00
    No./teeth: 12
    B+: M12
    Position/B+: 60
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 126.50
    Dist. 3: 126.50
    Dist. mm: 126.50
    Rotation: CW
    Total length mm: 394.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M12
    No./teeth 12
    Mount. flange 92.00
    No./mount. holes 3 (0)
    Position/B+ 60
    Dist. 2 126.50
    Dist. 3 126.50
    Rotation CW
    Dist./back 340.00
    Dist./front 54.00
    Drive dist. 47.50
    Gear type GR
    kW 9.0
    Terminal 50 M5
    Voltage 24
    Total length 394.00 mm
    Dist. 126.50 mm
    Mount. hole 3 13.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Fordonsmatchning

    • OEM
      F032116783, 20R4879, 349-9077, 396-4770, 428000-9120, 428000-9121, 428000-9122, 438000-0550, 3499075, 3545671, 8200762

    • Konkurrentreferens
      CST60626, DSN2146, S1223S, 641.547.103, 255702

    • Normaliserat artikelnummer
      cst60626, dsn2146, f032116783, s1223s, 20r4879, 255702, 3499075, 3499077, 3545671, 3964770, 8200762, 641547103, 4280009120, 4280009121, 4280009122, 4380000550

    • Passar modeller
      Caterpillar Model: Various Industrial applications Model series: Various Industrial applications Approved: Yes
