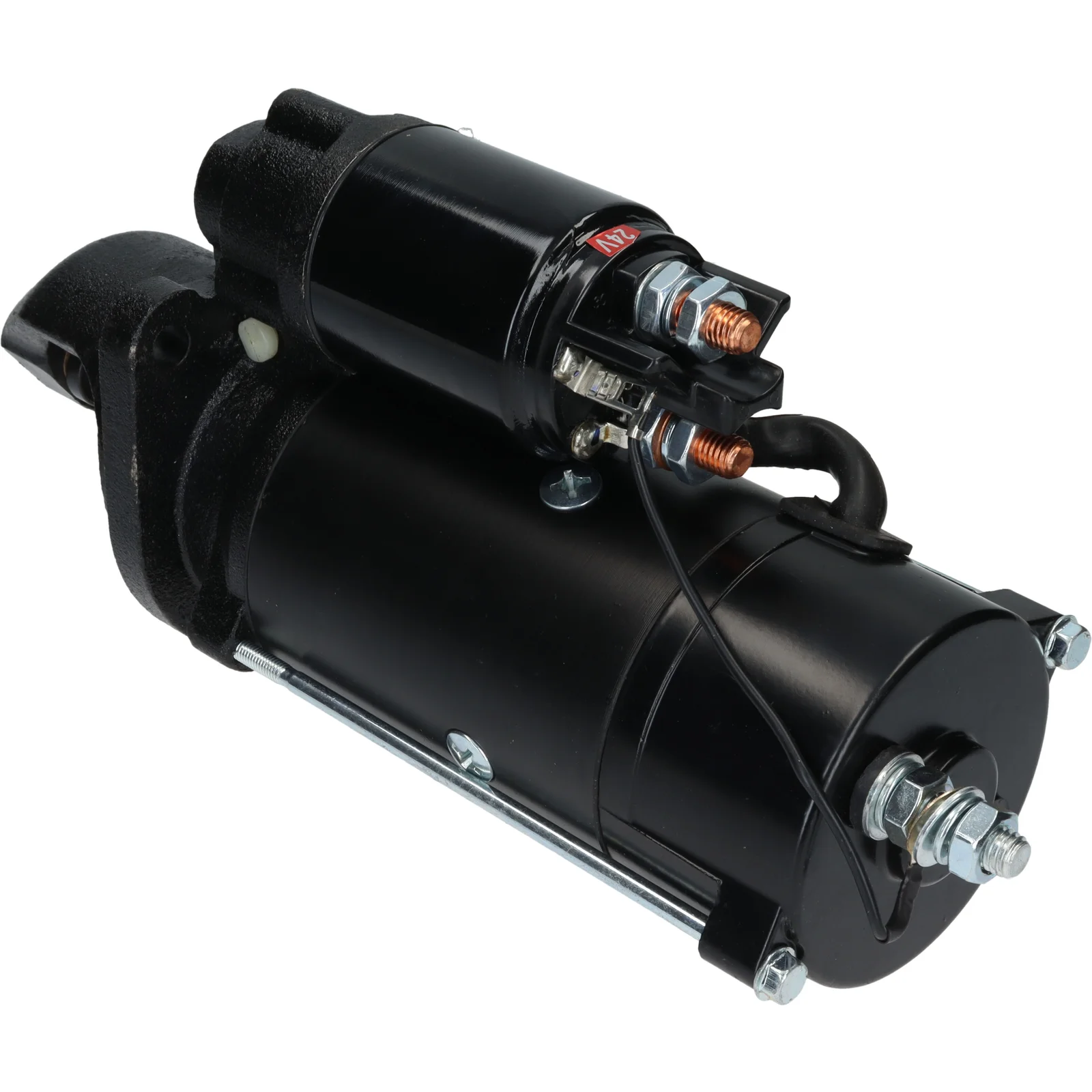

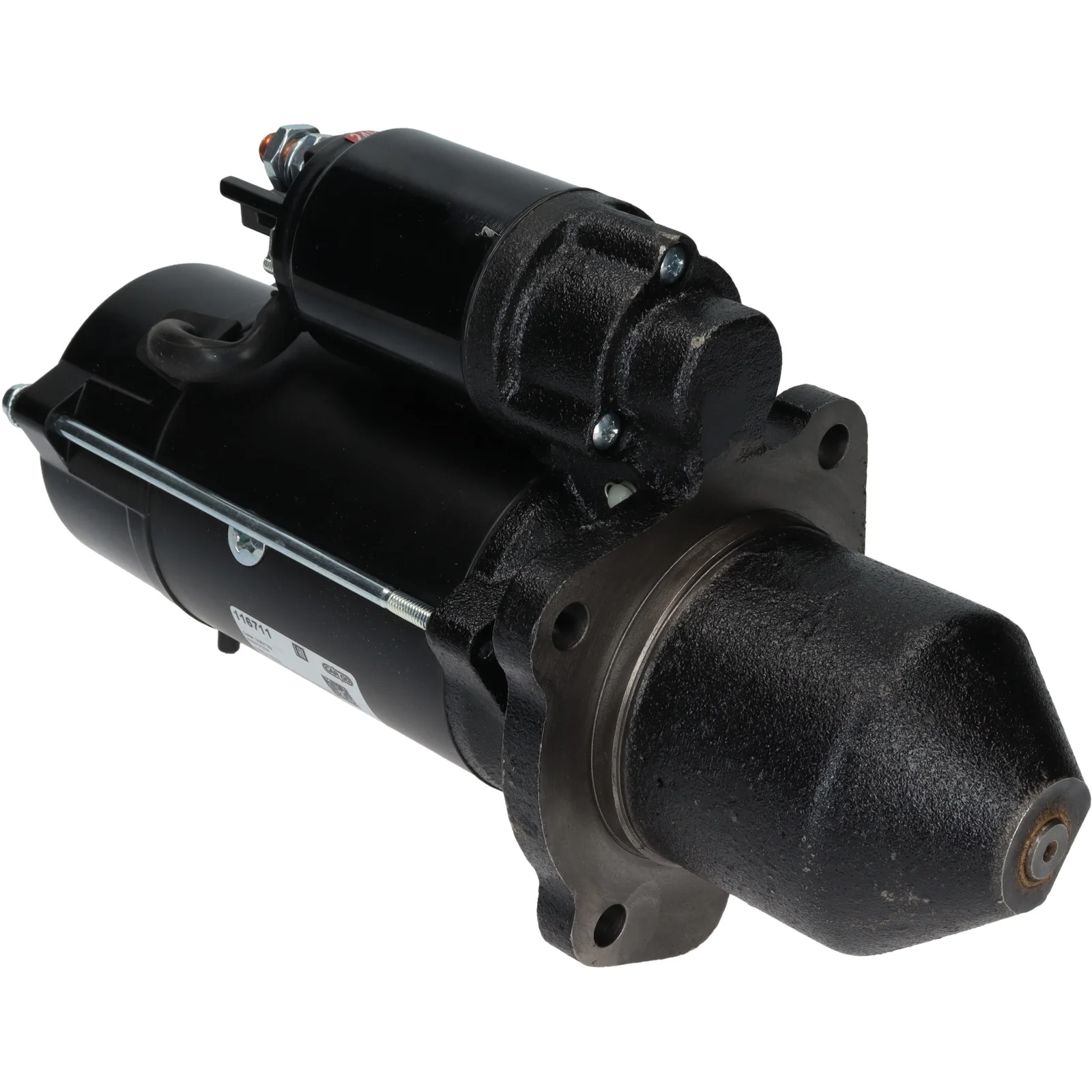

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116711

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.0
Insulated return: Yes
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 255.00
Dist./front: 96.00
No./teeth: 10
B+: M10-1.25
Position/B+: 60
Position/50: 18
Terminal 50: M5
Gear type: GR
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 351.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10-1.25
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 18
Position/B+ 60
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 255.00
Dist./front 96.00
Drive dist. 48.00
Gear type GR
Insulated return Yes
kW 4.0
Terminal 50 M5
Voltage 24
Total length 351.00 mm
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZF4360, AZF4413, AZF4575, AZF4593, F032116711, OCO71074, RE522334, S5012L, 11.131.266, 11.131.357, 11.132.302, 11.132.561, 502733, 01912354, 011912354

  • Konkurrentreferens
    CST21612, is1117, LES0578, LRS02358, MS165, MS627, S9365S, 45-4030, 686.012.104, 701.504.103, 19864

  • Normaliserat artikelnummer
    azf4360, azf4413, azf4575, azf4593, cst21612, f032116711, is1117, les0578, lrs02358, ms165, ms627, oco71074, re522334, s5012l, s9365s, 19864, 454030, 502733, 01912354, 11131266, 11131357, 11132302, 11132561, 011912354, 686012104, 701504103

  • Passar modeller
    Cummins Model: Various Models Model series: Various Models Approved: Yes
    John Deere Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 4.0
    Insulated return: Yes
    Mount. flange: 89.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 255.00
    Dist./front: 96.00
    No./teeth: 10
    B+: M10-1.25
    Position/B+: 60
    Position/50: 18
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 351.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10-1.25
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 18
    Position/B+ 60
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 255.00
    Dist./front 96.00
    Drive dist. 48.00
    Gear type GR
    Insulated return Yes
    kW 4.0
    Terminal 50 M5
    Voltage 24
    Total length 351.00 mm
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      AZF4360, AZF4413, AZF4575, AZF4593, F032116711, OCO71074, RE522334, S5012L, 11.131.266, 11.131.357, 11.132.302, 11.132.561, 502733, 01912354, 011912354

    • Konkurrentreferens
      CST21612, is1117, LES0578, LRS02358, MS165, MS627, S9365S, 45-4030, 686.012.104, 701.504.103, 19864

    • Normaliserat artikelnummer
      azf4360, azf4413, azf4575, azf4593, cst21612, f032116711, is1117, les0578, lrs02358, ms165, ms627, oco71074, re522334, s5012l, s9365s, 19864, 454030, 502733, 01912354, 11131266, 11131357, 11132302, 11132561, 011912354, 686012104, 701504103

    • Passar modeller
      Cummins Model: Various Models Model series: Various Models Approved: Yes
      John Deere Model: Various Models Model series: Various Models Approved: Yes
