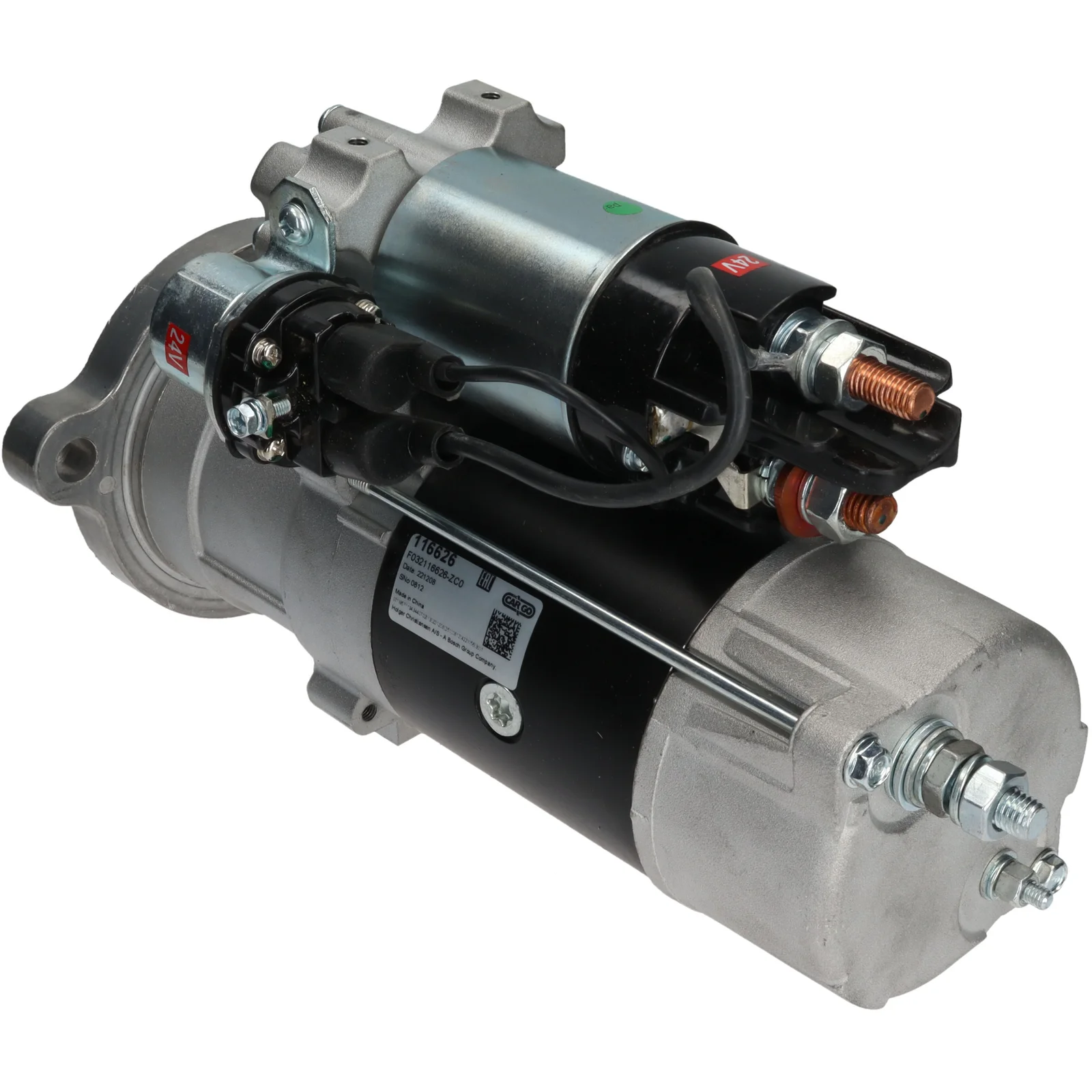

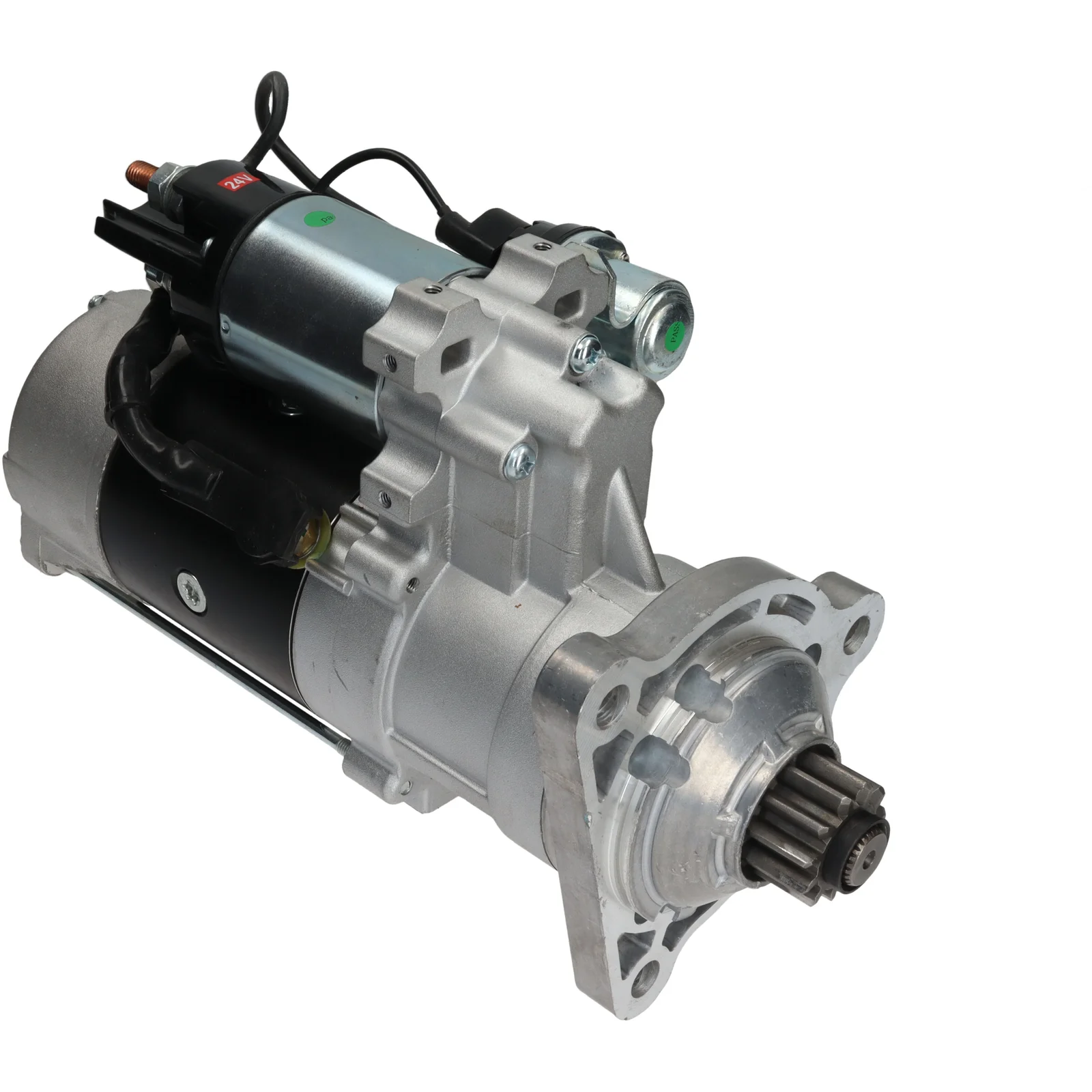

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116626

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 7.0, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 7.0
Mount. flange: 92.00
Drive dist.: 48.00
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 330.00
Dist./front: 55.50
No./teeth: 11
B+: M10
Position/B+: 60
Thread length mm: 21.00
Terminal 50: M5
Gear type: GR
Dist. 2: 126.50
Dist. 3: 126.50
Dist. mm: 126.50
Rotation: CW
B-: M10
Total length mm: 385.50
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 11
Mount. flange 92.00
No./mount. holes 3 (0)
Position/B+ 60
Dist. 2 126.50
Dist. 3 126.50
Rotation CW
Dist./back 330.00
Dist./front 55.50
Drive dist. 48.00
Gear type GR
kW 7.0
Terminal 50 M5
Voltage 24
Total length 385.50 mm
Dist. 126.50 mm
Thread length 21.00 mm
Mount. hole 3 13.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032116626, 65.26201-7058, 65.26201-7067, 65.26201-7067A, 65.26201-7074, 65.26201-7074A, 65.26201-7074C, 65.26201-7074D, 300516-00075, 300516-00075A, 300516-00075B, 500902, 6526201-7058, 19080029, 65262017074

  • Konkurrentreferens
    CST46602, DRS0305, DRS0306, DRS0306N, S1094(DELCO), 281.001.113, 254693

  • Normaliserat artikelnummer
    cst46602, drs0305, drs0306, drs0306n, f032116626, s1094delco, 254693, 500902, 19080029, 281001113, 30051600075, 30051600075a, 30051600075b, 65262017058, 65262017067, 65262017067a, 65262017074, 65262017074a, 65262017074c, 65262017074d

  • Passar modeller
    Daewoo Model: Excavator Model series: Various Models Approved: Yes
    Doosan Model: Various Industrial applications Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 7.0
    Mount. flange: 92.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 13.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 330.00
    Dist./front: 55.50
    No./teeth: 11
    B+: M10
    Position/B+: 60
    Thread length mm: 21.00
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 126.50
    Dist. 3: 126.50
    Dist. mm: 126.50
    Rotation: CW
    B-: M10
    Total length mm: 385.50
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M10
    No./teeth 11
    Mount. flange 92.00
    No./mount. holes 3 (0)
    Position/B+ 60
    Dist. 2 126.50
    Dist. 3 126.50
    Rotation CW
    Dist./back 330.00
    Dist./front 55.50
    Drive dist. 48.00
    Gear type GR
    kW 7.0
    Terminal 50 M5
    Voltage 24
    Total length 385.50 mm
    Dist. 126.50 mm
    Thread length 21.00 mm
    Mount. hole 3 13.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Fordonsmatchning

    • OEM
      F032116626, 65.26201-7058, 65.26201-7067, 65.26201-7067A, 65.26201-7074, 65.26201-7074A, 65.26201-7074C, 65.26201-7074D, 300516-00075, 300516-00075A, 300516-00075B, 500902, 6526201-7058, 19080029, 65262017074

    • Konkurrentreferens
      CST46602, DRS0305, DRS0306, DRS0306N, S1094(DELCO), 281.001.113, 254693

    • Normaliserat artikelnummer
      cst46602, drs0305, drs0306, drs0306n, f032116626, s1094delco, 254693, 500902, 19080029, 281001113, 30051600075, 30051600075a, 30051600075b, 65262017058, 65262017067, 65262017067a, 65262017074, 65262017074a, 65262017074c, 65262017074d

    • Passar modeller
      Daewoo Model: Excavator Model series: Various Models Approved: Yes
      Doosan Model: Various Industrial applications Model series: Various Models Approved: Yes
