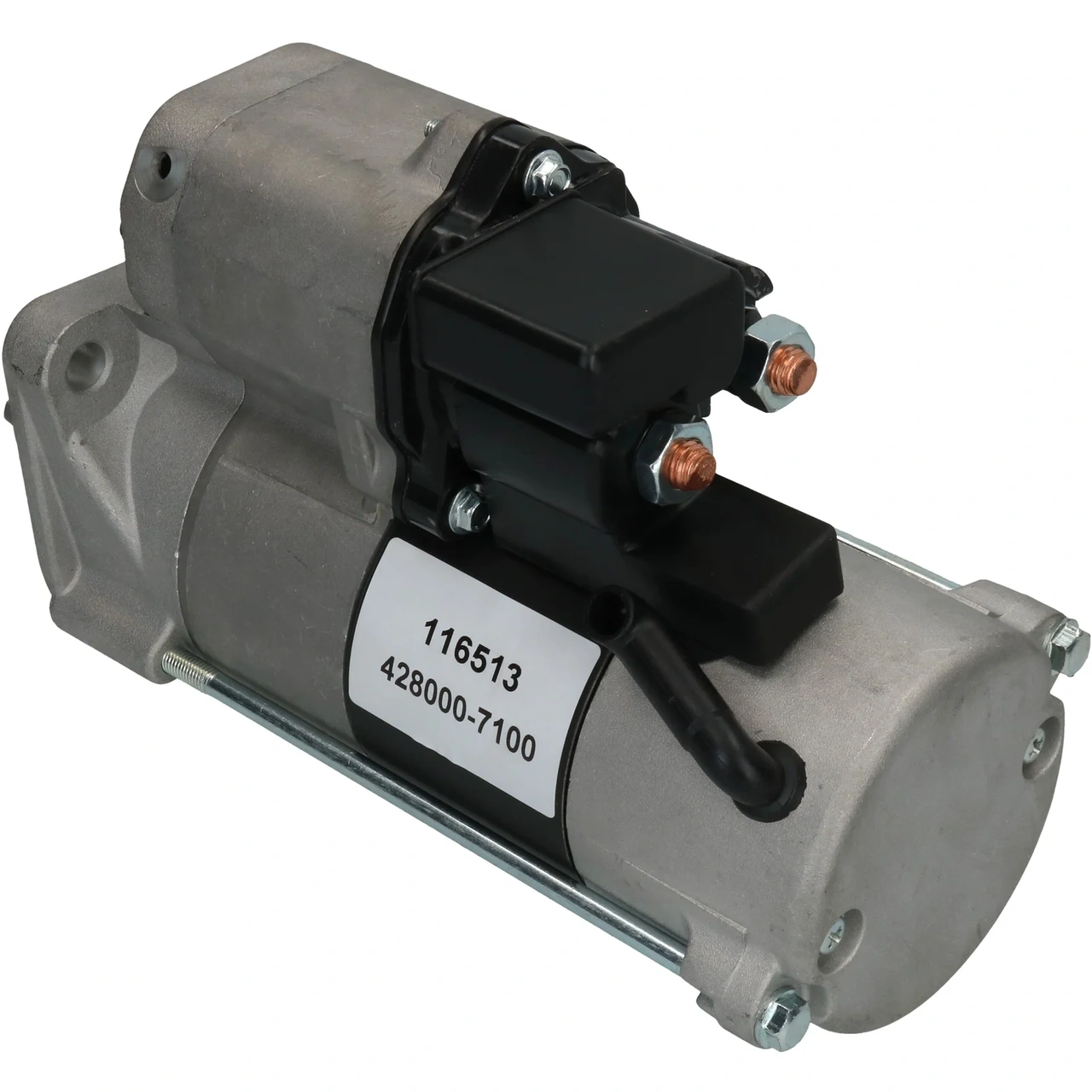

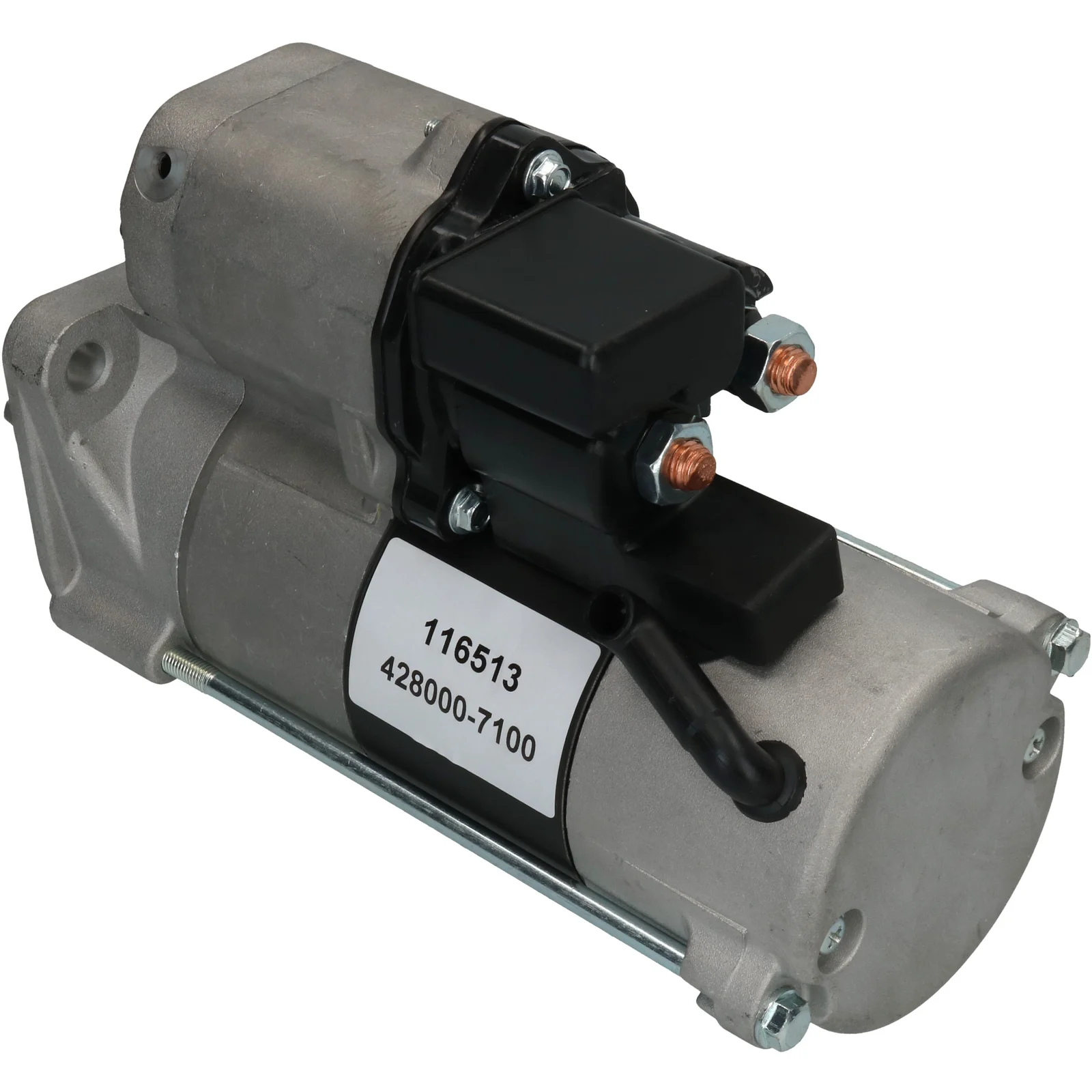

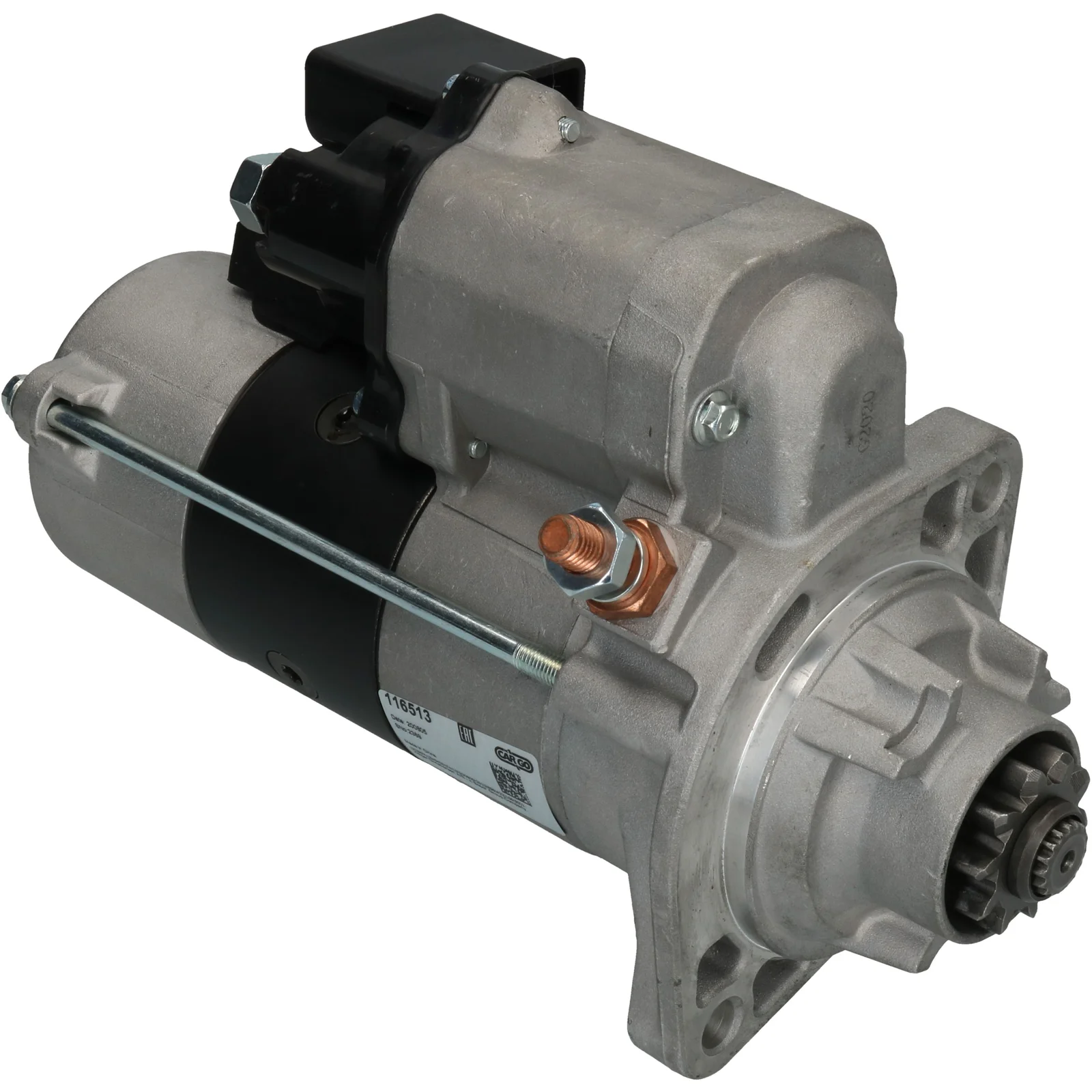

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116513

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.8, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.8
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 223.00
Dist./front: 55.00
No./teeth: 10
B+: M10
Position/B+: 13
Position/50: 55
Terminal 50: M5
Gear type: GR
Dist. mm: 127.00
Rotation: CW
B-: M10
Total length mm: 278.00
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 2 (0)
Position/50 55
Position/B+ 13
Rotation CW
Dist./back 223.00
Dist./front 55.00
Drive dist. 48.00
Gear type GR
kW 4.8
Terminal 50 M5
Voltage 24
Total length 278.00 mm
Dist. 127.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116513, 428000-7100, 438000-0060, 4996707

  • Konkurrentreferens
    CST40639, DSN2091, S6225S, 701.514.103

  • Normaliserat artikelnummer
    cst40639, dsn2091, f032116513, s6225s, 4996707, 701514103, 4280007100, 4380000060

  • Passar modeller
    Cummins Model: Various Models Model series: Various Models Approved: Yes
    Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 4.8
    Mount. flange: 89.00
    Drive dist.: 48.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 223.00
    Dist./front: 55.00
    No./teeth: 10
    B+: M10
    Position/B+: 13
    Position/50: 55
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 127.00
    Rotation: CW
    B-: M10
    Total length mm: 278.00
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M10
    B- M10
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 2 (0)
    Position/50 55
    Position/B+ 13
    Rotation CW
    Dist./back 223.00
    Dist./front 55.00
    Drive dist. 48.00
    Gear type GR
    kW 4.8
    Terminal 50 M5
    Voltage 24
    Total length 278.00 mm
    Dist. 127.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032116513, 428000-7100, 438000-0060, 4996707

    • Konkurrentreferens
      CST40639, DSN2091, S6225S, 701.514.103

    • Normaliserat artikelnummer
      cst40639, dsn2091, f032116513, s6225s, 4996707, 701514103, 4280007100, 4380000060

    • Passar modeller
      Cummins Model: Various Models Model series: Various Models Approved: Yes
      Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
