HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116376

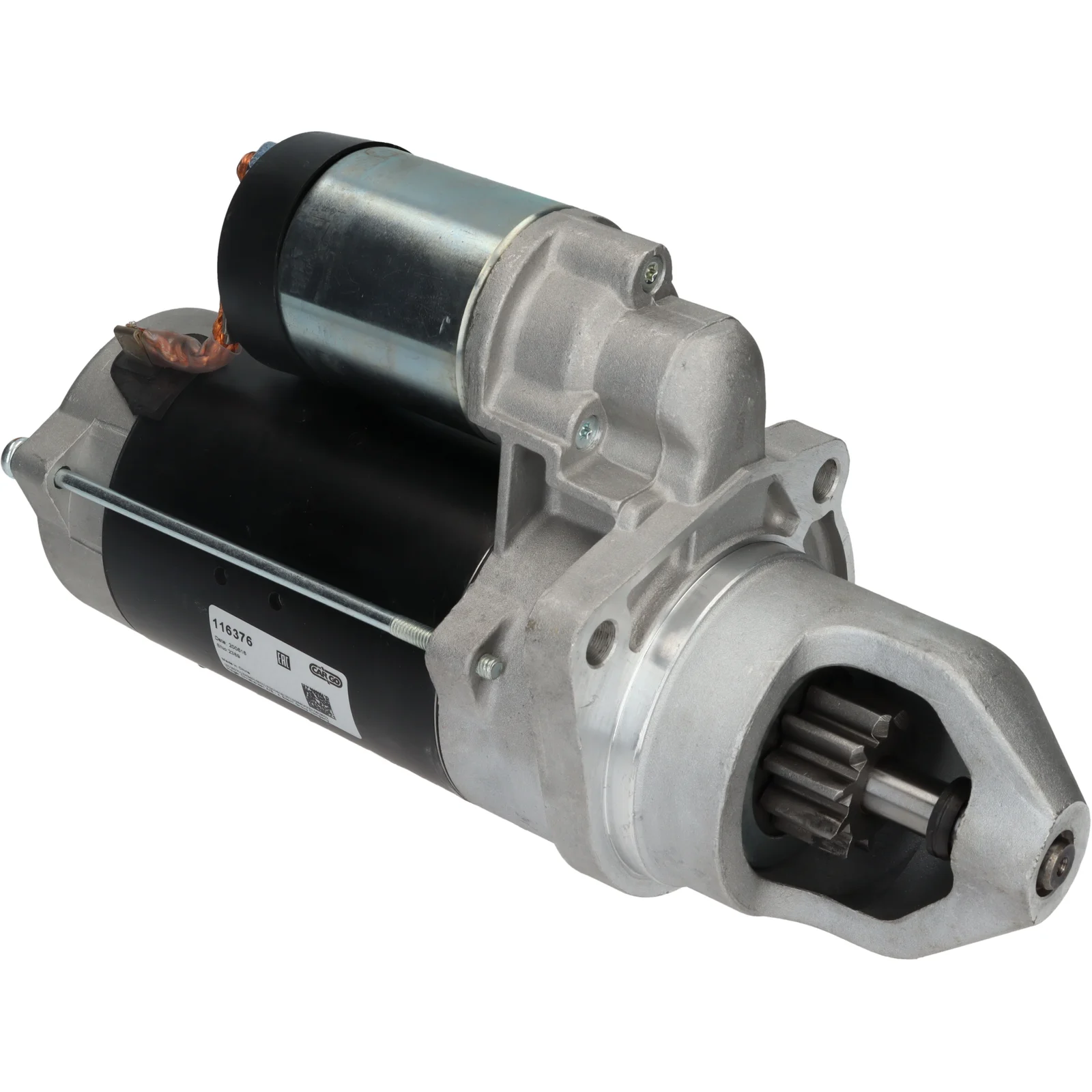

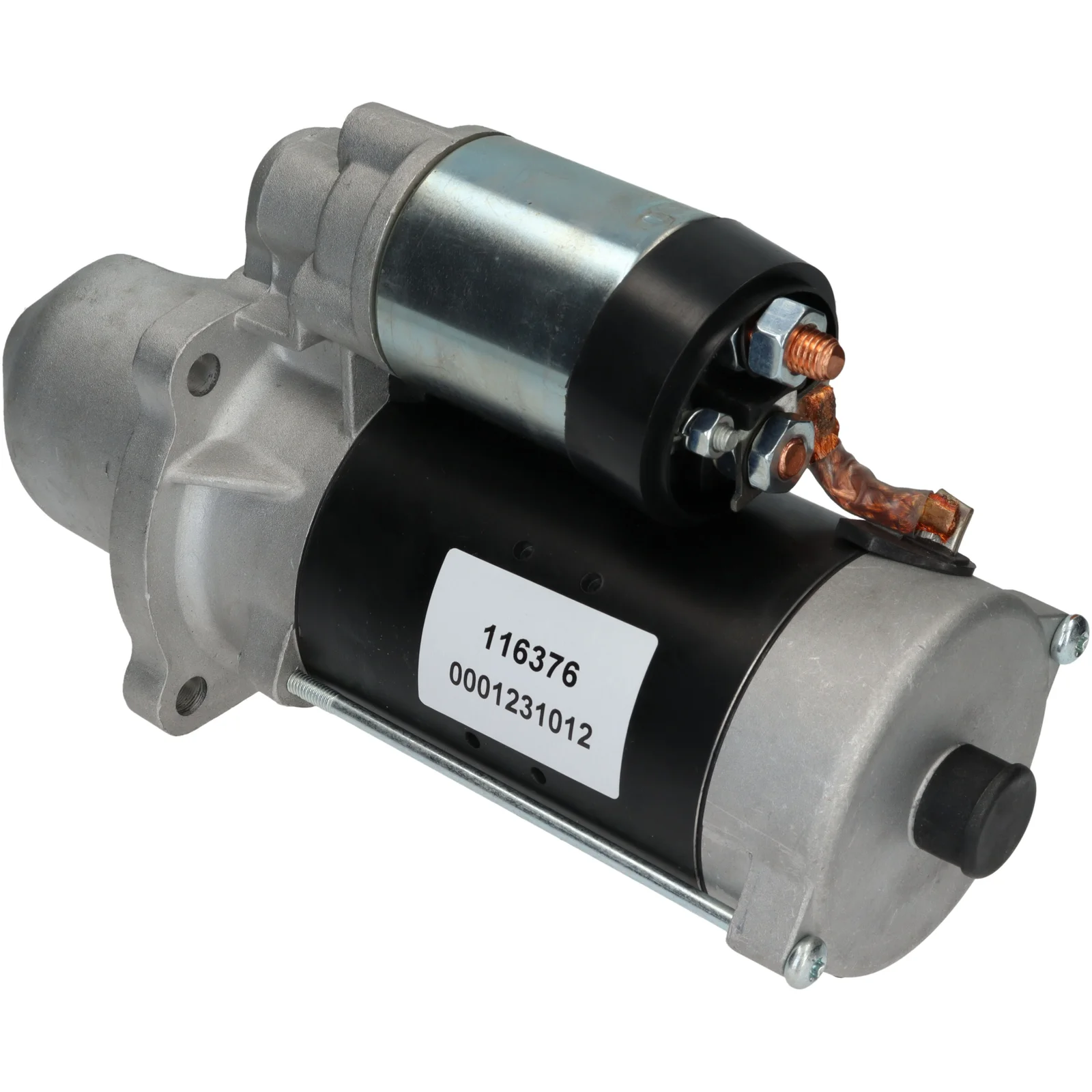

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.0
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 219.00
Dist./front: 96.00
No./teeth: 10
B+: M10
Position/B+: 60
Position/50: 45
Terminal 50: M6
Gear type: GR
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 315.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 45
Position/B+ 60
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 219.00
Dist./front 96.00
Drive dist. 48.00
Gear type GR
kW 4.0
Terminal 50 M6
Voltage 24
Total length 315.00 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116376, 0001231012, 1340895, 19084036

  • Konkurrentreferens
    CST10717, DRT1520, S0235, S0674S, 10388, 30964N, 105687, 220725, 220725A, 11021520, 0986021520

  • Normaliserat artikelnummer
    cst10717, drt1520, f032116376, s0235, s0674s, 10388, 30964n, 105687, 220725, 220725a, 0001231012, 1340895, 11021520, 19084036, 0986021520

  • Passar modeller
    DAF Model: 65 Model series: 65 CF.180 Size of motor: 6.2 Brand of engine: NS133M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65 CF.210 Size of motor: 6.2 Brand of engine: NS156M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65 CF.240 Size of motor: 6.2 Brand of engine: NS177M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65.180 Size of motor: 6.2 Brand of engine: NS133L Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65.180 Size of motor: 6.2 Brand of engine: NS133M Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65.210 Size of motor: 6.2 Brand of engine: NS156L Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65.210 Size of motor: 6.2 Brand of engine: NS156M Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65.240 Size of motor: 6.2 Brand of engine: NS177M Body: Platform / Chassis From date: 01-05-1996 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1100 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-10-1988 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DNT620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-02-1990 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: NT116 Body: Platform / Chassis From date: 01-12-1986 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: NT133 Body: Platform / Chassis From date: 01-12-1986 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1500 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1500 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-01-1970 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-01-1973 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: DNS620 Body: Platform / Chassis From date: 01-01-1988 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: DNT620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: NT116 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: NT133 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1800 Size of motor: 6.2 Brand of engine: DT615 Body: Dump Truck From date: 01-01-1970 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: DNS620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: DNT620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: NT133 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 2100 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-09-1986 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 2105 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-09-1986 Fuel: Diesel Approved: Yes
