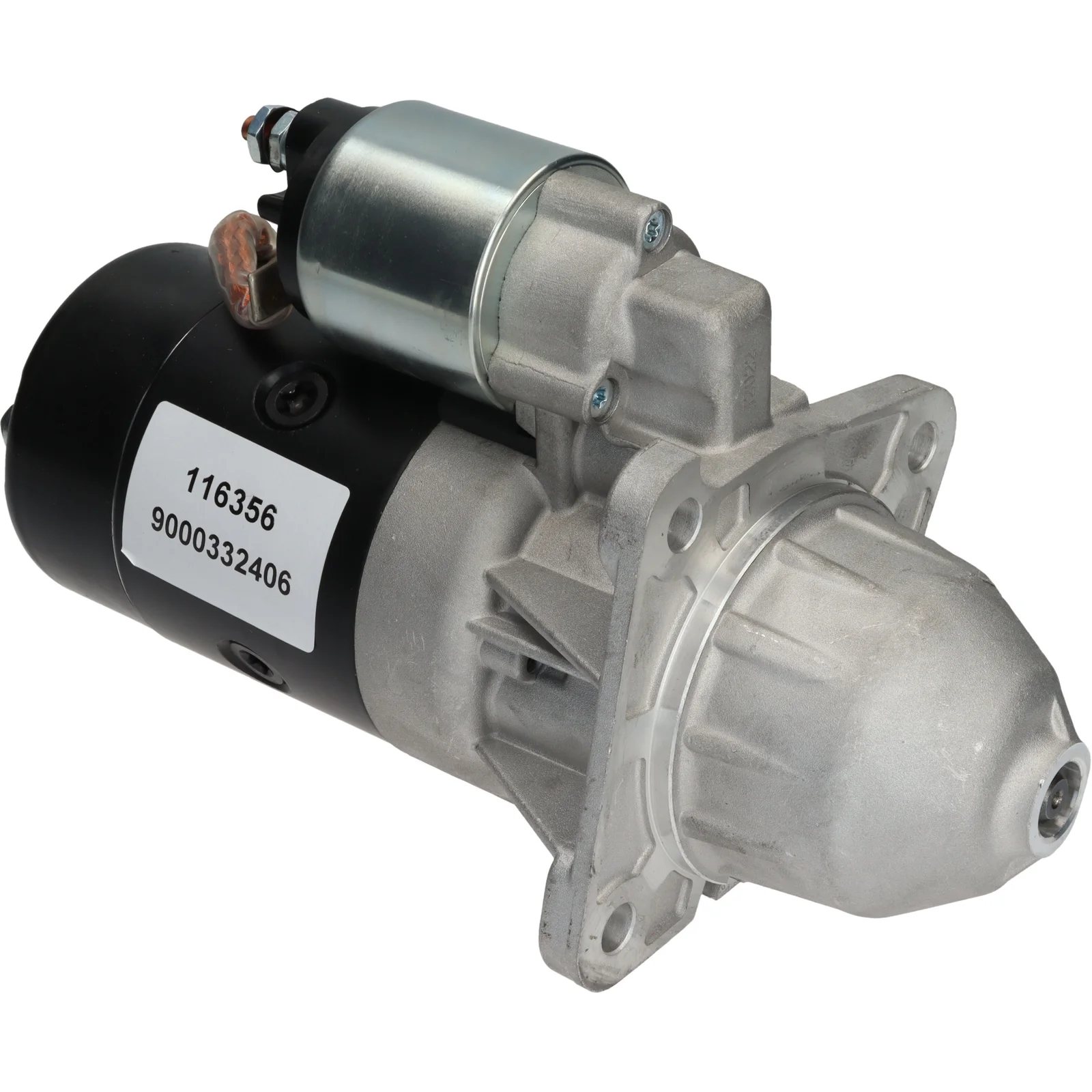

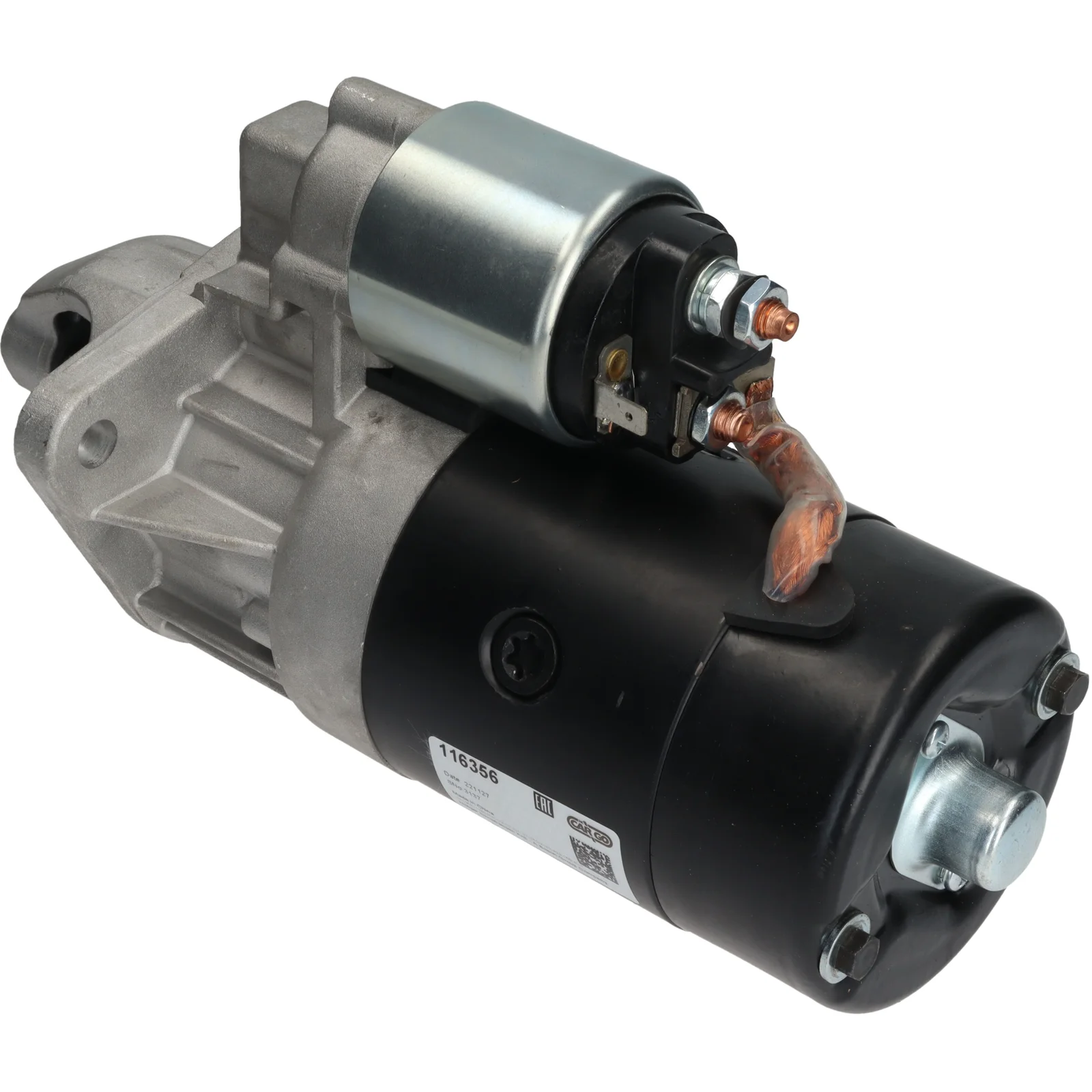

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116356

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 2.5, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 24
kW: 2.5
Mount. flange: 89.00
Drive dist.: 29.20
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 211.00
Dist./front: 70.00
No./teeth: 10
B+: M8
Position/B+: 60
Position/50: 43
Terminal 50: 6.30
Gear type: GR
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 281.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 43
Position/B+ 60
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 211.00
Dist./front 70.00
Drive dist. 29.20
Gear type GR
kW 2.5
Terminal 50 6.30
Voltage 24
Total length 281.00 mm
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116356, 23300-d8700, 23300-D870A, 9000332406

  • Konkurrentreferens
    CST10686, 45-5060

  • Normaliserat artikelnummer
    cst10686, f032116356, 23300d8700, 23300d870a, 455060, 9000332406

  • Passar modeller
    Nissan Model: Atleon Model series: 140.70 Size of motor: 4.0 Brand of engine: B4-40Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 140.75 Size of motor: 4.0 Brand of engine: BD-40Ti Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 140.80 Size of motor: 4.0 Brand of engine: B4-40Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2003 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 2.5
    Mount. flange: 89.00
    Drive dist.: 29.20
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 211.00
    Dist./front: 70.00
    No./teeth: 10
    B+: M8
    Position/B+: 60
    Position/50: 43
    Terminal 50: 6.30
    Gear type: GR
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 281.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 43
    Position/B+ 60
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 211.00
    Dist./front 70.00
    Drive dist. 29.20
    Gear type GR
    kW 2.5
    Terminal 50 6.30
    Voltage 24
    Total length 281.00 mm
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032116356, 23300-d8700, 23300-D870A, 9000332406

    • Konkurrentreferens
      CST10686, 45-5060

    • Normaliserat artikelnummer
      cst10686, f032116356, 23300d8700, 23300d870a, 455060, 9000332406

    • Passar modeller
      Nissan Model: Atleon Model series: 140.70 Size of motor: 4.0 Brand of engine: B4-40Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2003 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 140.75 Size of motor: 4.0 Brand of engine: BD-40Ti Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 140.80 Size of motor: 4.0 Brand of engine: B4-40Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2003 Fuel: Diesel Approved: Yes
