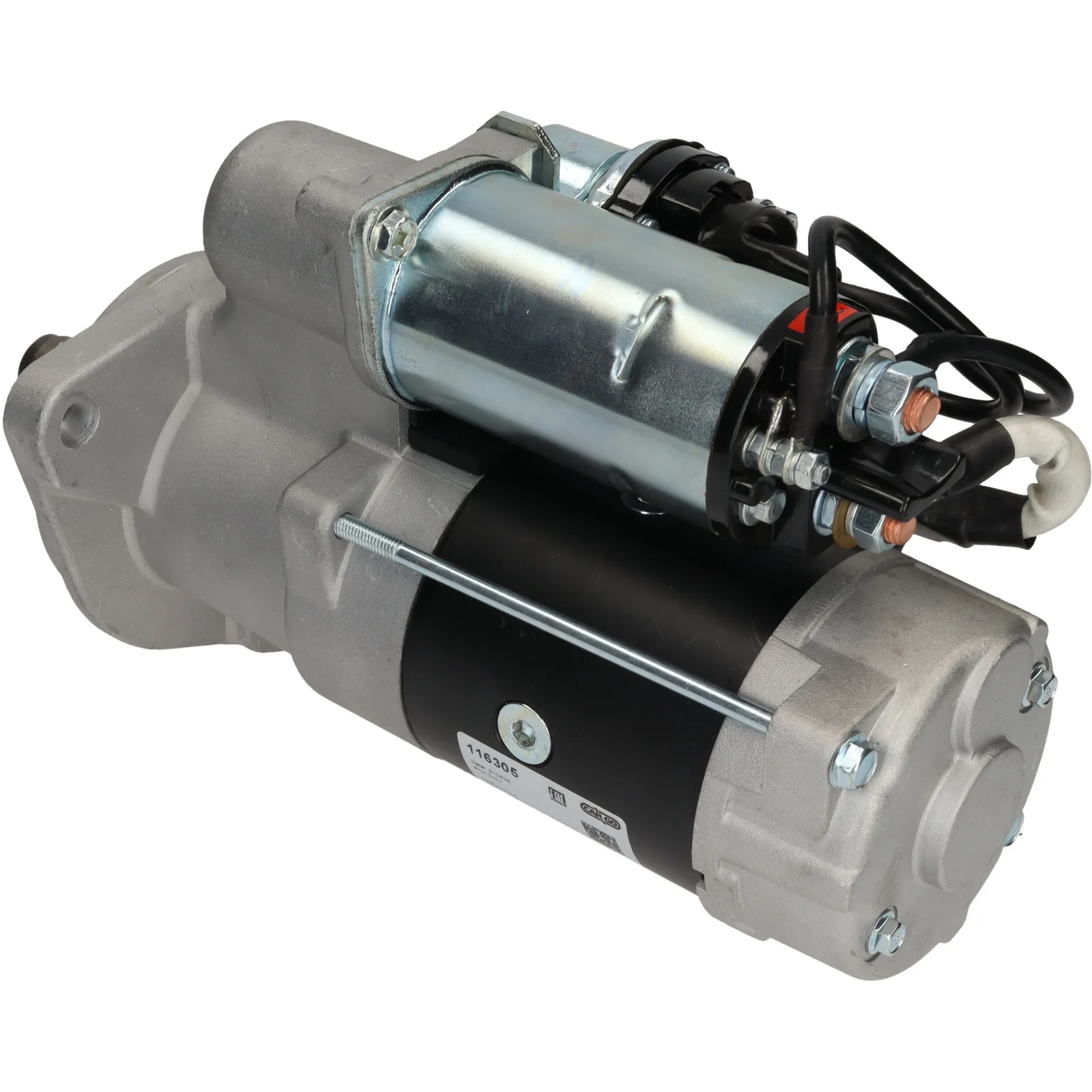

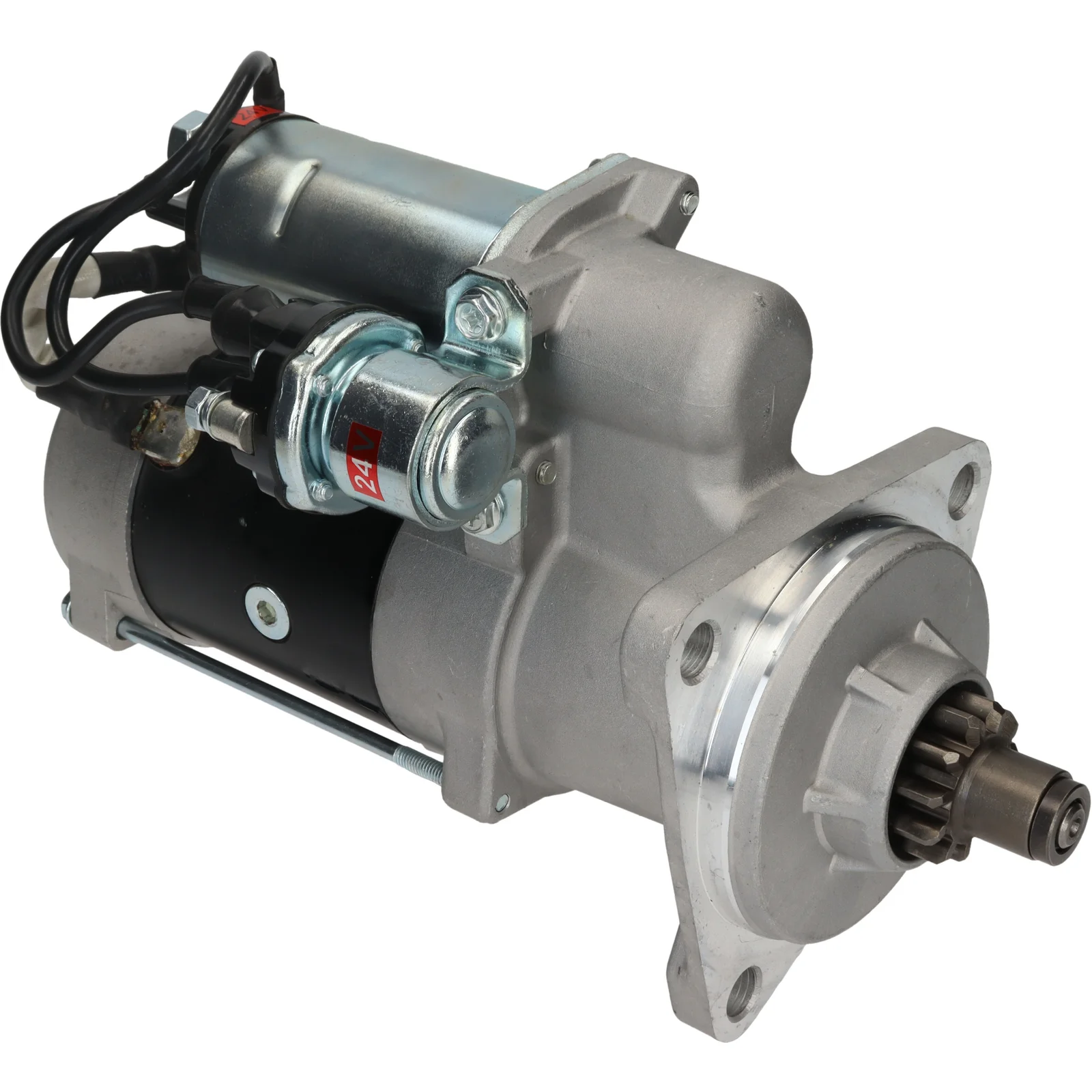

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116305

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.5, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.5
Mount. flange: 105.00
Drive dist.: 41.50
Mount. hole 3 mm: 13.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 240.00
Dist./front: 67.00
No./teeth: 11
B+: M10
Position/B+: 60
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. 2: 111.00
Dist. 3: 111.00
Dist. mm: 135.00
Rotation: CW
Total length mm: 307.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 105.00
No./mount. holes 3 (0)
Position/50 15
Position/B+ 60
Dist. 2 111.00
Dist. 3 111.00
Rotation CW
Dist./back 240.00
Dist./front 67.00
Drive dist. 41.50
Gear type GR
kW 4.5
Terminal 50 M6
Voltage 24
Total length 307.00 mm
Dist. 135.00 mm
Mount. hole 3 13.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032116305, 65.26201-7076, 600516-00003, 6526201-7076, 8200475, 8200734, 8200777, 30051600003, 30051600041, 30051600041A

  • Konkurrentreferens
    CST46126, DRS0632, DRS0632N, S1097(DELCO), S1097S, S9277, 231.004.113, 19982

  • Normaliserat artikelnummer
    cst46126, drs0632, drs0632n, f032116305, s1097delco, s1097s, s9277, 19982, 8200475, 8200734, 8200777, 231004113, 30051600003, 30051600041, 30051600041a, 60051600003, 65262017076

  • Passar modeller
    Various Industrial applications Model: Various Industrial applications Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 4.5
    Mount. flange: 105.00
    Drive dist.: 41.50
    Mount. hole 3 mm: 13.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 240.00
    Dist./front: 67.00
    No./teeth: 11
    B+: M10
    Position/B+: 60
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 111.00
    Dist. 3: 111.00
    Dist. mm: 135.00
    Rotation: CW
    Total length mm: 307.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 105.00
    No./mount. holes 3 (0)
    Position/50 15
    Position/B+ 60
    Dist. 2 111.00
    Dist. 3 111.00
    Rotation CW
    Dist./back 240.00
    Dist./front 67.00
    Drive dist. 41.50
    Gear type GR
    kW 4.5
    Terminal 50 M6
    Voltage 24
    Total length 307.00 mm
    Dist. 135.00 mm
    Mount. hole 3 13.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      F032116305, 65.26201-7076, 600516-00003, 6526201-7076, 8200475, 8200734, 8200777, 30051600003, 30051600041, 30051600041A

    • Konkurrentreferens
      CST46126, DRS0632, DRS0632N, S1097(DELCO), S1097S, S9277, 231.004.113, 19982

    • Normaliserat artikelnummer
      cst46126, drs0632, drs0632n, f032116305, s1097delco, s1097s, s9277, 19982, 8200475, 8200734, 8200777, 231004113, 30051600003, 30051600041, 30051600041a, 60051600003, 65262017076

    • Passar modeller
      Various Industrial applications Model: Various Industrial applications Approved: Yes
