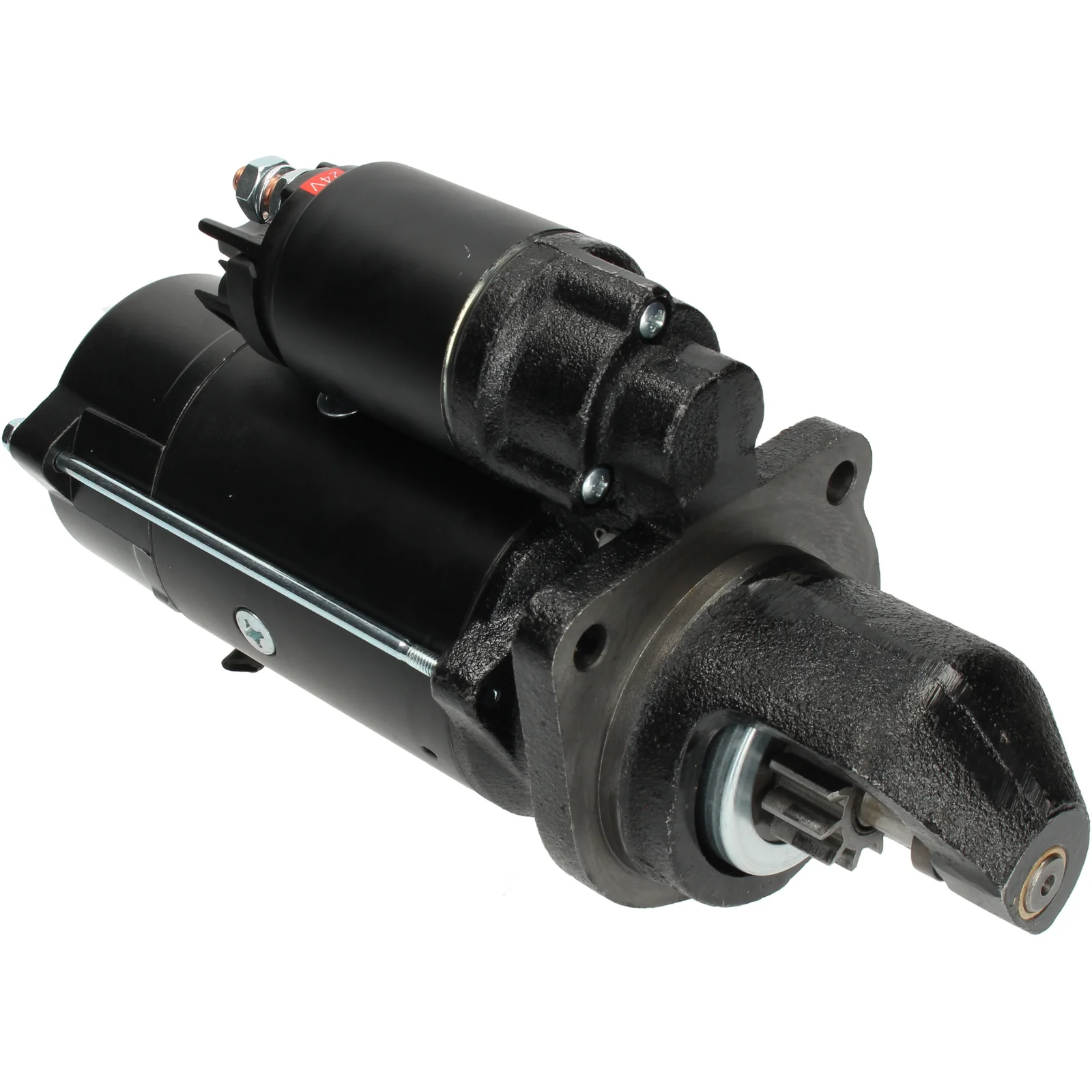

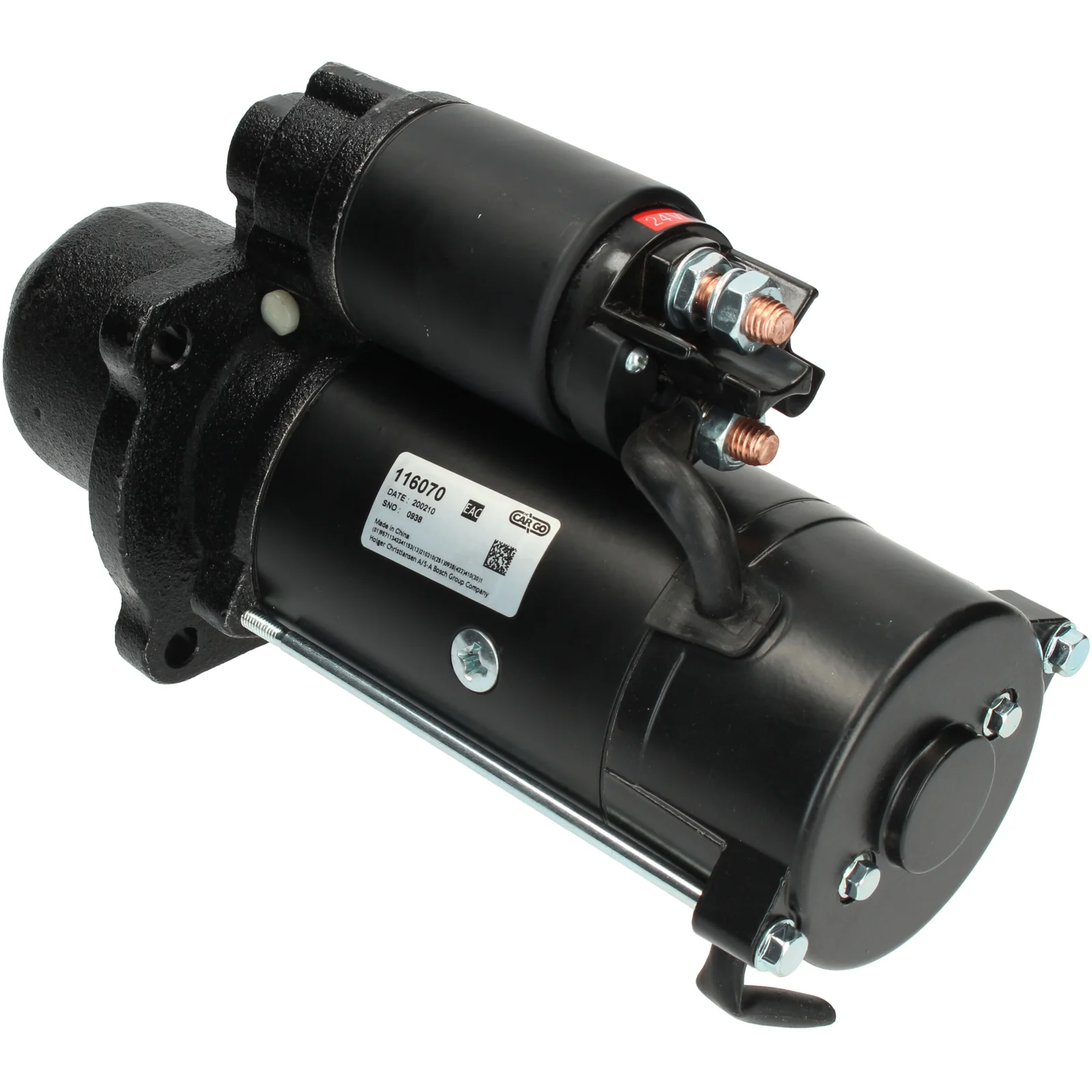

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116070

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.0, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.0
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 226.00
Dist./front: 94.50
No./teeth: 11
B+: M10
Position/B+: 60
Position/50: 17
Terminal 50: Plug
Gear type: GR
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 320.50
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 17
Position/B+ 60
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 226.00
Dist./front 94.50
Drive dist. 48.00
Gear type GR
kW 4.0
Terminal 50 Plug
Voltage 24
Total length 320.50 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZF4327, azf4588, F032116070, V836664354, V836674649, V836874005, 11.131.335, 11.132.189, 836664354, 836674649, 836874005

  • Konkurrentreferens
    IS1344, LRS04255, MS214, MS611, 45-5417

  • Normaliserat artikelnummer
    azf4327, azf4588, f032116070, is1344, lrs04255, ms214, ms611, v836664354, v836674649, v836874005, 455417, 11131335, 11132189, 836664354, 836674649, 836874005

  • Passar modeller
    Agco Power (Sisu diesel) Model: Various Models Model series: Marine Fuel: Diesel Approved: Yes
    Valtra Model: 600 Series Model series: 611 Size of motor: 6.6 Brand of engine: 611C From date: 01-09-1981 To date: 01-12-1995 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 4.0
    Mount. flange: 89.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 226.00
    Dist./front: 94.50
    No./teeth: 11
    B+: M10
    Position/B+: 60
    Position/50: 17
    Terminal 50: Plug
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 320.50
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 17
    Position/B+ 60
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 226.00
    Dist./front 94.50
    Drive dist. 48.00
    Gear type GR
    kW 4.0
    Terminal 50 Plug
    Voltage 24
    Total length 320.50 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      AZF4327, azf4588, F032116070, V836664354, V836674649, V836874005, 11.131.335, 11.132.189, 836664354, 836674649, 836874005

    • Konkurrentreferens
      IS1344, LRS04255, MS214, MS611, 45-5417

    • Normaliserat artikelnummer
      azf4327, azf4588, f032116070, is1344, lrs04255, ms214, ms611, v836664354, v836674649, v836874005, 455417, 11131335, 11132189, 836664354, 836674649, 836874005

    • Passar modeller
      Agco Power (Sisu diesel) Model: Various Models Model series: Marine Fuel: Diesel Approved: Yes
      Valtra Model: 600 Series Model series: 611 Size of motor: 6.6 Brand of engine: 611C From date: 01-09-1981 To date: 01-12-1995 Fuel: Diesel Approved: Yes
