HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115537

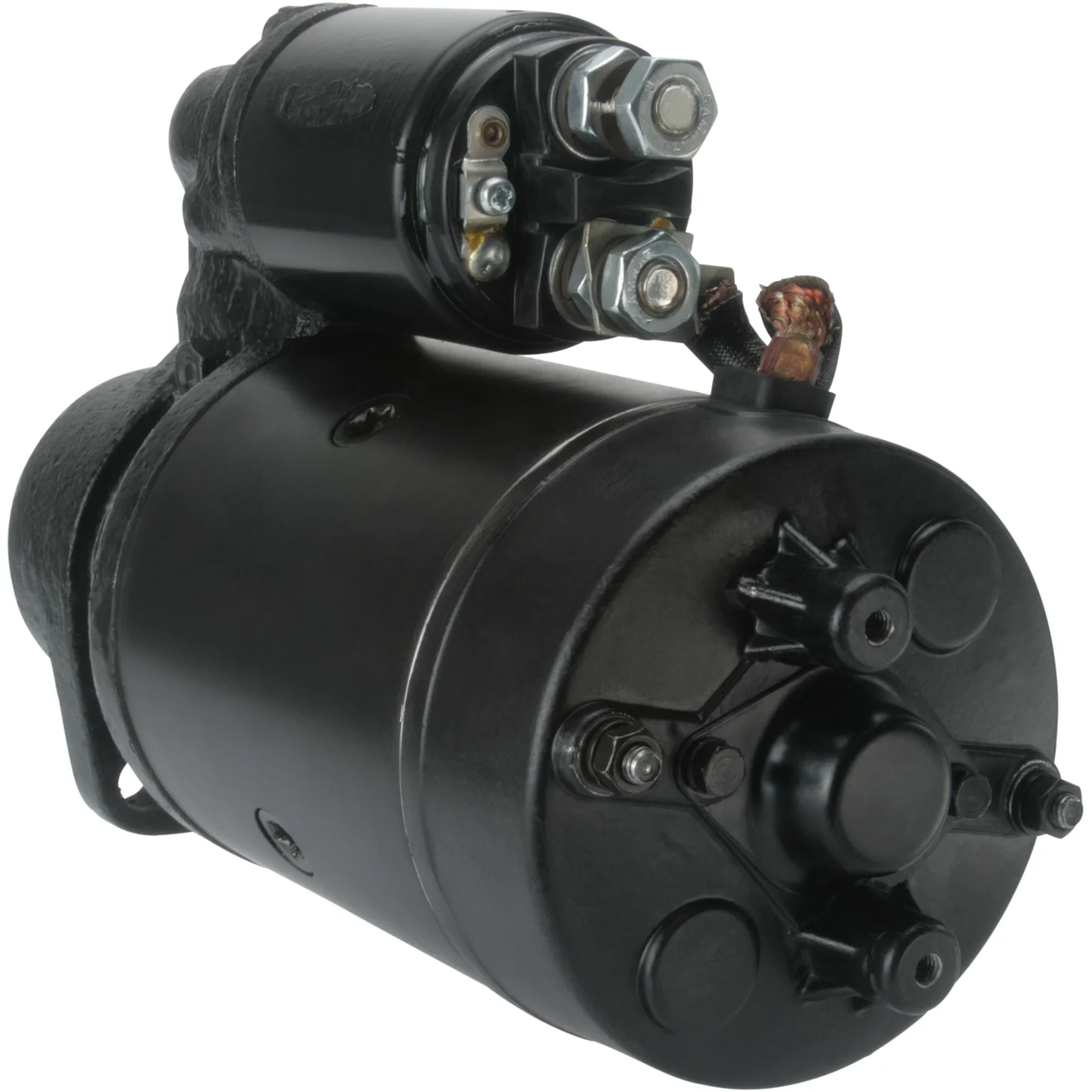

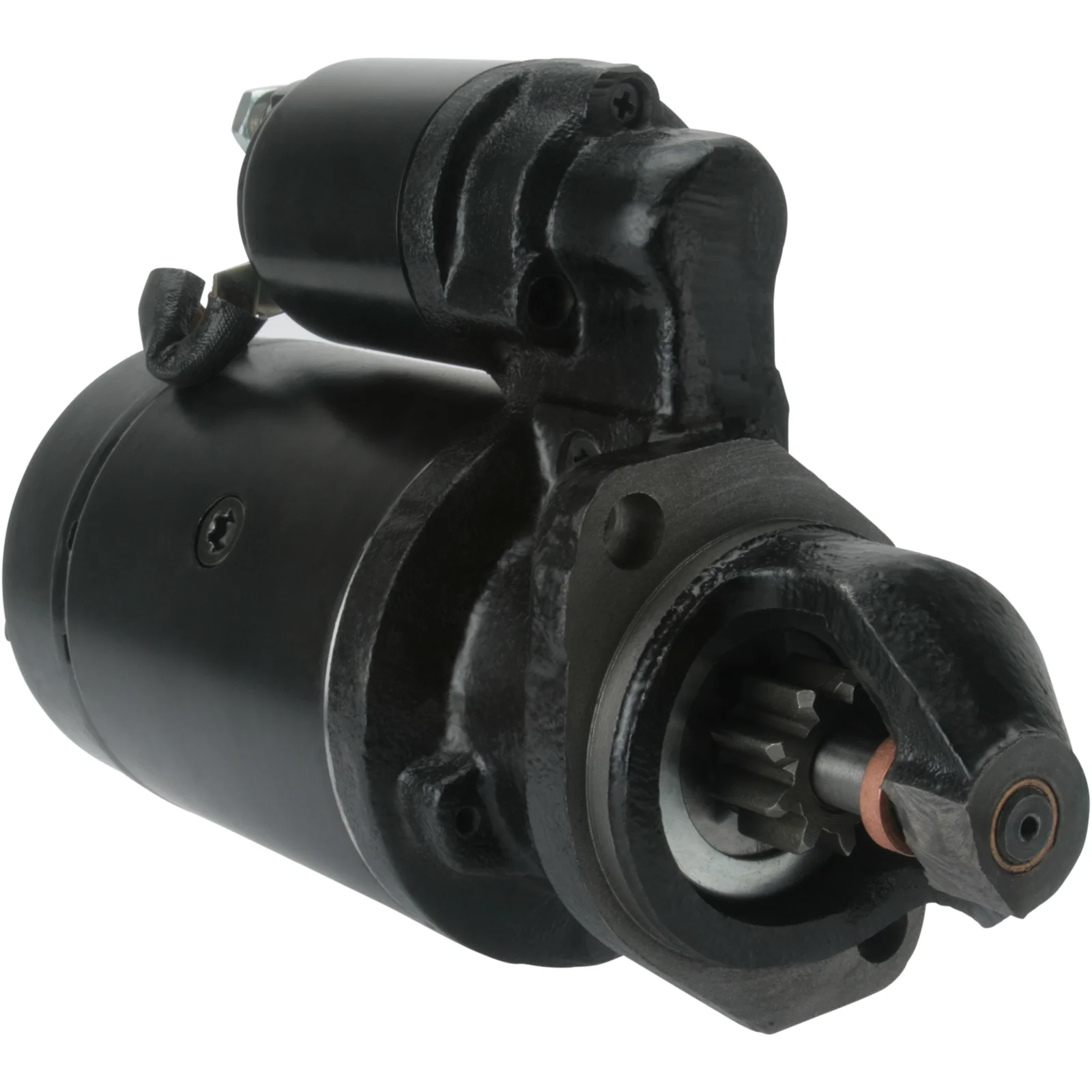

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 2.8, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 24
kW: 2.8
Mount. flange: 82.50
Drive dist.: 21.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 229.00
Dist./front: 65.00
No./teeth: 9
B+: M10
Thread length mm: 9.00
Position/50: 45
Terminal 50: M4
Gear type: DD
Dist. mm: 105.00
Rotation: CW
Total length mm: 294.00
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 45
Rotation CW
Dist./back 229.00
Dist./front 65.00
Drive dist. 21.00
Gear type DD
kW 2.8
Terminal 50 M4
Voltage 24
Total length 294.00 mm
Dist. 105.00 mm
Thread length 9.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    AZJ3211, azj3433, F032115537, 3.553.2040F, 3.553.2056F, 11.130.645, 11.131.479, 0058402670, 58402670

  • Konkurrentreferens
    CST21600, IS0645, MS180

  • Normaliserat artikelnummer
    azj3211, azj3433, cst21600, f032115537, is0645, ms180, 11130645, 11131479, 35532040f, 35532056f, 0058402670, 58402670

  • Passar modeller
    VM (Stabilimenti Mec) Model: Engine Model series: D702 Approved: Yes
    VM (Stabilimenti Mec) Model: Engine Model series: D703 Approved: Yes
    VM (Stabilimenti Mec) Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 2.8
    Mount. flange: 82.50
    Drive dist.: 21.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 229.00
    Dist./front: 65.00
    No./teeth: 9
    B+: M10
    Thread length mm: 9.00
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 294.00
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 45
    Rotation CW
    Dist./back 229.00
    Dist./front 65.00
    Drive dist. 21.00
    Gear type DD
    kW 2.8
    Terminal 50 M4
    Voltage 24
    Total length 294.00 mm
    Dist. 105.00 mm
    Thread length 9.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      AZJ3211, azj3433, F032115537, 3.553.2040F, 3.553.2056F, 11.130.645, 11.131.479, 0058402670, 58402670

    • Konkurrentreferens
      CST21600, IS0645, MS180

    • Normaliserat artikelnummer
      azj3211, azj3433, cst21600, f032115537, is0645, ms180, 11130645, 11131479, 35532040f, 35532056f, 0058402670, 58402670

    • Passar modeller
      VM (Stabilimenti Mec) Model: Engine Model series: D702 Approved: Yes
      VM (Stabilimenti Mec) Model: Engine Model series: D703 Approved: Yes
      VM (Stabilimenti Mec) Model: Various Models Model series: Various Models Approved: Yes
