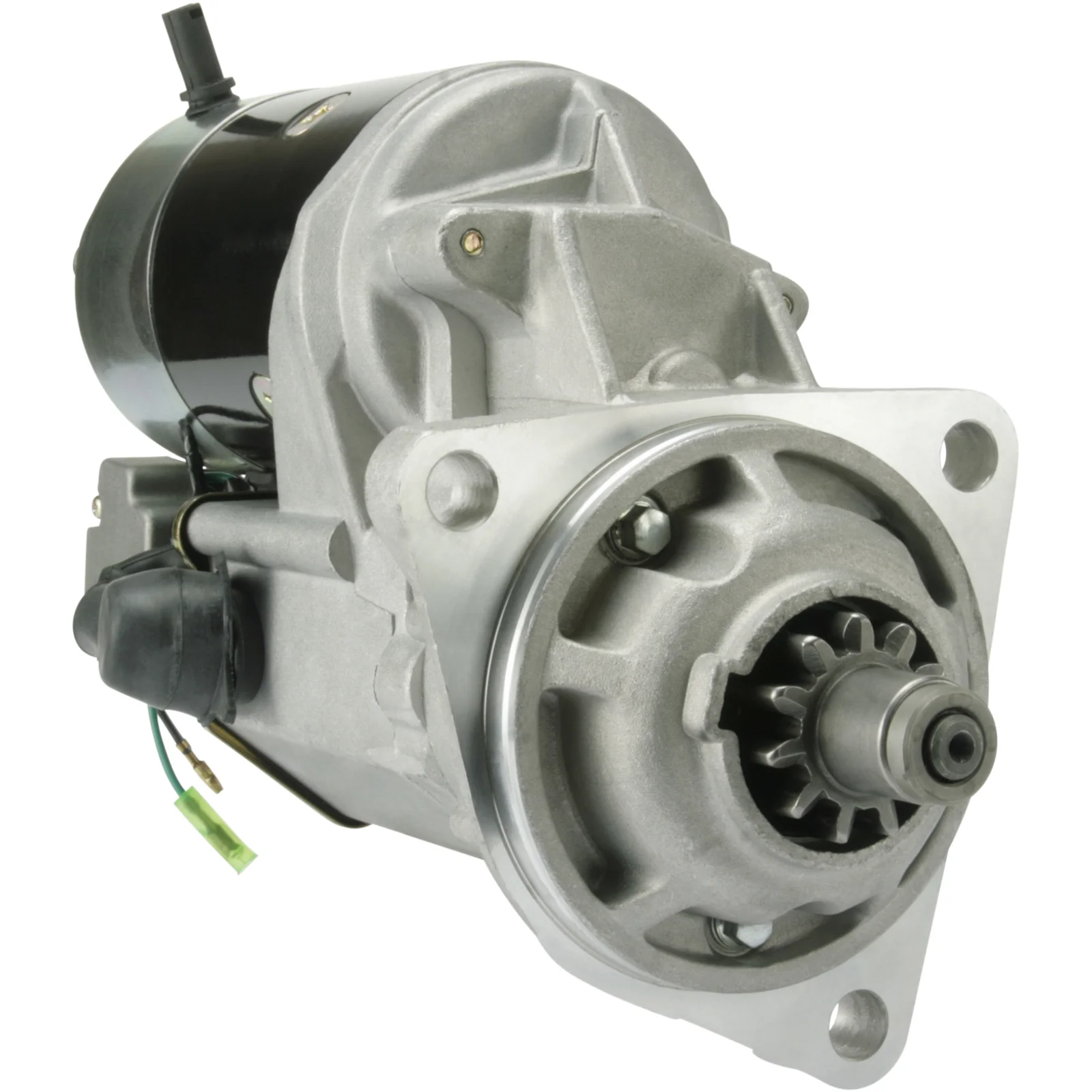

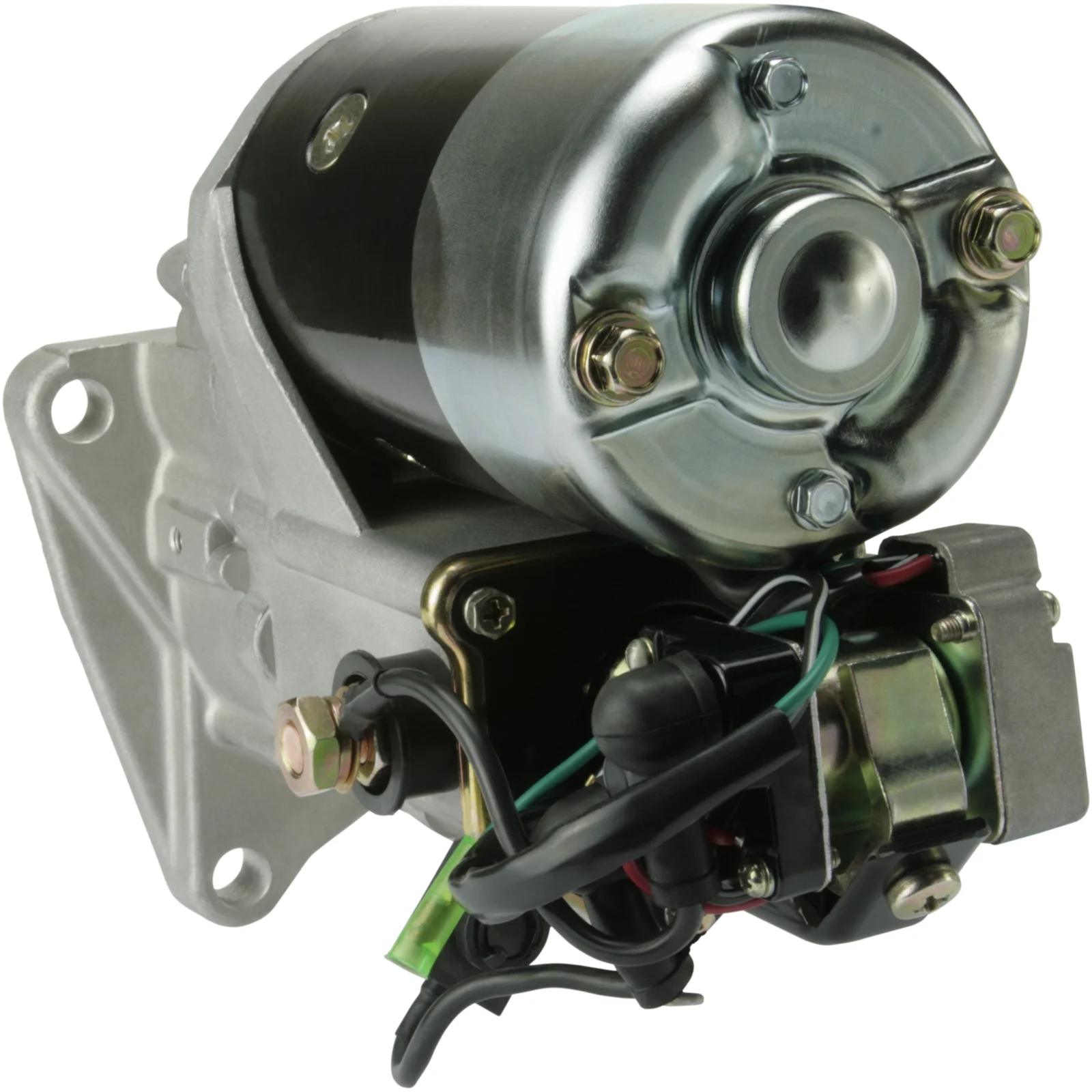

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114483

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.5, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.5
Mount. flange: 105.00
Drive dist.: 41.00
Mount. hole 3 mm: 13.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 208.00
Dist./front: 40.00
No./teeth: 11
B+: M10
Gear type: GR
Dist. 2: 110.00
Dist. 3: 110.00
Dist. mm: 135.00
Rotation: CW
Total length mm: 230.00
Servicing: JCB
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 105.00
No./mount. holes 3 (0)
Dist. 2 110.00
Dist. 3 110.00
Rotation CW
Dist./back 208.00
Dist./front 40.00
Servicing JCB
Drive dist. 41.00
Gear type GR
kW 4.5
Voltage 24
Total length 230.00 mm
Dist. 135.00 mm
Mount. hole 3 13.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    0-24000-3260, 0-24000-3261, F032114483, 811004012, 1811004013

  • Konkurrentreferens
    CST50624, S9433S, 220634, 220634A, 255000

  • Normaliserat artikelnummer
    cst50624, f032114483, s9433s, 220634, 220634a, 255000, 0240003260, 0240003261, 811004012, 1811004013

  • Passar modeller
    JCB Model: Excavator Model series: Excavators Brand of engine: Isuzu 6BG1 Approved: Yes
    JCB Model: Excavator Model series: Various Models Brand of engine: Isuzu 6BG1 Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 4.5
    Mount. flange: 105.00
    Drive dist.: 41.00
    Mount. hole 3 mm: 13.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 208.00
    Dist./front: 40.00
    No./teeth: 11
    B+: M10
    Gear type: GR
    Dist. 2: 110.00
    Dist. 3: 110.00
    Dist. mm: 135.00
    Rotation: CW
    Total length mm: 230.00
    Servicing: JCB
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 105.00
    No./mount. holes 3 (0)
    Dist. 2 110.00
    Dist. 3 110.00
    Rotation CW
    Dist./back 208.00
    Dist./front 40.00
    Servicing JCB
    Drive dist. 41.00
    Gear type GR
    kW 4.5
    Voltage 24
    Total length 230.00 mm
    Dist. 135.00 mm
    Mount. hole 3 13.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      0-24000-3260, 0-24000-3261, F032114483, 811004012, 1811004013

    • Konkurrentreferens
      CST50624, S9433S, 220634, 220634A, 255000

    • Normaliserat artikelnummer
      cst50624, f032114483, s9433s, 220634, 220634a, 255000, 0240003260, 0240003261, 811004012, 1811004013

    • Passar modeller
      JCB Model: Excavator Model series: Excavators Brand of engine: Isuzu 6BG1 Approved: Yes
      JCB Model: Excavator Model series: Various Models Brand of engine: Isuzu 6BG1 Approved: Yes
