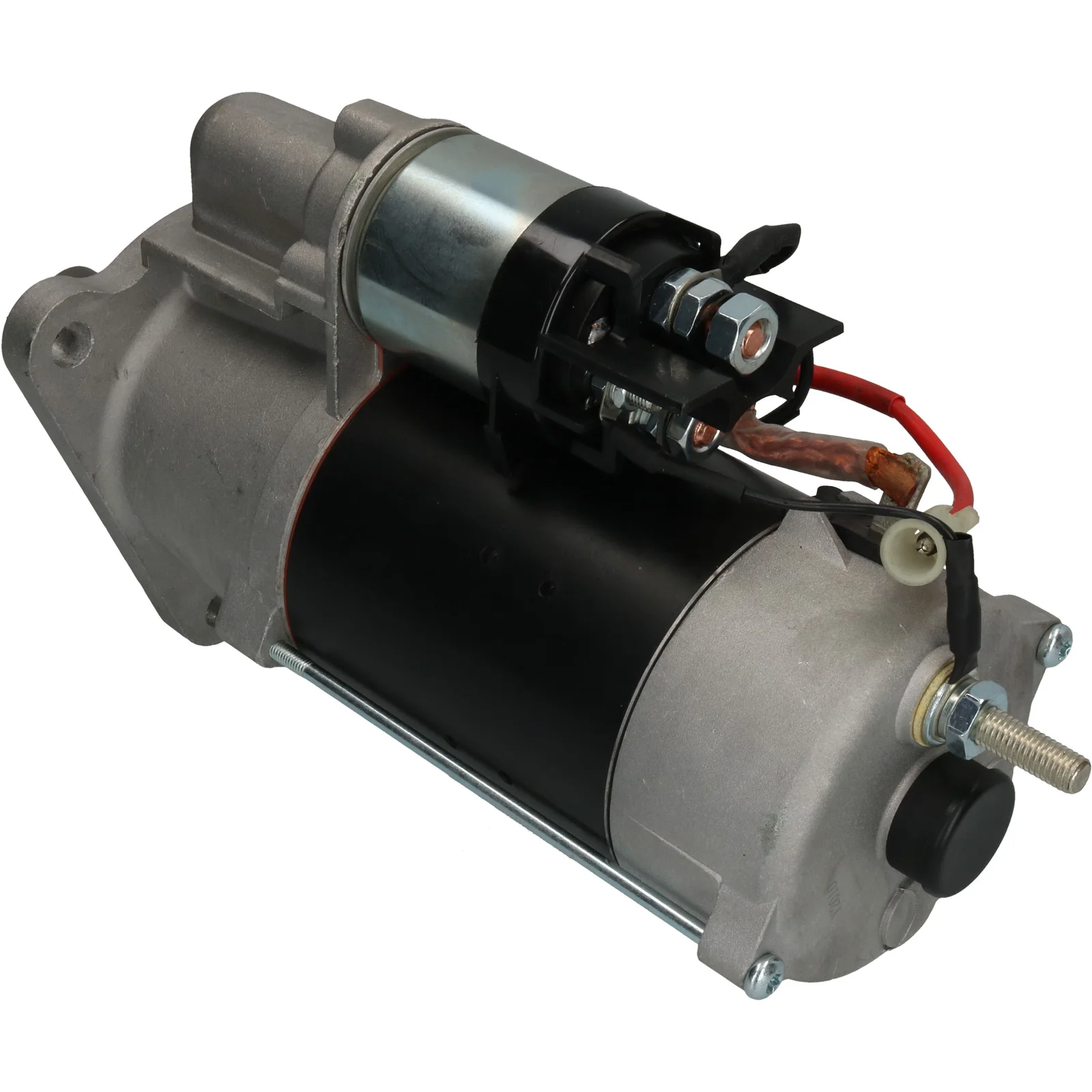

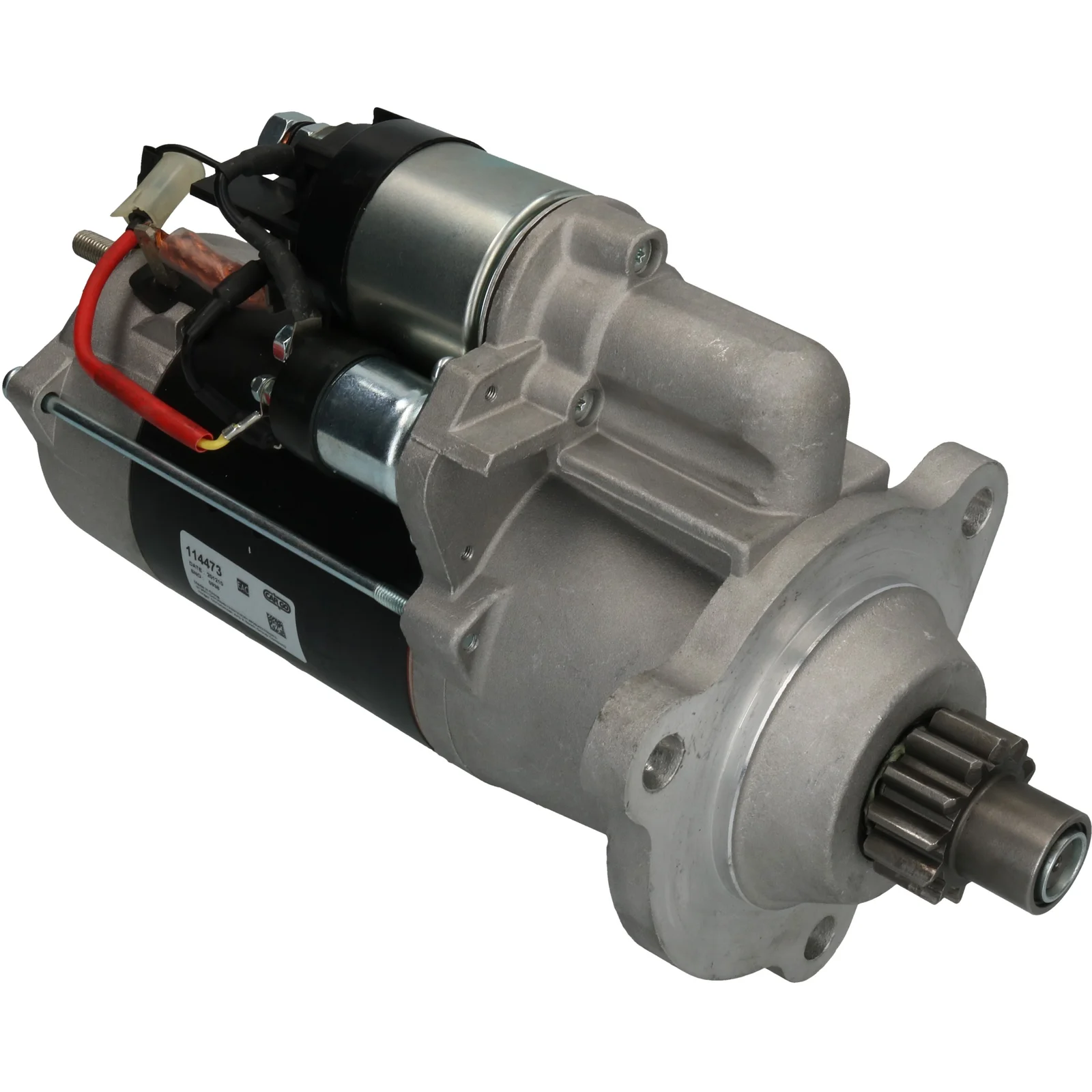

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114473

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 6.0, No./teeth: 12, Rotation: CW

Beskrivning

Voltage: 24
kW: 6.0
Insulated return: Yes
Mount. flange: 92.00
Drive dist.: 48.00
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 314.00
Dist./front: 70.00
No./teeth: 12
B+: M10
Position/B+: 60
Thread length mm: 26.00
Terminal 50: Plug
Gear type: GR
Dist. 2: 126.50
Dist. 3: 126.50
Dist. mm: 126.50
Rotation: CW
Position/b-: 60
B-: M10
Total length mm: 384.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 12
Mount. flange 92.00
No./mount. holes 3 (0)
Position/b- 60
Position/B+ 60
Dist. 2 126.50
Dist. 3 126.50
Rotation CW
Dist./back 314.00
Dist./front 70.00
Drive dist. 48.00
Gear type GR
Insulated return Yes
kW 6.0
Terminal 50 Plug
Voltage 24
Total length 384.00 mm
Dist. 126.50 mm
Thread length 26.00 mm
Mount. hole 3 13.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032114473, 874468, 0001330007, 0001330017, 0001330018, 3595446

  • Konkurrentreferens
    CST10725, DRS0129, les0384, LRS02659, S0172, 45-4331, 638.058.124, 106144, 254337

  • Normaliserat artikelnummer
    cst10725, drs0129, f032114473, les0384, lrs02659, s0172, 106144, 254337, 454331, 874468, 0001330007, 0001330017, 0001330018, 3595446, 638058124

  • Passar modeller
    Volvo Penta Model series: TAMD102 Model type: Engine Size of motor: 6.0 Approved: Yes
    Volvo Penta Model series: TID100 Model type: Engine Size of motor: 6.0 Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 9.6 Brand of engine: TMD100 From date: 01-01-1972 To date: 01-05-1985 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 6.0
    Insulated return: Yes
    Mount. flange: 92.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 13.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 314.00
    Dist./front: 70.00
    No./teeth: 12
    B+: M10
    Position/B+: 60
    Thread length mm: 26.00
    Terminal 50: Plug
    Gear type: GR
    Dist. 2: 126.50
    Dist. 3: 126.50
    Dist. mm: 126.50
    Rotation: CW
    Position/b-: 60
    B-: M10
    Total length mm: 384.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M10
    No./teeth 12
    Mount. flange 92.00
    No./mount. holes 3 (0)
    Position/b- 60
    Position/B+ 60
    Dist. 2 126.50
    Dist. 3 126.50
    Rotation CW
    Dist./back 314.00
    Dist./front 70.00
    Drive dist. 48.00
    Gear type GR
    Insulated return Yes
    kW 6.0
    Terminal 50 Plug
    Voltage 24
    Total length 384.00 mm
    Dist. 126.50 mm
    Thread length 26.00 mm
    Mount. hole 3 13.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Fordonsmatchning

    • OEM
      F032114473, 874468, 0001330007, 0001330017, 0001330018, 3595446

    • Konkurrentreferens
      CST10725, DRS0129, les0384, LRS02659, S0172, 45-4331, 638.058.124, 106144, 254337

    • Normaliserat artikelnummer
      cst10725, drs0129, f032114473, les0384, lrs02659, s0172, 106144, 254337, 454331, 874468, 0001330007, 0001330017, 0001330018, 3595446, 638058124

    • Passar modeller
      Volvo Penta Model series: TAMD102 Model type: Engine Size of motor: 6.0 Approved: Yes
      Volvo Penta Model series: TID100 Model type: Engine Size of motor: 6.0 Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 9.6 Brand of engine: TMD100 From date: 01-01-1972 To date: 01-05-1985 Fuel: Diesel Approved: Yes
