HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114438

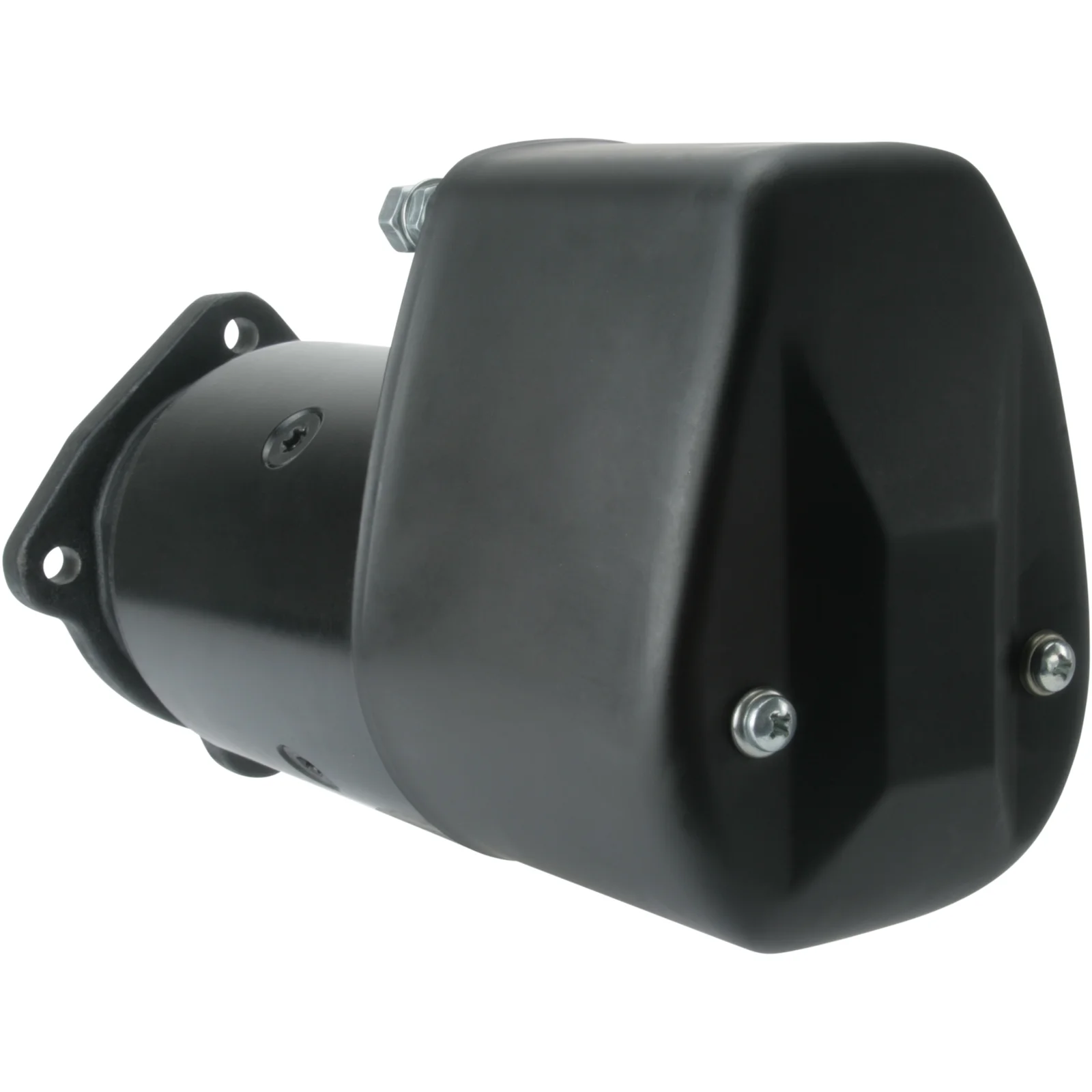

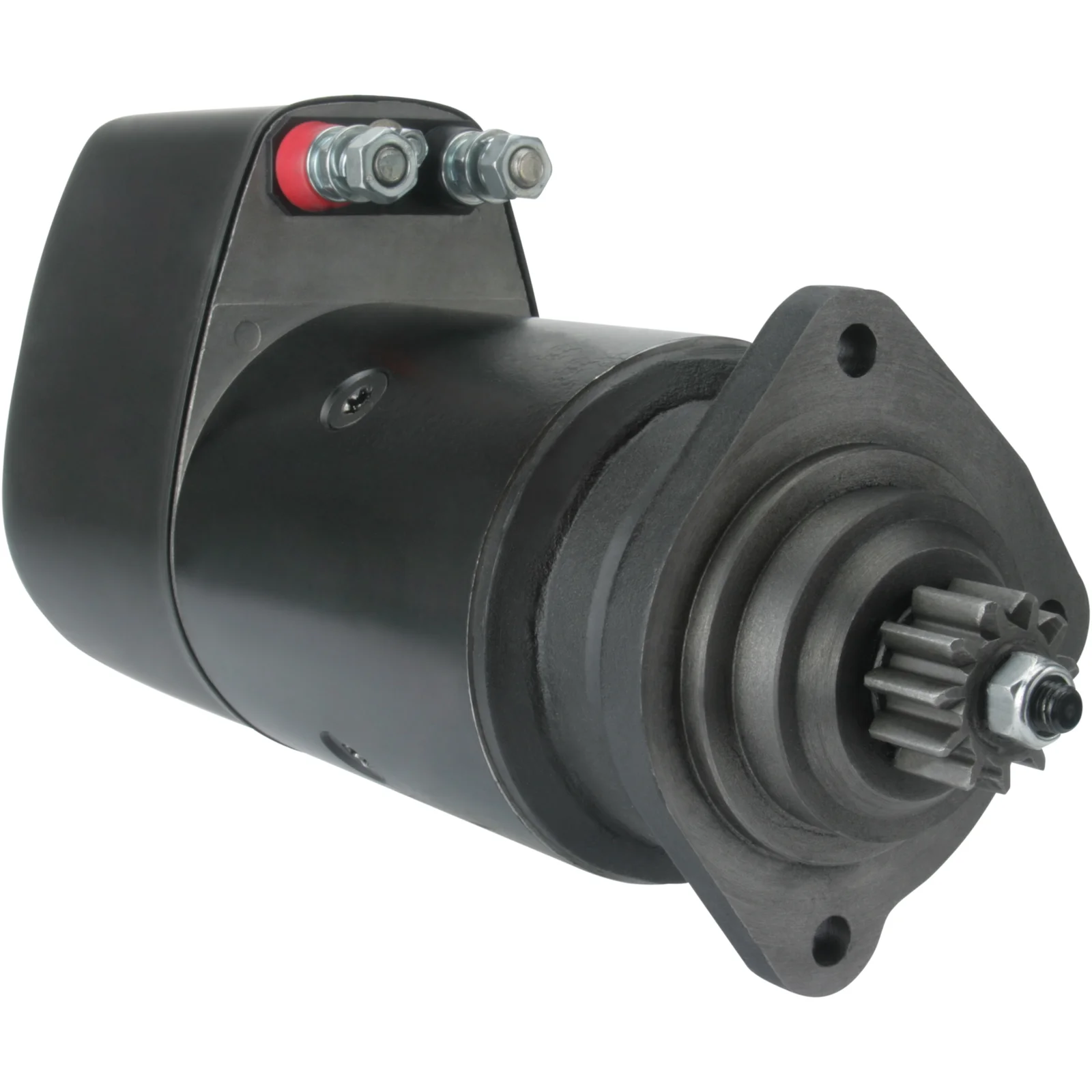

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 5.4, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 5.4
Insulated return: Yes
Mount. flange: 89.00
Drive dist.: 47.50
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 324.00
Dist./front: 62.50
No./teeth: 11
B+: M10
Position/B+: 59
Position/50: 60
Terminal 50: M6
Gear type: DD
Dist. 2: 90.00
Dist. 3: 127.00
Dist. mm: 90.00
Rotation: CW
Position/b-: 1
B-: M10
Total length mm: 387.00
Prod. info: BN
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 11
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 60
Position/b- 1
Position/B+ 59
Prod. info BN
Dist. 2 90.00
Dist. 3 127.00
Rotation CW
Dist./back 324.00
Dist./front 62.50
Drive dist. 47.50
Gear type DD
Insulated return Yes
kW 5.4
Terminal 50 M6
Voltage 24
Total length 387.00 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114438, 00174637, 0174637, 01163558, 1163558, 01174637, 1174637, 0001416032, 1701071

  • Konkurrentreferens
    DRS1480, F042002105, F042S02105, is0486, S0283, STR-23802, 45-1468, 88-11.480, 600.025.114, 33664, 220257, 220257A, 42011480, 42011840, 0986011480

  • Normaliserat artikelnummer
    drs1480, f032114438, f042002105, f042s02105, is0486, s0283, str23802, 33664, 00174637, 0174637, 220257, 220257a, 451468, 01163558, 1163558, 01174637, 1174637, 0001416032, 1701071, 8811480, 42011480, 42011840, 600025114, 0986011480

  • Passar modeller
    KHD Model: Engine Model series: Engine Size of motor: 12.8 Brand of engine: F8L413 From date: 01-01-1972 Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 9.6 Brand of engine: F6L413 From date: 01-04-1982 Fuel: Diesel Approved: Yes
    Liebherr Model: A902 Litronic Model series: A902 Litronic Brand of engine: D904TB Approved: Yes
    Orenstein and koppel Model: Various Models Model series: Various Models Brand of engine: F8L413 Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 5.4
    Insulated return: Yes
    Mount. flange: 89.00
    Drive dist.: 47.50
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 324.00
    Dist./front: 62.50
    No./teeth: 11
    B+: M10
    Position/B+: 59
    Position/50: 60
    Terminal 50: M6
    Gear type: DD
    Dist. 2: 90.00
    Dist. 3: 127.00
    Dist. mm: 90.00
    Rotation: CW
    Position/b-: 1
    B-: M10
    Total length mm: 387.00
    Prod. info: BN
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M10
    No./teeth 11
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 60
    Position/b- 1
    Position/B+ 59
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 127.00
    Rotation CW
    Dist./back 324.00
    Dist./front 62.50
    Drive dist. 47.50
    Gear type DD
    Insulated return Yes
    kW 5.4
    Terminal 50 M6
    Voltage 24
    Total length 387.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032114438, 00174637, 0174637, 01163558, 1163558, 01174637, 1174637, 0001416032, 1701071

    • Konkurrentreferens
      DRS1480, F042002105, F042S02105, is0486, S0283, STR-23802, 45-1468, 88-11.480, 600.025.114, 33664, 220257, 220257A, 42011480, 42011840, 0986011480

    • Normaliserat artikelnummer
      drs1480, f032114438, f042002105, f042s02105, is0486, s0283, str23802, 33664, 00174637, 0174637, 220257, 220257a, 451468, 01163558, 1163558, 01174637, 1174637, 0001416032, 1701071, 8811480, 42011480, 42011840, 600025114, 0986011480

    • Passar modeller
      KHD Model: Engine Model series: Engine Size of motor: 12.8 Brand of engine: F8L413 From date: 01-01-1972 Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 9.6 Brand of engine: F6L413 From date: 01-04-1982 Fuel: Diesel Approved: Yes
      Liebherr Model: A902 Litronic Model series: A902 Litronic Brand of engine: D904TB Approved: Yes
      Orenstein and koppel Model: Various Models Model series: Various Models Brand of engine: F8L413 Approved: Yes
