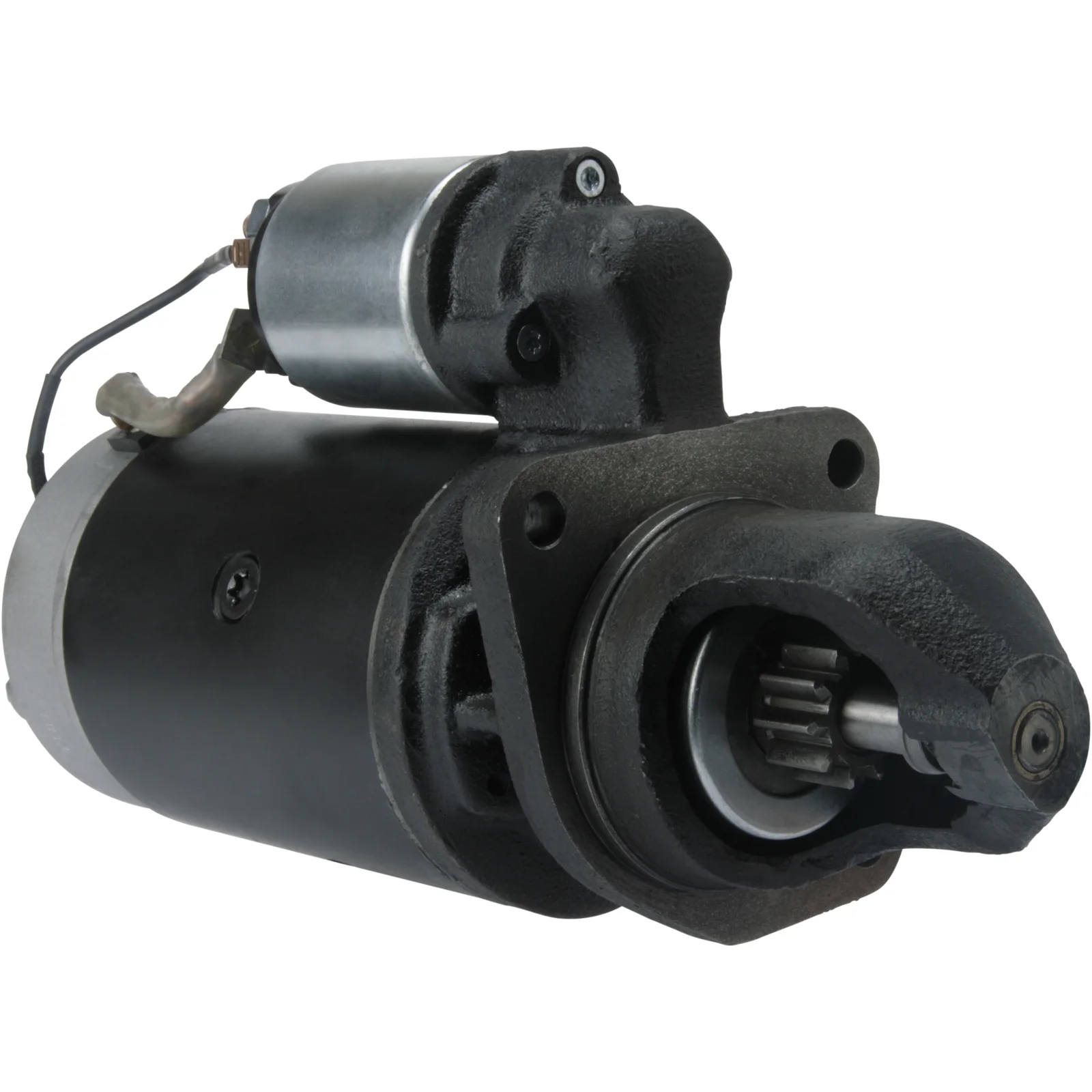

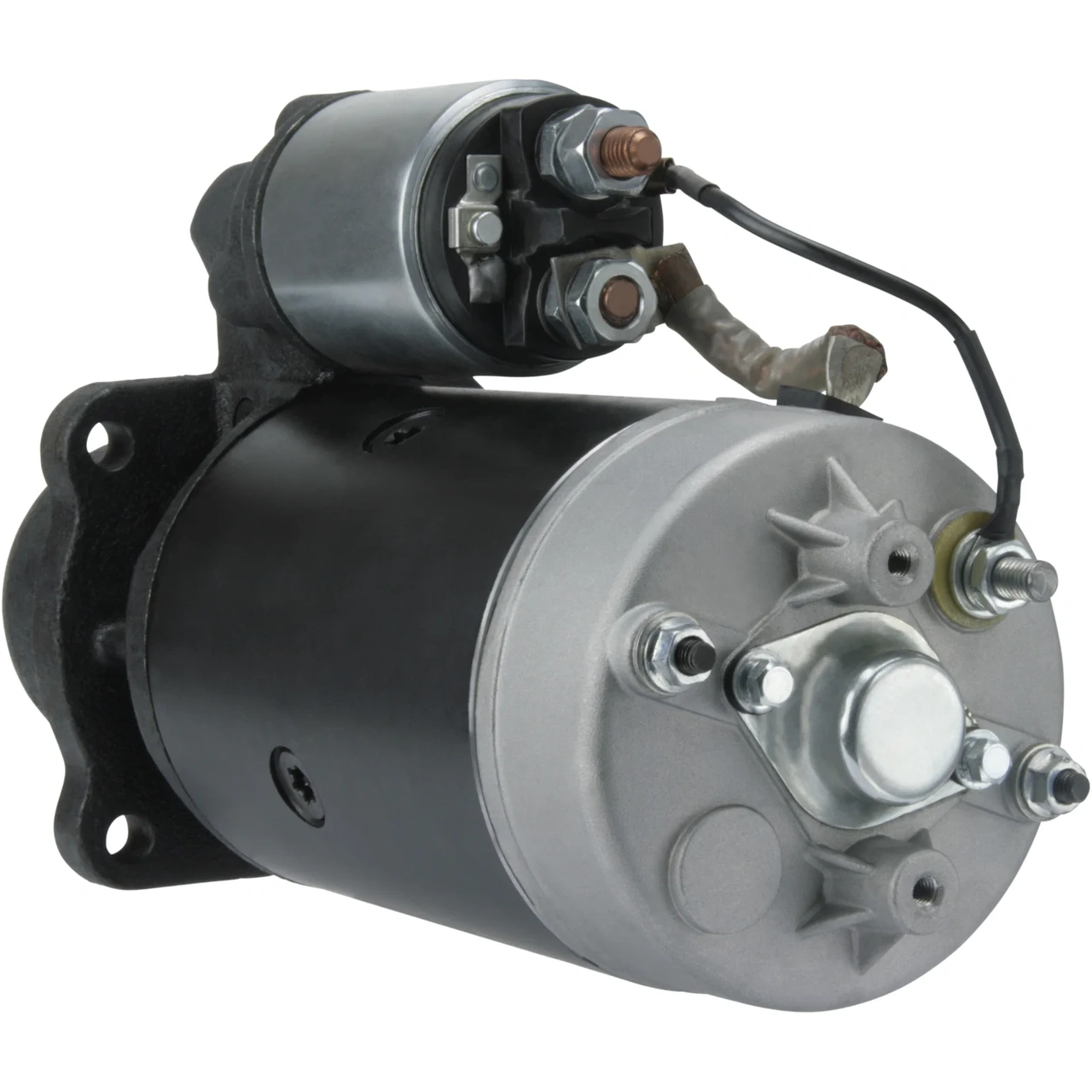

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114397

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.0
Insulated return: Yes
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 237.00
Dist./front: 95.00
No./teeth: 10
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: DD
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 340.00
Drive type: Steel
Servicing: Cummins
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 45
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 237.00
Dist./front 95.00
Servicing Cummins
Drive dist. 48.00
Drive type Steel
Gear type DD
Insulated return Yes
kW 4.0
Terminal 50 M4
Voltage 24
Total length 340.00 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114397, 0001368067, 3283721, 19024294

  • Konkurrentreferens
    CST10777, DRS0315, S0268, 685.014.104, 701.507.103, 105301, 254265, 20550103

  • Normaliserat artikelnummer
    cst10777, drs0315, f032114397, s0268, 105301, 254265, 0001368067, 3283721, 19024294, 20550103, 685014104, 701507103

  • Passar modeller
    Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 4.0
    Insulated return: Yes
    Mount. flange: 89.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 237.00
    Dist./front: 95.00
    No./teeth: 10
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 340.00
    Drive type: Steel
    Servicing: Cummins
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 45
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 237.00
    Dist./front 95.00
    Servicing Cummins
    Drive dist. 48.00
    Drive type Steel
    Gear type DD
    Insulated return Yes
    kW 4.0
    Terminal 50 M4
    Voltage 24
    Total length 340.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032114397, 0001368067, 3283721, 19024294

    • Konkurrentreferens
      CST10777, DRS0315, S0268, 685.014.104, 701.507.103, 105301, 254265, 20550103

    • Normaliserat artikelnummer
      cst10777, drs0315, f032114397, s0268, 105301, 254265, 0001368067, 3283721, 19024294, 20550103, 685014104, 701507103

    • Passar modeller
      Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
