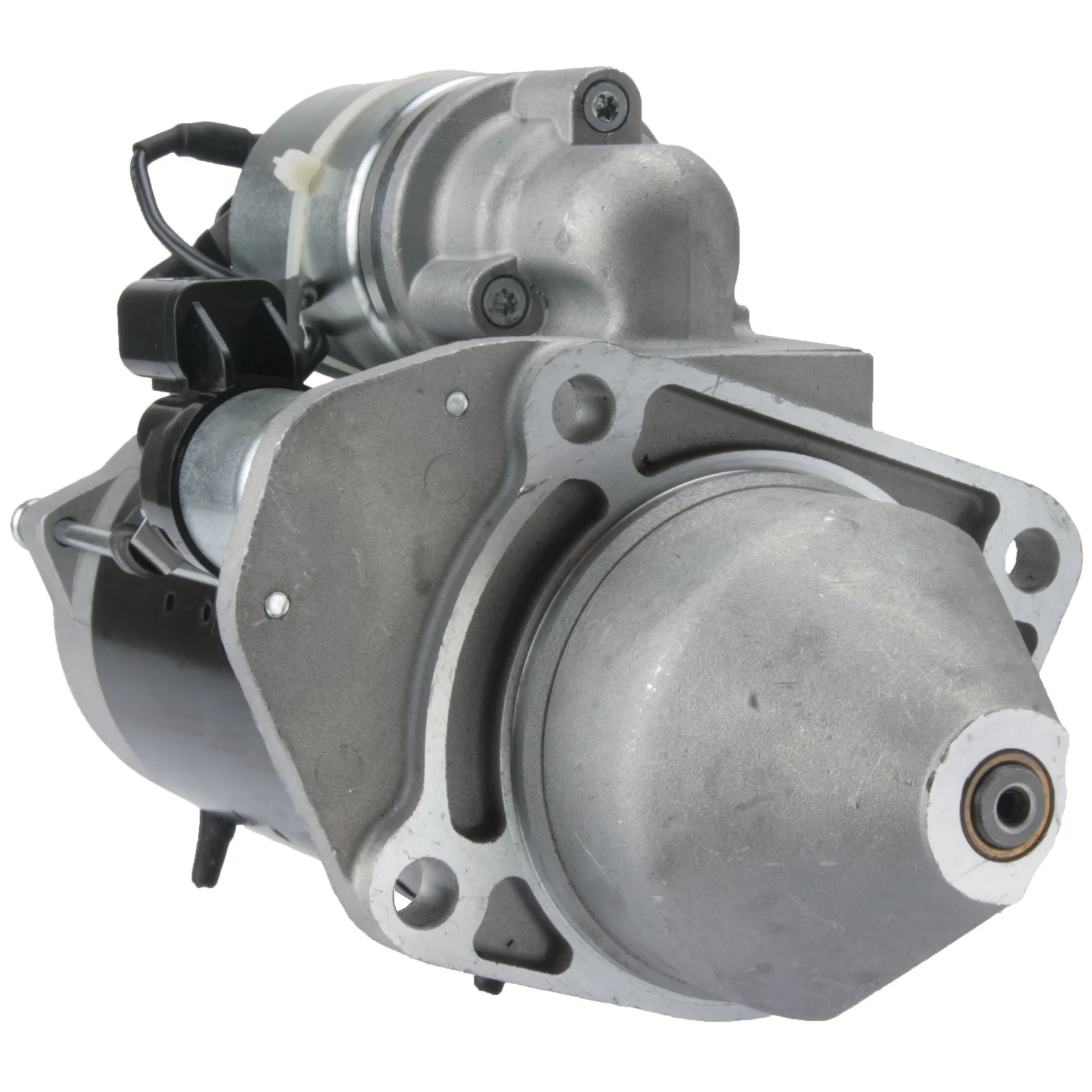

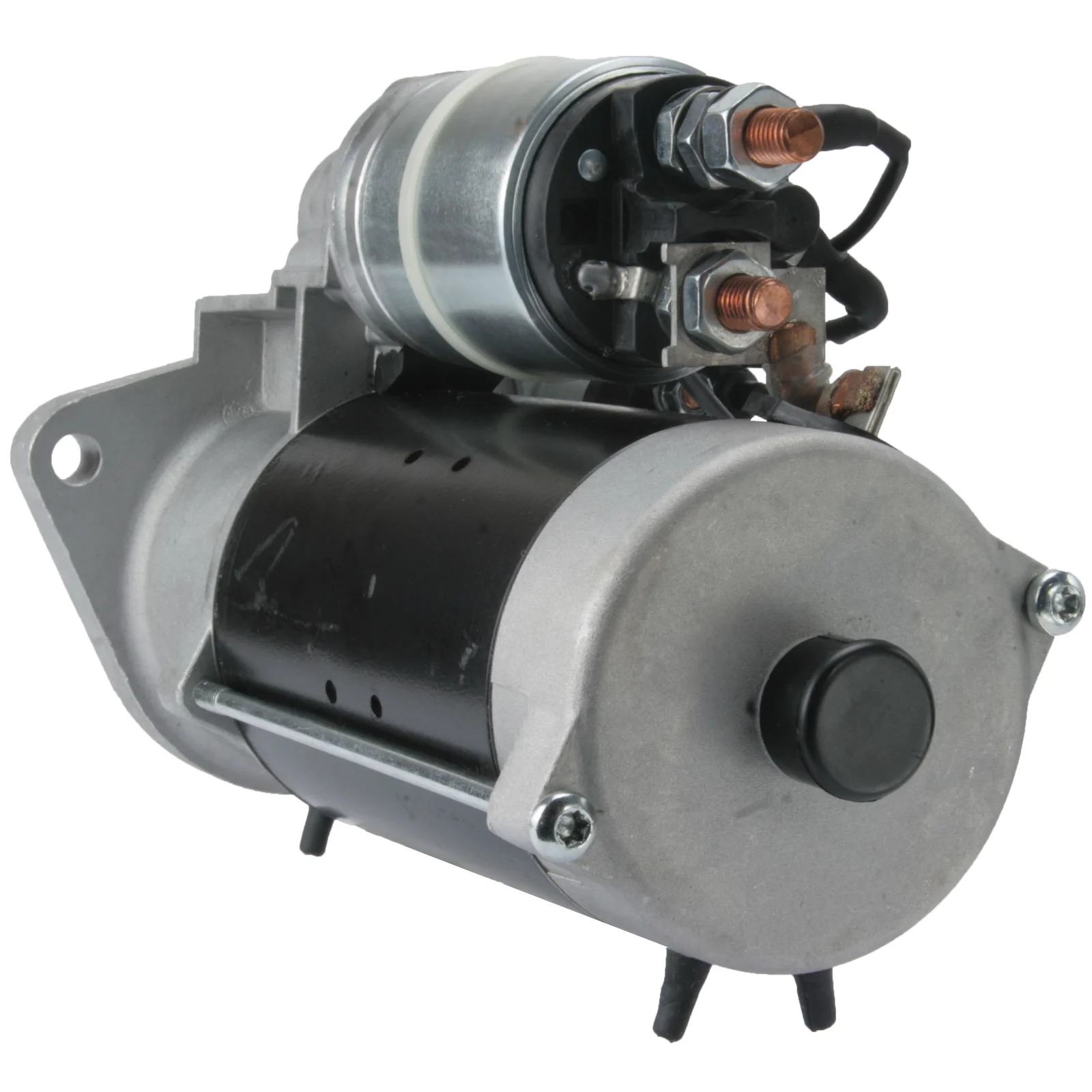

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114376

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.0
Mount. flange: 89.00
Drive dist.: 29.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 221.50
Dist./front: 74.50
No./teeth: 10
B+: M10
Terminal 50: Plug
Gear type: GR
Dist. 2: 81.50
Dist. 3: 93.50
Dist. mm: 127.00
Rotation: CW
Total length mm: 311.50
Servicing: MAN
Remarks: w/ safety switch.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Dist. 2 81.50
Remarks w/ safety switch.
Dist. 3 93.50
Rotation CW
Dist./back 221.50
Dist./front 74.50
Servicing MAN
Drive dist. 29.00
Gear type GR
kW 4.0
Terminal 50 Plug
Voltage 24
Total length 311.50 mm
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114376, 51.26201-7223, 1986S10078, 860814, 0001231035

  • Konkurrentreferens
    CST10719, DRS0062, DRS0062N, is1261, LRS02621, MS424, S0181, 8EA012586-321, 45-4294, 671.008.104, 30171N, 203065, 255024, 460263, 8823210, 11090148, 0986023210

  • Normaliserat artikelnummer
    cst10719, drs0062, drs0062n, f032114376, is1261, lrs02621, ms424, s0181, 8ea012586321, 1986s10078, 30171n, 203065, 255024, 454294, 460263, 860814, 0001231035, 8823210, 11090148, 671008104, 0986023210, 51262017223

  • Passar modeller
    MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 10t Model series: 10.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 10t Model series: 10.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 10t Model series: 10.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 10t Model series: 10.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 12t Model series: 12.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 12t Model series: 12.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 12t Model series: 12.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 12t Model series: 12.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL53 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes
    MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL41 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes
    MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes
    MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL54 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes
    MAN Model: 15t Model series: 15.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes
    MAN Model: 15t Model series: 15.240 Size of motor: 6.9 Brand of engine: D0836LFL50 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes
    MAN Model: 7t Model series: 7.150 Size of motor: 4.6 Brand of engine: D0834LFL50 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 7t Model series: 7.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 7t Model series: 7.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 7t Model series: 8.150 Size of motor: 4.6 Brand of engine: D0834LFL50 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL54 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL64 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL67 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes
    MAN Model: 8t Model series: 8.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes
