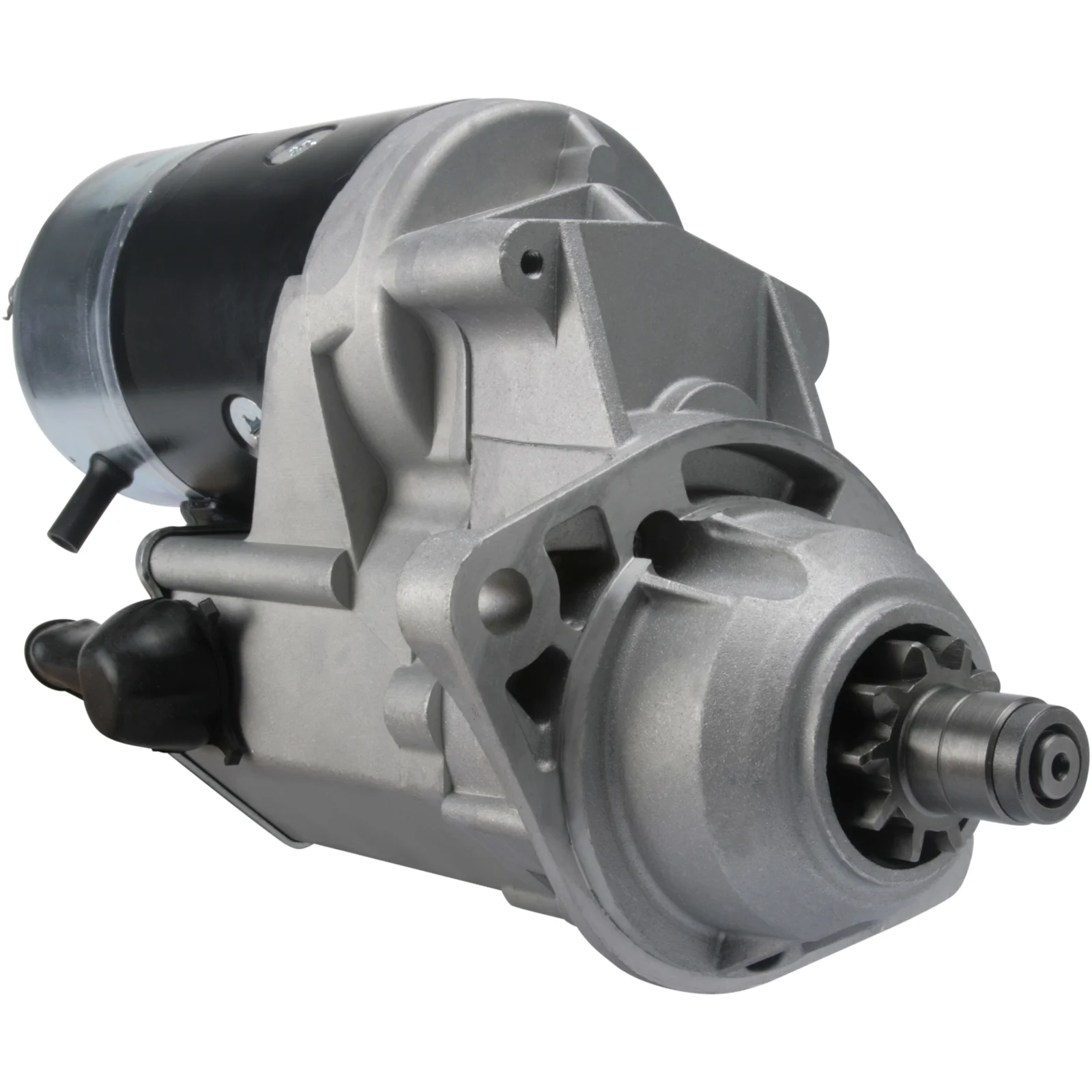

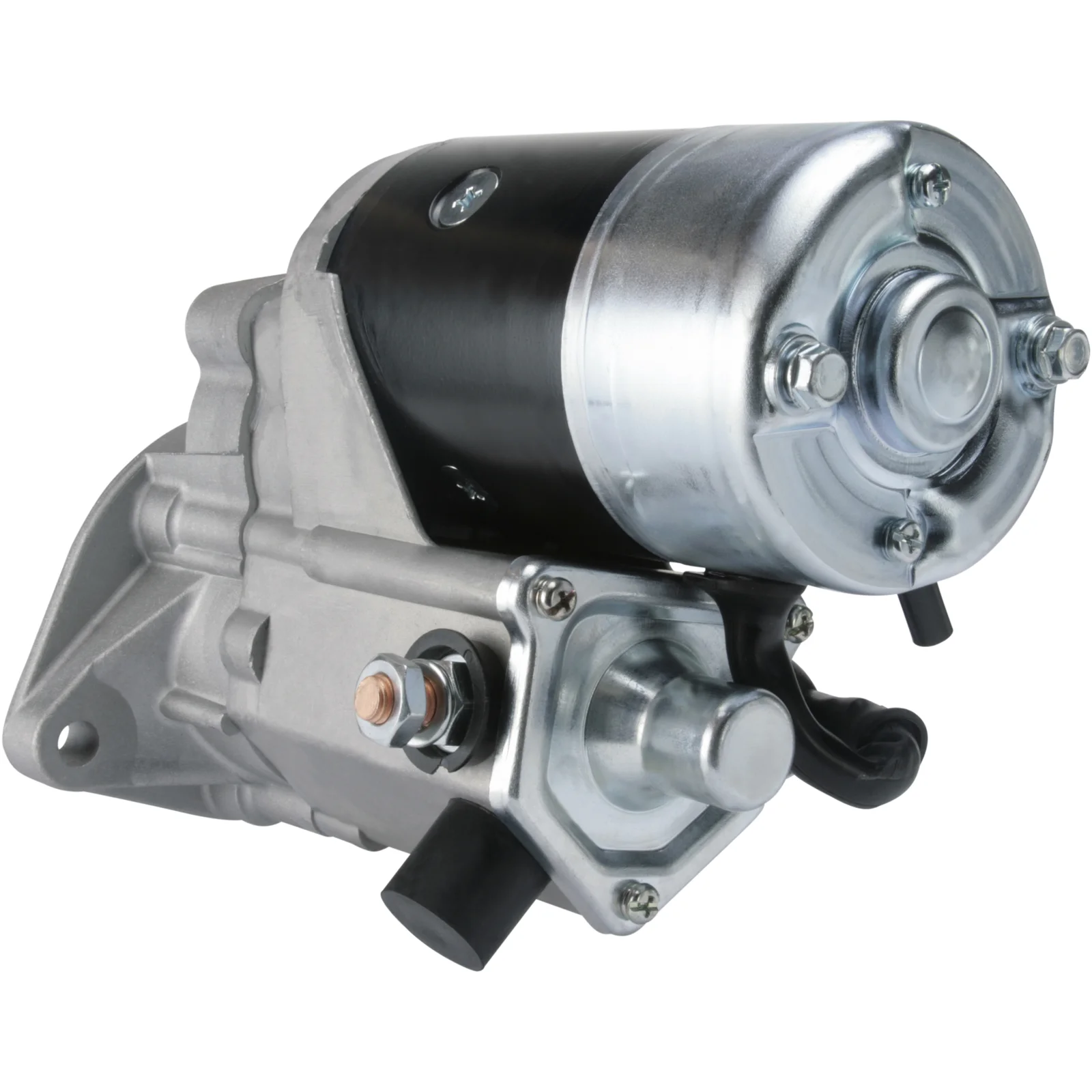

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114340

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.5, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.5
Mount. flange: 88.50
Drive dist.: 48.50
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 160.00
Dist./front: 74.50
No./teeth: 10
B+: M10
Position/B+: 45
Position/50: 37
Terminal 50: M5
Dist. mm: 127.00
Rotation: CW
Total length mm: 289.00
Clutch type: Wet
Prod. info: BN
Oil sealed: No
Info: Not Insulated return.
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 88.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 37
Clutch type Wet
Position/B+ 45
Prod. info BN
Rotation CW
Dist./back 160.00
Dist./front 74.50
Drive dist. 48.50
Info Not Insulated return.
kW 4.5
Terminal 50 M5
Voltage 24
Total length 289.00 mm
Dist. 127.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114340, 600-863-4110, 600-863-4130, 600-863-4210, 673-181-2530, 673-381-6510, 673-382-6510, 228000-0630, 228000-0631, 228000-0632, 228000-0633, 228000-0651, 228000-1750, 228000-1751, 228000-1752, 228000-1753, 228000-4991, 228000-4992, 228000-6640, 228000-6670, 228000-6671, 228000-9330, 428000-1830, 3675248RX, 3863128, 3920644, 3922474, 3957592

  • Konkurrentreferens
    CST40259, CST40616, DRS0357, DSN2041, DSN2106, F042000120, F042S00120, S6144, S6190, STR-6196, 45-4409, 685.034.104, 18402N, 19846N, 254133

  • Normaliserat artikelnummer
    cst40259, cst40616, drs0357, dsn2041, dsn2106, f032114340, f042000120, f042s00120, s6144, s6190, str6196, 18402n, 19846n, 254133, 454409, 3675248rx, 3863128, 3920644, 3922474, 3957592, 685034104, 2280000630, 2280000631, 2280000632, 2280000633, 2280000651, 2280001750, 2280001751, 2280001752, 2280001753, 2280004991, 2280004992, 2280006640, 2280006670, 2280006671, 2280009330, 4280001830, 6008634110, 6008634130, 6008634210, 6731812530, 6733816510, 6733826510

  • Passar modeller
    Komatsu Model: WA Model series: WA120 4B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Komatsu Model: WA Model series: WA120 6B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Komatsu Model: WA Model series: WA180 4B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Komatsu Model: WA Model series: WA180 6B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Komatsu Model: WA Model series: WA250 4B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Komatsu Model: WA Model series: WA250 6B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Komatsu Model: WA Model series: WA253 4B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Komatsu Model: WA Model series: WA253 6B Model type: Wheelloader From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
