HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114330

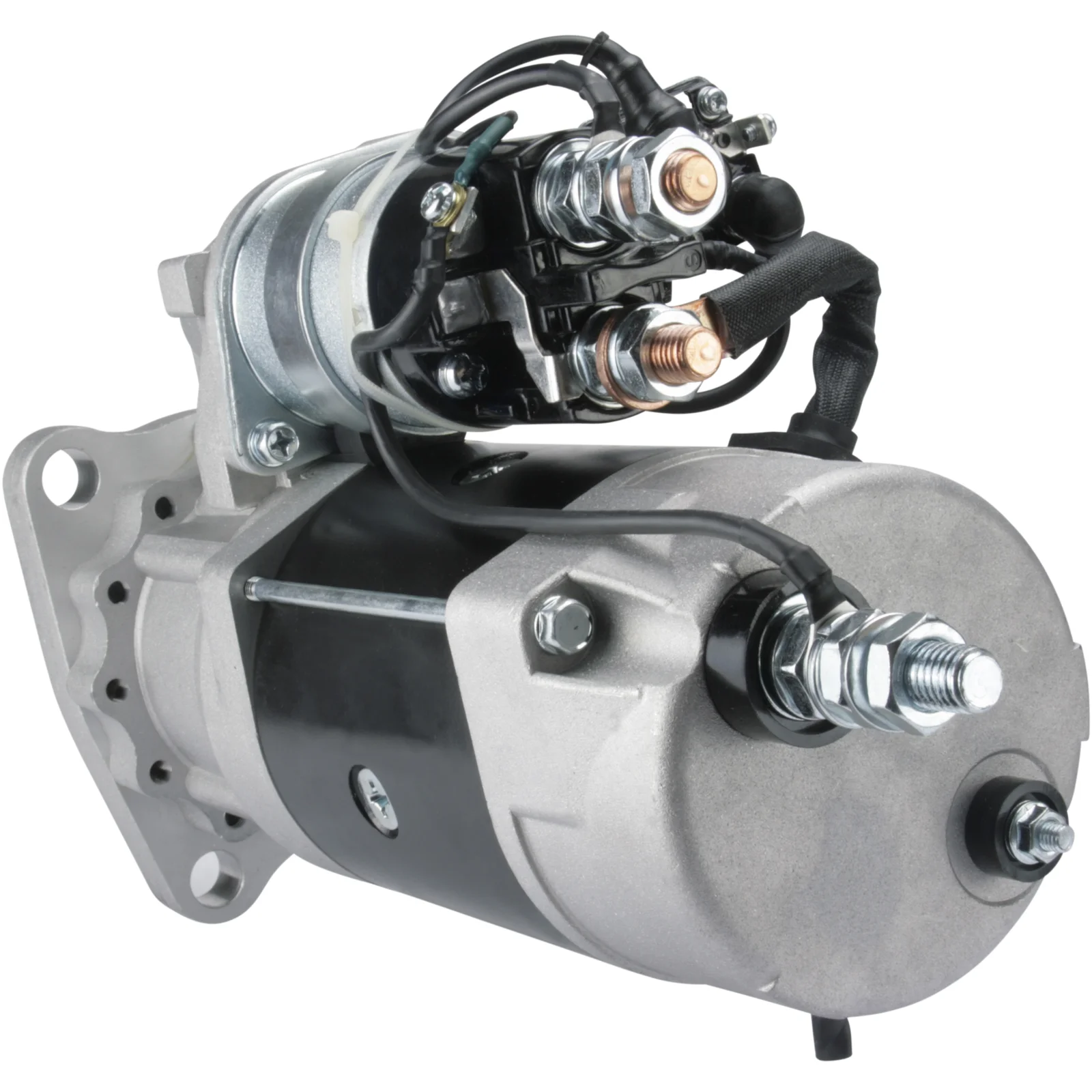

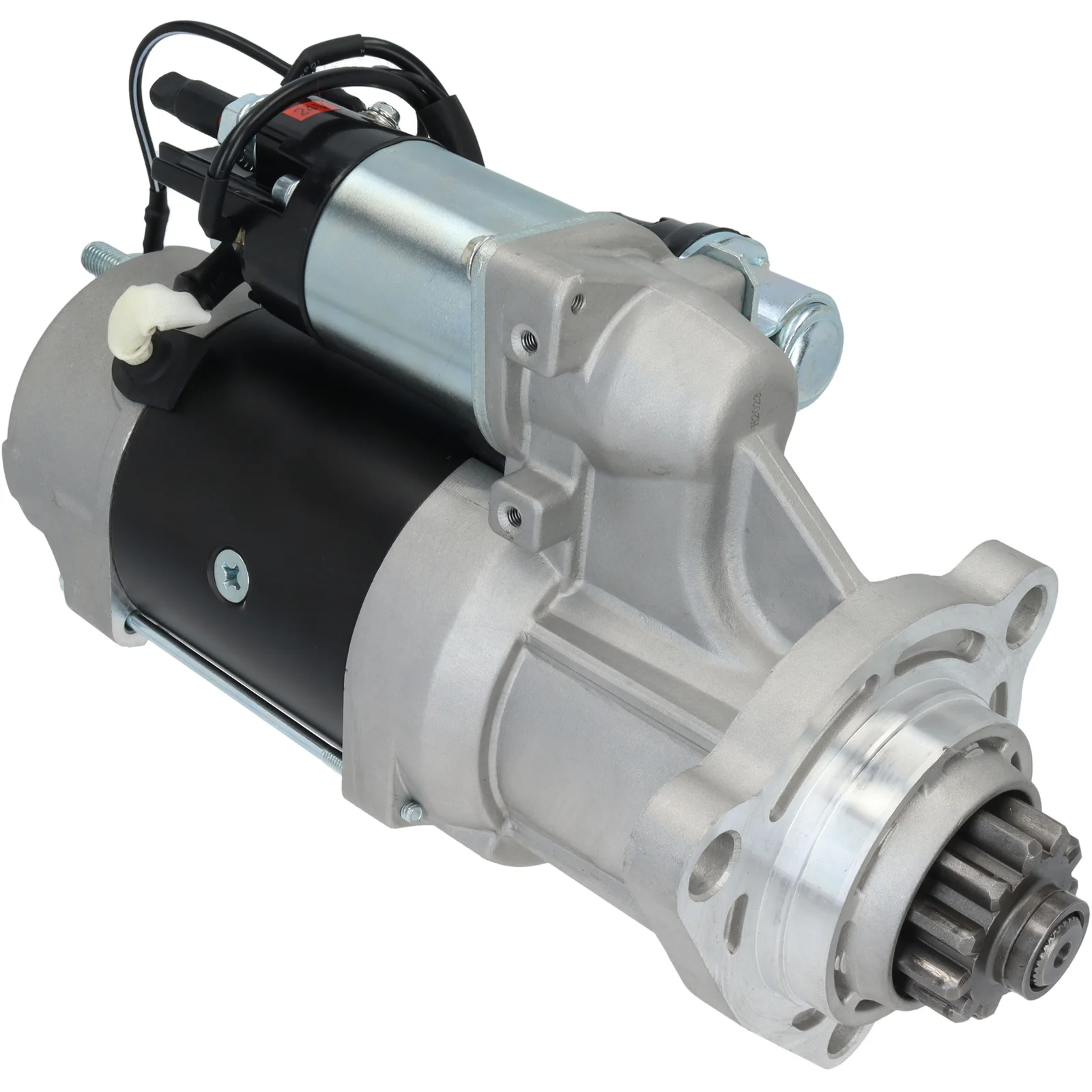

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 8.3, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 8.3
Insulated return: Yes
Mount. flange: 92.00
Drive dist.: 47.00
Mount. hole 3 mm: 16.80
Mount. hole 2 mm: 16.80
Mount. hole 1 mm: 16.80
Dist./back: 315.00
Dist./front: 60.00
No./teeth: 11
B+: M12
Thread length mm: 32.00
Position/50: 45
Terminal 50: M5
Gear type: GR
Dist. 2: 126.00
Dist. 3: 126.00
Dist. mm: 126.00
Rotation: CW
Position/b-: 50
B-: M12
Total length mm: 418.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Servicing: 39MT
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M12
B- M12
No./teeth 11
Mount. flange 92.00
No./mount. holes 3 (0)
Position/50 45
Clutch type Dry
Position/b- 50
Prod. info BN
Dist. 2 126.00
Dist. 3 126.00
Rotation CW
Dist./back 315.00
Dist./front 60.00
Servicing 39MT
Drive dist. 47.00
Drive type Steel
Gear type GR
Insulated return Yes
kW 8.3
Terminal 50 M5
Voltage 24
Total length 418.00 mm
Dist. 126.00 mm
Thread length 32.00 mm
Mount. hole 3 16.80 mm
Mount. hole 2 16.80 mm
Mount. hole 1 16.80 mm

  • OEM
    0-21000-3390, 0-21000-3391, F032114330, M009T82479, M105R3502SE, M9T82378, m9t82479, MBJ4412, R87DB11000CA, 3A1872H06, 600-813-2413, 707328, 707330, 2871252, 2871256, 3103305, 3103916, 5284083, 5284084, 8200022, 8200032, 8200034, 8200039, 8200041, 8200330, 8200412, 8200699, 8200700, 8200724, 8300016, 8300018, 10461754, 10461756, 10478898, 19010507, 19010509, 19011507, 19011509, 19011522, 19011523, 87439325

  • Konkurrentreferens
    CST60612, CST60613, F042003078, F042003079, F042003083, F042S03078, F042S03079, F042S03083, LES0320, S1027, S1128, S5067, S5246S, S9250, STR-4390, 45-5203, 641.047.113, 641.051.113, 6837, 6837N, 6853R, 19535N, 254887, 255385

  • Normaliserat artikelnummer
    cst60612, cst60613, f032114330, f042003078, f042003079, f042003083, f042s03078, f042s03079, f042s03083, les0320, m009t82479, m105r3502se, m9t82378, m9t82479, mbj4412, r87db11000ca, s1027, s1128, s5067, s5246s, s9250, str4390, 3a1872h06, 6837, 6837n, 6853r, 19535n, 254887, 255385, 455203, 707328, 707330, 2871252, 2871256, 3103305, 3103916, 5284083, 5284084, 8200022, 8200032, 8200034, 8200039, 8200041, 8200330, 8200412, 8200699, 8200700, 8200724, 8300016, 8300018, 10461754, 10461756, 10478898, 19010507, 19010509, 19011507, 19011509, 19011522, 19011523, 87439325, 0210003390, 0210003391, 641047113, 641051113, 6008132413

  • Passar modeller
    Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 8.3
    Insulated return: Yes
    Mount. flange: 92.00
    Drive dist.: 47.00
    Mount. hole 3 mm: 16.80
    Mount. hole 2 mm: 16.80
    Mount. hole 1 mm: 16.80
    Dist./back: 315.00
    Dist./front: 60.00
    No./teeth: 11
    B+: M12
    Thread length mm: 32.00
    Position/50: 45
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 126.00
    Dist. 3: 126.00
    Dist. mm: 126.00
    Rotation: CW
    Position/b-: 50
    B-: M12
    Total length mm: 418.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Servicing: 39MT
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M12
    B- M12
    No./teeth 11
    Mount. flange 92.00
    No./mount. holes 3 (0)
    Position/50 45
    Clutch type Dry
    Position/b- 50
    Prod. info BN
    Dist. 2 126.00
    Dist. 3 126.00
    Rotation CW
    Dist./back 315.00
    Dist./front 60.00
    Servicing 39MT
    Drive dist. 47.00
    Drive type Steel
    Gear type GR
    Insulated return Yes
    kW 8.3
    Terminal 50 M5
    Voltage 24
    Total length 418.00 mm
    Dist. 126.00 mm
    Thread length 32.00 mm
    Mount. hole 3 16.80 mm
    Mount. hole 2 16.80 mm
    Mount. hole 1 16.80 mm
  • Fordonsmatchning

    • OEM
      0-21000-3390, 0-21000-3391, F032114330, M009T82479, M105R3502SE, M9T82378, m9t82479, MBJ4412, R87DB11000CA, 3A1872H06, 600-813-2413, 707328, 707330, 2871252, 2871256, 3103305, 3103916, 5284083, 5284084, 8200022, 8200032, 8200034, 8200039, 8200041, 8200330, 8200412, 8200699, 8200700, 8200724, 8300016, 8300018, 10461754, 10461756, 10478898, 19010507, 19010509, 19011507, 19011509, 19011522, 19011523, 87439325

    • Konkurrentreferens
      CST60612, CST60613, F042003078, F042003079, F042003083, F042S03078, F042S03079, F042S03083, LES0320, S1027, S1128, S5067, S5246S, S9250, STR-4390, 45-5203, 641.047.113, 641.051.113, 6837, 6837N, 6853R, 19535N, 254887, 255385

    • Normaliserat artikelnummer
      cst60612, cst60613, f032114330, f042003078, f042003079, f042003083, f042s03078, f042s03079, f042s03083, les0320, m009t82479, m105r3502se, m9t82378, m9t82479, mbj4412, r87db11000ca, s1027, s1128, s5067, s5246s, s9250, str4390, 3a1872h06, 6837, 6837n, 6853r, 19535n, 254887, 255385, 455203, 707328, 707330, 2871252, 2871256, 3103305, 3103916, 5284083, 5284084, 8200022, 8200032, 8200034, 8200039, 8200041, 8200330, 8200412, 8200699, 8200700, 8200724, 8300016, 8300018, 10461754, 10461756, 10478898, 19010507, 19010509, 19011507, 19011509, 19011522, 19011523, 87439325, 0210003390, 0210003391, 641047113, 641051113, 6008132413

    • Passar modeller
      Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
