Artikelnr: F032114327

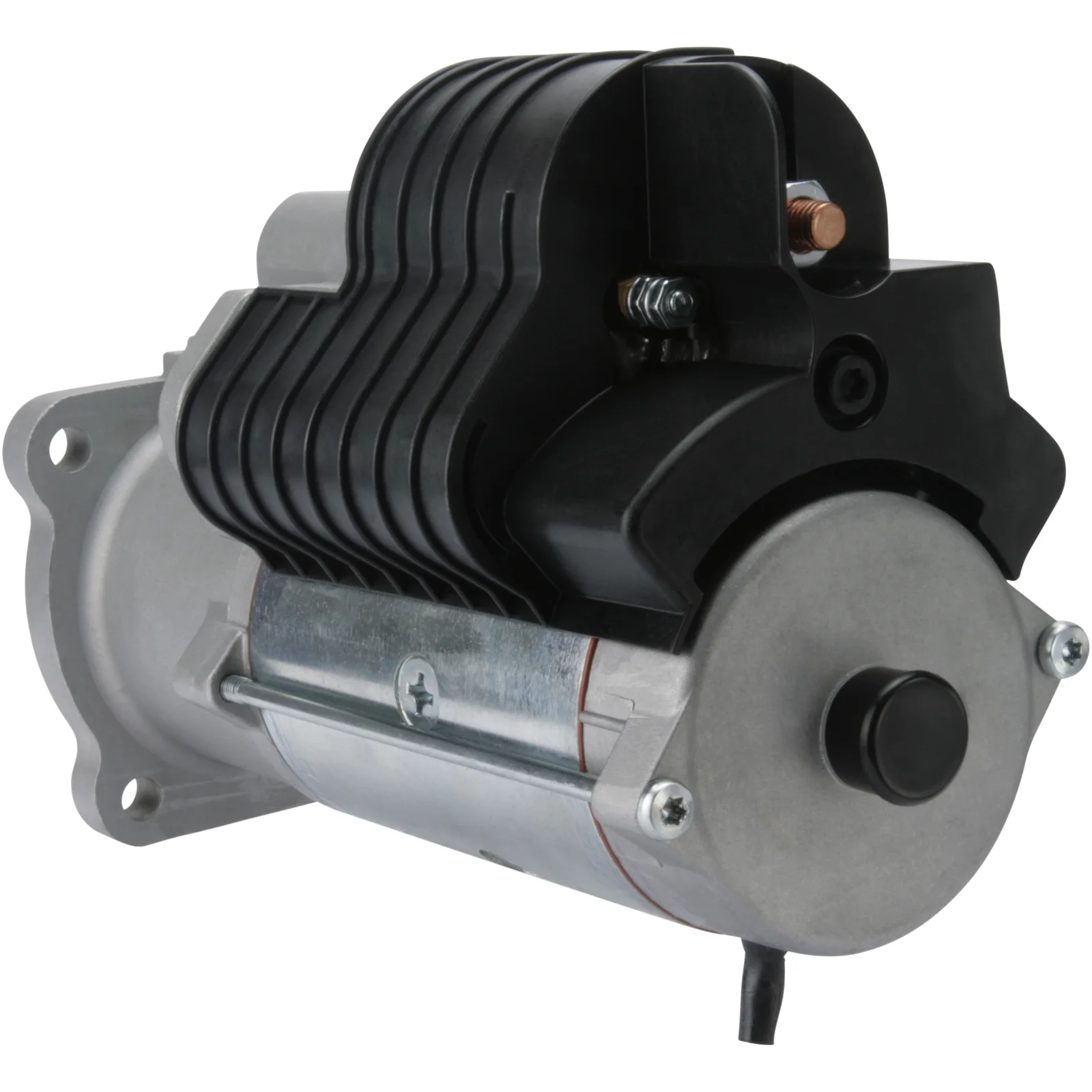

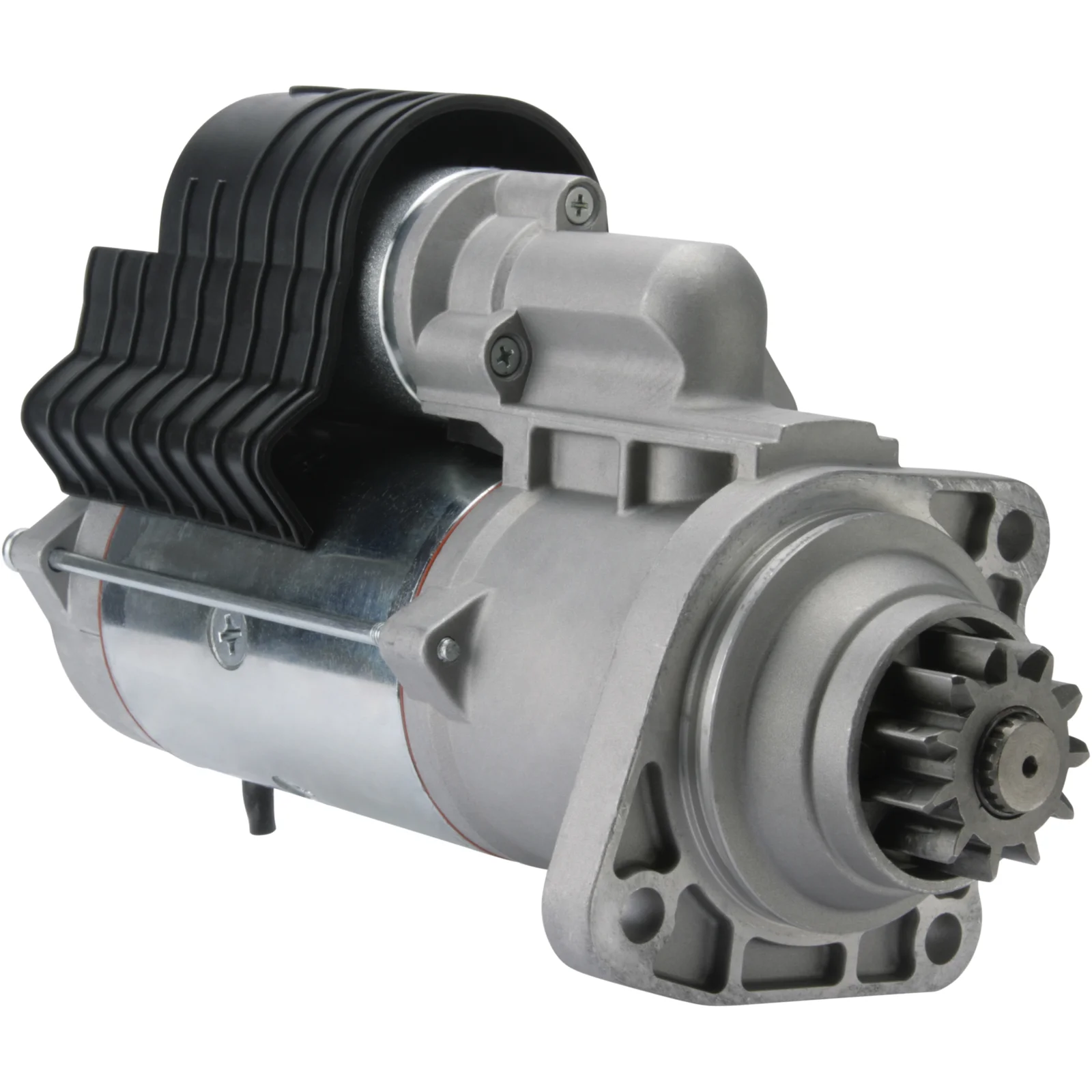

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 5.5, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 5.5
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 10.80
Mount. hole 2 mm: 10.80
Mount. hole 1 mm: 10.80
Dist./back: 254.50
Dist./front: 52.50
No./teeth: 11
B+: M10
Position/B+: 60
Position/50: 45
Terminal 50: M6
Gear type: GR
Dist. 2: 90.00
Dist. 3: 127.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 320.00
Prod. info: BN
No./mount. holes: 3 (0)

Specifikation

B+ M10
No./teeth 11
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 45
Position/B+ 60
Prod. info BN
Dist. 2 90.00
Dist. 3 127.00
Rotation CW
Dist./back 254.50
Dist./front 52.50
Drive dist. 48.00
Gear type GR
kW 5.5
Terminal 50 M6
Voltage 24
Total length 320.00 mm
Dist. 90.00 mm
Mount. hole 3 10.80 mm
Mount. hole 2 10.80 mm
Mount. hole 1 10.80 mm
  • OEM

    F032114327, 0001241008, 0001241012, 0001261016, 612600090293, 612600090561, 612630030011
  • Konkurrentreferens

    CST10803, F042002136, F042002154, F042S02136, les0408, MS0741, MS744, S0086, S0255, STR-2412, 30153N, 254213, 11090171
  • Normaliserat artikelnummer

    cst10803, f032114327, f042002136, f042002154, f042s02136, les0408, ms0741, ms744, s0086, s0255, str2412, 30153n, 254213, 0001241008, 0001241012, 0001261016, 11090171, 612600090293, 612600090561, 612630030011
  • Passar modeller

    Howo Model: WD615 Model series: WD615 Approved: Yes
    Scania Model: WD615 Model series: WD615 Approved: Yes
    Steyr Model: WD615 Model series: WD615 Approved: Yes
    Weichai Model: WD615 Model series: WD615 Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 5.5
    Mount. flange: 89.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 10.80
    Mount. hole 2 mm: 10.80
    Mount. hole 1 mm: 10.80
    Dist./back: 254.50
    Dist./front: 52.50
    No./teeth: 11
    B+: M10
    Position/B+: 60
    Position/50: 45
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 90.00
    Dist. 3: 127.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 320.00
    Prod. info: BN
    No./mount. holes: 3 (0)
  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 45
    Position/B+ 60
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 127.00
    Rotation CW
    Dist./back 254.50
    Dist./front 52.50
    Drive dist. 48.00
    Gear type GR
    kW 5.5
    Terminal 50 M6
    Voltage 24
    Total length 320.00 mm
    Dist. 90.00 mm
    Mount. hole 3 10.80 mm
    Mount. hole 2 10.80 mm
    Mount. hole 1 10.80 mm
  • Fordonsmatchning
    • OEM

      F032114327, 0001241008, 0001241012, 0001261016, 612600090293, 612600090561, 612630030011
    • Konkurrentreferens

      CST10803, F042002136, F042002154, F042S02136, les0408, MS0741, MS744, S0086, S0255, STR-2412, 30153N, 254213, 11090171
    • Normaliserat artikelnummer

      cst10803, f032114327, f042002136, f042002154, f042s02136, les0408, ms0741, ms744, s0086, s0255, str2412, 30153n, 254213, 0001241008, 0001241012, 0001261016, 11090171, 612600090293, 612600090561, 612630030011
    • Passar modeller

      Howo Model: WD615 Model series: WD615 Approved: Yes
      Scania Model: WD615 Model series: WD615 Approved: Yes
      Steyr Model: WD615 Model series: WD615 Approved: Yes
      Weichai Model: WD615 Model series: WD615 Approved: Yes
