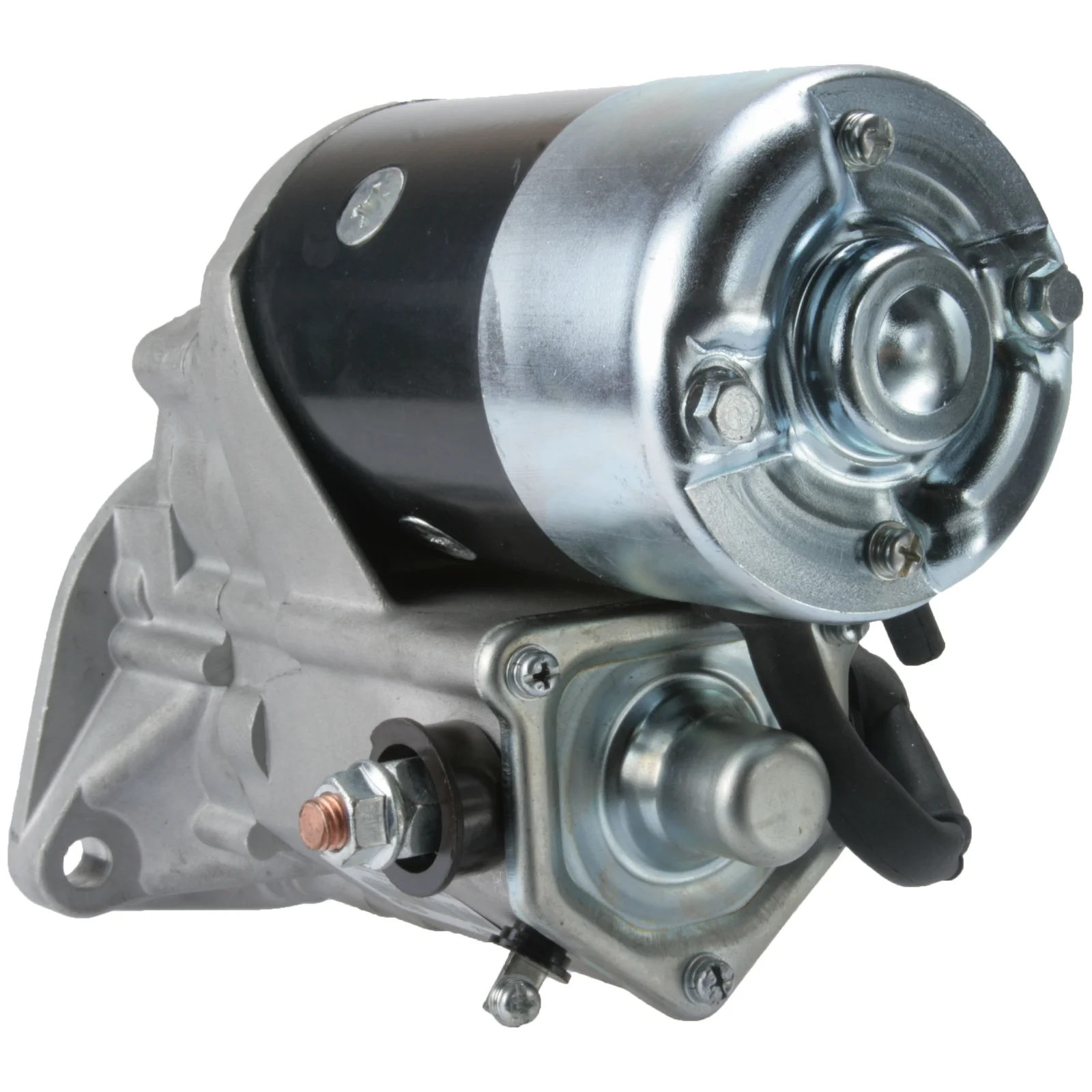

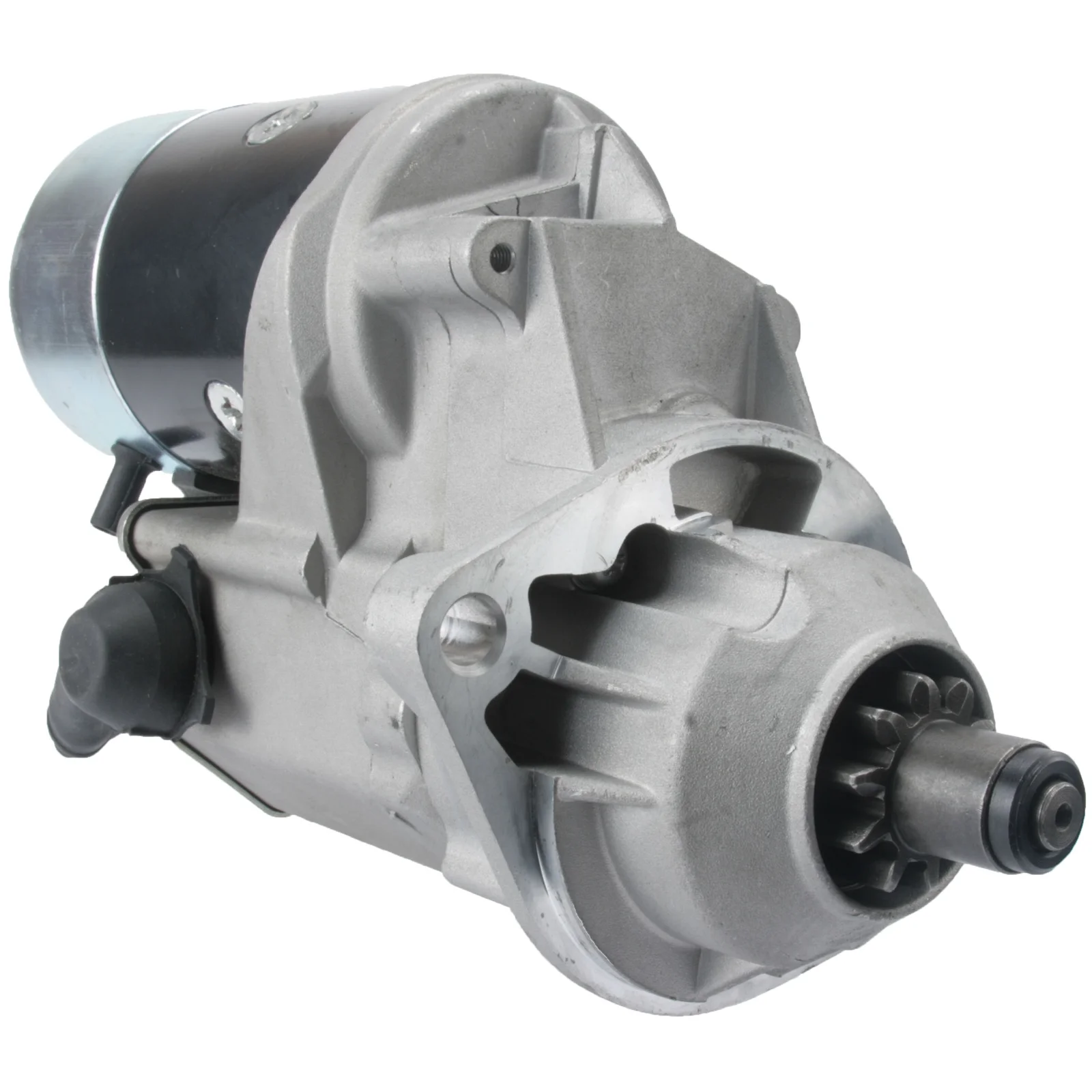

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114282

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.5, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.5
Mount. flange: 88.50
Drive dist.: 48.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 161.00
Dist./front: 75.00
No./teeth: 10
B+: M10
Position/B+: 45
Position/50: 37
Terminal 50: M5
Gear type: GR
Dist. mm: 127.00
Rotation: CW
Total length mm: 298.00
Drive type: Steel
Prod. info: BN
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 88.50
No./mount. holes 2 (0)
Position/50 37
Position/B+ 45
Prod. info BN
Rotation CW
Dist./back 161.00
Dist./front 75.00
Drive dist. 48.00
Drive type Steel
Gear type GR
kW 4.5
Terminal 50 M5
Voltage 24
Total length 298.00 mm
Dist. 127.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114282, 228000-7900, 228000-7901, 228000-7902, 228000-7903, 228080-0633, 3934119, 3957593, 3970101

  • Konkurrentreferens
    DRS0357, DSN2041, S6190, 45-5055, 641.510.102, 685.037.104, 18548N, 105536, 255016

  • Normaliserat artikelnummer
    drs0357, dsn2041, f032114282, s6190, 18548n, 105536, 255016, 455055, 3934119, 3957593, 3970101, 641510102, 685037104, 2280007900, 2280007901, 2280007902, 2280007903, 2280800633

  • Passar modeller
    Cummins Model: Various Models Model series: Various Models Approved: Yes
    Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 4.5
    Mount. flange: 88.50
    Drive dist.: 48.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 161.00
    Dist./front: 75.00
    No./teeth: 10
    B+: M10
    Position/B+: 45
    Position/50: 37
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 298.00
    Drive type: Steel
    Prod. info: BN
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 88.50
    No./mount. holes 2 (0)
    Position/50 37
    Position/B+ 45
    Prod. info BN
    Rotation CW
    Dist./back 161.00
    Dist./front 75.00
    Drive dist. 48.00
    Drive type Steel
    Gear type GR
    kW 4.5
    Terminal 50 M5
    Voltage 24
    Total length 298.00 mm
    Dist. 127.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032114282, 228000-7900, 228000-7901, 228000-7902, 228000-7903, 228080-0633, 3934119, 3957593, 3970101

    • Konkurrentreferens
      DRS0357, DSN2041, S6190, 45-5055, 641.510.102, 685.037.104, 18548N, 105536, 255016

    • Normaliserat artikelnummer
      drs0357, dsn2041, f032114282, s6190, 18548n, 105536, 255016, 455055, 3934119, 3957593, 3970101, 641510102, 685037104, 2280007900, 2280007901, 2280007902, 2280007903, 2280800633

    • Passar modeller
      Cummins Model: Various Models Model series: Various Models Approved: Yes
      Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
