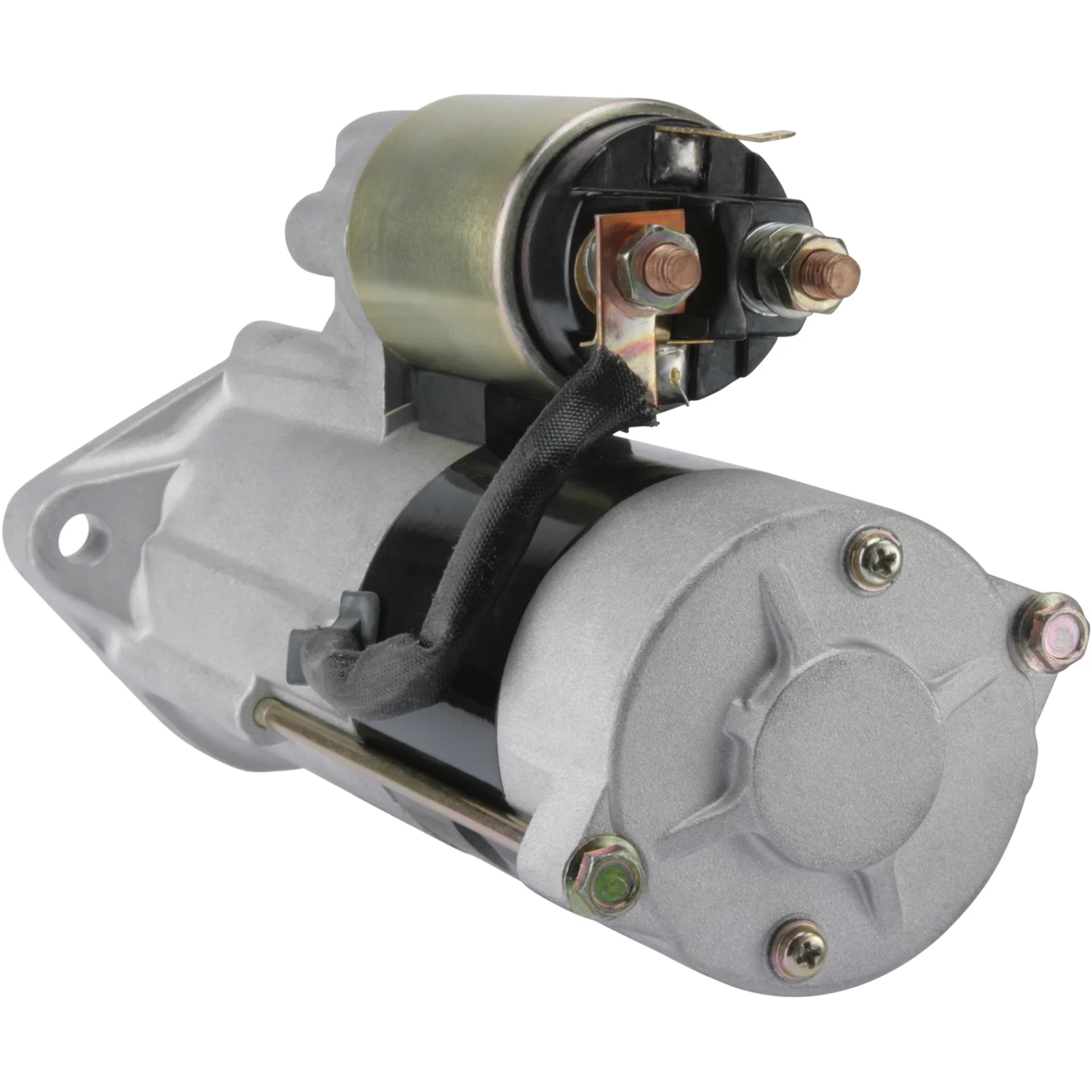

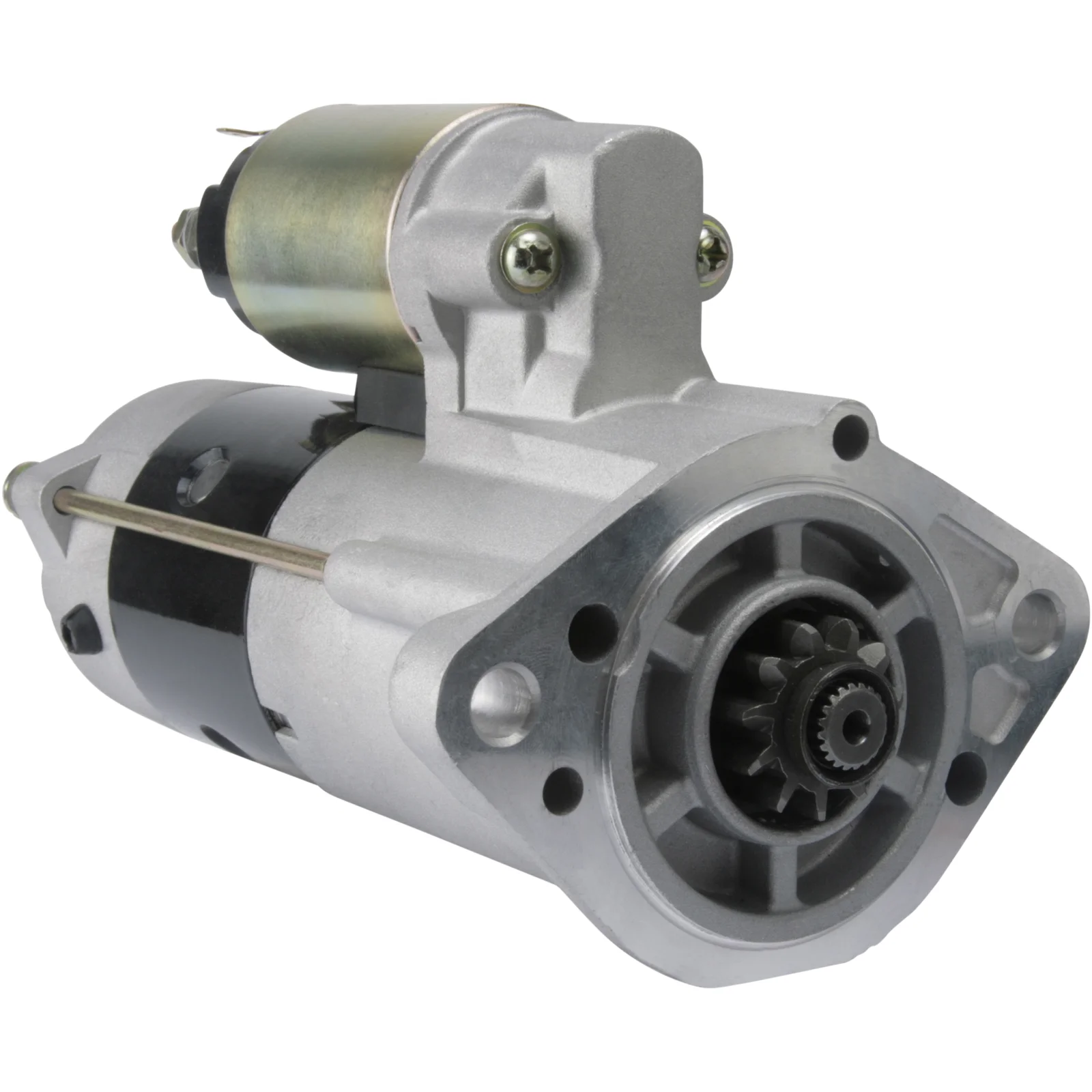

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114280

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 3.2, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 3.2
Mount. flange: 77.00
Drive dist.: 10.50
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 222.00
Dist./front: 19.00
No./teeth: 11
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. mm: 114.00
Rotation: CW
Total length mm: 241.00
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 77.00
No./mount. holes 2 (0)
Position/50 15
Position/B+ 60
Rotation CW
Dist./back 222.00
Dist./front 19.00
Drive dist. 10.50
Gear type GR
kW 3.2
Terminal 50 6.30
Voltage 24
Total length 241.00 mm
Dist. 114.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    0R1903, F032114280, M008T60771, M008T80471, M008T80471A, M008T80472, M008T80472A, M8T60771, m8t80471, m8t80471a, m8t80472, m8t80472a, ME049327, ME108080, ME108364, 147-7166, 1109458

  • Konkurrentreferens
    CST35610, DRS0228, S5091, S5091(MITSUBISHI), 326.053.114, 641.505.112, 30026N, 254178

  • Normaliserat artikelnummer
    0r1903, cst35610, drs0228, f032114280, m008t60771, m008t80471, m008t80471a, m008t80472, m008t80472a, m8t60771, m8t80471, m8t80471a, m8t80472, m8t80472a, me049327, me108080, me108364, s5091, s5091mitsubishi, 30026n, 254178, 1109458, 1477166, 326053114, 641505112

  • Passar modeller
    Caterpillar Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 3.2
    Mount. flange: 77.00
    Drive dist.: 10.50
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 222.00
    Dist./front: 19.00
    No./teeth: 11
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 114.00
    Rotation: CW
    Total length mm: 241.00
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 77.00
    No./mount. holes 2 (0)
    Position/50 15
    Position/B+ 60
    Rotation CW
    Dist./back 222.00
    Dist./front 19.00
    Drive dist. 10.50
    Gear type GR
    kW 3.2
    Terminal 50 6.30
    Voltage 24
    Total length 241.00 mm
    Dist. 114.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      0R1903, F032114280, M008T60771, M008T80471, M008T80471A, M008T80472, M008T80472A, M8T60771, m8t80471, m8t80471a, m8t80472, m8t80472a, ME049327, ME108080, ME108364, 147-7166, 1109458

    • Konkurrentreferens
      CST35610, DRS0228, S5091, S5091(MITSUBISHI), 326.053.114, 641.505.112, 30026N, 254178

    • Normaliserat artikelnummer
      0r1903, cst35610, drs0228, f032114280, m008t60771, m008t80471, m008t80471a, m008t80472, m008t80472a, m8t60771, m8t80471, m8t80471a, m8t80472, m8t80472a, me049327, me108080, me108364, s5091, s5091mitsubishi, 30026n, 254178, 1109458, 1477166, 326053114, 641505112

    • Passar modeller
      Caterpillar Model: Various Models Model series: Various Models Approved: Yes
