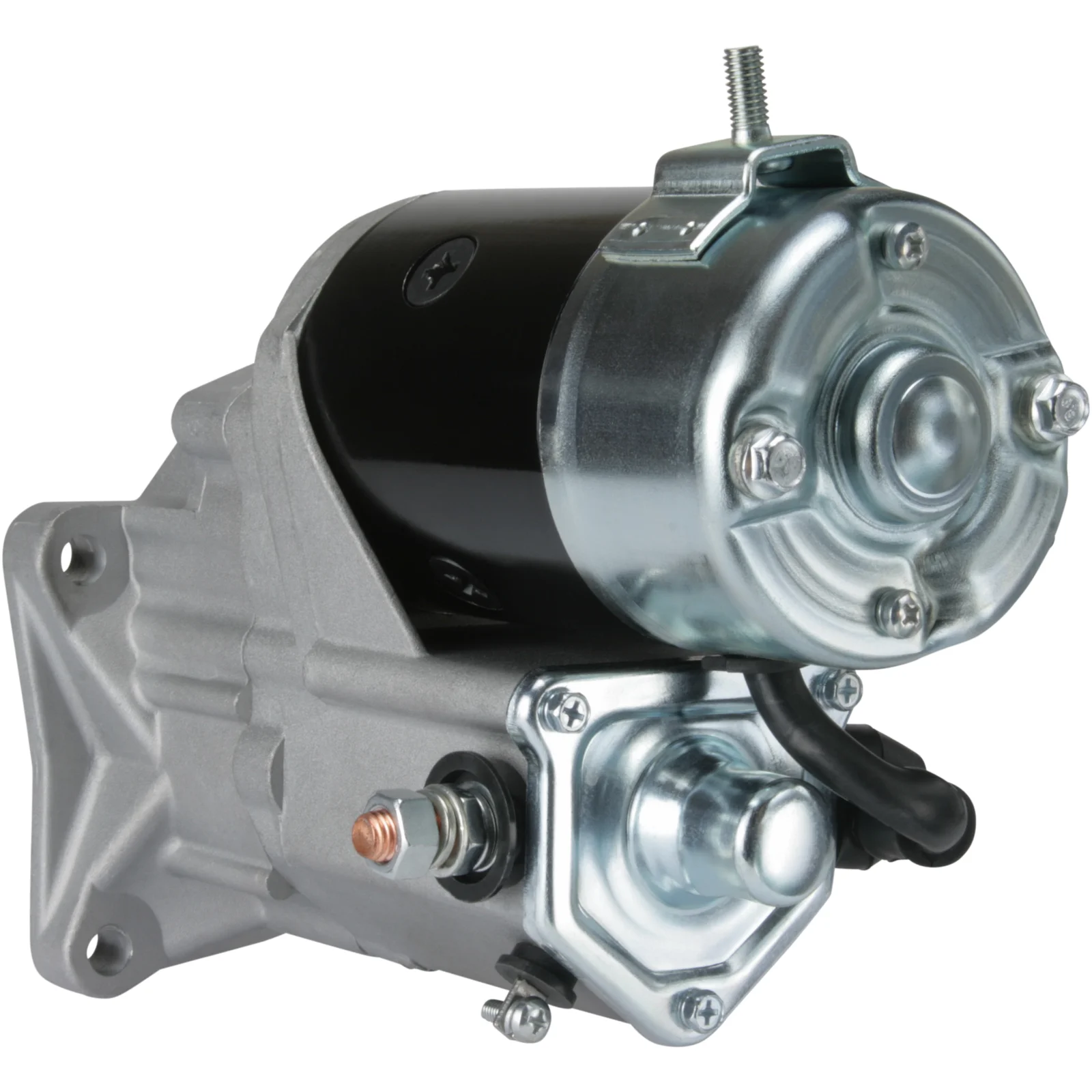

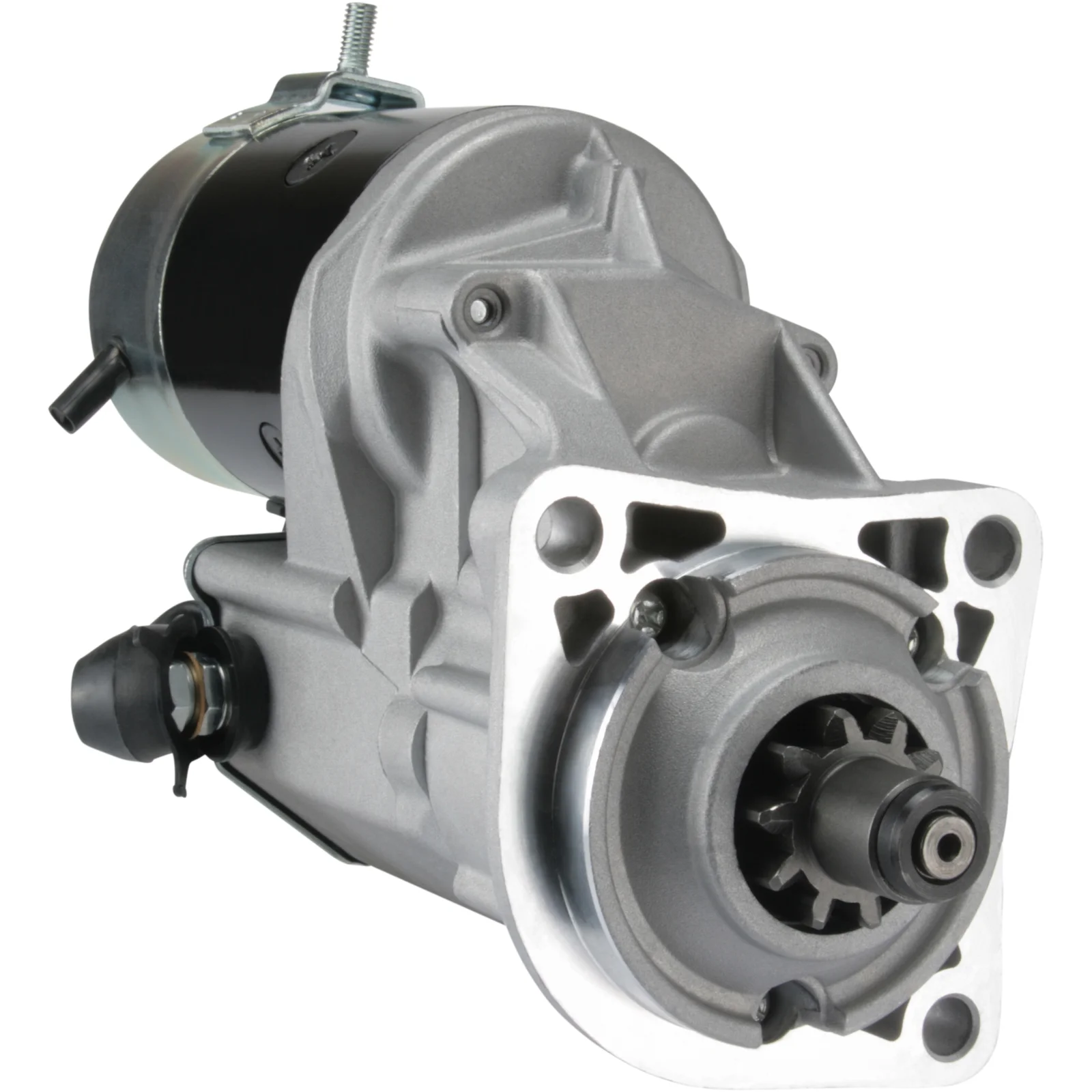

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114278

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.5, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.5
Mount. flange: 89.00
Drive dist.: 29.00
Mount. hole 3 mm: 11.20
Mount. hole 2 mm: 11.20
Mount. hole 1 mm: 11.20
Dist./back: 179.00
Dist./front: 55.00
No./teeth: 10
B+: M10
Terminal 50: M5
Gear type: GR
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 297.00
Prod. info: BN
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Prod. info BN
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 179.00
Dist./front 55.00
Drive dist. 29.00
Gear type GR
kW 4.5
Terminal 50 M5
Voltage 24
Total length 297.00 mm
Dist. 90.00 mm
Mount. hole 3 11.20 mm
Mount. hole 2 11.20 mm
Mount. hole 1 11.20 mm

  • OEM
    F032114278, T410862, 1316, 2873K406, 428000-1120, 428080-1120, 3575205, 5568664115

  • Konkurrentreferens
    CST40649, DSN2058, MS130, S6275S, 641.544.103, 701.520.103, 19805, 11090258

  • Normaliserat artikelnummer
    cst40649, dsn2058, f032114278, ms130, s6275s, t410862, 1316, 2873k406, 19805, 3575205, 11090258, 641544103, 701520103, 4280001120, 4280801120, 5568664115

  • Passar modeller
    Caterpillar Model: 312E Model series: 312E Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: 313D CR Model series: 313D CR Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: 314E CR & 314E LCR Model series: 314E CR & 314E LCR Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: 314E SR Model series: 314E SR Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: 316E L Model series: 316E L Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: 320D & 320D L Model series: 320D & 320D L Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: 320D (SKD) Model series: 320D (SKD) Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: 420E & 420E IT Model series: 420E & 420E IT Model type: Tractor/Loader/Backhoes Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: 430E & 430E IT Model series: 430E & 430E IT Model type: Tractor/Loader/Backhoes Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: 914G Model series: 914G Model type: Wheel Loader From date: 01-01-1995 To date: 01-01-2003 Approved: Yes
    Caterpillar Model: AP500E Model series: AP500E Model type: Pavers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: AP555E Model series: AP555E Model type: Pavers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: AP600F Model series: AP600F Model type: Pavers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: AP655F Model series: AP655F Model type: Pavers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CP44 Model series: CP44 Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CP54 Model series: CP54 Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CP54B Model series: CP54B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CP56B Model series: CP56B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CP64B Model series: CP64B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CP68B Model series: CP68B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CP74B Model series: CP74B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CS-433E & CP-433E Model series: CS-433E & CP-433E Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CS44 Model series: CS44 Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CS54B Model series: CS54B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CS56B Model series: CS56B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CS64B Model series: CS64B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CS68B Model series: CS68B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CS74B Model series: CS74B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CS78B Model series: CS78B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: CW34 Model series: CW34 Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: D3K2 Model series: D3K2 Model type: Crawlers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: D3K2 MULCHER Model series: D3K2 MULCHER Model type: Crawlers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: D4K2 Model series: D4K2 Model type: Crawlers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: D5K2 Model series: D5K2 Model type: Crawlers Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: M315F Model series: M315F Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
    Caterpillar Model: Wheel Loader Model series: Various Models Approved: Yes
    Manitou Model: K-D KAWK POULTRY 30-2 & 30-4 Model series: K-D KAWK POULTRY 30-2 & 30-4 Model type: Rough Terrain Forklifts Brand of engine: C4.4T ACERT Approved: Yes
    Mitsubishi Model: GCR1350 Model series: GCR1350 Model type: Ag Tractors Brand of engine: C4.4T ACERT Approved: Yes
    1 / 8
  • Beskrivning
    Voltage: 24
    kW: 4.5
    Mount. flange: 89.00
    Drive dist.: 29.00
    Mount. hole 3 mm: 11.20
    Mount. hole 2 mm: 11.20
    Mount. hole 1 mm: 11.20
    Dist./back: 179.00
    Dist./front: 55.00
    No./teeth: 10
    B+: M10
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 297.00
    Prod. info: BN
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Prod. info BN
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 179.00
    Dist./front 55.00
    Drive dist. 29.00
    Gear type GR
    kW 4.5
    Terminal 50 M5
    Voltage 24
    Total length 297.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.20 mm
    Mount. hole 2 11.20 mm
    Mount. hole 1 11.20 mm
  • Fordonsmatchning

    • OEM
      F032114278, T410862, 1316, 2873K406, 428000-1120, 428080-1120, 3575205, 5568664115

    • Konkurrentreferens
      CST40649, DSN2058, MS130, S6275S, 641.544.103, 701.520.103, 19805, 11090258

    • Normaliserat artikelnummer
      cst40649, dsn2058, f032114278, ms130, s6275s, t410862, 1316, 2873k406, 19805, 3575205, 11090258, 641544103, 701520103, 4280001120, 4280801120, 5568664115

    • Passar modeller
      Caterpillar Model: 312E Model series: 312E Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: 313D CR Model series: 313D CR Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: 314E CR & 314E LCR Model series: 314E CR & 314E LCR Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: 314E SR Model series: 314E SR Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: 316E L Model series: 316E L Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: 320D & 320D L Model series: 320D & 320D L Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: 320D (SKD) Model series: 320D (SKD) Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: 420E & 420E IT Model series: 420E & 420E IT Model type: Tractor/Loader/Backhoes Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: 430E & 430E IT Model series: 430E & 430E IT Model type: Tractor/Loader/Backhoes Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: 914G Model series: 914G Model type: Wheel Loader From date: 01-01-1995 To date: 01-01-2003 Approved: Yes
      Caterpillar Model: AP500E Model series: AP500E Model type: Pavers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: AP555E Model series: AP555E Model type: Pavers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: AP600F Model series: AP600F Model type: Pavers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: AP655F Model series: AP655F Model type: Pavers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CP44 Model series: CP44 Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CP54 Model series: CP54 Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CP54B Model series: CP54B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CP56B Model series: CP56B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CP64B Model series: CP64B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CP68B Model series: CP68B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CP74B Model series: CP74B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CS-433E & CP-433E Model series: CS-433E & CP-433E Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CS44 Model series: CS44 Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CS54B Model series: CS54B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CS56B Model series: CS56B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CS64B Model series: CS64B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CS68B Model series: CS68B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CS74B Model series: CS74B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CS78B Model series: CS78B Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: CW34 Model series: CW34 Model type: Rollers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: D3K2 Model series: D3K2 Model type: Crawlers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: D3K2 MULCHER Model series: D3K2 MULCHER Model type: Crawlers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: D4K2 Model series: D4K2 Model type: Crawlers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: D5K2 Model series: D5K2 Model type: Crawlers Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: M315F Model series: M315F Model type: Excavators Brand of engine: C4.4T ACERT Approved: Yes
      Caterpillar Model: Wheel Loader Model series: Various Models Approved: Yes
      Manitou Model: K-D KAWK POULTRY 30-2 & 30-4 Model series: K-D KAWK POULTRY 30-2 & 30-4 Model type: Rough Terrain Forklifts Brand of engine: C4.4T ACERT Approved: Yes
      Mitsubishi Model: GCR1350 Model series: GCR1350 Model type: Ag Tractors Brand of engine: C4.4T ACERT Approved: Yes
      1 / 8
