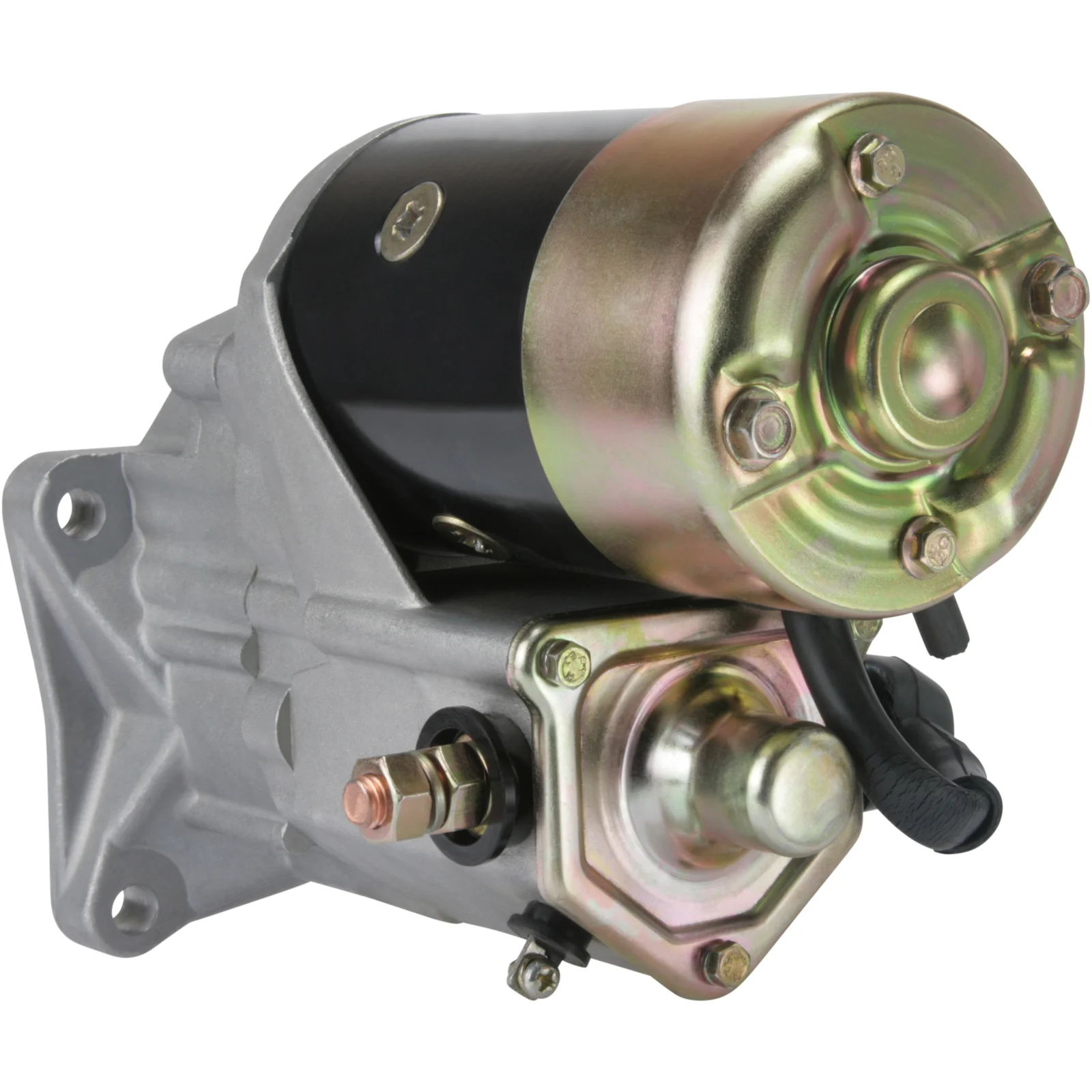

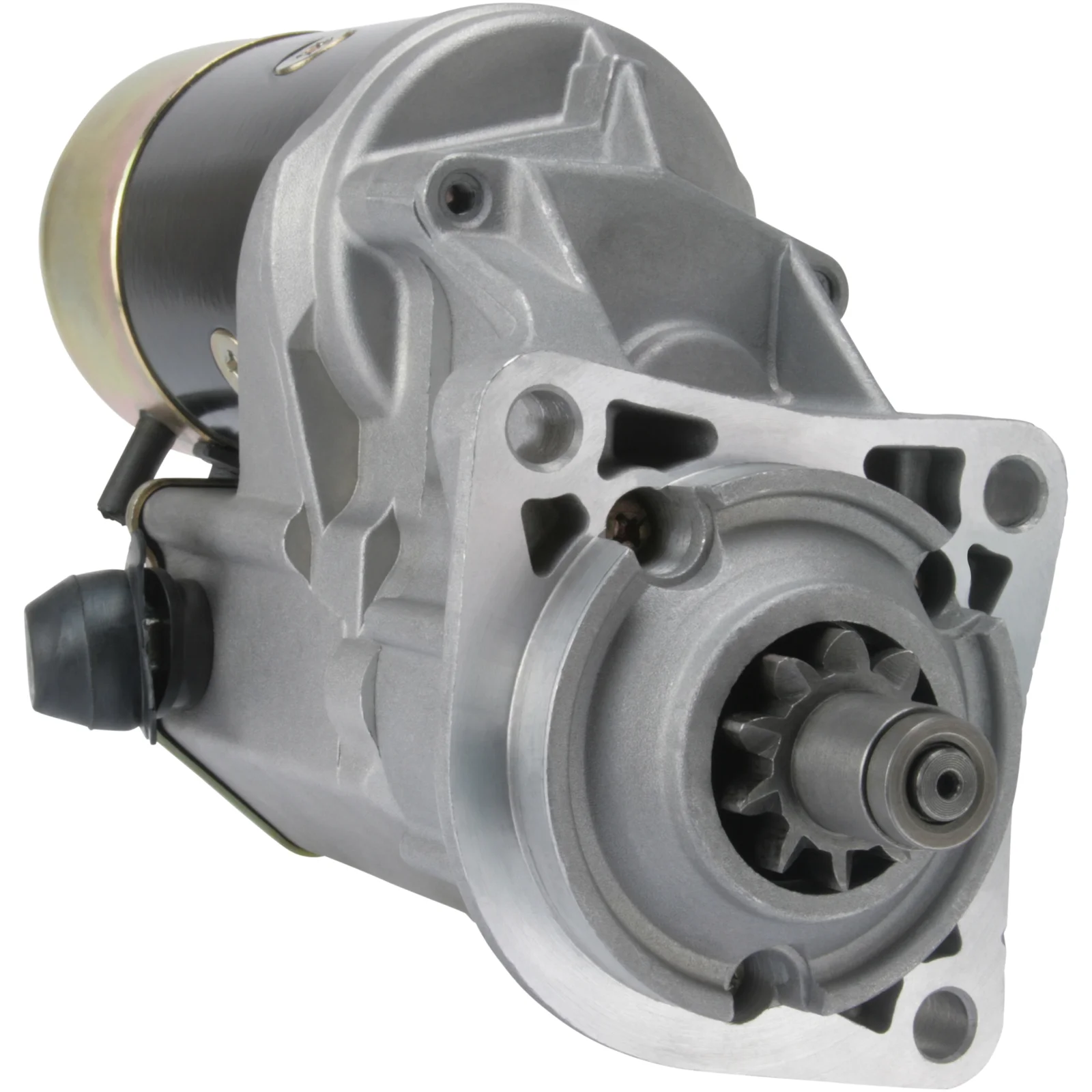

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114268

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.5, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.5
Mount. flange: 89.00
Drive dist.: 29.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 185.00
Dist./front: 58.00
No./teeth: 10
B+: M10
Position/50: 37
Terminal 50: M5
Gear type: GR
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 290.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 37
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 185.00
Dist./front 58.00
Drive dist. 29.00
Gear type GR
kW 4.5
Terminal 50 M5
Voltage 24
Total length 290.00 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    0R4321, F032114268, OR4321, 143-0541, 225-3150, 228000-1830, 228000-1831, 228000-1832, 1006929

  • Konkurrentreferens
    CST40619, DRS0206, DSN2042, LES0282, LRS02594, S6282S, 45-4267, 672.027.104, 18505N, 254258

  • Normaliserat artikelnummer
    0r4321, cst40619, drs0206, dsn2042, f032114268, les0282, lrs02594, or4321, s6282s, 18505n, 254258, 454267, 1006929, 1430541, 2253150, 672027104, 2280001830, 2280001831, 2280001832

  • Passar modeller
    Caterpillar Model: 914G Model series: 914G Model type: Wheel Loader From date: 01-01-1995 To date: 01-01-2003 Approved: Yes
    Caterpillar Model: Paving Equipment Model series: Various models Approved: Yes
    Caterpillar Model: Wheel Loader Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 4.5
    Mount. flange: 89.00
    Drive dist.: 29.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 185.00
    Dist./front: 58.00
    No./teeth: 10
    B+: M10
    Position/50: 37
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 290.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 37
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 185.00
    Dist./front 58.00
    Drive dist. 29.00
    Gear type GR
    kW 4.5
    Terminal 50 M5
    Voltage 24
    Total length 290.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      0R4321, F032114268, OR4321, 143-0541, 225-3150, 228000-1830, 228000-1831, 228000-1832, 1006929

    • Konkurrentreferens
      CST40619, DRS0206, DSN2042, LES0282, LRS02594, S6282S, 45-4267, 672.027.104, 18505N, 254258

    • Normaliserat artikelnummer
      0r4321, cst40619, drs0206, dsn2042, f032114268, les0282, lrs02594, or4321, s6282s, 18505n, 254258, 454267, 1006929, 1430541, 2253150, 672027104, 2280001830, 2280001831, 2280001832

    • Passar modeller
      Caterpillar Model: 914G Model series: 914G Model type: Wheel Loader From date: 01-01-1995 To date: 01-01-2003 Approved: Yes
      Caterpillar Model: Paving Equipment Model series: Various models Approved: Yes
      Caterpillar Model: Wheel Loader Model series: Various Models Approved: Yes
