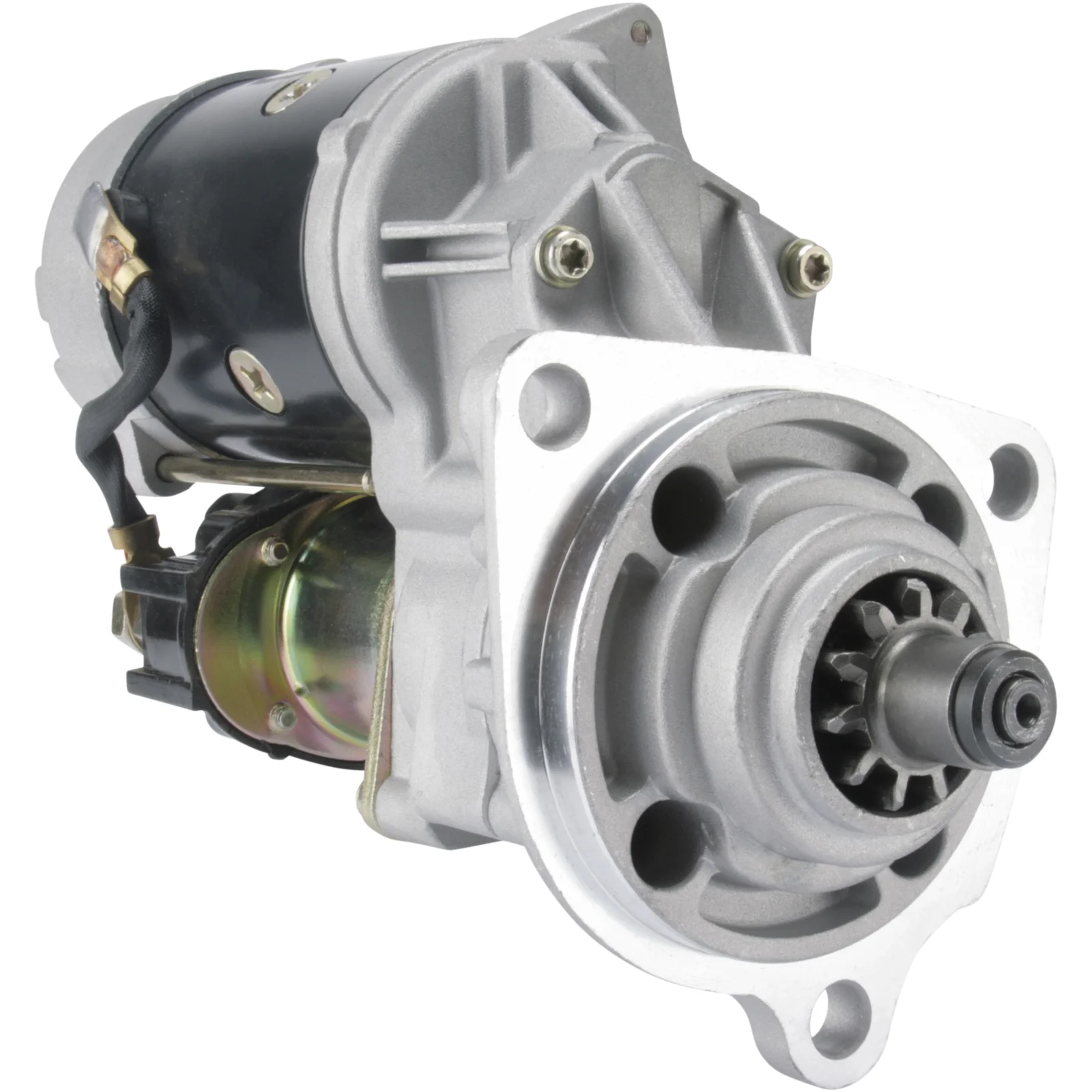

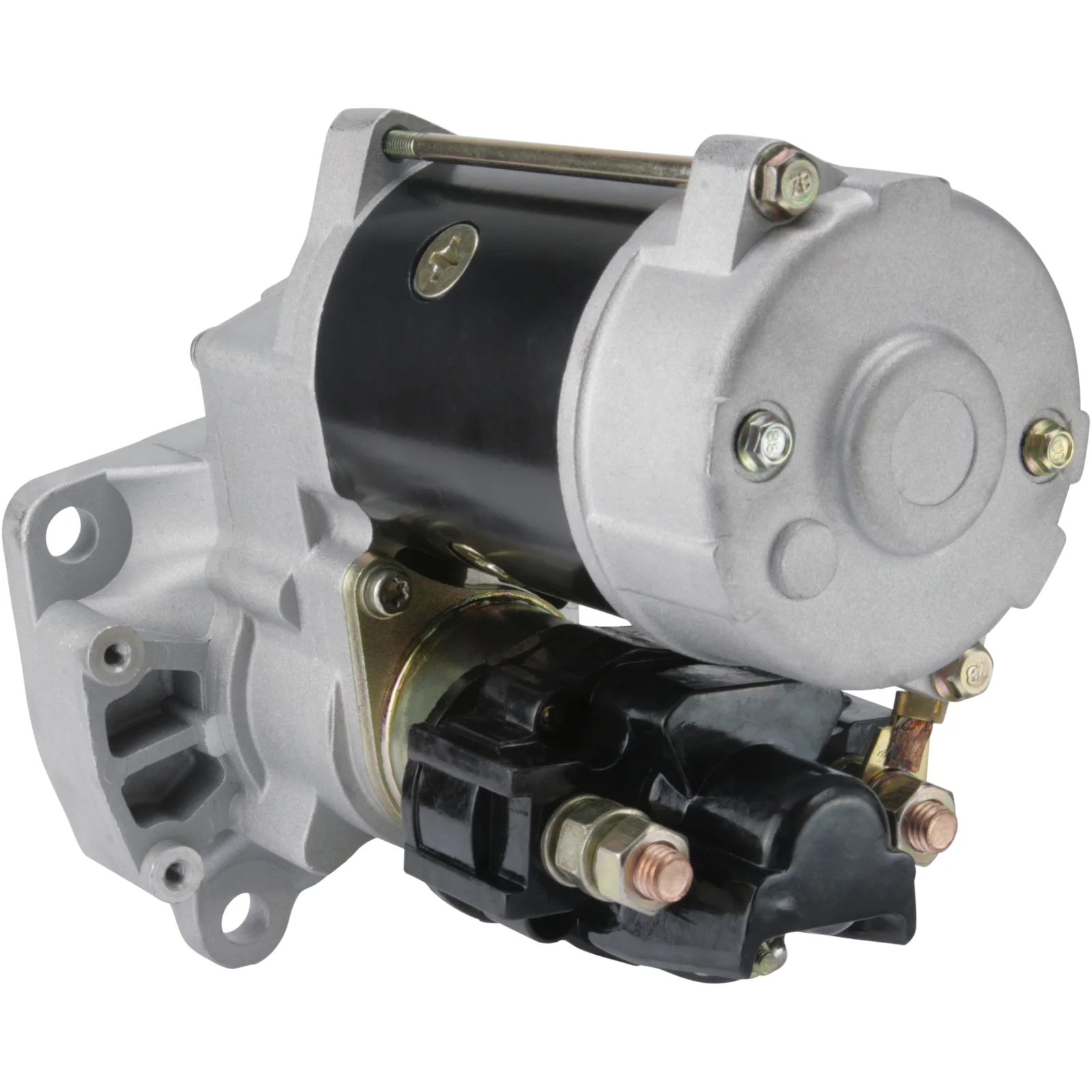

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114267

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.5, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.5
Mount. flange: 105.00
Drive dist.: 41.50
Mount. hole 3 mm: 13.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 218.00
Dist./front: 66.00
No./teeth: 11
B+: M10
Position/50: 60
Terminal 50: M5
Gear type: GR
Dist. 2: 109.00
Dist. 3: 109.00
Dist. mm: 133.00
Rotation: CW
Total length mm: 288.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 105.00
No./mount. holes 3 (0)
Position/50 60
Dist. 2 109.00
Dist. 3 109.00
Rotation CW
Dist./back 218.00
Dist./front 66.00
Drive dist. 41.50
Gear type GR
kW 4.5
Terminal 50 M5
Voltage 24
Total length 288.00 mm
Dist. 133.00 mm
Mount. hole 3 13.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    0-24000-3150, 0-24000-3151, F032114267, 1-81100338-0, 1-81100338-1, 8983763930

  • Konkurrentreferens
    CST50622, S9140, 19868N, 220633, 220633A, 254572

  • Normaliserat artikelnummer
    cst50622, f032114267, s9140, 19868n, 220633, 220633a, 254572, 0240003150, 0240003151, 1811003380, 1811003381, 8983763930

  • Passar modeller
    John Deere Model: Excavator Model series: 225C Brand of engine: 6BG1T From date: 01-01-1999 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 4.5
    Mount. flange: 105.00
    Drive dist.: 41.50
    Mount. hole 3 mm: 13.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 218.00
    Dist./front: 66.00
    No./teeth: 11
    B+: M10
    Position/50: 60
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 109.00
    Dist. 3: 109.00
    Dist. mm: 133.00
    Rotation: CW
    Total length mm: 288.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 105.00
    No./mount. holes 3 (0)
    Position/50 60
    Dist. 2 109.00
    Dist. 3 109.00
    Rotation CW
    Dist./back 218.00
    Dist./front 66.00
    Drive dist. 41.50
    Gear type GR
    kW 4.5
    Terminal 50 M5
    Voltage 24
    Total length 288.00 mm
    Dist. 133.00 mm
    Mount. hole 3 13.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      0-24000-3150, 0-24000-3151, F032114267, 1-81100338-0, 1-81100338-1, 8983763930

    • Konkurrentreferens
      CST50622, S9140, 19868N, 220633, 220633A, 254572

    • Normaliserat artikelnummer
      cst50622, f032114267, s9140, 19868n, 220633, 220633a, 254572, 0240003150, 0240003151, 1811003380, 1811003381, 8983763930

    • Passar modeller
      John Deere Model: Excavator Model series: 225C Brand of engine: 6BG1T From date: 01-01-1999 Fuel: Diesel Approved: Yes
