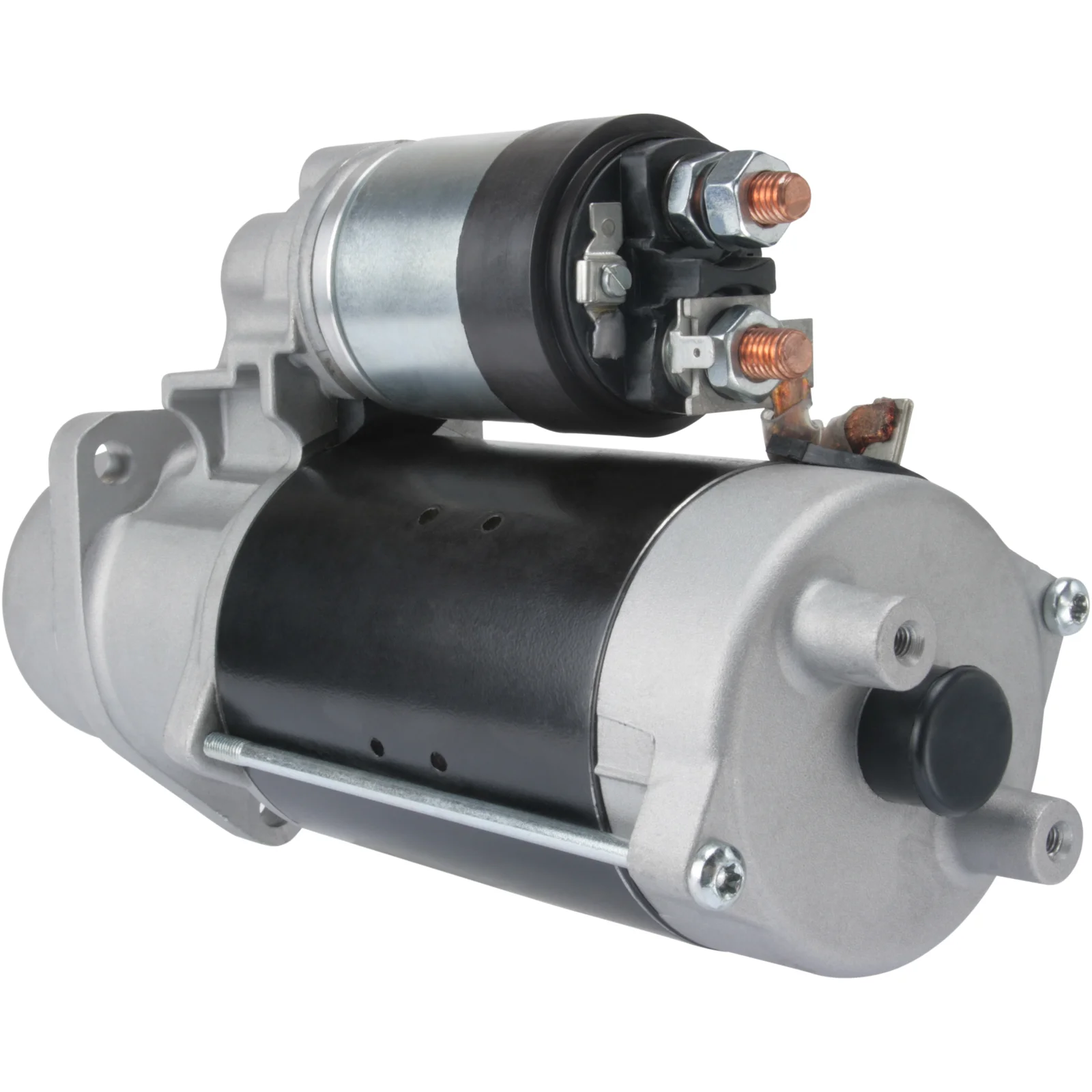

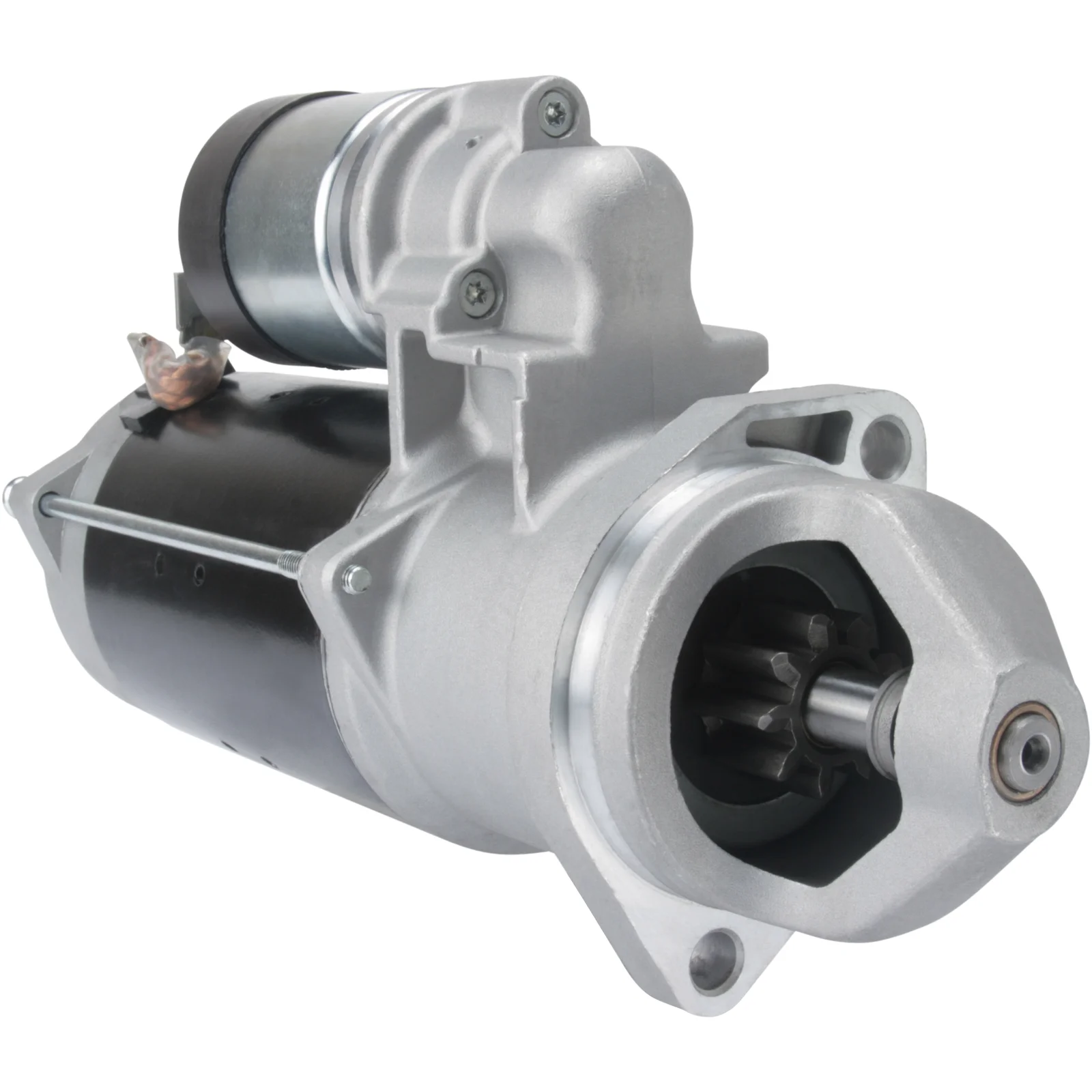

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114220

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.0
Mount. flange: 82.50
Drive dist.: 23.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 232.00
Dist./front: 71.00
No./teeth: 9
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: GR
Dist. mm: 101.50
Rotation: CW
Total length mm: 320.00
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 45
Rotation CW
Dist./back 232.00
Dist./front 71.00
Drive dist. 23.00
Gear type GR
kW 4.0
Terminal 50 M4
Voltage 24
Total length 320.00 mm
Dist. 101.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZF4156, AZF4230, F032114220, 11.131.607, 11.131.863, 0001101110, 01171750, 01181753, 1181753, 01182126, 1182126, 01182390, 1182390, 0001231018, 04300286

  • Konkurrentreferens
    CST10684, CST21605, DRS0366, is1236, MS68, S0182, S9099, S9099(LETRIKA), 45-4402, 600.243.094, 30329N, 254308, 11090149, 063522310180

  • Normaliserat artikelnummer
    azf4156, azf4230, cst10684, cst21605, drs0366, f032114220, is1236, ms68, s0182, s9099, s9099letrika, 30329n, 254308, 454402, 0001101110, 01171750, 01181753, 1181753, 01182126, 1182126, 01182390, 1182390, 0001231018, 04300286, 11090149, 11131607, 11131863, 600243094, 063522310180

  • Passar modeller
    Deutz-Fahr Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 4.0
    Mount. flange: 82.50
    Drive dist.: 23.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 232.00
    Dist./front: 71.00
    No./teeth: 9
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear type: GR
    Dist. mm: 101.50
    Rotation: CW
    Total length mm: 320.00
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 45
    Rotation CW
    Dist./back 232.00
    Dist./front 71.00
    Drive dist. 23.00
    Gear type GR
    kW 4.0
    Terminal 50 M4
    Voltage 24
    Total length 320.00 mm
    Dist. 101.50 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      AZF4156, AZF4230, F032114220, 11.131.607, 11.131.863, 0001101110, 01171750, 01181753, 1181753, 01182126, 1182126, 01182390, 1182390, 0001231018, 04300286

    • Konkurrentreferens
      CST10684, CST21605, DRS0366, is1236, MS68, S0182, S9099, S9099(LETRIKA), 45-4402, 600.243.094, 30329N, 254308, 11090149, 063522310180

    • Normaliserat artikelnummer
      azf4156, azf4230, cst10684, cst21605, drs0366, f032114220, is1236, ms68, s0182, s9099, s9099letrika, 30329n, 254308, 454402, 0001101110, 01171750, 01181753, 1181753, 01182126, 1182126, 01182390, 1182390, 0001231018, 04300286, 11090149, 11131607, 11131863, 600243094, 063522310180

    • Passar modeller
      Deutz-Fahr Model: Various Models Model series: Various Models Approved: Yes
