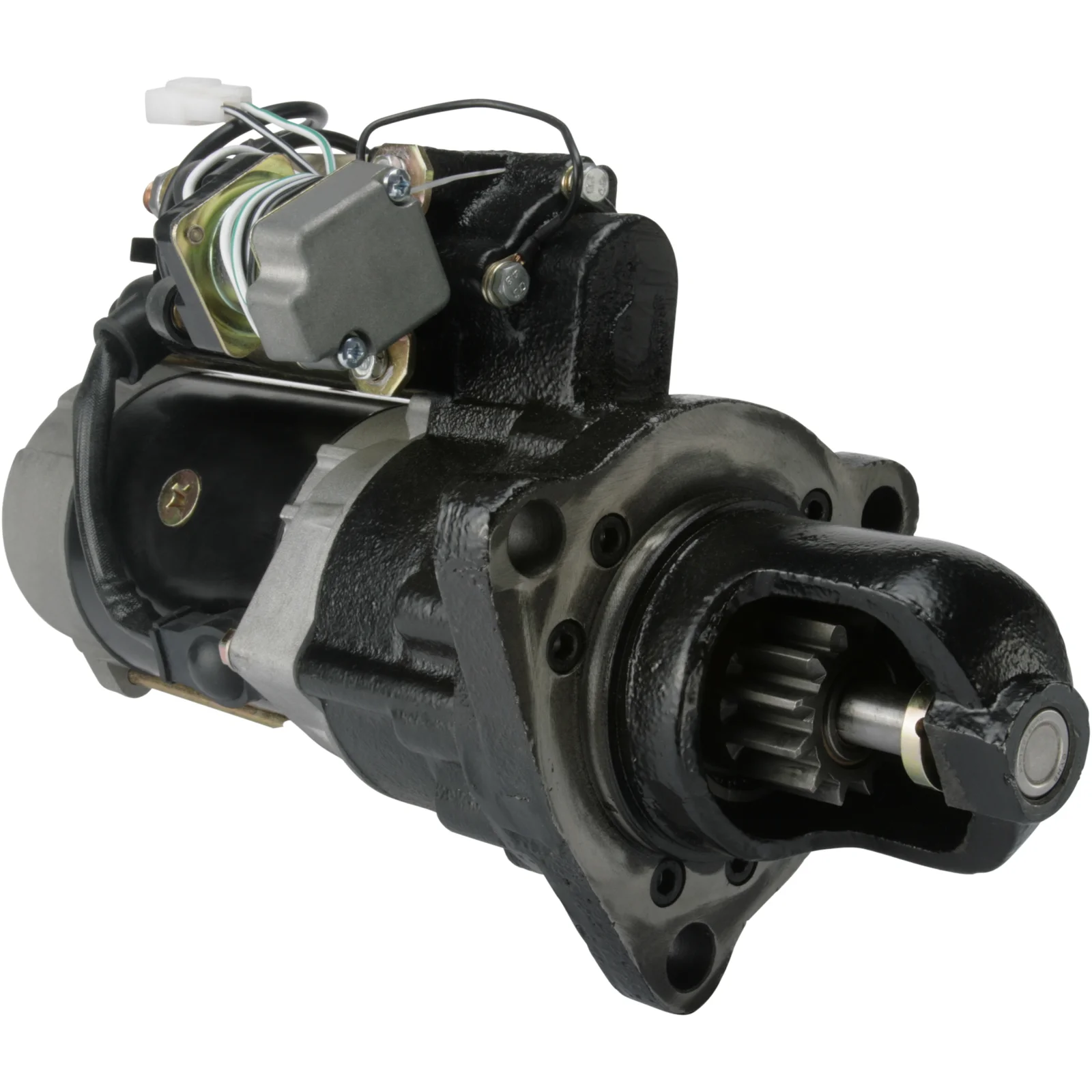

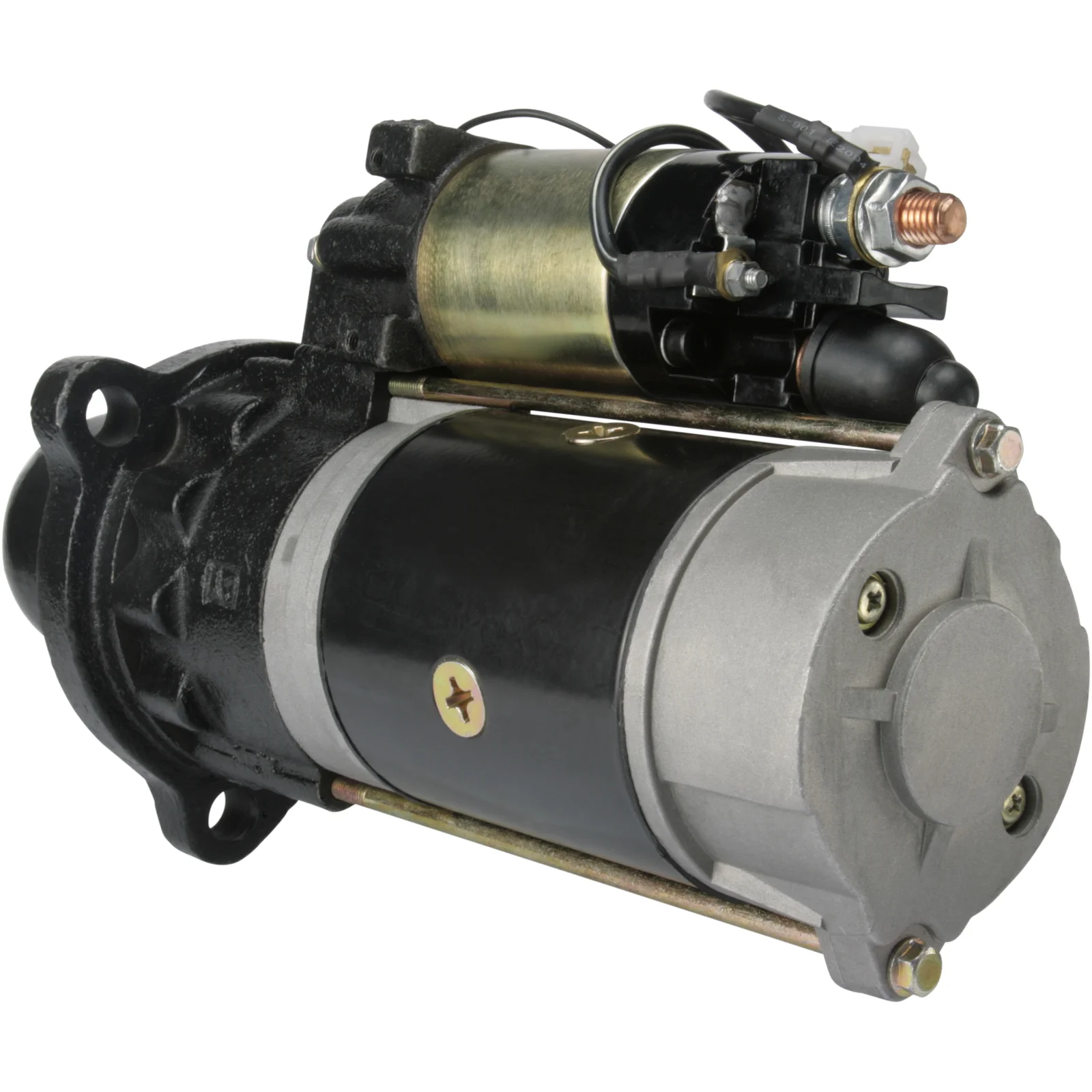

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114164

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 7.5, No./teeth: 12, Rotation: CW

Beskrivning

Voltage: 24
kW: 7.5
Mount. flange: 92.00
Drive dist.: 46.00
Mount. hole 3 mm: 17.00
Dist./back: 295.50
Dist./front: 99.00
No./teeth: 12
B+: M12
Gear type: GR
Dist. 2: 126.00
Dist. 3: 126.00
Dist. mm: 126.00
Rotation: CW
Total length mm: 395.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: w/ safety switch.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M12
No./teeth 12
Mount. flange 92.00
Oil sealed No
No./mount. holes 3 (0)
Prod. info BN
Dist. 2 126.00
Remarks w/ safety switch.
Dist. 3 126.00
Rotation CW
Dist./back 295.50
Dist./front 99.00
Drive dist. 46.00
Drive type Steel
Gear type GR
kW 7.5
Voltage 24
Total length 395.00 mm
Waterproof No
Dist. 126.00 mm
Mount. hole 3 17.00 mm

  • OEM
    0-23000-2386, 0-23000-3280, 0-23000-3281, 0-23000-3284, 0-23000-3285, 0-23000-3286, 0-23000-3288, F032114164, 600-813-4680, 600-813-4681, 600-813-4682, 600-813-4790, 600-813-4791, 600-813-4792, 600-813-6610, 600-813-6611, 600-813-6612, 600-813-6613

  • Konkurrentreferens
    S9089, S9446S, 45-1401, 941.555.123, 19774N, 19934N, 20739

  • Normaliserat artikelnummer
    f032114164, s9089, s9446s, 19774n, 19934n, 20739, 451401, 0230002386, 0230003280, 0230003281, 0230003284, 0230003285, 0230003286, 0230003288, 941555123, 6008134680, 6008134681, 6008134682, 6008134790, 6008134791, 6008134792, 6008136610, 6008136611, 6008136612, 6008136613

  • Passar modeller
    Komatsu Model: D65E Model series: Crawlers Brand of engine: SA6D125 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 7.5
    Mount. flange: 92.00
    Drive dist.: 46.00
    Mount. hole 3 mm: 17.00
    Dist./back: 295.50
    Dist./front: 99.00
    No./teeth: 12
    B+: M12
    Gear type: GR
    Dist. 2: 126.00
    Dist. 3: 126.00
    Dist. mm: 126.00
    Rotation: CW
    Total length mm: 395.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: w/ safety switch.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M12
    No./teeth 12
    Mount. flange 92.00
    Oil sealed No
    No./mount. holes 3 (0)
    Prod. info BN
    Dist. 2 126.00
    Remarks w/ safety switch.
    Dist. 3 126.00
    Rotation CW
    Dist./back 295.50
    Dist./front 99.00
    Drive dist. 46.00
    Drive type Steel
    Gear type GR
    kW 7.5
    Voltage 24
    Total length 395.00 mm
    Waterproof No
    Dist. 126.00 mm
    Mount. hole 3 17.00 mm
  • Fordonsmatchning

    • OEM
      0-23000-2386, 0-23000-3280, 0-23000-3281, 0-23000-3284, 0-23000-3285, 0-23000-3286, 0-23000-3288, F032114164, 600-813-4680, 600-813-4681, 600-813-4682, 600-813-4790, 600-813-4791, 600-813-4792, 600-813-6610, 600-813-6611, 600-813-6612, 600-813-6613

    • Konkurrentreferens
      S9089, S9446S, 45-1401, 941.555.123, 19774N, 19934N, 20739

    • Normaliserat artikelnummer
      f032114164, s9089, s9446s, 19774n, 19934n, 20739, 451401, 0230002386, 0230003280, 0230003281, 0230003284, 0230003285, 0230003286, 0230003288, 941555123, 6008134680, 6008134681, 6008134682, 6008134790, 6008134791, 6008134792, 6008136610, 6008136611, 6008136612, 6008136613

    • Passar modeller
      Komatsu Model: D65E Model series: Crawlers Brand of engine: SA6D125 Fuel: Diesel Approved: Yes
