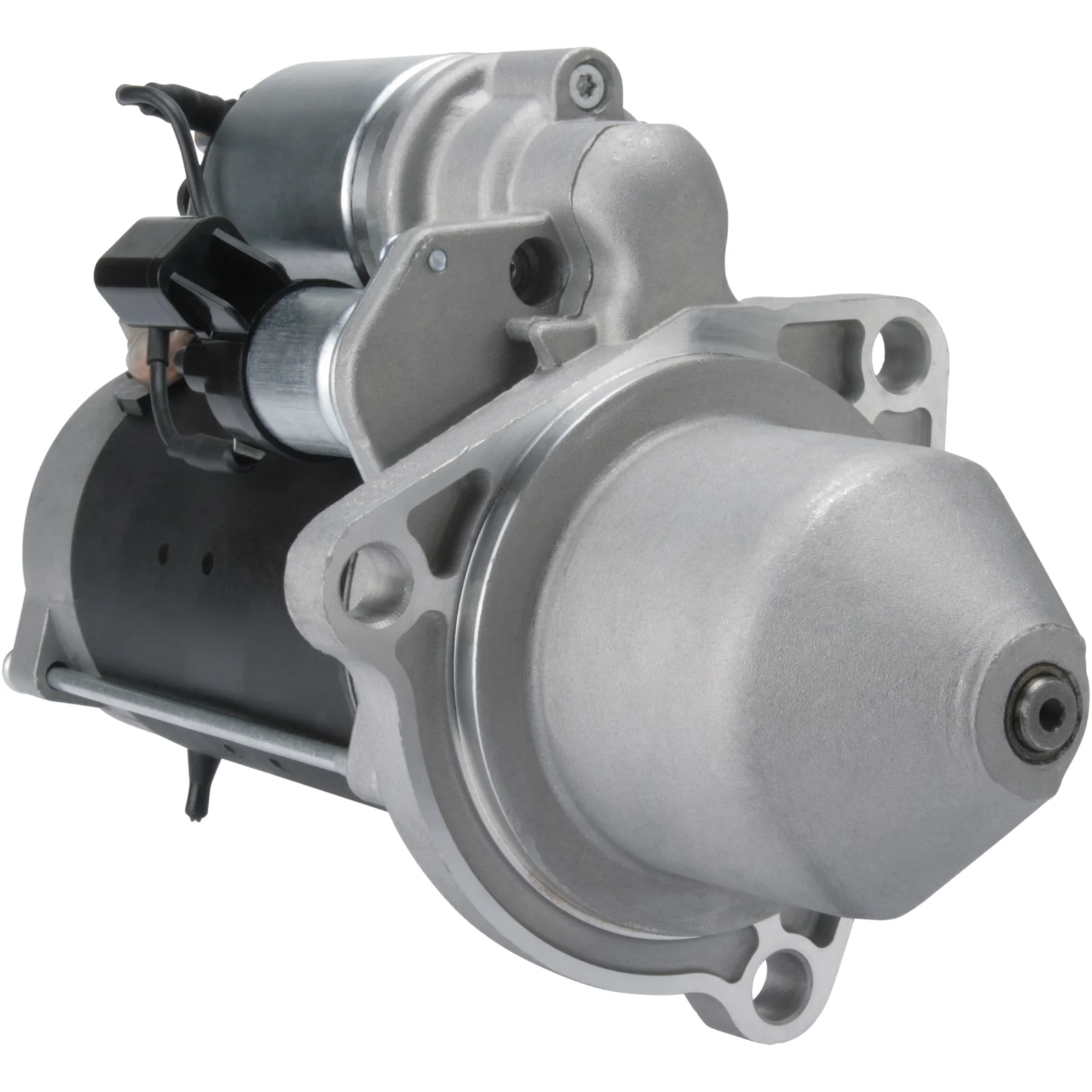

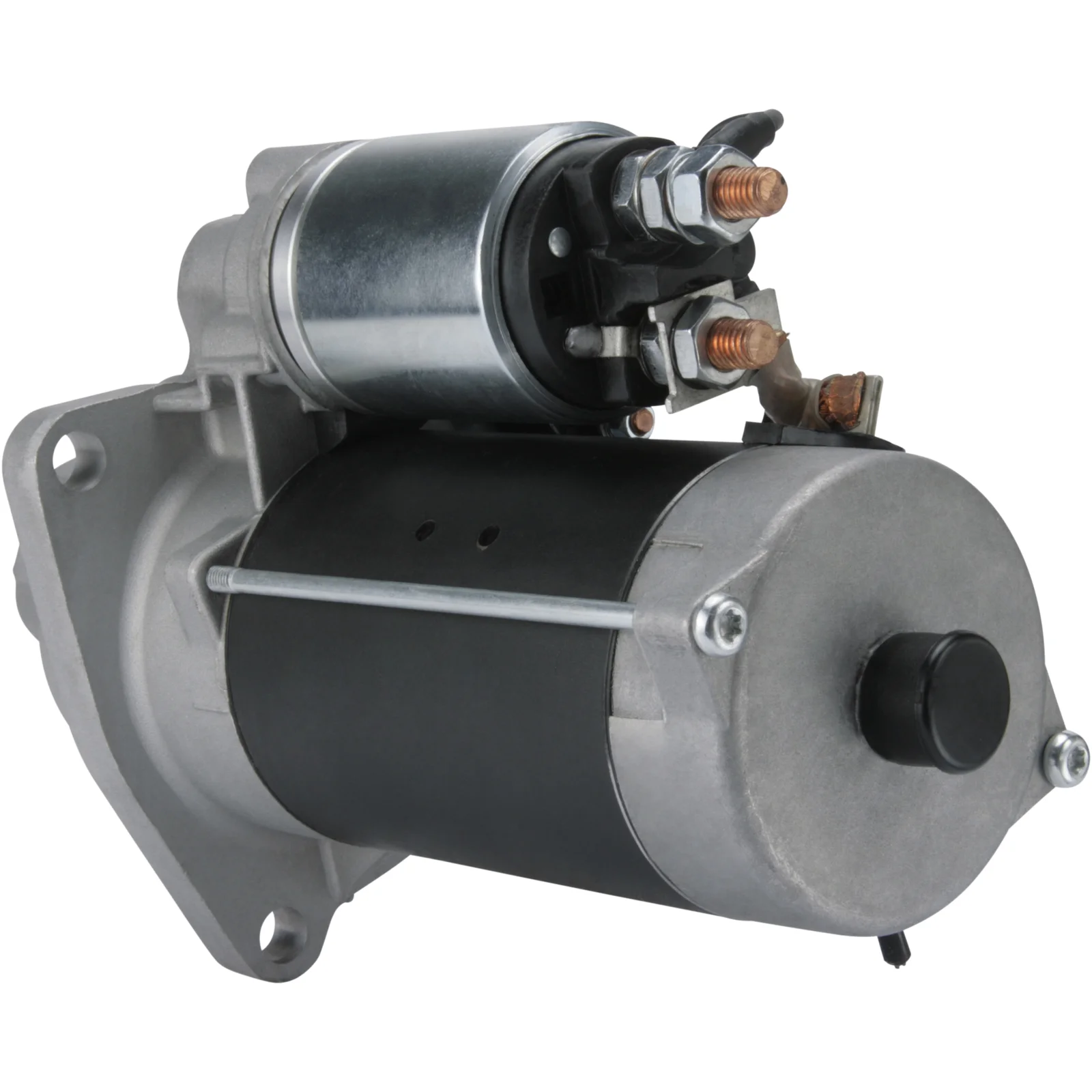

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114069

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.0, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.0
Mount. flange: 110.00
Drive dist.: 48.00
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 208.00
Dist./front: 97.00
No./teeth: 11
B+: M10
Position/50: 10
Terminal 50: Plug
Gear type: DD/GR
Dist. 2: 127.00
Dist. 3: 127.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 318.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: w/ start relay
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 110.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 10
Prod. info BN
Dist. 2 127.00
Remarks w/ start relay
Dist. 3 127.00
Rotation CW
Dist./back 208.00
Dist./front 97.00
Drive dist. 48.00
Drive type Steel
Gear type DD/GR
kW 4.0
Terminal 50 Plug
Voltage 24
Total length 318.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 13.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    cs1486, F032114069, 1986S10080, 0001231036, 0001231040, 0001263003, 0001263004, 0001263053, 0001263054, 1633811, 1725900, 1826120, 1956092

  • Konkurrentreferens
    CST10781, DRS0414, LRS02457, M93R3093SE, MS768, S0184, S0258, 8EA012586-621, 646.018.114, 30197N, 106782, 203008, 220724, 220724A, 254371, 438591, 460268, 861040, 11090173, 0986025890

  • Normaliserat artikelnummer
    cs1486, cst10781, drs0414, f032114069, lrs02457, m93r3093se, ms768, s0184, s0258, 8ea012586621, 1986s10080, 30197n, 106782, 203008, 220724, 220724a, 254371, 438591, 460268, 861040, 0001231036, 0001231040, 0001263003, 0001263004, 0001263053, 0001263054, 1633811, 1725900, 1826120, 1956092, 11090173, 646018114, 0986025890

  • Passar modeller
    DAF Model: 75 CF Model series: 75 CF 250 Size of motor: 9.2 Brand of engine: PR183S Body: Platform / Chassis From date: 01-06-2001 Fuel: Diesel Approved: Yes
    DAF Model: CF 75 Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PR183S Body: Dump Truck From date: 01-10-2006 Fuel: Diesel Approved: Yes
    DAF Model: CF 75 Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PR183S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
    DAF Model: CF 75 Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PR183S Body: Platform / Chassis From date: 01-10-2006 Fuel: Diesel Approved: Yes
    DAF Model: CF 75 Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PR183S Body: Semi-Trailer From date: 01-10-2006 Fuel: Diesel Approved: Yes
    DAF Model: CF 75 Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PR228S Body: Dump Truck From date: 01-10-2006 Fuel: Diesel Approved: Yes
    DAF Model: CF 75 Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PR228S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
    DAF Model: CF 75 Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PR228S Body: Platform / Chassis From date: 01-10-2006 Fuel: Diesel Approved: Yes
    DAF Model: CF 75 Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PR228S Body: Semi-Trailer From date: 01-10-2006 Fuel: Diesel Approved: Yes
    DAF Model: CF 75 Model series: CF 75.360 Size of motor: 9.2 Brand of engine: PR265S Body: Dump Truck From date: 01-10-2006 Fuel: Diesel Approved: Yes
    DAF Model: CF 75 Model series: CF 75.360 Size of motor: 9.2 Brand of engine: PR265S Body: Platform / Chassis From date: 01-10-2006 Fuel: Diesel Approved: Yes
    DAF Model: CF 75 Model series: CF 75.360 Size of motor: 9.2 Brand of engine: PR265S Body: Semi-Trailer From date: 01-10-2006 Fuel: Diesel Approved: Yes
    DAF Model: CF Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PE183C Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
    DAF Model: CF Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PE183C Body: Semi-Trailer From date: 01-01-2001 Fuel: Diesel Approved: Yes
    DAF Model: CF Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PE183S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
    DAF Model: CF Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PE183S Body: Semi-Trailer From date: 01-01-2001 Fuel: Diesel Approved: Yes
    DAF Model: CF Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PR183S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
    DAF Model: CF Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PE228C Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
    DAF Model: CF Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PE228C Body: Semi-Trailer From date: 01-01-2001 Fuel: Diesel Approved: Yes
    DAF Model: CF Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PE228S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
    DAF Model: CF Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PE228S Body: Semi-Trailer From date: 01-01-2001 Fuel: Diesel Approved: Yes
    DAF Model: CF Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PR228S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
    DAF Model: CF Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PR265S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
    DAF Model: CF Model series: CF 75.360 Size of motor: 9.2 Brand of engine: PR265S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
    Temsa Model: AVENUE Model series: AVENUE LF Size of motor: 9.2 Brand of engine: PR228S Body: Bus From date: 01-09-2010 Fuel: Diesel Approved: Yes
    Temsa Model: TOURMALIN Model series: TOURMALIN 12, TOURMALIN 13 Size of motor: 9.2 Brand of engine: PR228S Body: Bus From date: 01-10-2006 Fuel: Diesel Approved: Yes
    1 / 6
  • Beskrivning
    Voltage: 24
    kW: 4.0
    Mount. flange: 110.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 13.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 208.00
    Dist./front: 97.00
    No./teeth: 11
    B+: M10
    Position/50: 10
    Terminal 50: Plug
    Gear type: DD/GR
    Dist. 2: 127.00
    Dist. 3: 127.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 318.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: w/ start relay
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 110.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 10
    Prod. info BN
    Dist. 2 127.00
    Remarks w/ start relay
    Dist. 3 127.00
    Rotation CW
    Dist./back 208.00
    Dist./front 97.00
    Drive dist. 48.00
    Drive type Steel
    Gear type DD/GR
    kW 4.0
    Terminal 50 Plug
    Voltage 24
    Total length 318.00 mm
    Waterproof No
    Dist. 127.00 mm
    Mount. hole 3 13.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Fordonsmatchning

    • OEM
      cs1486, F032114069, 1986S10080, 0001231036, 0001231040, 0001263003, 0001263004, 0001263053, 0001263054, 1633811, 1725900, 1826120, 1956092

    • Konkurrentreferens
      CST10781, DRS0414, LRS02457, M93R3093SE, MS768, S0184, S0258, 8EA012586-621, 646.018.114, 30197N, 106782, 203008, 220724, 220724A, 254371, 438591, 460268, 861040, 11090173, 0986025890

    • Normaliserat artikelnummer
      cs1486, cst10781, drs0414, f032114069, lrs02457, m93r3093se, ms768, s0184, s0258, 8ea012586621, 1986s10080, 30197n, 106782, 203008, 220724, 220724a, 254371, 438591, 460268, 861040, 0001231036, 0001231040, 0001263003, 0001263004, 0001263053, 0001263054, 1633811, 1725900, 1826120, 1956092, 11090173, 646018114, 0986025890

    • Passar modeller
      DAF Model: 75 CF Model series: 75 CF 250 Size of motor: 9.2 Brand of engine: PR183S Body: Platform / Chassis From date: 01-06-2001 Fuel: Diesel Approved: Yes
      DAF Model: CF 75 Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PR183S Body: Dump Truck From date: 01-10-2006 Fuel: Diesel Approved: Yes
      DAF Model: CF 75 Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PR183S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
      DAF Model: CF 75 Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PR183S Body: Platform / Chassis From date: 01-10-2006 Fuel: Diesel Approved: Yes
      DAF Model: CF 75 Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PR183S Body: Semi-Trailer From date: 01-10-2006 Fuel: Diesel Approved: Yes
      DAF Model: CF 75 Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PR228S Body: Dump Truck From date: 01-10-2006 Fuel: Diesel Approved: Yes
      DAF Model: CF 75 Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PR228S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
      DAF Model: CF 75 Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PR228S Body: Platform / Chassis From date: 01-10-2006 Fuel: Diesel Approved: Yes
      DAF Model: CF 75 Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PR228S Body: Semi-Trailer From date: 01-10-2006 Fuel: Diesel Approved: Yes
      DAF Model: CF 75 Model series: CF 75.360 Size of motor: 9.2 Brand of engine: PR265S Body: Dump Truck From date: 01-10-2006 Fuel: Diesel Approved: Yes
      DAF Model: CF 75 Model series: CF 75.360 Size of motor: 9.2 Brand of engine: PR265S Body: Platform / Chassis From date: 01-10-2006 Fuel: Diesel Approved: Yes
      DAF Model: CF 75 Model series: CF 75.360 Size of motor: 9.2 Brand of engine: PR265S Body: Semi-Trailer From date: 01-10-2006 Fuel: Diesel Approved: Yes
      DAF Model: CF Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PE183C Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
      DAF Model: CF Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PE183C Body: Semi-Trailer From date: 01-01-2001 Fuel: Diesel Approved: Yes
      DAF Model: CF Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PE183S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
      DAF Model: CF Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PE183S Body: Semi-Trailer From date: 01-01-2001 Fuel: Diesel Approved: Yes
      DAF Model: CF Model series: CF 75.250 Size of motor: 9.2 Brand of engine: PR183S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
      DAF Model: CF Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PE228C Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
      DAF Model: CF Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PE228C Body: Semi-Trailer From date: 01-01-2001 Fuel: Diesel Approved: Yes
      DAF Model: CF Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PE228S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
      DAF Model: CF Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PE228S Body: Semi-Trailer From date: 01-01-2001 Fuel: Diesel Approved: Yes
      DAF Model: CF Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PR228S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
      DAF Model: CF Model series: CF 75.310 Size of motor: 9.2 Brand of engine: PR265S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
      DAF Model: CF Model series: CF 75.360 Size of motor: 9.2 Brand of engine: PR265S Body: Platform / Chassis From date: 01-01-2001 Fuel: Diesel Approved: Yes
      Temsa Model: AVENUE Model series: AVENUE LF Size of motor: 9.2 Brand of engine: PR228S Body: Bus From date: 01-09-2010 Fuel: Diesel Approved: Yes
      Temsa Model: TOURMALIN Model series: TOURMALIN 12, TOURMALIN 13 Size of motor: 9.2 Brand of engine: PR228S Body: Bus From date: 01-10-2006 Fuel: Diesel Approved: Yes
      1 / 6
