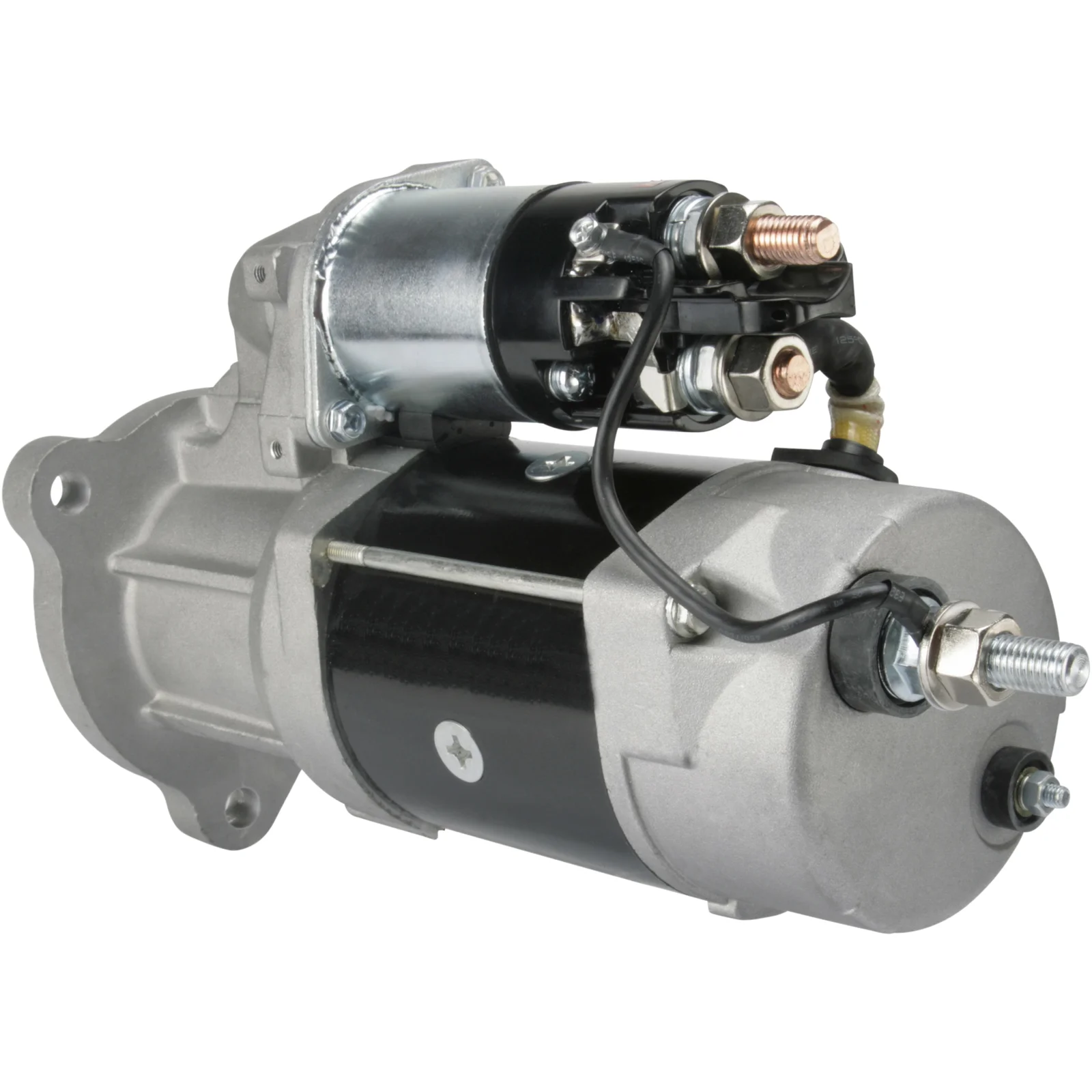

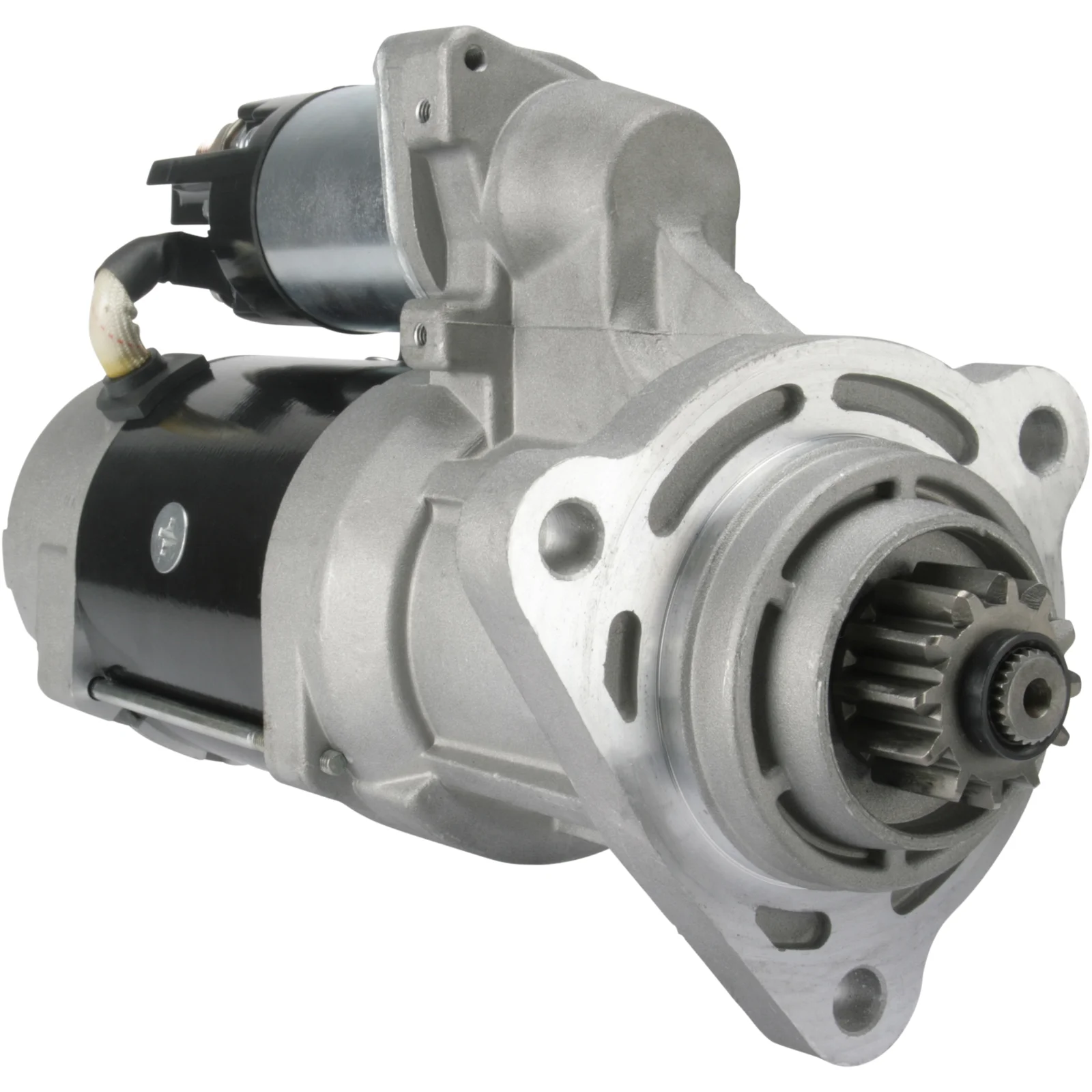

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114013

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 8.2, No./teeth: 12, Rotation: CW

Beskrivning

Voltage: 24
kW: 8.2
Insulated return: Yes
Mount. flange: 92.00
Drive dist.: 48.00
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 303.00
Dist./front: 56.00
No./teeth: 12
B+: M12
Position/B+: 60
Position/50: 50
Terminal 50: M5
Gear type: GR
Dist. 2: 126.50
Dist. 3: 126.50
Dist. mm: 126.50
Rotation: CW
B-: M12
Total length mm: 419.00
Drive type: Steel
Prod. info: BN
Remarks: Replacing: 39MT.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M12
B- M12
No./teeth 12
Mount. flange 92.00
No./mount. holes 3 (0)
Position/50 50
Position/B+ 60
Prod. info BN
Dist. 2 126.50
Remarks Replacing: 39MT.
Dist. 3 126.50
Rotation CW
Dist./back 303.00
Dist./front 56.00
Drive dist. 48.00
Drive type Steel
Gear type GR
Insulated return Yes
kW 8.2
Terminal 50 M5
Voltage 24
Total length 419.00 mm
Dist. 126.50 mm
Mount. hole 3 13.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032114013, 3102767, 8200029, 8200086, 10461758, 10461759, 19011511, 19011524

  • Konkurrentreferens
    CST60609, CST60617, F042003080, F042003084, F042S03080, F042S03084, LES0317, S1124, S1125, STR-4391, 641.536.123, 6803, 6803N, 6803R, 254484

  • Normaliserat artikelnummer
    cst60609, cst60617, f032114013, f042003080, f042003084, f042s03080, f042s03084, les0317, s1124, s1125, str4391, 6803, 6803n, 6803r, 254484, 3102767, 8200029, 8200086, 10461758, 10461759, 19011511, 19011524, 641536123

  • Passar modeller
    Cummins Model: Engine Model series: Engine Size of motor: 8.3 Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 8.2
    Insulated return: Yes
    Mount. flange: 92.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 13.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 303.00
    Dist./front: 56.00
    No./teeth: 12
    B+: M12
    Position/B+: 60
    Position/50: 50
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 126.50
    Dist. 3: 126.50
    Dist. mm: 126.50
    Rotation: CW
    B-: M12
    Total length mm: 419.00
    Drive type: Steel
    Prod. info: BN
    Remarks: Replacing: 39MT.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M12
    B- M12
    No./teeth 12
    Mount. flange 92.00
    No./mount. holes 3 (0)
    Position/50 50
    Position/B+ 60
    Prod. info BN
    Dist. 2 126.50
    Remarks Replacing: 39MT.
    Dist. 3 126.50
    Rotation CW
    Dist./back 303.00
    Dist./front 56.00
    Drive dist. 48.00
    Drive type Steel
    Gear type GR
    Insulated return Yes
    kW 8.2
    Terminal 50 M5
    Voltage 24
    Total length 419.00 mm
    Dist. 126.50 mm
    Mount. hole 3 13.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Fordonsmatchning

    • OEM
      F032114013, 3102767, 8200029, 8200086, 10461758, 10461759, 19011511, 19011524

    • Konkurrentreferens
      CST60609, CST60617, F042003080, F042003084, F042S03080, F042S03084, LES0317, S1124, S1125, STR-4391, 641.536.123, 6803, 6803N, 6803R, 254484

    • Normaliserat artikelnummer
      cst60609, cst60617, f032114013, f042003080, f042003084, f042s03080, f042s03084, les0317, s1124, s1125, str4391, 6803, 6803n, 6803r, 254484, 3102767, 8200029, 8200086, 10461758, 10461759, 19011511, 19011524, 641536123

    • Passar modeller
      Cummins Model: Engine Model series: Engine Size of motor: 8.3 Approved: Yes
