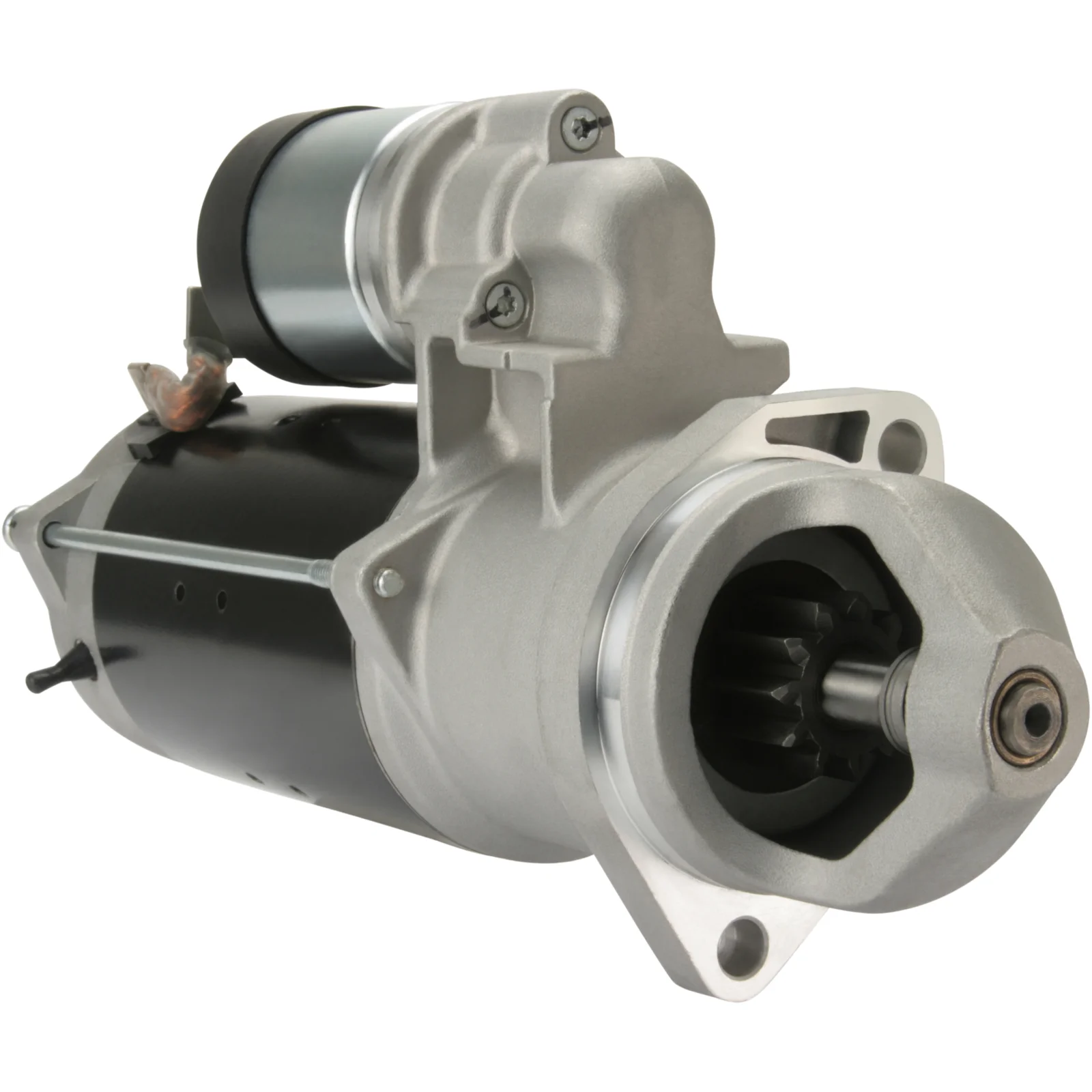

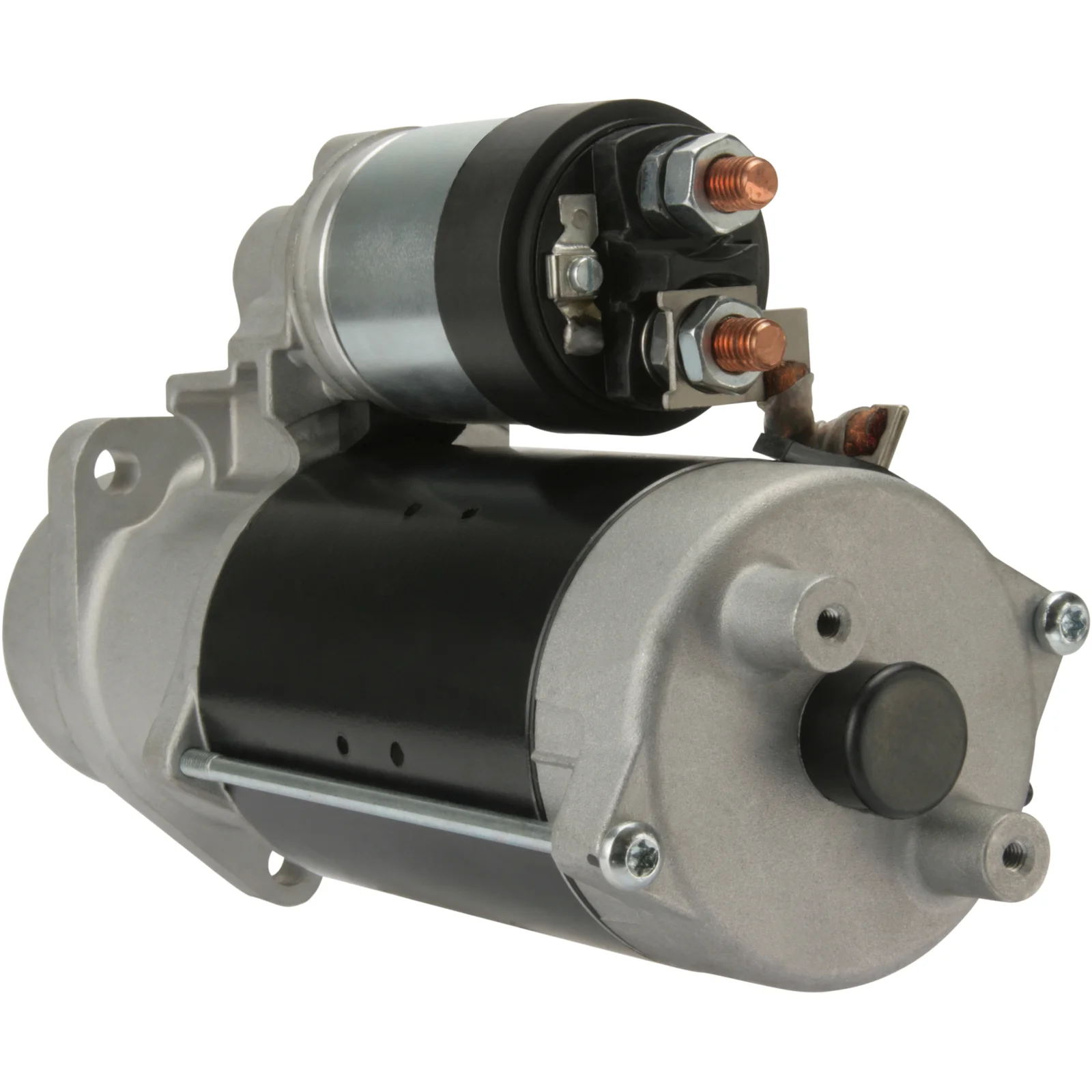

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113980

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.0, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.0
Mount. flange: 82.50
Drive dist.: 23.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 232.00
Dist./front: 71.00
No./teeth: 11
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: GR
Dist. mm: 101.50
Rotation: CW
Total length mm: 319.00
Drive type: Steel
Prod. info: BN
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 45
Prod. info BN
Rotation CW
Dist./back 232.00
Dist./front 71.00
Drive dist. 23.00
Drive type Steel
Gear type GR
kW 4.0
Terminal 50 M4
Voltage 24
Total length 319.00 mm
Dist. 101.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032113980, 01177442, 1177442, 01178671, 1178671, 01181101, 1181101, 0001231006, 0001368077

  • Konkurrentreferens
    CST10617, CST10720, DRS0165, drs7270, LRS01947, S0130, 45-3134, 19724N, 220302, 220302A, 254013, 11017270, 0986017270

  • Normaliserat artikelnummer
    cst10617, cst10720, drs0165, drs7270, f032113980, lrs01947, s0130, 19724n, 220302, 220302a, 254013, 453134, 01177442, 1177442, 01178671, 1178671, 01181101, 1181101, 0001231006, 0001368077, 11017270, 0986017270

  • Passar modeller
    KHD Model: Engine Model series: Engine Size of motor: 1.4 Brand of engine: F2L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 2.0 Brand of engine: F3L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 2.7 Brand of engine: BF4L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 2.7 Brand of engine: F4L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 4.0
    Mount. flange: 82.50
    Drive dist.: 23.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 232.00
    Dist./front: 71.00
    No./teeth: 11
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear type: GR
    Dist. mm: 101.50
    Rotation: CW
    Total length mm: 319.00
    Drive type: Steel
    Prod. info: BN
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 45
    Prod. info BN
    Rotation CW
    Dist./back 232.00
    Dist./front 71.00
    Drive dist. 23.00
    Drive type Steel
    Gear type GR
    kW 4.0
    Terminal 50 M4
    Voltage 24
    Total length 319.00 mm
    Dist. 101.50 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032113980, 01177442, 1177442, 01178671, 1178671, 01181101, 1181101, 0001231006, 0001368077

    • Konkurrentreferens
      CST10617, CST10720, DRS0165, drs7270, LRS01947, S0130, 45-3134, 19724N, 220302, 220302A, 254013, 11017270, 0986017270

    • Normaliserat artikelnummer
      cst10617, cst10720, drs0165, drs7270, f032113980, lrs01947, s0130, 19724n, 220302, 220302a, 254013, 453134, 01177442, 1177442, 01178671, 1178671, 01181101, 1181101, 0001231006, 0001368077, 11017270, 0986017270

    • Passar modeller
      KHD Model: Engine Model series: Engine Size of motor: 1.4 Brand of engine: F2L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 2.0 Brand of engine: F3L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 2.7 Brand of engine: BF4L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 2.7 Brand of engine: F4L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
