HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113850

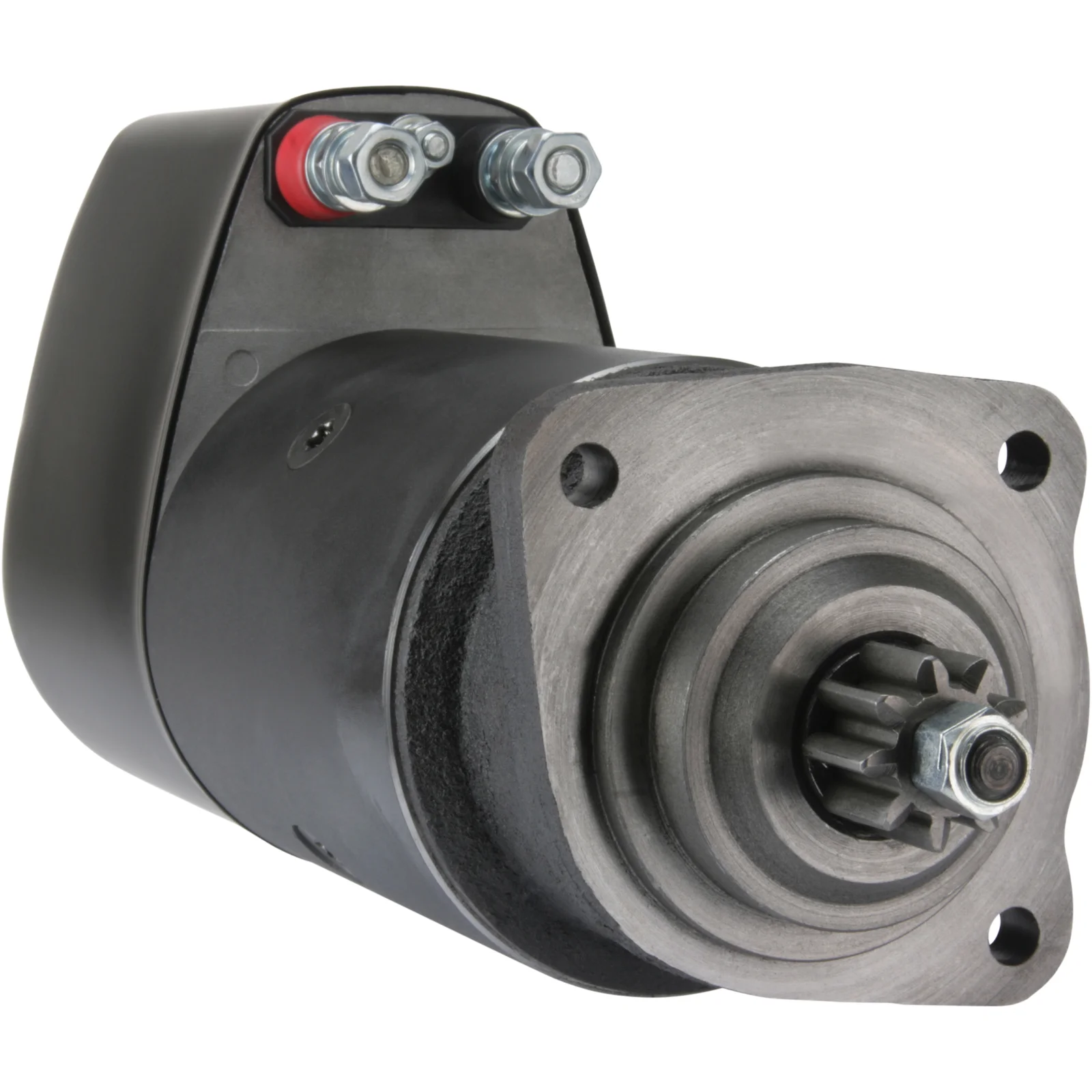

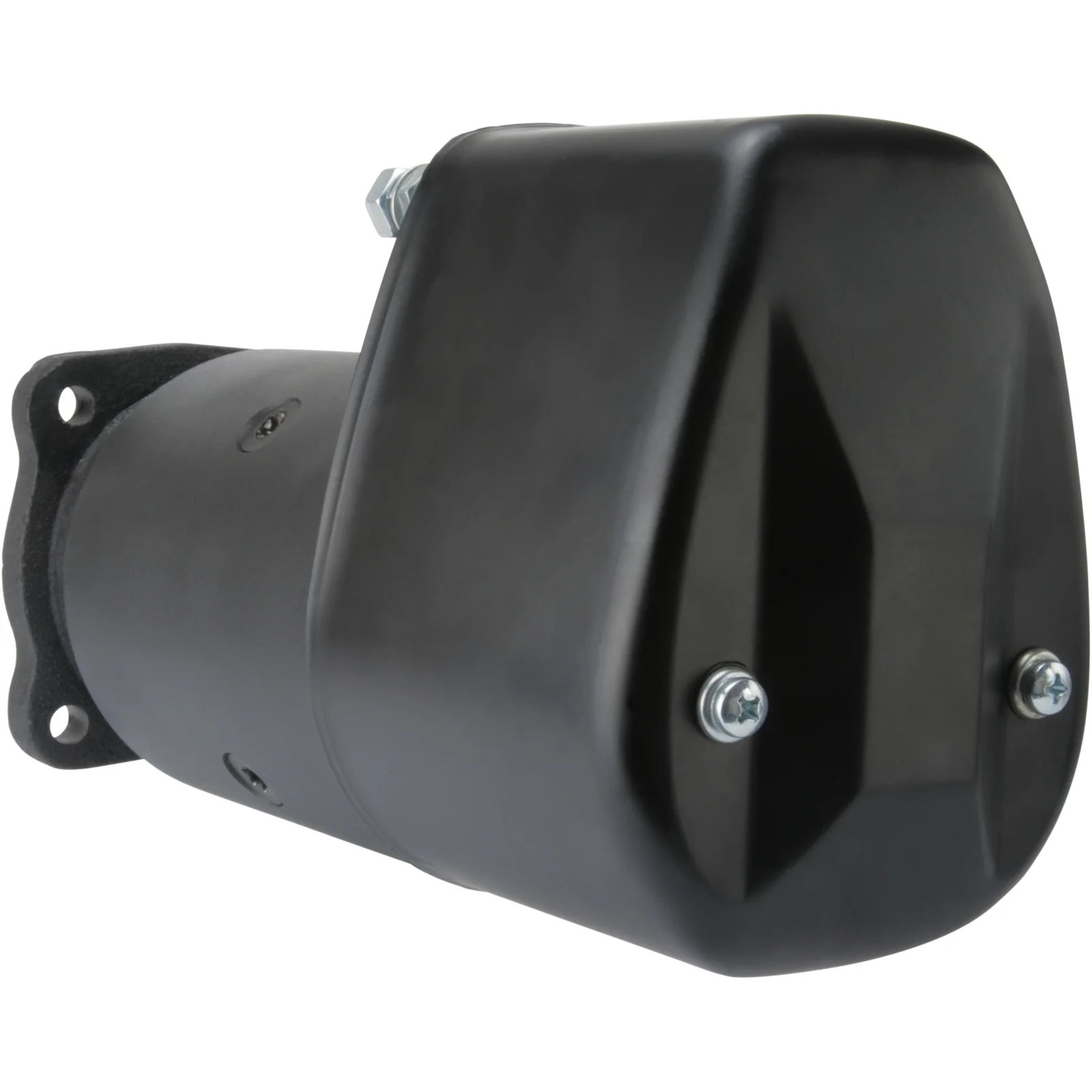

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 5.4, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 24
kW: 5.4
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 319.50
Dist./front: 62.00
No./teeth: 9
B+: M10
Position/50: 60
Terminal 50: M6
Gear type: DD
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Position/b-: 60
B-: M10
Total length mm: 387.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Info: Not insulated return.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Clutch type Dry
Position/b- 60
Prod. info BN
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 319.50
Dist./front 62.00
Drive dist. 48.00
Drive type Steel
Gear type DD
Info Not insulated return.
kW 5.4
Terminal 50 M6
Voltage 24
Total length 387.00 mm
Waterproof No
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZK5467, F032113850, 559, 0001416059, 4772059, 19024101, 9004772059

  • Konkurrentreferens
    CST10754, DRS0097, IS9105, LRS01901, MS564, MS674, S0353, 8EA015642-431, 45-2198, 638.040.094, 811.213.093, 18257, 103809, 0986019673

  • Normaliserat artikelnummer
    azk5467, cst10754, drs0097, f032113850, is9105, lrs01901, ms564, ms674, s0353, 8ea015642431, 559, 18257, 103809, 452198, 0001416059, 4772059, 19024101, 638040094, 811213093, 0986019673, 9004772059

  • Passar modeller
    Volvo BM Model: A Model series: A20 Size of motor: 6.7 Type description: TD71G From date: 01-08-1986 To date: 01-08-2001 Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 5.4
    Mount. flange: 89.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 319.50
    Dist./front: 62.00
    No./teeth: 9
    B+: M10
    Position/50: 60
    Terminal 50: M6
    Gear type: DD
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Position/b-: 60
    B-: M10
    Total length mm: 387.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Info: Not insulated return.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M10
    No./teeth 9
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 60
    Clutch type Dry
    Position/b- 60
    Prod. info BN
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 319.50
    Dist./front 62.00
    Drive dist. 48.00
    Drive type Steel
    Gear type DD
    Info Not insulated return.
    kW 5.4
    Terminal 50 M6
    Voltage 24
    Total length 387.00 mm
    Waterproof No
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      AZK5467, F032113850, 559, 0001416059, 4772059, 19024101, 9004772059

    • Konkurrentreferens
      CST10754, DRS0097, IS9105, LRS01901, MS564, MS674, S0353, 8EA015642-431, 45-2198, 638.040.094, 811.213.093, 18257, 103809, 0986019673

    • Normaliserat artikelnummer
      azk5467, cst10754, drs0097, f032113850, is9105, lrs01901, ms564, ms674, s0353, 8ea015642431, 559, 18257, 103809, 452198, 0001416059, 4772059, 19024101, 638040094, 811213093, 0986019673, 9004772059

    • Passar modeller
      Volvo BM Model: A Model series: A20 Size of motor: 6.7 Type description: TD71G From date: 01-08-1986 To date: 01-08-2001 Approved: Yes
