Artikelnr: F032113464

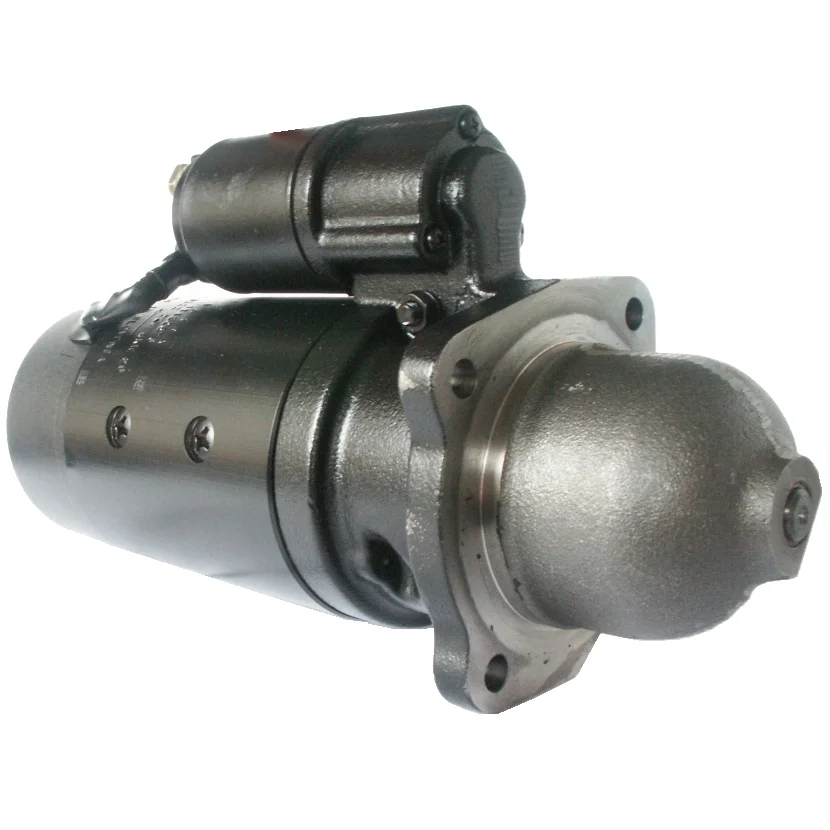

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.8, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.8
Mount. flange: 89.00
Drive dist.: 28.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 260.00
Dist./front: 76.50
No./teeth: 9
B+: M10
Position/B+: 60
Position/50: 15
Terminal 50: M4
Gear type: DD
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 341.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Clutch type Dry
Position/B+ 60
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 260.00
Dist./front 76.50
Drive dist. 28.00
Drive type Steel
Gear type DD
kW 4.8
Terminal 50 M4
Voltage 24
Total length 341.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    azj3222, azj3522, cs501, F032113464, U0641511, U641511, 11.130.151, 11.130.673, 01163626, 1163626, 01179586, 1179586, 0001364100, 0001364301, 1480963, 1516762R, 4159015, 05710930, 6200827, 42498130

  • Konkurrentreferens
    CST10818, drs1270, drs2700, is0151, lrs00923, lrs00960, MS613, MSR705, S0145, sr925x, 8ea726149-001, 45-0219, 45-1298, 88-11.270, 88-12.270, 88-12.700, 600.003.094, 688.006.094, 1550, 10501, 33333, 103471, 455516, 455519, 11012700, 943252205, 943252215, 0986011270, 0986012700, 0986012703

  • Normaliserat artikelnummer
    azj3222, azj3522, cs501, cst10818, drs1270, drs2700, f032113464, is0151, lrs00923, lrs00960, ms613, msr705, s0145, sr925x, u0641511, u641511, 8ea726149001, 1550, 10501, 33333, 103471, 450219, 451298, 455516, 455519, 01163626, 1163626, 01179586, 1179586, 0001364100, 0001364301, 1480963, 1516762r, 4159015, 05710930, 6200827, 8811270, 8812270, 8812700, 11012700, 11130151, 11130673, 42498130, 600003094, 688006094, 943252205, 943252215, 0986011270, 0986012700, 0986012703

  • Passar modeller
    ABG Model: Various Models Model series: Various Models Approved: Yes
    Irmer Model: Various Models Model series: Various Models Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 160-17 Size of motor: 6.2 Brand of engine: BF6L913 Body: Dump Truck From date: 01-07-1989 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 160-17 Size of motor: 6.2 Brand of engine: BF6L913/U Body: Dump Truck From date: 01-07-1989 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 5.7 Brand of engine: F6L912 From date: 01-05-1990 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 6.1 Brand of engine: F6L913 From date: 01-01-1987 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 24
    kW: 4.8
    Mount. flange: 89.00
    Drive dist.: 28.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 260.00
    Dist./front: 76.50
    No./teeth: 9
    B+: M10
    Position/B+: 60
    Position/50: 15
    Terminal 50: M4
    Gear type: DD
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 341.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 15
    Clutch type Dry
    Position/B+ 60
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 260.00
    Dist./front 76.50
    Drive dist. 28.00
    Drive type Steel
    Gear type DD
    kW 4.8
    Terminal 50 M4
    Voltage 24
    Total length 341.00 mm
    Waterproof No
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      azj3222, azj3522, cs501, F032113464, U0641511, U641511, 11.130.151, 11.130.673, 01163626, 1163626, 01179586, 1179586, 0001364100, 0001364301, 1480963, 1516762R, 4159015, 05710930, 6200827, 42498130

    • Konkurrentreferens
      CST10818, drs1270, drs2700, is0151, lrs00923, lrs00960, MS613, MSR705, S0145, sr925x, 8ea726149-001, 45-0219, 45-1298, 88-11.270, 88-12.270, 88-12.700, 600.003.094, 688.006.094, 1550, 10501, 33333, 103471, 455516, 455519, 11012700, 943252205, 943252215, 0986011270, 0986012700, 0986012703

    • Normaliserat artikelnummer
      azj3222, azj3522, cs501, cst10818, drs1270, drs2700, f032113464, is0151, lrs00923, lrs00960, ms613, msr705, s0145, sr925x, u0641511, u641511, 8ea726149001, 1550, 10501, 33333, 103471, 450219, 451298, 455516, 455519, 01163626, 1163626, 01179586, 1179586, 0001364100, 0001364301, 1480963, 1516762r, 4159015, 05710930, 6200827, 8811270, 8812270, 8812700, 11012700, 11130151, 11130673, 42498130, 600003094, 688006094, 943252205, 943252215, 0986011270, 0986012700, 0986012703

    • Passar modeller
      ABG Model: Various Models Model series: Various Models Approved: Yes
      Irmer Model: Various Models Model series: Various Models Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 160-17 Size of motor: 6.2 Brand of engine: BF6L913 Body: Dump Truck From date: 01-07-1989 To date: 01-12-1993 Fuel: Diesel Approved: Yes
      Iveco Model: P/PA Series Model series: P/PA 160-17 Size of motor: 6.2 Brand of engine: BF6L913/U Body: Dump Truck From date: 01-07-1989 To date: 01-12-1993 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 5.7 Brand of engine: F6L912 From date: 01-05-1990 Fuel: Diesel Approved: Yes
      KHD Model: Engine Model series: Engine Size of motor: 6.1 Brand of engine: F6L913 From date: 01-01-1987 Fuel: Diesel Approved: Yes
