Artikelnr: F032113456

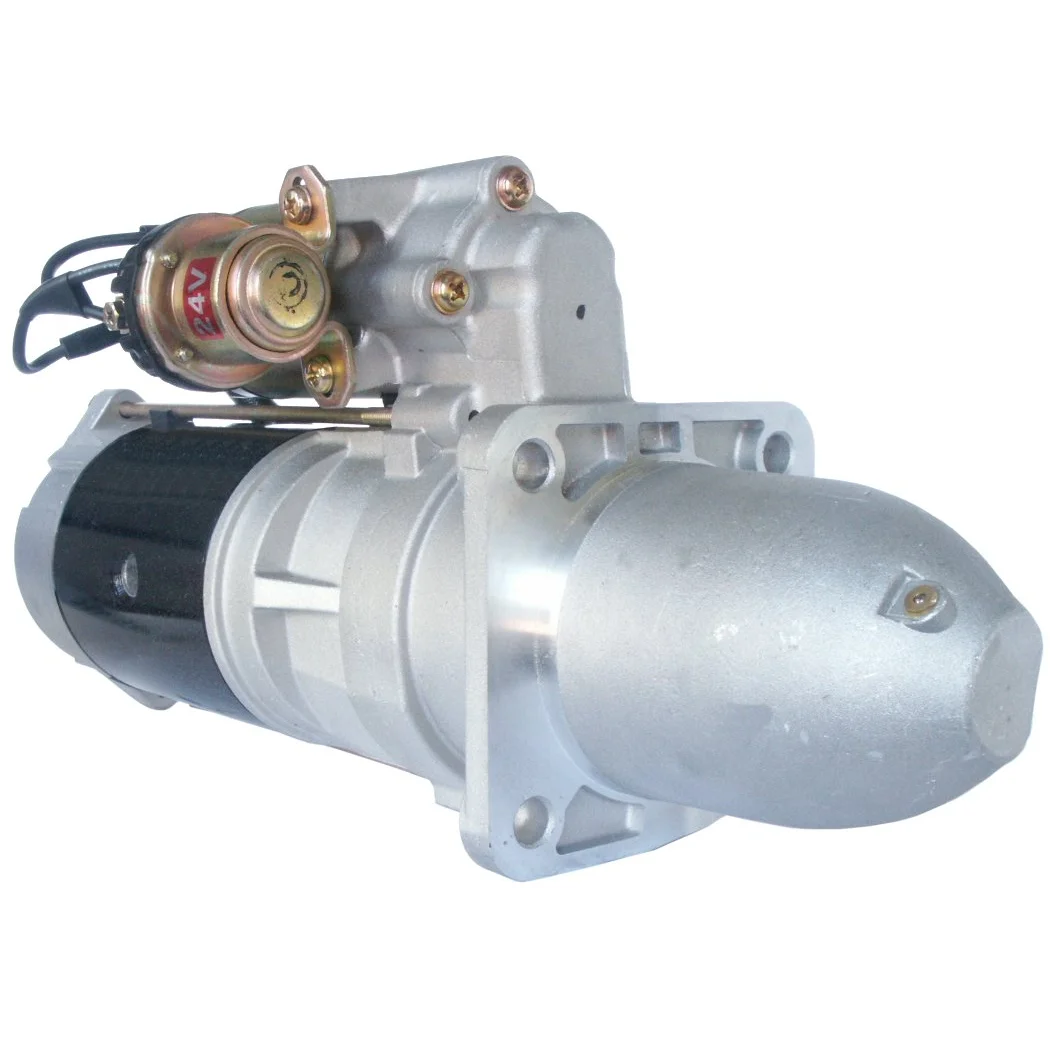

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 6.0, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 6.0
Mount. flange: 89.00
Drive dist.: 49.00
Mount. hole 3 mm: 11.30
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 278.00
Dist./front: 107.50
No./teeth: 11
B+: M10
Position/50: 60
Terminal 50: M5
Gear type: GR
Dist. 2: 89.50
Dist. 3: 89.50
Dist. mm: 126.50
Rotation: CW
Total length mm: 386.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: w/ safety switch.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Prod. info BN
Dist. 2 89.50
Remarks w/ safety switch.
Dist. 3 89.50
Rotation CW
Dist./back 278.00
Dist./front 107.50
Drive dist. 49.00
Drive type Steel
Gear type GR
kW 6.0
Terminal 50 M5
Voltage 24
Total length 386.00 mm
Waterproof No
Dist. 126.50 mm
Mount. hole 3 11.30 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032113456, M000A0301, tm000a0301, 65.26201-7049

  • Konkurrentreferens
    CST32602, DRS0354, S9183, S9211, STR85200, 254763, 600290

  • Normaliserat artikelnummer
    cst32602, drs0354, f032113456, m000a0301, s9183, s9211, str85200, tm000a0301, 254763, 600290, 65262017049

  • Passar modeller
    Daewoo Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 6.0
    Mount. flange: 89.00
    Drive dist.: 49.00
    Mount. hole 3 mm: 11.30
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 278.00
    Dist./front: 107.50
    No./teeth: 11
    B+: M10
    Position/50: 60
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 89.50
    Dist. 3: 89.50
    Dist. mm: 126.50
    Rotation: CW
    Total length mm: 386.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: w/ safety switch.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 60
    Prod. info BN
    Dist. 2 89.50
    Remarks w/ safety switch.
    Dist. 3 89.50
    Rotation CW
    Dist./back 278.00
    Dist./front 107.50
    Drive dist. 49.00
    Drive type Steel
    Gear type GR
    kW 6.0
    Terminal 50 M5
    Voltage 24
    Total length 386.00 mm
    Waterproof No
    Dist. 126.50 mm
    Mount. hole 3 11.30 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032113456, M000A0301, tm000a0301, 65.26201-7049

    • Konkurrentreferens
      CST32602, DRS0354, S9183, S9211, STR85200, 254763, 600290

    • Normaliserat artikelnummer
      cst32602, drs0354, f032113456, m000a0301, s9183, s9211, str85200, tm000a0301, 254763, 600290, 65262017049

    • Passar modeller
      Daewoo Model: Various Models Model series: Various Models Approved: Yes
