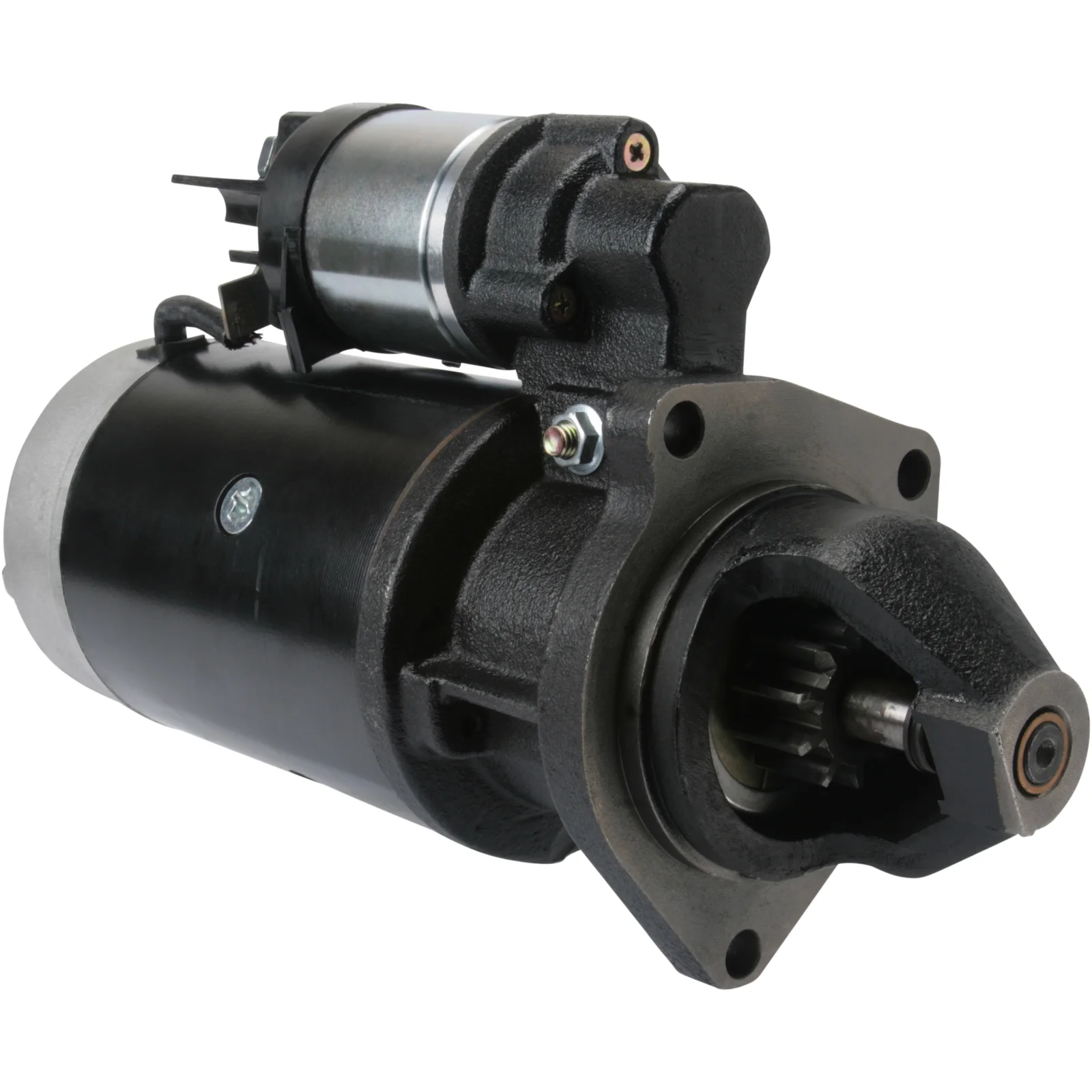

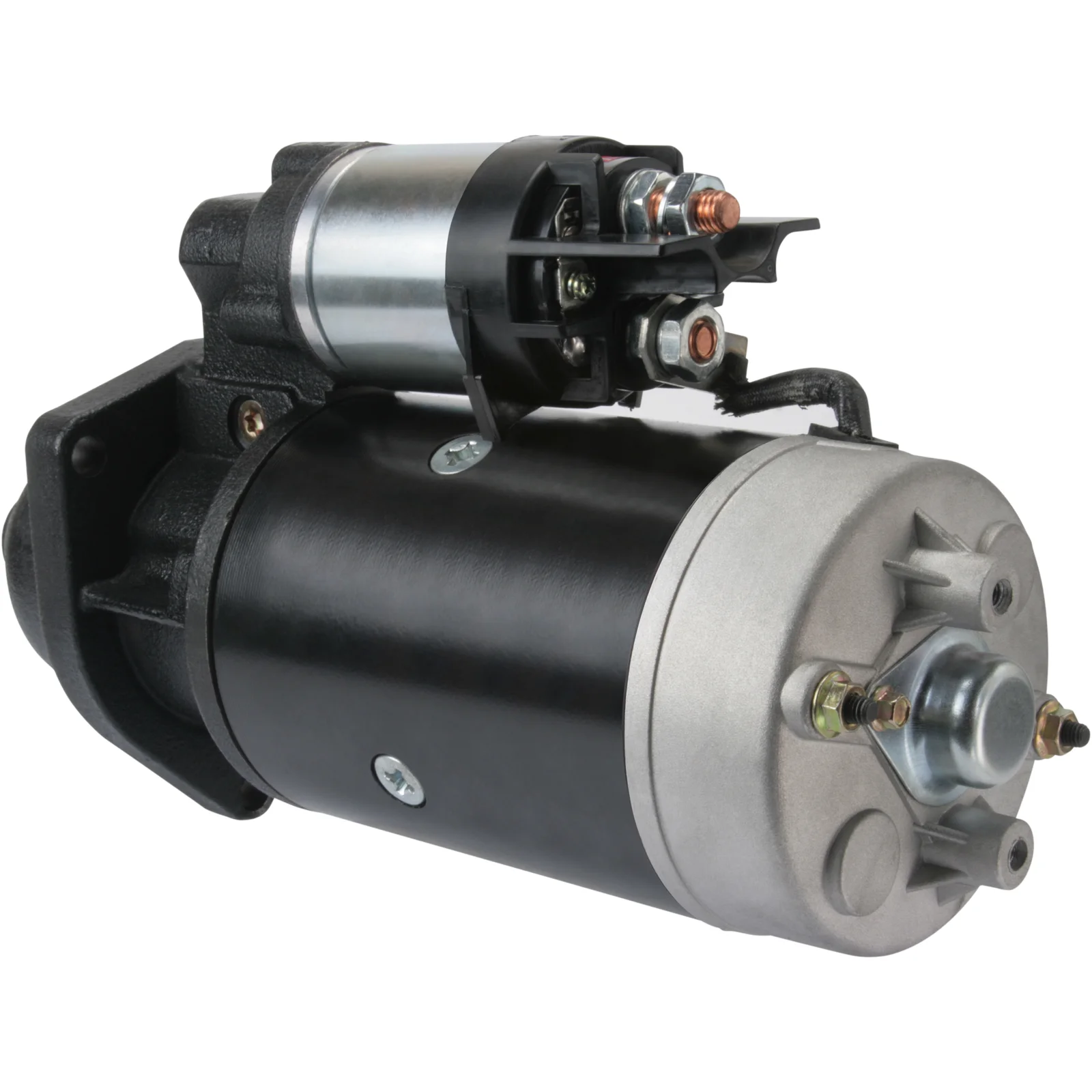

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113353

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 24
kW: 4.0
Mount. flange: 89.00
Drive dist.: 27.50
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 265.00
Dist./front: 75.00
No./teeth: 10
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: DD
Dist. 2: 124.00
Dist. 3: 78.00
Dist. mm: 117.00
Rotation: CW
Total length mm: 340.00
Drive type: Steel
Prod. info: BN/OE
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Prod. info BN/OE
Dist. 2 124.00
Dist. 3 78.00
Rotation CW
Dist./back 265.00
Dist./front 75.00
Drive dist. 27.50
Drive type Steel
Gear type DD
kW 4.0
Terminal 50 M4
Voltage 24
Total length 340.00 mm
Waterproof No
Dist. 117.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    cs1280, F032113353, 51.26201-7146, 0001368311

  • Konkurrentreferens
    LRS02653, 45-4325, 600.240.104, 101280, 104373, 11090052

  • Normaliserat artikelnummer
    cs1280, f032113353, lrs02653, 101280, 104373, 454325, 0001368311, 11090052, 600240104, 51262017146

  • Passar modeller
    Fendt Model: 800 Model series: 800 Series Size of motor: 6.9 Brand of engine: D286.. From date: 01-06-1993 Fuel: Diesel Approved: Yes
    Fendt Model: 900 Model series: 900 Series Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 4.0
    Mount. flange: 89.00
    Drive dist.: 27.50
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 265.00
    Dist./front: 75.00
    No./teeth: 10
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Dist. 2: 124.00
    Dist. 3: 78.00
    Dist. mm: 117.00
    Rotation: CW
    Total length mm: 340.00
    Drive type: Steel
    Prod. info: BN/OE
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Prod. info BN/OE
    Dist. 2 124.00
    Dist. 3 78.00
    Rotation CW
    Dist./back 265.00
    Dist./front 75.00
    Drive dist. 27.50
    Drive type Steel
    Gear type DD
    kW 4.0
    Terminal 50 M4
    Voltage 24
    Total length 340.00 mm
    Waterproof No
    Dist. 117.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      cs1280, F032113353, 51.26201-7146, 0001368311

    • Konkurrentreferens
      LRS02653, 45-4325, 600.240.104, 101280, 104373, 11090052

    • Normaliserat artikelnummer
      cs1280, f032113353, lrs02653, 101280, 104373, 454325, 0001368311, 11090052, 600240104, 51262017146

    • Passar modeller
      Fendt Model: 800 Model series: 800 Series Size of motor: 6.9 Brand of engine: D286.. From date: 01-06-1993 Fuel: Diesel Approved: Yes
      Fendt Model: 900 Model series: 900 Series Approved: Yes
