Artikelnr: F032113210

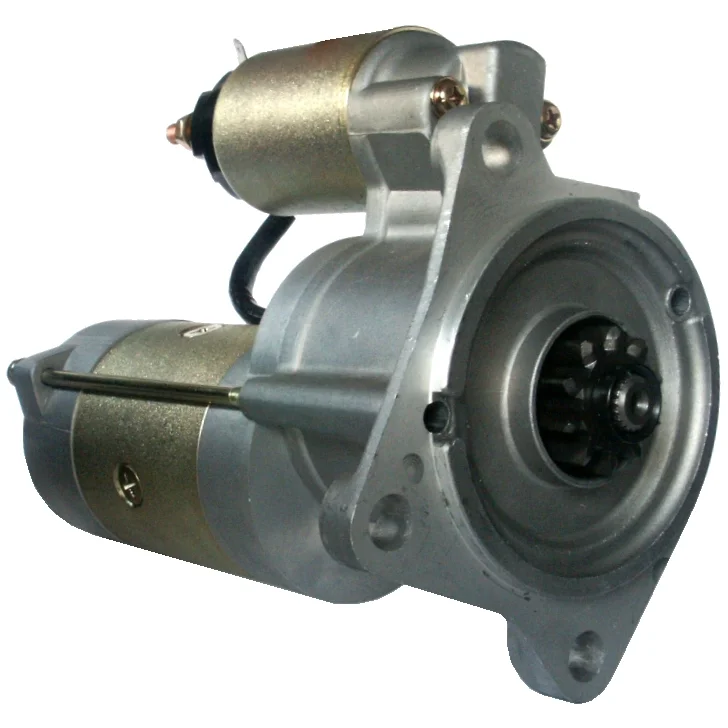

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 3.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 24
kW: 3.2
Mount. flange: 105.00
Drive dist.: 11.00
Mount. hole 3 mm: 13.20
Mount. hole 2 mm: 13.20
Mount. hole 1 mm: 13.20
Dist./back: 212.00
Dist./front: 18.50
No./teeth: 10
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: DD/GR
Dist. 2: 96.50
Dist. 3: 137.50
Dist. mm: 81.00
Rotation: CW
Total length mm: 240.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 105.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Prod. info BN
Dist. 2 96.50
Dist. 3 137.50
Rotation CW
Dist./back 212.00
Dist./front 18.50
Drive dist. 11.00
Drive type Steel
Gear type DD/GR
kW 3.2
Terminal 50 6.30
Voltage 24
Total length 240.00 mm
Waterproof No
Dist. 81.00 mm
Mount. hole 3 13.20 mm
Mount. hole 2 13.20 mm
Mount. hole 1 13.20 mm

  • OEM
    F032113210, M002T64371, M002T64373, m2t64371, m2t64372, m2t64373, s24-01, s24-01b, s24-01c, s24-01d, s25-125, s25-125a, s25-125b, s25-302, s25-303, s25-303a, 23300-t9000, 23300-T9003, 23300-t9005, 23300-t9007, 23300-t9009, 23300-t9010

  • Konkurrentreferens
    CST35607, drs3278, F042001172, F042S01172, LRS01848, s-8658, S5052, STR6143, 2-2101-mi, 28-52.157, 45-1211, 627.015.104, 18287, 19842N, 8052157, 11040370

  • Normaliserat artikelnummer
    cst35607, drs3278, f032113210, f042001172, f042s01172, lrs01848, m002t64371, m002t64373, m2t64371, m2t64372, m2t64373, s2401, s2401b, s2401c, s2401d, s25125, s25125a, s25125b, s25302, s25303, s25303a, s5052, s8658, str6143, 18287, 19842n, 22101mi, 23300t9000, 23300t9003, 23300t9005, 23300t9007, 23300t9009, 23300t9010, 451211, 2852157, 8052157, 11040370, 627015104
  • Beskrivning
    Voltage: 24
    kW: 3.2
    Mount. flange: 105.00
    Drive dist.: 11.00
    Mount. hole 3 mm: 13.20
    Mount. hole 2 mm: 13.20
    Mount. hole 1 mm: 13.20
    Dist./back: 212.00
    Dist./front: 18.50
    No./teeth: 10
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Gear type: DD/GR
    Dist. 2: 96.50
    Dist. 3: 137.50
    Dist. mm: 81.00
    Rotation: CW
    Total length mm: 240.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 105.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 60
    Prod. info BN
    Dist. 2 96.50
    Dist. 3 137.50
    Rotation CW
    Dist./back 212.00
    Dist./front 18.50
    Drive dist. 11.00
    Drive type Steel
    Gear type DD/GR
    kW 3.2
    Terminal 50 6.30
    Voltage 24
    Total length 240.00 mm
    Waterproof No
    Dist. 81.00 mm
    Mount. hole 3 13.20 mm
    Mount. hole 2 13.20 mm
    Mount. hole 1 13.20 mm
  • Fordonsmatchning

    • OEM
      F032113210, M002T64371, M002T64373, m2t64371, m2t64372, m2t64373, s24-01, s24-01b, s24-01c, s24-01d, s25-125, s25-125a, s25-125b, s25-302, s25-303, s25-303a, 23300-t9000, 23300-T9003, 23300-t9005, 23300-t9007, 23300-t9009, 23300-t9010

    • Konkurrentreferens
      CST35607, drs3278, F042001172, F042S01172, LRS01848, s-8658, S5052, STR6143, 2-2101-mi, 28-52.157, 45-1211, 627.015.104, 18287, 19842N, 8052157, 11040370

    • Normaliserat artikelnummer
      cst35607, drs3278, f032113210, f042001172, f042s01172, lrs01848, m002t64371, m002t64373, m2t64371, m2t64372, m2t64373, s2401, s2401b, s2401c, s2401d, s25125, s25125a, s25125b, s25302, s25303, s25303a, s5052, s8658, str6143, 18287, 19842n, 22101mi, 23300t9000, 23300t9003, 23300t9005, 23300t9007, 23300t9009, 23300t9010, 451211, 2852157, 8052157, 11040370, 627015104
