Artikelnr: F032112342

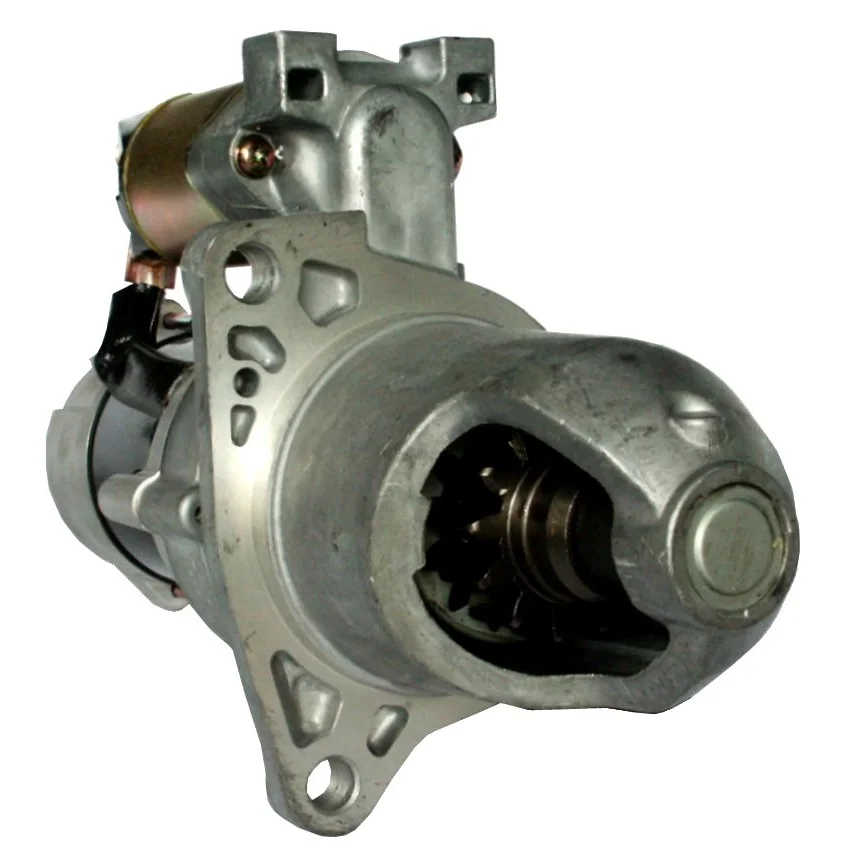

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 5.5, No./teeth: 13, Rotation: CW

Beskrivning

Voltage: 24
kW: 5.5
Mount. flange: 100.00
Drive dist.: 68.00
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 239.00
Dist./front: 129.00
No./teeth: 13
B+: M10
Position/50: 45
Terminal 50: M5
Gear type: GR
Dist. 2: 133.00
Dist. 3: 149.00
Dist. mm: 109.00
Rotation: CW
Total length mm: 368.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 13
Mount. flange 100.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Prod. info BN
Dist. 2 133.00
Dist. 3 149.00
Rotation CW
Dist./back 239.00
Dist./front 129.00
Drive dist. 68.00
Drive type Steel
Gear type GR
kW 5.5
Terminal 50 M5
Voltage 24
Total length 368.00 mm
Waterproof No
Dist. 109.00 mm
Mount. hole 3 13.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032112342, M000A0271, M003T95071, M003T95072, M003T95073, M003T95081, M003T95082, M004T55072, M004T55076, M004T55077, M34466, m3t95071, m3t95072, m3t95073, m3t95081, m3t95082, M4T55071, m4t55072, m4t55076, m4t55077, me057200, me057350, me057845, me057985, me057990, mg255301, 36100-83010

  • Konkurrentreferens
    CST32600, DRS0429, F042000237, F042S00237, S5047, S5182, STR-9107, STR28009, STR9107, 2-2237-MI, 2-2237-MI-1, 45-2170, 626.019.134, 17317, 18243, 18243N, 220618, 220618A, 254334, 600316, 600885

  • Normaliserat artikelnummer
    cst32600, drs0429, f032112342, f042000237, f042s00237, m000a0271, m003t95071, m003t95072, m003t95073, m003t95081, m003t95082, m004t55072, m004t55076, m004t55077, m34466, m3t95071, m3t95072, m3t95073, m3t95081, m3t95082, m4t55071, m4t55072, m4t55076, m4t55077, me057200, me057350, me057845, me057985, me057990, mg255301, s5047, s5182, str28009, str9107, 17317, 18243, 18243n, 22237mi, 22237mi1, 220618, 220618a, 254334, 452170, 600316, 600885, 626019134, 3610083010

  • Passar modeller
    Hyundai Model: 360 Model series: 360 Brand of engine: 6D22. Fuel: Diesel Approved: Yes
    Mitsubishi Model: Engine Model series: Engine Brand of engine: 6D22. From date: 01-01-1987 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 5.5
    Mount. flange: 100.00
    Drive dist.: 68.00
    Mount. hole 3 mm: 13.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 239.00
    Dist./front: 129.00
    No./teeth: 13
    B+: M10
    Position/50: 45
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 133.00
    Dist. 3: 149.00
    Dist. mm: 109.00
    Rotation: CW
    Total length mm: 368.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 13
    Mount. flange 100.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Prod. info BN
    Dist. 2 133.00
    Dist. 3 149.00
    Rotation CW
    Dist./back 239.00
    Dist./front 129.00
    Drive dist. 68.00
    Drive type Steel
    Gear type GR
    kW 5.5
    Terminal 50 M5
    Voltage 24
    Total length 368.00 mm
    Waterproof No
    Dist. 109.00 mm
    Mount. hole 3 13.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Fordonsmatchning

    • OEM
      F032112342, M000A0271, M003T95071, M003T95072, M003T95073, M003T95081, M003T95082, M004T55072, M004T55076, M004T55077, M34466, m3t95071, m3t95072, m3t95073, m3t95081, m3t95082, M4T55071, m4t55072, m4t55076, m4t55077, me057200, me057350, me057845, me057985, me057990, mg255301, 36100-83010

    • Konkurrentreferens
      CST32600, DRS0429, F042000237, F042S00237, S5047, S5182, STR-9107, STR28009, STR9107, 2-2237-MI, 2-2237-MI-1, 45-2170, 626.019.134, 17317, 18243, 18243N, 220618, 220618A, 254334, 600316, 600885

    • Normaliserat artikelnummer
      cst32600, drs0429, f032112342, f042000237, f042s00237, m000a0271, m003t95071, m003t95072, m003t95073, m003t95081, m003t95082, m004t55072, m004t55076, m004t55077, m34466, m3t95071, m3t95072, m3t95073, m3t95081, m3t95082, m4t55071, m4t55072, m4t55076, m4t55077, me057200, me057350, me057845, me057985, me057990, mg255301, s5047, s5182, str28009, str9107, 17317, 18243, 18243n, 22237mi, 22237mi1, 220618, 220618a, 254334, 452170, 600316, 600885, 626019134, 3610083010

    • Passar modeller
      Hyundai Model: 360 Model series: 360 Brand of engine: 6D22. Fuel: Diesel Approved: Yes
      Mitsubishi Model: Engine Model series: Engine Brand of engine: 6D22. From date: 01-01-1987 Fuel: Diesel Approved: Yes
