Artikelnr: F032111020

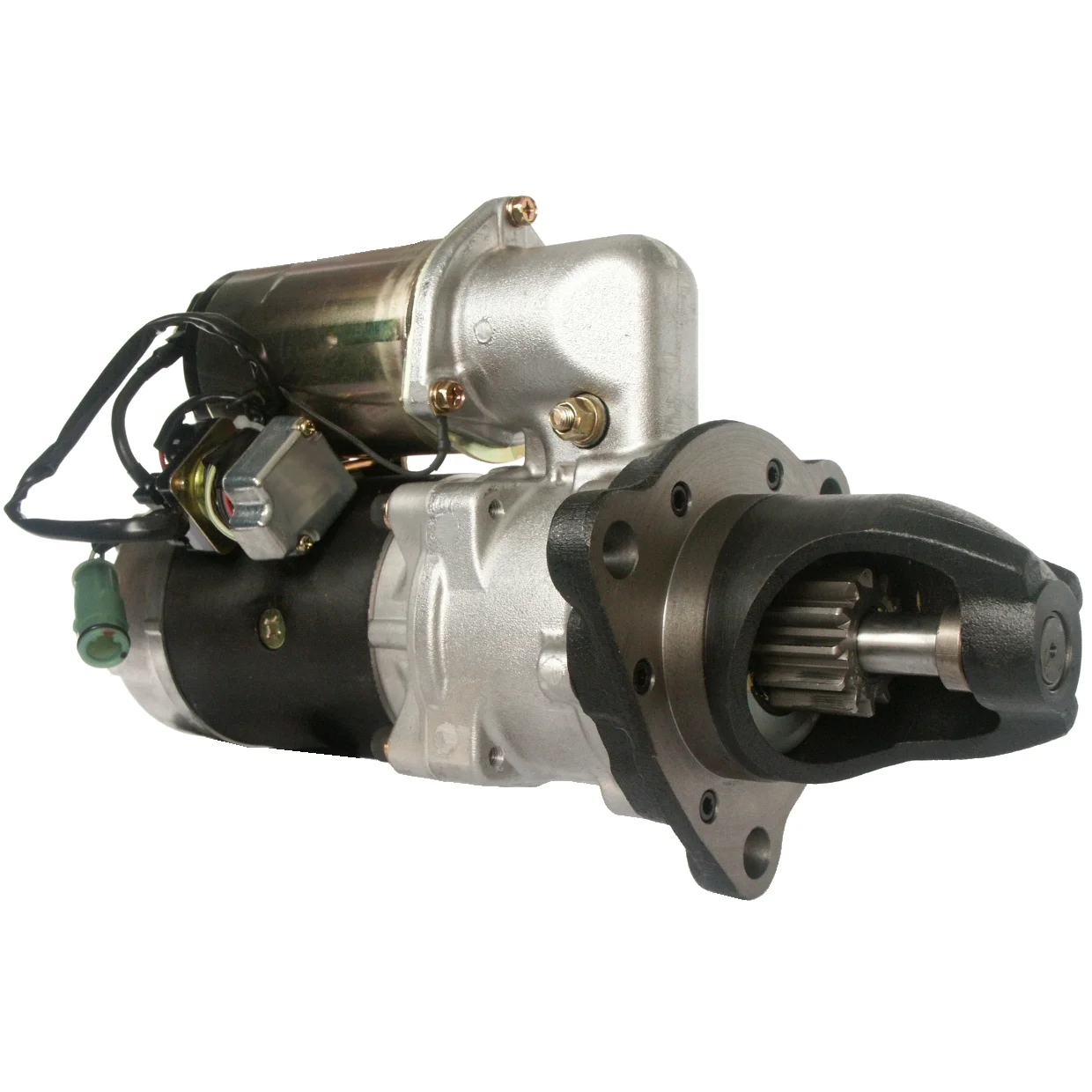

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 7.5, No./teeth: 12, Rotation: CW

Beskrivning

Voltage: 24
kW: 7.5
Mount. flange: 92.00
Drive dist.: 47.00
Mount. hole 3 mm: 17.00
Dist./back: 302.50
Dist./front: 104.00
No./teeth: 12
B+: M10
Position/50: 15
Terminal 50: Plug
Gear type: GR
Dist. 2: 128.50
Dist. 3: 128.50
Dist. mm: 128.50
Rotation: CW
Total length mm: 407.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
Remarks: w/ safety switch.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 12
Mount. flange 92.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/50 15
Prod. info BN
Dist. 2 128.50
Remarks w/ safety switch.
Dist. 3 128.50
Rotation CW
Dist./back 302.50
Dist./front 104.00
Drive dist. 47.00
Drive type Steel
Gear type GR
kW 7.5
Terminal 50 Plug
Voltage 24
Total length 407.00 mm
Waterproof No
Dist. 128.50 mm
Mount. hole 3 17.00 mm

  • OEM
    0-23000-3331, 0-23000-3332, 0-23000-3335, 0-23000-6530, 0-23000-6531, 0-23000-6532, 0-23000-6533, 0-23000-7020, 0-23000-7021, 0-23000-8300, F032111020, 600-813-4670, 600-813-4671, 600-813-4672, 600-813-6632

  • Konkurrentreferens
    CST50614, F042000248, F042S00248, s-8832b, S9006, S9271, sn-00215r, STR-9119, STR75203, STR9119, 45-1409, 91-28-4007, 18107, 18107N, 18522N, 254576

  • Normaliserat artikelnummer
    cst50614, f032111020, f042000248, f042s00248, s8832b, s9006, s9271, sn00215r, str75203, str9119, 18107, 18107n, 18522n, 254576, 451409, 91284007, 0230003331, 0230003332, 0230003335, 0230006530, 0230006531, 0230006532, 0230006533, 0230007020, 0230007021, 0230008300, 6008134670, 6008134671, 6008134672, 6008136632

  • Passar modeller
    Komatsu Model: GD Model series: Various Models Brand of engine: 6D125 From date: 01-01-1986 Fuel: Diesel Approved: Yes
    Komatsu Model: PC Model series: PC310 Brand of engine: 6D105 From date: 01-01-1991 Fuel: Diesel Approved: Yes
    Komatsu Model: PC Model series: PC400 Brand of engine: 6D125 From date: 01-01-1986 Fuel: Diesel Approved: Yes
    Komatsu Model: PC Model series: PC410 Brand of engine: 6D125 From date: 01-01-1991 Fuel: Diesel Approved: Yes
    Komatsu Model: PC Model series: PC650 Brand of engine: 6D650 From date: 01-01-1988 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 7.5
    Mount. flange: 92.00
    Drive dist.: 47.00
    Mount. hole 3 mm: 17.00
    Dist./back: 302.50
    Dist./front: 104.00
    No./teeth: 12
    B+: M10
    Position/50: 15
    Terminal 50: Plug
    Gear type: GR
    Dist. 2: 128.50
    Dist. 3: 128.50
    Dist. mm: 128.50
    Rotation: CW
    Total length mm: 407.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    Remarks: w/ safety switch.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 12
    Mount. flange 92.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/50 15
    Prod. info BN
    Dist. 2 128.50
    Remarks w/ safety switch.
    Dist. 3 128.50
    Rotation CW
    Dist./back 302.50
    Dist./front 104.00
    Drive dist. 47.00
    Drive type Steel
    Gear type GR
    kW 7.5
    Terminal 50 Plug
    Voltage 24
    Total length 407.00 mm
    Waterproof No
    Dist. 128.50 mm
    Mount. hole 3 17.00 mm
  • Fordonsmatchning

    • OEM
      0-23000-3331, 0-23000-3332, 0-23000-3335, 0-23000-6530, 0-23000-6531, 0-23000-6532, 0-23000-6533, 0-23000-7020, 0-23000-7021, 0-23000-8300, F032111020, 600-813-4670, 600-813-4671, 600-813-4672, 600-813-6632

    • Konkurrentreferens
      CST50614, F042000248, F042S00248, s-8832b, S9006, S9271, sn-00215r, STR-9119, STR75203, STR9119, 45-1409, 91-28-4007, 18107, 18107N, 18522N, 254576

    • Normaliserat artikelnummer
      cst50614, f032111020, f042000248, f042s00248, s8832b, s9006, s9271, sn00215r, str75203, str9119, 18107, 18107n, 18522n, 254576, 451409, 91284007, 0230003331, 0230003332, 0230003335, 0230006530, 0230006531, 0230006532, 0230006533, 0230007020, 0230007021, 0230008300, 6008134670, 6008134671, 6008134672, 6008136632

    • Passar modeller
      Komatsu Model: GD Model series: Various Models Brand of engine: 6D125 From date: 01-01-1986 Fuel: Diesel Approved: Yes
      Komatsu Model: PC Model series: PC310 Brand of engine: 6D105 From date: 01-01-1991 Fuel: Diesel Approved: Yes
      Komatsu Model: PC Model series: PC400 Brand of engine: 6D125 From date: 01-01-1986 Fuel: Diesel Approved: Yes
      Komatsu Model: PC Model series: PC410 Brand of engine: 6D125 From date: 01-01-1991 Fuel: Diesel Approved: Yes
      Komatsu Model: PC Model series: PC650 Brand of engine: 6D650 From date: 01-01-1988 Fuel: Diesel Approved: Yes
